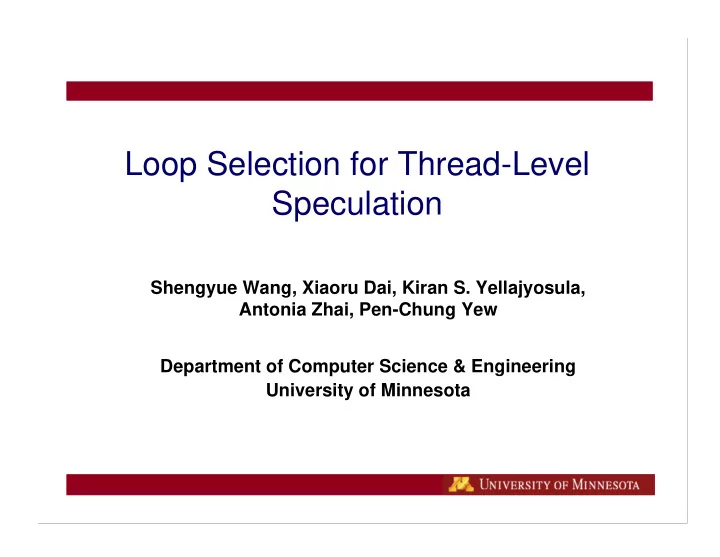

Loop Selection for Thread-Level Speculation

Shengyue Wang, Xiaoru Dai, Kiran S. Yellajyosula, Antonia Zhai, Pen-Chung Yew Department of Computer Science & Engineering University of Minnesota

Shengyue Wang

Chip Multiprocessors (CMPs)

• CMPs:
• IBM Power5
• Sun Niagara
• Intel dual-core Xeon
• AMD dual-core Opteron

Proc Proc Proc Cache

Improve program performance with parallel threads

IBM Power5

Shengyue Wang

Thread-Level Speculation (TLS) Automatic parallelization is difficult

• Ambiguous data dependences
• Complex control flow

TLS facilitates automatic parallelization by:

• Executing potentially dependent threads in parallel
• Preserving data dependences via runtime checking

Where do we find speculative parallel threads?

Shengyue Wang

Parallelizing Loops under TLS Loops are good candidates for parallelism

• Regular structure
• Significant coverage on dynamic execution time

General purpose applications are complicated Facts about SPECINT 2000

• Average number of loops: 714
• Average dynamic loop nesting: 8

Loop selection: which loops should be parallelized?

Shengyue Wang

Potential of Loop Selection

• 40%
• 20%

0% 20% 40% 60% 80% 100% m c f c r a f t y t w

• l

f g z i p b z i p 2 v

• r

t e x v p r p a r s e r g a p g c c p e r l b m k

Outer loop Inner loop Best

program speedup

Carefully selected loops can improve performance significantly!

Shengyue Wang

Outline Loop selection Algorithm

• Parallel performance prediction
• Dynamic loop behavior
• Conclusions

Shengyue Wang

Loop Nesting

main( ) { while ( condition1 ) { while ( condition2 ) { foo( ); goo( ); } } }

Loop graph Source code : static loop : nesting relationship

main_loop1 main_loop2 goo_loop1 foo_loop1 foo( ) { while ( condition3 ) { goo( ); } } goo( ) { while ( condition4 ) { } }

Shengyue Wang

Benefit of Parallelizing a Single Loop

benefit = % program execution time saved = coverage × (1 – 1 / loop speedup)

Benefit Loop Speedup Coverage main_loop1 main_loop2 goo_loop1 foo_loop1

13% 20% 5% 18%

80% 1.2 13% 70% 1.4 20% 30% 1.2 5% 50% 1.6 18%

Program speedup = 1 / (1 - benefit) = 1.25

Shengyue Wang

Loop Selection: Problem Definition Goal:

Select the set of loops that maximizes the

• verall program performance when parallelized

Constraint:

The set cannot contain loops with nesting relationship

Loop selection is NP-complete!

Weighted maximum independent set

Shengyue Wang

Loop Selection: Algorithm

• Exhaustive search (≤ 50 nodes)
• Try all possible combinations of loops
• Greedy algorithm (> 50 nodes)
• In descending order of benefit
• Check for nesting relation
• Add the loop to the set if no nesting

Average number of loops for SPECINT 2000: 714

Shengyue Wang

Loop Pruning

Only resort to greedy algorithm for gcc and parser

loop3 loop4 loop5 loop6 loop7 loop8 loop2 loop1

Shengyue Wang

Benefit of Parallelizing a Single Loop

Loop graph

Benefit Coverage main_loop1 main_loop2 goo_loop1 foo_loop1

13% 20% 5% 18%

80% 1.2 13% 70% 1.4 20% 30% 1.2 5% 50% 1.6 18%

How can we estimate the speedup?

Speedup

Shengyue Wang

Outline Loop selection

• Algorithm

Parallel performance prediction

• Dynamic loop behavior
• Conclusions

Shengyue Wang

Estimating Parallel Performance Communicating value between speculative threads adds significant overhead to parallel execution

• Synchronization:
• Resolves frequently occurring data dependences
• Speculation:
• Resolves infrequently occurring data dependences

Estimating communication costs with the compiler

Shengyue Wang

Cost of Mis-speculation

Cost of mis-speculation = amount of work wasted × prob. of mis-speculation

T1 store T2 load

×

Amount of work wasted

Shengyue Wang

Cost of Mis-speculation

Cost of mis-speculation = amount of work wasted × prob. of mis-speculation

T1 store T2 load

×

Amount of work wasted Sequential part

Shengyue Wang

Synchronization

T1 T2 load store

Synchronization serializes parallel execution

Shengyue Wang

Cost of Synchronization

T1 T2 load2 load1 store2 store1 T1 T2 store1 T1 T2 load1 store1

Synchronization Cost = # of dependent instructions Synchronization Cost = longest stall Synchronization Cost = longest stall based on dependent instructions

load1

• Est. I
• Est. II
• Est. III

Shengyue Wang

Experimental Framework

• Machine model
• 4 single-issue in-order processors
• Private L1 data cache (32K, 2-way, 1 cycle)
• Shared L2 data cache (2M, 4-way, 10 cycles)
• Speculation support (write buffer, address buffer)
• Synchronization support (comm. buffer, 10 cycles)
• Compiler optimizations using ORC 2.1
• Instruction scheduling to improve parallelism

Shengyue Wang

Comparison: Speedup Estimation Techniques

• 40%
• 20%

0% 20% 40% 60% 80% 100% m cf crafty tw

• lf

gzip bzip2 v

• rtex

v pr parser gap gcc perlbm k

• Est. I
• Est. II
• Est. III

Perfect

0% 20% 40% 60% 80% 100% m cf crafty twolf gzip bzip2 vortex vpr parser gap gcc perlbm k

• Est. I
• Est. II
• Est. III

Perfect

program speedup

• 40%
• 20%

0% 20% 40% 60% 80% 100% m cf crafty tw

• lf

gzip bzip2 v

• rtex

v pr parser gap gcc perlbm k

• Est. I
• Est. II
• Est. III

Perfect

• 40%
• 20%

0% 20% 40% 60% 80% 100% m cf crafty tw

• lf

gzip bzip2 v

• rtex

v pr parser gap gcc perlbm k

• Est. I
• Est. II
• Est. III

Perfect

• 40%
• 20%

0% 20% 40% 60% 80% 100% m cf crafty tw

• lf

gzip bzip2 v

• rtex

v pr parser gap gcc perlbm k

• Est. I
• Est. II
• Est. III

Perfect

0% 20% 40% 60% 80% 100% m cf crafty twolf gzip bzip2 vortex vpr parser gap gcc perlbm k

• Est. I
• Est. II
• Est. III

Perfect

0% 20% 40% 60% 80% 100% m cf crafty twolf gzip bzip2 vortex vpr parser gap gcc perlbm k

• Est. I
• Est. II
• Est. III

Perfect

0% 20% 40% 60% 80% 100% m cf crafty twolf gzip bzip2 vortex vpr parser gap gcc perlbm k

• Est. I
• Est. II
• Est. III

Perfect

coverage

Average program speedup: 20%, coverage: 70%

Shengyue Wang

Outline

• Loop selection
• Algorithm
• Parallel performance prediction

Dynamic loop behavior

• Conclusions

Shengyue Wang

Loop Behavior May Change

main( ) { while ( condition1 ) { while ( condition2 ) { foo( ); goo( ); } } }

Source code Calling context of a loop: the path from the root to that loop

foo( ) { while ( condition3 ) { goo( ); } } goo( ) { while ( condition4 ) { } } main_loop1 main_loop2 foo_loop1 goo_loop1_A goo_loop1_B

Loop tree

Shengyue Wang

Loop Selection in a Tree

main_loop1 main_loop2 foo_loop1 goo_loop1_A goo_loop1_B

13% 20% 5%

• 2%

18%

goo_loop1 is parallelized

• nly when it is reached

from main_loop2

Loop cloning can be used

Shengyue Wang

Loop Behavior May Change

Exploit loop behavior dynamically

main_loop1 goo_loop1_A goo_loop1_B foo_loop1 foo_loop1

• nly parallelize the loop

in these invocations

Shengyue Wang

Potential of Exploiting Dynamic Behavior

0% 20% 40% 60% 80% 100% m cf cra fty tw

• lf

g zip b zip 2 vo rtex vp r p a rs er g a p g cc p e rlbm k

No Co n te x t Ca llin g Co n te x t O ra cle

0% 20% 40% 60% 80% 100% m cf cra fty tw

• lf

g zip b zip 2 vo rtex vp r p a rs er g a p g cc p e rlbm k

No Co n te x t Ca llin g Co n te x t O ra cle

0% 20% 40% 60% 80% 100% m cf cra fty tw

• lf

g zip b zip 2 vo rtex vp r p a rs er g a p g cc p e rlbm k

No Co n te x t Ca llin g Co n te x t O ra cle

program speedup

0% 20% 40% 60% 80% 100% m cf cra fty tw

• lf

g zip b zip 2 vo rtex vp r p a rs er g a p g cc p e rlbm k

No Co n te x t Ca llin g Co n te x t O ra cle

0% 20% 40% 60% 80% 100% m cf cra fty tw

• lf

g zip b zip 2 vo rtex vp r p a rs er g a p g cc p e rlbm k

No Co n te x t Ca llin g Co n te x t O ra cle

0% 20% 40% 60% 80% 100% m c f c r a f t y t w

• l

f g z i p b z i p 2 v

• r

t e x v p r p a r s e r g a p g c c p e r l b m k

No Co n te x t Ca llin g Co n te x t O ra cle

coverage 5 out of 11 benchmarks show performance potential

Shengyue Wang

Conclusions Loop selection is important for TLS

• Compiler-based loop selection
• Speedup 20%, Coverage 70%
• Exploiting dynamic behavior offers

performance potential

Shengyue Wang
