Long-Term JPEG Data Protection and Recovery for NAND Flash-Based Solid-State Storage Yu-Chun Kuo, Ruei-Fong Chiu, and Ren-Shuo Liu System and Storage Design Lab Department of Electrical Engineering National Tsing Hua University Taiwan 1

slide-1
SLIDE 1

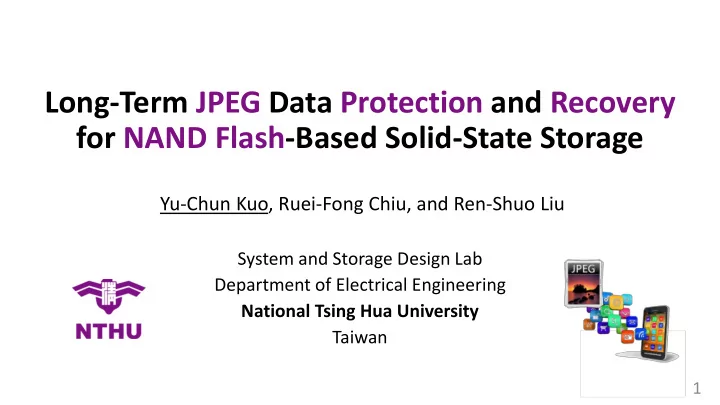

Long-Term JPEG Data Protection and Recovery for NAND Flash-Based Solid-State Storage

Yu-Chun Kuo, Ruei-Fong Chiu, and Ren-Shuo Liu

System and Storage Design Lab Department of Electrical Engineering National Tsing Hua University Taiwan

1

slide-2
SLIDE 2

Overview

  • SD cards and eMMC consistute massive storage
  • Tens to hundreds of Exabytes per year
  • JPEG pictures are one of the most valuable data in them
  • Leaving JPEG files in SD and eMMC for a long term is risky
  • NAND flash is prone to have retention errors
  • Uncorrectable errors  corrupted pictures

2

A Few Years Later

slide-3
SLIDE 3

Contributions

  • Increase the robustness of JPEG stored in NAND flash
  • At the cost of 9.9% storage overhead
  • Rescue corrupted JPEG files
  • Four techniques based on our observations
  • Strong-page header protection
  • Bit error propagation prevention
  • DC error propagation mitigation
  • Huffman-assisted error correction
  • Compatible with existing JPEG viewers

3

slide-4
SLIDE 4

Outline

  • JPEG Background
  • Observations and Design
  • Evaluation
  • Conclusion

4

slide-5
SLIDE 5

JPEG Encoding Steps (Simplified)

  • DCT: Discrete Cosine Transform
  • DPCM: Differential Pulse Code Modulation
  • JFIF: JPEG File Interchange Format

5

8x8 Blocks DCT DPCM Huffman Compression JFIF DC AC

slide-6
SLIDE 6

6 8 8

8x8 Blocks DCT DPCM Huffman Compression JFIF DC AC

slide-7
SLIDE 7

7 8 8 8 8

DC (mean value of the 8x8 block) 63 AC's

DCT

8x8 Blocks DCT DPCM Huffman Compression JFIF DC AC

slide-8
SLIDE 8

8

Absolute DC values: Differential DC values: 8x8 Blocks DCT DPCM Huffman Compression JFIF DC AC

slide-9
SLIDE 9

9

Popular values Less bits Less-popular values More bits

011 111 0011110 111

2 3 14 3

8x8 Blocks DCT DPCM Huffman Compression JFIF DC AC

slide-10
SLIDE 10

10

Header

  • Picture width & height
  • Sampling method
  • Huffman tables

Body

Huffman bits

  • f all 8×8 blocks

8x8 Blocks DCT DPCM Huffman Compression JFIF DC AC

slide-11
SLIDE 11

Outline

  • Background
  • Observations and Design
  • Evaluation
  • Conclusion

11

slide-12
SLIDE 12

Observations

  • Unequal criticality of JPEG file contents
  • Error propagation phenomena
  • Bit error propagation
  • DC error propagation
  • Skewed reliability of NAND flash

12

slide-13
SLIDE 13

Unequal Criticality of JPEG File Contents

13

Header

  • Picture width & height
  • Sampling method
  • Huffman tables

Body Huffman bits of all 8×8 blocks

slide-14
SLIDE 14

Unequal Criticality of JPEG Data

14

Header having a single bit error  very likely corrupts the entire picture

slide-15
SLIDE 15

Unequal Criticality of JPEG Data

15

Body having a single bit error  the results depends

  • Nearly identical
  • Horizontal stripes • Totally corrupted
slide-16
SLIDE 16

Observations

  • Unequal criticality of JPEG
  • Error propagation phenomena

16

 Horizontal stripes

  • DC error propagation
  • Bit error propagation

 Totally corrupted

slide-17
SLIDE 17

Bit Error Propagation Phenomenon

17

Huffman is a variable-length coding scheme

 bit error can change code length  many following codes can thus be mis-decoded

011 111 0011110 111 011 111 011 111 011

2 3 14 3

111

2 3 2 2 3

slide-18
SLIDE 18

DC Error Propagation Phenomenon

18

JPEG stores differential DC values

 Once a bit error interferes with one value, the following values are also mis-decoded Original values: DPCM encoded: Decoded values:

slide-19
SLIDE 19

Observations

  • Unequal criticality of JPEG
  • Error propagation phenomena
  • Bit error propagation
  • DC error propagation
  • Skewed reliability of NAND flash

19

slide-20
SLIDE 20

Skewed Storage Reliability

  • One third of flash pages can store data much more reliably

than the other pages

  • We refer to them as strong/weak pages
  • This property is known to SD and eMMC vendors but

is not exposed to users and applications

20

Flash Address Space Strong Weak

slide-21
SLIDE 21

Skewed Storage Reliability

  • Bits are grouped into MSB, CSB, LSB pages
  • LSB pages are strong pages for the flash we tested

21

unlikely to happen

2 3 2

# of

slide-22
SLIDE 22

Proposed Techniques

  • Strong-page header protection
  • Bit error propagation prevention
  • DC error propagation mitigation
  • Huffman-assisted error correction

22

slide-23
SLIDE 23

23

Application Storage

weak weak strong

Applications Oblivious to Strong/Weak Pages

slide-24
SLIDE 24

Strong-Page Header Protection

24

Application Storage

strong strong strong

slide-25
SLIDE 25

Bit Error Propagation Prevention

  • We additionally store the length of each 8×8 block in JPEG

header

  • Stop bit errors from propagation

25

16

011 111 0011110 111 011 111 011 111 011

2 3 14 3

111

2 3 2 2 3

slide-26
SLIDE 26

DC Error Propagation Mitigation

  • Thumbnail
  • Small JPEG embedded in the header of the

main JPEG

  • Facilitate image preview
  • We propose to set the width and height of

the thumbnail to be 1/8 of the main JPEG

  • By doing so, thumbnail pixels approximate

the DC values of the main JPEG

26 Thumbnail:

slide-27
SLIDE 27

DC Error Propagation Mitigation

  • Use thumbnail pixels to calibrate

decoded DCs

  • Error propagation is mitigated

27 Thumbnail:

Decoded DCs Thumbnail pixels

10 16 17 19 21

slide-28
SLIDE 28

Huffman-Assisted Error Correction

  • Many 8×8 blocks contain only single bit error
  • 8×8 block is around 100 bits
  • Target bit error rate is 10-2
  • We propose to correct single bit error

per 8×8 block in a trial-and-error manner

28 Flip one bit Decode the block Check

slide-29
SLIDE 29

Huffman-Assisted Error Correction

  • We additionally store the number of Huffman codes of each

8×8 block in the header to check whether decoding is successful

29

4 Decoding results: 5

011 111 0011110 111 011 111 011 111 011

2 3 14 3

111

2 3 2 2 3

Flip one bit Decode the block Check

Check

slide-30
SLIDE 30

Outline

  • Background
  • Observations and Design
  • Evaluation
  • Conclusion

30

slide-31
SLIDE 31

Setup

  • Platform
  • Xilinx Zedboard FPGA
  • 16nm, 3-bit-per-cell flash chip
  • 105 JPEG files
  • 100 from personal iPhone (3264×2448)
  • Five from the Kodak suite (3072×2048)
  • Temperature acceleration
  • 70 hours under 85°C = 10 years under 25°C
  • Assume bit error rates greater than 5×10-3 are uncorrectable

31

slide-32
SLIDE 32

Experiments

  • Flash characterization
  • Average bit error rate
  • Percentage of uncorrectable 2KB data blocks
  • JPEG image quality at retention time wihin 10 years
  • PSNR (Peak Signal to Noise Ratio)
  • SSIM (Structural Similarity Index)

32

slide-33
SLIDE 33

Average Raw BERs (Within 10 Years at 25 °C)

33

Strong pages Weak pages

slide-34
SLIDE 34

Average % of Uncorrectable 2KB Blocks

34

Strong pages Weak pages

slide-35
SLIDE 35

Image Quality (10 Years at 25 °C)

35

Ideal JPEG

  • Strong-page header

protection

  • Bit error propagation

prevention

This work

All the four techniques

Baseline

slide-36
SLIDE 36

Average PSNR (Within 10 Years at 25 °C)

36

slide-37
SLIDE 37

Average SSIM (Within 10 Years at 25 °C)

37

slide-38
SLIDE 38

Concerns About Employing Extra ECC Parities

  • Employing that at flash chip level
  • Cost per bit increases
  • Vendors are reluctant to do so
  • Employing that at disk level
  • Disk capacity becomes non-constant
  • May be problematic to applications and operating systems
  • Employing that at application level
  • Effectiveness of the extra parities is limited
  • Modern ECCs heavily rely on low-level accesses to flash memory

38

slide-39
SLIDE 39

Conclusion

  • Increasing the robustness of JPEG files and rescue corrupted

JPEG files in flash-based storage

  • Four techniques
  • Strong-page header protection
  • Bit error propagation prevention
  • DC error propagation mitigation
  • Huffman-assisted error correction
  • Rescue corrupted JPEG files (10 years @ 25 °C)
  • Up to 24.3 dB PSNR improvement
  • At the cost of 9.9% of storage overhead
  • Backward compatible with existing JPEG viewers

39

slide-40
SLIDE 40

Long-Term JPEG Data Protection and Recovery for NAND Flash-Based Solid-State Storage

Yu-Chun Kuo, Ruei-Fong Chiu, and Ren-Shuo Liu System and Storage Design Lab Department of Electrical Engineering National Tsing Hua University Taiwan

40

slide-41
SLIDE 41

JPEG Decoding and Recover Speed

  • It takes 12 seconds on average for our program to recover a

corrupted (10-year) JPEG file

  • Note that
  • Speed is not a top concern for rescuing corrupted JPEG files
  • It is easy to parallelize the recovery tasks of multiple corrupted

JPEG files

41

slide-42
SLIDE 42

Skewed Storage Reliability

42

LSB pages are strong pages MSB pages are strong pages
