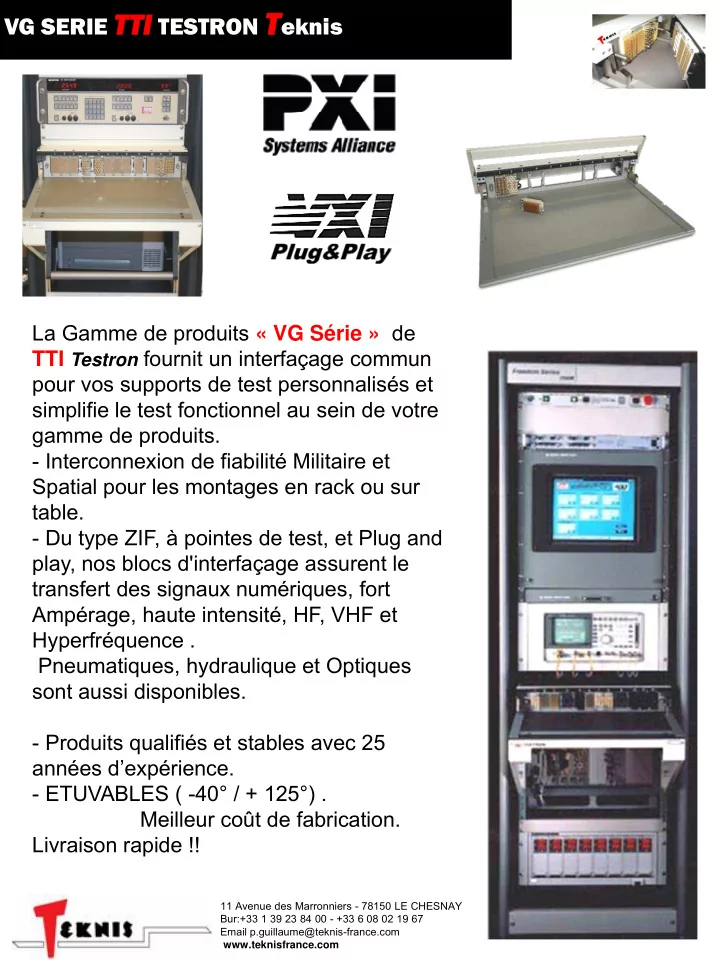

La Gamme de produits « VG Série » de TTI Testron fournit un interfaçage commun pour vos supports de test personnalisés et simplifie le test fonctionnel au sein de votre gamme de produits.

• Interconnexion de fiabilité Militaire et

Spatial pour les montages en rack ou sur table.

• Du type ZIF, à pointes de test, et Plug and

play, nos blocs d'interfaçage assurent le transfert des signaux numériques, fort Ampérage, haute intensité, HF, VHF et Hyperfréquence . Pneumatiques, hydraulique et Optiques sont aussi disponibles.

• Produits qualifiés et stables avec 25

années d’expérience.

• ETUVABLES ( -40° / + 125°) .

Meilleur coût de fabrication. Livraison rapide !!

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB-13CP VGFCB-13CP

The VGRCB-13CP provides 13 contacts for coax, power or a combination

• f both. Coax contacts are provided for signals up to 500 Mhz and

power signals up to 50Amps/250VAC. Proper alignment is ensured by: two precision alignment pins per block; two shoulder mounting screws per VGR block allow the block to float in the receiver.

Interface Receiver Assembly Connector Blocks Specifications

Coax Contacts

Receiver Side Part Number . . . . . . . . VGRCB-13CP Number of Contacts . . . . . . . . . . . . . 13 Dimensions . . . . . . . . . . . . . . . . . . . . .2.345h x 1.115w Voltage Rating . . . . . . . . . . . . . . . . . . 250 VAC Current Rating . . . . . . . . . . . . . . . . .. .1.5 Amp Contact Resistance . . . . . . . . . . . . . . 6 mı Capacitance . . . . . . . . . . . . . . . . . . . . 5 pF Inductance . . . . . . . . . . . . . . . . . . . .. . 3 nH Bandwidth (-3 dB Roll Off) . . . . . . . . . 500 Mhz Durability . . . . . . . . . . . . . . . . . . . . . . .5,000 cycles Power & Coax Receiver Interconnection Information Power Contacts 50 Amp . . . . . . . . . . . . . . . . . . . .CR610116102 Receiver Coax Contacts w/36" Cable Assembly 50ı RG174 . . . . . . . . . . . . . . . .. . .CR-CA50RG174-36 ITA Interconnection Information Fixture Mating Connector . . . . . . . . VGFCB-13CP ITA Coax Contacts w/36" Cable Assembly 50ı RG174 . . . . . . . . . . . . . . . . . . . CF-CA50RG174-36 Power Contacts Receiver Side Part Number . .. . . . . VGRCB-13CP Number of Contacts . . . . . . . . . . . . . . . . 13 Dimensions . . . . . . . . . . . . . . ..2.345h x 1.115w Voltage Rating . . . . . . . . . . . . . 250 VAC Current Rating * . . . . . . . . . . . .50 Amp Contact Resistance . . . . . . . . . 6 mı Capacitance . . . . . . . . . . . . . . . 50 pF Inductance . . . . . . . . . . . . . . . . 3 nH Bandwidth (-3 dB Roll Off) . .. . 1 Khz Durability . . . . . . . . . . . . . . . . . 25,000 cycles *50 Amp Ð various solder cup options are available for the ITA power configuration. 14 awg . . . . . . . . . . . . . . . . . .10115102 (std) 18 awg . . . . . . . . . . . . . . . . . .610115103 22 awg . . . . . . . . . . . . . . .. . . .610115118

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

Receiver Side Part Number . VGRCB-15CP Number of Contacts . . . . .. . 15 Dimensions . . . . . . . . . . . .. . .2.345h x 1.115w Voltage Rating . . . . . . . . . . . . . . . . . . 250 VAC Current Rating . . . . . . . . . . . . . . . . . .1.5 Amp Contact Resistance . . . . . . . . . . . . . . . . . 6 mı Capacitance . . . . . . . . . . . . . . . . . . . . . . . 5 pF Inductance . . . . . . . . . . . . . . . . . . . . . . . . . . 3 nH Bandwidth (-3 dB Roll Off) . . . . . . . . . . 500 Mhz Durability . . . . . . . . . . . . . . . . . . . 25,000 cycles Power & Coax Receiver Interconnection Information Power Contacts 50 Amp . . . . . . .. . . .CR610116102 Receiver Coax Contacts w/36" Cable Assembly 50ı RG174 . . . . . . . .CR-CA50RG174-36 ITA Interconnection Information Fixture Mating Connector . . . . VGFCB-15CP ITA Coax Contacts w/36" Cable Assembly 50ı RG174 . . . . . . . CF-CA50RG174-36 Power Contacts Receiver Side Part Number . . . VGRCB- 15CP Number of Contacts . . . . . . .. . 15 Dimensions . . . . . . . . . . . . . . . .2.345h x 1.115w Voltage Rating . . . . . . . . . . . . . 250 VAC Current Rating * . . .. . . . . . . . . .50 Amp Contact Resistance . . . . . . . . . 6 mı Capacitance . . . . . . . . . . . . . . . 50 pF Inductance . . . . . . . . . . . . . . . . 3 nH Bandwidth (-3 dB Roll Off) . . . . 1 Khz Durability . . . . . . . . . . . . . .. . . . 25,000 cycles *50 Amp Ð various solder cup options are available for the ITA power configuration. 14 awg . . . . . . . . . . . . ... . . 610115102 (std) 18 awg . . . . . . . . . . . . . . . .610115103 22 awg . . . . . . . . . . . . . . . .610115118 Note: The VGR and VGFCB-15CP are

• bsolete parts and should only be used in

applications requiring compatibility with older contact block designs. New systems should use either: VGR/VGFCB-13CP or VGR/VGFCB-15CPF

VGRCB-15CP VGFCB-15CP

The VGRCB-15CP provides 15 contacts for coax, power or a combination

• f both. Coax contacts are provided for signals

up to 500 Mhz and power signals up to 50Amps/250VAC.

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB-15CP F ( Flotant ) VGFCB-15CP

The VGRCB-15CP provides 15 contacts for coax, power or a combination of both. Coax contacts are provided for signals up to 500 Mhz and power signals up to 50Amps/250VAC.

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

Interface Receiver/Fixture Specifications

Coax Contacts Receiver Side Part Number . . . . . VGRCB-22CP Fixture Mating Connector . . . . . . . VGFCB-22CP Number of Contacts . . . . . . . . . . . . . . . .22 Dimensions . . . . . . . . . . . . . . . . . 2.345h x 1.115w Voltage Rating . . . . . . . .. . . . . . . . . . 250 VAC Current Rating . . . . . . . . .. . . . . . . . . 50 Amp Contact Resistance . . . . . . . . . . . . . . . .5 mı Impedance . . . . . . . . . . . . . . . . . . . . . . 50 ı Capacitance . . . . . . . . . . . . . . . .. . . . . .21 pF Inductance . . . . . . . . . . . . . . . .. . . . . . . 3 nH Bandwidth (-3 dB Roll Off) . . . . . . . . . . 1 Ghz Durability . . . . . . . . . . . . . . . . . . . . . . . .25,000 cycles Coax - Receiver Interconnection Information Receiver Coax Contacts w/36" Cable Assembly Mini Coax 50ı RG174 . . . . . . . . . .CR-MCA50RG174-36 Mini Coax Contact Kit 50ı . .. . . . . CR-610104114 Type of Connection . . . . . . . . . .. . . . . . . .Crimp Coax – Fixture side Information Mini Coax 50ı RG174 . . . . . .. . . . CF-MCA50RG174-36 Mini Coax 50ı (Contact Only) . . . .CF-610103115 Type of Connection . . . . . . . . . . . . . . . . Crimp Power Contacts Receiver Side Part Number . . VGRCB-22CP Fixture Side Part Number . .. . VGFCB-22CP Number of Contacts . . . . . . . . . . . . .22 Dimensions . . . . . . . . . . . . .. . 2.345h x 1.115w Voltage Rating . . . . . . . . . . . . . . . 250 VAC Current Rating . . . . . . . . . . . . . . . 50 Amp Contact Resistance . . . . . . . . . . . . 6 mı Capacitance . . . . . . . . . . . . . . . . . . 21 pF Inductance . . . . . . . . . . . . . . . . . . . 3 nH Bandwidth (-3 dB Roll Off) . . . . . . . 1 Khz Durability . . . . . . . . . . . . . . . . . . . . 25,000 cycles Power - Receiver Interconnection Information Power Contact Mini 50 Amp . . . . . . . . . . .. . . . . . CR-610116112 Type of Connection . . . . . . . . . . . .Solder Power – Fixture side information : Power Contact Mini 50 Amp . . . . . . . . . . . . . . . .. CF-0883011-02 Type of Connection . . . . . . . . . . . . .Solder

VGRCB-22CP VGFCB-22CP

The VGRCB-22CP provides 22 contacts for mini-coax, power or a combination of both. Mini-coax contacts are provided for signals up to 1 Ghz and power signals up to 50Amps/250VAC. Proper alignment is ensured by: two precision alignment pins per block; two shoulder mounting screws per VGRCB-22CP block allow the block to 'float' in the receiver.

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB-24CP VGFCB-24CP

The VGRCB-24CP provides 24 contacts for mini-coax, power or a combination of both. Mini-coax contacts are provided for signals up to 1 Ghz and power signals up to 50Amps/250VAC.

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB‐24CP VGFCB‐24CP The VGRCB‐24CP provides 24 contacts for mini‐coax, power or a combination of both. Mini‐coax contacts are provided for signals up to 1 Ghz and power signals up to 50Amps/250VAC.

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB-30CP F et VGFCB-30CP F

The VGRCB-30CP provides 30 contacts for mini-coax, power or a combination of both. Mini-coax contacts are provided for signals up to 1 Ghz and power signals up to 50Amps/250VAC. Proper alignment is ensured by: two precision alignment pins per block; two shoulder mounting screws per VGRCB-30CP block allow the block to 'float' in the receiver.

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB-32CP F VGFCB-32CP F The VGRCB-32CP provides 32 contacts for mini-coax, power or a combination of both.Mini-coax contacts are provided for signals up to 1 Ghz and power signals up to 50Amps/250VAC.

VGRCB-39CPS VGFCB-39CPS

The VGRCB-39CPS provides 19 contacts for mini-coax, power or a combination of both. Mini-coax contacts are provided for signals up to 1 Ghz and power signals up to 50Amps/250VAC. An additional 20 contacts are provided for signal

• lines. Proper alignment is ensured by: two

precision alignment pins per block; two shoulder mounting screws per VGR block allow the block to float in the receiver.

VG SERIE TTI

TTI TESTRON Teknis

11 av des Marronniers_78150 LE CHESNAY Bur:+33 1 39 23 84 00 +33 6 08 02 19 67 Email p.guillaume@teknisfrance.com www.teknisfrance.com

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB-170H VGFCB-170

The VGRCB-170 is a high density contact block suitable for analog and digital a pplica tions alike. For applica tions that require shielding or ground planes on the connector blocks, the VGRCB-40A and VGRCB-110-IDC use the VGRCB-170 as a founda - tion, adding ground planes to aid in suppressing high frequency noise and reduce crosstalk (receiver side

• nly).

The VGRCB-170H is manufactured for Wire Wrap connections. For connector a pplica tions, use the VGRCB-170H-R. The block is sold fully loaded. VGRCB-170H/VGRCB-110-IDC/ VGRCB- 40A

Interface Test Adapter Connector Blocks Dimensions . . . . . . . . . . . . . . .2.345h x 1.115w Voltage Rating . . . . . . . . . . .. . .250 VAC Current Ra ting . . . . . . . . . . . . .5 Amps Continuous* Duty Cyc le . . . . . . . . . . . . . . . .> 100,000 cycles Contact Resistance . . . . . . . . .10 milliOhms Bandwidth (-3 dB Roll Off) . . . . . .1x108 Hz Probe P art Number . . . . . . . . . .EPA-2840 Probe Tail Type . . . . . .Square - Wire Wrap; Round for Berg contacts Pin Spacing . . . . . . . . . . . . . . .100 mil grid spacing Pins Per Row . . . . . . . . . . . . . .10 Rows Per Block . . . . . . . . . . . .17 Part Numbers Connector BlocksReceiver Side . . . .VGRCB- [xxx] Number of Signal Contacts 170 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-[170] 110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-[110] 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-[40] Receiver Interconnection Square Tails for Wire Wrap . . . . . . . .VGRCB-170H Round Tails for Mating Connector .VGRCB-170H-R Related Products 40 Contacts Analog Block . . . . . . . . . .VGRCB-40A 110 Contacts Analog Block . . . . . .VGRCB-110-IDC

VGFCB-170

Interface Test Adapter Connector Blocks Dimensions . . . . . . . . . . . . . . . . . . .2.345h x 1.115w Current Ra ting . . . . . . . . . . . . . . .5 Amps continuous* Duty Cyc le . . . . . . . . . . . . . . . . . .> 100,000 cycles Part Numbers Connector Blocks Fixture Side .. . . . .VGFCB-170** Contact . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .A12476 Fixture Interconnection Fixture Ma ting Connector (Wire Wrap) . . .VGFCB- 170 Fixture Ma ting Connector (Connector) . .GFCB-170- R Mating Cable Connector 17 Pin Crimp to Berg Headers . . . . . . . .. . . . . .A32076 17 Pin Crimp to Berg Clips . . . . . . . . . . . . . . .A32075 *Wire Wrap current rating is 5 amps. The current limit through a Berg connection is 3 amps maximum. **Note: The termina tion to the ground plane is done

• n the receiver -side blocks.

The fixture side contacts use a standard VGFCB- 170 contact block.

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB-136H VGFCB-136

The VGRCB-136 is a medium density contact block designed to use with ribbon cables plugging directly onto the back of the interconnect blocks. The block is sold fully loaded.

VGRCB-136

Interface Receiver Assembly Connector Blocks Receiver Side Part Number . . . . VGRCBÐ[xxx] Number of Signal Contacts Ð [136] . . . . .136 Dimensions . . . . . . . . . . . . .. . . . .2.345h x 1.115w Voltage Rating . . . . . . . . . . . . . . . . .250 VAC Current Rating . . . . . . . . . .5 Amps Continuous Duty Cycle . . . . . . . . . . . . . . .> 100,000 cycles Contact Resistance . . . . . . . . . . .10 milliohms Bandwidth (-3 dB Roll Off) . . . . ..1x108 Hz Probe Part Number . . . . . . . . . . .EPA-2B40 Probe Tail Type . . . . . .Square - Wire Wrap; Round for Berg contacts Pin Spacing . . . . . .. .100 mil grid spacing Pins Per Column . . . . . . . . . .17 Columns Per Block . . . . . . . . .8 Receiver Interconnection Information Square Tails for Wire Wrap . . . . . . . . .Order VGRCB-136H Round Tails for Mating Connector . . . .Order VGRCB-136H-R

VGFCB-136

Interface Test Adapter Connector Blocks Fixture Side Part Number . . . . . . . . . . . . . .VGFCB-136 Contact Part Number . . . . . . . . . . . . . . . . . .A12476 Current Rating . . . . . . . . . . . . . . . . .5 Amps continuous Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . .> 100,000 Dimensions . . . . . . . . . . . . . . . . . . . . .2.345h x 1.115w Fixture Interconnection Information Fixture Mating Connector (Wire Wrap) . . . .VGFCB-136 Fixture Mating Connector (Connector) . . . .VGFCB-136 Mating Ribbon Cable Connector Information 2X17 Ribbon Cable Connector (34 Position) Amp-Latchª Novo Receptac le . . . . . . . . . . . .746290-8 Amp Strain Relief . . . . . . . . . . . . . . . . . . . . . .499252-6 Newark Electronics Part Numbers for AMP Connector Amp-Latchª Novo Receptac le . . . . . . . . . . . . .90F5186 Amp Strain Relief . . . . . . . . . . . . . . .. . . . . . . . .90F4191

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VG RCB 13 Pneu Valve VG FCB 13 Pneu

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB-2FO VGFCB-2FO The VGFCB-2FO and the VGRCB-2FO provide 2 Fiber Optic Connections. Fiber Optic Connections are provided for 2mm dia. cables. Two precision alignment pins on the receiver block ensure alignment with the fixture block; two shoulder mounting screws per VGRCB-2FO block allow the block to float in the

• receiver. Blocks are offered with proper

housings and 2 Fiber Optic Contacts. Cable assemblies available separately.

Ordering Information Receiver Fixture Receiver Module ........... VGRCB-2FO Fixture Module...................VGFCB-2FO Duplex Housing ...............A35832 Duplex Housing .................A35834 Duplex Plug.....................A35833 MU Plug .............................A35835 Sleeve Holder..................A35826 72” Single Mode MU plug Cable Assy …A35853 72” SingMod simplex plug Cable Assy ..A35851 72” SingMod Duplex plug Cable Assy …A35852 Accessories Extraction Tool for MU Plugs ..................................A35849 Extraction Tool for Duplex Plugs.............................A35850

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB-32P VGFCB-32P The VGRCB‐32P provides 32 po wer contacts with a replaceable spring loaded high‐current center

• probe. Blocks and contacts are

sold separately.

Interface Receiver/Fixture Specifications : Power Contacts Receiver Side P art Number . . . . . . . . . . . . . . . . . . . . . . .VGRCB-32P Fixture Ma ting Connector . . . . . . . . . . . . . . . . . . . . . . . . .VGFCB-32P Number of Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.345h x 1.115w Voltage Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .250 VAC Current Ra ting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Amp Contact Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 mı Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 pF Inductance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 nH Contact Probe Vendor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OB Durability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25,000 cycles Power Contact - Center Conductor VGRCB-32P-HCP Type of Connection . . . . . . . . . . . . . .Replaceable Center Conductor Power - Receiver Interconnection Informa tion VGRCB-32P Type of Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Solder Power - ITA Interconnection Informa tion VGFCB-32P Type of Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Solder VGRCB-32P VGFCB-32P The VGRCB-32P provides 32 po wer contacts with a replaceable spring loaded high-current center probe. Blocks and contacts are sold separa tely. Option for power contact VG RCB 32 HCP 40 ....................................................40 Amp

Application Notes

When designing solutions using the VGR/VGFCB‐13C blocks, keep in mind the “system” losses of the solution you are attempting to achieve. The RF “receiver to fixture” interface is a contact set designed by ECT. The band pass of the contacts less cabling of the VGR/VGFCB‐13C solution is 3.7Ghz. The “cable to VGR” contact and “cable to VGF” contact are 50Ω SMB contacts, which are typically rated for a 5Ghz bandwidth. The standard cable used with the SMB contact above is RF‐174, which has a high loss rate at frequencies above 1Ghz. Typical loss at 1Ghz is approximately 0.34dB per foot. Hence, the conservative specifications apply with standard cabling. Using semi‐rigid coax for the VGRCB‐13C requires the use of a SMB plug to OSM (SMA) jack adapter. Manufactured by M/ACom (AMP). Use part number 5182‐ 2240‐00.

VG SERIE TTI

TTI TESTRON Teknis

VGRCB‐13C / VGFCB‐13C

The VGRCB‐13C provides 13 contacts for signals up to 3.7Ghz. The center conductor is a replaceable standard .035” probe. The outer shell is spring loaded. All cable connections to the VGR/VGFCB‐ 13C blocks are snap‐on SMB. Two precision alignment pins per block ensure proper alignment. Two shoulder mounting screws per VGR block allow the block to float in the

• receiver. Blocks are sold fully configured.

Cables sold separately.

Contact Spécifications

Voltage Rating (dielectric breakdown) 250VDC Current 5 Amps Continuous Contact Resistance :39 mΩ Impedance 50Ω Capacitance 8.8pf Inductance 42mH Bandwidth (‐3db roll off) 3.7Ghz (‐3db) Durability 25,000 Cycles Center Conductor Replaceable Spring Probe Coax Connection Type SMB

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

Application Notes

Both the Receiver and ITA adapters will accept flexible, semi rigid and rigid coax cables terminated with an industry standard SMA plug. The mated adapters have a frequency range from DC to 18Ghz. When designing solutions using the VGR(F)CB-4C Modules, keep in mind the ‘system’ losses of the solution you are attempting to achieve. The insertion loss

• f the contacts without cabling of the VGR(F)CB-4C are approximately 0.06√(f(Ghz)). General purpose RG-142B/U Coax
• ffers economical solutions from DC to 10Ghz (with 0.49 dB/ft loss at 10Ghz). The following table is for

reference only.

VGRCB-4C / VGFCB-4C

The VGRCB-4C provides 4 coaxial contacts for signals up to 18Ghz. All cable connections to the VGRCB-4C blocks are made through SMA cable contacts providing for a variety of readily available coaxial cables. Two precision alignment pins per block ensure proper alignment. Two shoulder mounting screws per VGRCB-4C block allow the block to ‘float’ in the receiver. Blocks, contacts and cables are sold separately.

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

Ordering informations Bloc Specifications

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VG SERIE TTI

TTI TESTRON Teknis

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB‐9C / VGFCB‐9C

The VGRCB-9C provides 9 coaxial contacts for signals up to 18Ghz. All fixture cable connections to the VGFCB-9C blocks are made through SMA cable contacts providing for a variety of available coaxial

• cables. VGRCB-9C contacts are crimp or SMA with

some resultant specification changes. Two precision alignment pins per block ensure proper alignment. Two shoulder mounting screws per VGRCB-9C block allow the block to ‘float’ in the receiver. Blocks, contacts and cables are sold separately.

Application Notes

Both the receiver and ITA adapters accept RG-142/U, 50Ωcoax cable or miniature coax cable. The mated adapters have a frequency range from DC to 18 Ghz. When designing solutions using the VGR(F)CB-9 blocks, keep in mind the ‘system losses’ of the desired solution. The insertion loss of the contacts without cabling of the VGR(F)CB-9 are approximately 0.03(f(Ghz)). General-purpose RG-142B/U coax offers economical solutions from DC to 10Ghz (with 0.49 dB/ft loss at 10Ghz). The following table is for reference only.

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VG SERIE TTI

TTI TESTRON Teknis

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VGRCB‐8C‐40G VGFCB‐8C‐40G The VGRCB‐8C‐40G and the VGFCB‐8C‐40G provide 8 contacts for RF operations up to the KA band. Coax contacts are provided for signals from DC to 40 Ghz. Two precision alignment pins per block ensure proper alignment. Two shoulder

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

Les FIXTURES … … Chassis à personnaliser

VG SERIE TTI

TTI TESTRON Teknis

Receveurs et Coffrets de test Base METAL Personnalisables en fonction de vos applications Peinture type instrumentation Etuvage possible Receveur VG R 4 Tete de Test VG F 4 0812 AB Metal Pour VG R 4

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VG SERIE TTI

TTI TESTRON Teknis

Receveurs et Coffrets de test BASE METAL Personnalisables en fonction de vos applications -Etuvage possible . Descriptif: VGF12-2024-AB -3- M

• Structure Aluminium (20" x 24"), avec revêtement

type instrumentation

• Epaisseur de coque 3" ( 76.2 mm )
• Partie supérieure en Aluminium facilement

retirable pour un accès interne du Kit.

• Le barreau arrière accepte 12 blocs interfaces
• Compatibilité avec le receveur VG R 12 et R 24 (

Table et Rack 19 pouces )

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com Receveur VG R 24 Receveur VG R 12

OPTIONS : Epaisseur de caisson

• 4 pouces ( 101.6 mm )
• 5 pouces ( 127 mm )
• 6 pouces ( 152.4 mm )

Description: VGF12-1620-AB

• Caisson en Aluminium ( 406mmx 508mm), revêtement

peinture instrumentation - Epaisseur 76.2 mm

• Plaque supérieure en G10 , Epaisseur 6.65 mm.
• Vérin à gaz pour l’ouverture et verrouillage auto.
• En position ouverte : 60-degrés
• Le barreau arrière accepte 12 blocs interfaces.

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VG SERIE TTI

TTI TESTRON Teknis

VGF12-2024-AB-5 Epaisseur de coque en 5 pouces. Base époxy en G10 Fine Wave VGF12-2024-AB-6 Epaisseur de coque en 6 pouces Base Epoxy en G10 Fine Wave VGF24-1219-AB-5 M Epaisseur de coque en 5

• pouce. Base Métal

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

VG SERIE TTI

TTI TESTRON Teknis

VG SERIE TTI

TTI TESTRON Teknis

11 Avenue des Marronniers - 78150 LE CHESNAY Bur:+33 1 39 23 84 00 - +33 6 08 02 19 67 Email p.guillaume@teknis-france.com www.teknisfrance.com

Logiciel de développement et correspondance de Blocs gratuit
