LLVM Compile Time. Challenges. Improvements. Outlook. Michael Zolotukhin, Apple Agenda Benchmarking and tracking Historical findings Future work Tools and tricks Compile Time Trend O0-g Os O3 1.5x Compile Time

slide-1
SLIDE 1

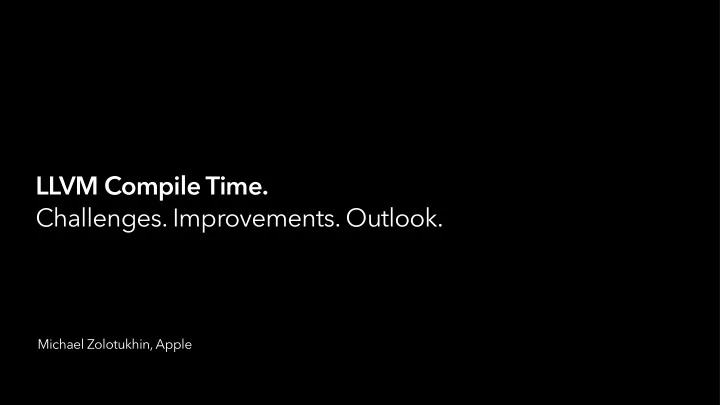

Michael Zolotukhin, Apple

  • LLVM Compile Time.
  • Challenges. Improvements. Outlook.
slide-2
SLIDE 2

Agenda

  • Benchmarking and tracking
  • Historical findings
  • Future work
  • Tools and tricks
slide-3
SLIDE 3

Compile Time Trend

1x 1.25x 1.5x 3.6 3.7 3.8 3.9 O0-g Os O3

LLVM Version Compile Time Increase

slide-4
SLIDE 4

Compile Time Trend

1x 1.25x 1.5x 3.6 3.7 3.8 3.9 O0-g Os O3

LLVM Version Compile Time Increase

Why did it happen?

slide-5
SLIDE 5

CTMark

  • Easy to use
  • Reliable
  • Fast
  • Representative
slide-6
SLIDE 6

CTMark

CTMark

  • 60%
  • 40%
  • 20%

0% 20% 40% 60% mafft lencod tramp3d-v4 sqlite3 consumer-typeset SPASS 7zip Bullet kimwitu++ ClamAV ClamAV

LLVM Testsuite

  • 60%
  • 40%
  • 20%

0% 20% 40% 60%

slide-7
SLIDE 7

LLVM Testsuite

  • 60%
  • 40%
  • 20%

0% 20% 40% 60%

CTMark

CTMark

  • 60%
  • 40%
  • 20%

0% 20% 40% 60% mafft lencod tramp3d-v4 sqlite3 consumer-typeset SPASS 7zip Bullet kimwitu++ ClamAV ClamAV

slide-8
SLIDE 8

Regular Tracking

  • Test every compiler build on several optlevels
  • Detect and analyze incoming regressions
  • Publish results on Green Dragon
  • Raise awareness with reports





slide-9
SLIDE 9

Historical Data

slide-10
SLIDE 10

1.25x 1.5x 1.75x 220000 240000 260000 280000 300000 320000

2015 2016 2017

Historical Data

Compile Time Increase Revision

slide-11
SLIDE 11

1.25x 1.5x 1.75x 220000 240000 260000 280000 300000 320000

2015 2016 2017

Historical Data

Compile Time Increase Revision

Cost Model Changes

slide-12
SLIDE 12

1.25x 1.5x 1.75x 220000 240000 260000 280000 300000 320000

2015 2016 2017

Historical Data

Compile Time Increase Revision

Cost Model Changes LibCXX changes

slide-13
SLIDE 13

1.25x 1.5x 1.75x 220000 240000 260000 280000 300000 320000

2015 2016 2017

Historical Data

Compile Time Increase Revision

Cost Model Changes LibCXX changes New features

slide-14
SLIDE 14

1.25x 1.5x 1.75x 220000 240000 260000 280000 300000 320000

2015 2016 2017

Historical Data

Compile Time Increase Revision

Cost Model Changes LibCXX changes New features

slide-15
SLIDE 15

1.25x 1.5x 1.75x 220000 240000 260000 280000 300000 320000

2015 2016 2017

Historical Data

Compile Time Increase Revision

Cost Model Changes LibCXX changes New features

slide-16
SLIDE 16

1.25x 1.5x 1.75x 220000 240000 260000 280000 300000 320000

2015 2016 2017

Historical Data

Compile Time Increase Revision

Cost Model Changes LibCXX changes New features Optimized implementation

slide-17
SLIDE 17

1.25x 1.5x 1.75x 220000 240000 260000 280000 300000 320000

2015 2016 2017

Historical Data

Compile Time Increase Revision

Cost Model Changes LibCXX changes New features Optimized implementation

slide-18
SLIDE 18

1.25x 1.5x 1.75x 220000 240000 260000 280000 300000 320000

2015 2016 2017

Historical Data

Compile Time Increase Revision

Cost Model Changes LibCXX changes New features Optimized implementation

slide-19
SLIDE 19

1.25x 1.5x 1.75x 220000 240000 260000 280000 300000 320000

2015 2016 2017

Historical Data

Compile Time Increase Revision

Cost Model Changes LibCXX changes New features Optimized implementation Refactorings, NFC, etc.

slide-20
SLIDE 20

1.25x 1.5x 1.75x 220000 240000 260000 280000 300000 320000

2015 2016 2017

Historical Data

Compile Time Increase Revision

Cost Model Changes LibCXX changes New features Optimized implementation Refactorings, NFC, etc.

slide-21
SLIDE 21

Compile Time Trend

1x 1.25x 1.5x 3.6 3.7 3.8 3.9 O0-g Os O3

LLVM Version Compile Time Increase

slide-22
SLIDE 22

1x 1.25x 1.5x 3.6 3.7 3.8 3.9 4.0 5.0 O0-g Os O3

Compile Time Trend

LLVM Version Compile Time Increase

slide-23
SLIDE 23

Compile Time Trend

1x 1.25x 1.5x 3.6 3.7 3.8 3.9 4.0 5.0 O0-g Os O3

LLVM Version Compile Time Increase

slide-24
SLIDE 24

Future Outlook

  • Look at other components: front-end, libraries
  • Find new ways to speed-up LLVM
  • Add more benchmarks
  • Speed-up your favorite pass
slide-25
SLIDE 25

Tools and Tricks

slide-26
SLIDE 26

llvmlab Tools and Tricks

slide-27
SLIDE 27

llvmlab Tools and Tricks

Installation:


 $ virtualenv venv && . venv/bin/activate (venv)$ git clone http://llvm.org/git/zorg (venv)$ pip install requests (venv)$ python zorg/llvmbisect/setup.py install (venv)$ which llvmlab /path/to/venv/bin/llvmlab

slide-28
SLIDE 28

llvmlab Tools and Tricks

Usage:


 $ ### List available builders: $ llvmlab ls clang-cmake-aarch64
 clang-cmake-armv7a
 clang-cmake-mips
 clang-cmake-mipsel
 clang-stage1-configure-RA
 clang-stage1-configure-RA_build
 clang-stage2-cmake-RgTSan
 clang-stage2-configure-Rlto
 clang-stage2-configure-Rlto_build
 clang-stage2-configure-Rthinlto_build

slide-29
SLIDE 29

llvmlab Tools and Tricks

Usage:


 $ ### List available artifacts: $ llvmlab ls clang-stage2-configure-Rlto clang-r314805-b21519
 clang-r314804-b21518
 clang-r314803-b21517
 clang-r314799-b21516
 clang-r314798-b21515
 clang-r314795-b21514
 clang-r314793-b21513
 ...

slide-30
SLIDE 30

llvmlab Tools and Tricks

Usage:


 $ ### Download specified artifact: $ llvmlab fetch clang-stage2-configure-Rlto clang-r314805-b21519 downloaded root: clang-r314805-b21519.tar.gz
 extracted path : clang-r314805-b21519 $ clang-r314805-b21519/bin/clang -v Apple clang version 6.0.99 (master 314805) (based on LLVM 6.0.99)
 Target: x86_64-apple-darwin16.7.0
 Thread model: posix
 InstalledDir: /tmp/clang-r314805-b21519/bin

slide-31
SLIDE 31

Test-suite + LNT Tools and Tricks

slide-32
SLIDE 32

Test-suite + LNT

Installation:


 $ virtualenv venv && . venv/bin/activate (venv)$ git clone http://llvm.org/git/test-suite (venv)$ git clone http://llvm.org/git/lnt (venv)$ pip install -r lnt/requirements.client.txt (venv)$ python lnt/setup.py install (venv)$ pip install svn+http://llvm.org/svn/llvm-project/llvm/trunk/utils/lit (venv)$ which lit /path/to/venv/bin/lit (venv)$ which lnt /path/to/venv/bin/lnt

Tools and Tricks

slide-33
SLIDE 33

Test-suite + LNT

Running CTMark:


 $ lnt runtest test-suite --sandbox /Path/To/Sandbox \
 —-use-lit=lit \


  • -cc /Path/To/Compiler/bin/clang \

  • -test-suite=/Path/To/test-suite \

  • C target-x86_64-macosx \

  • C Os \

  • -cmake-define TEST_SUITE_RUN_BENCHMARKS=Off \

  • -cmake-define TEST_SUITE_SUBDIRS=CTMark


Tools and Tricks

slide-34
SLIDE 34

Test-suite + LNT

Running full LLVM test-suite:


 $ lnt runtest test-suite --sandbox /Path/To/Sandbox \
 —-use-lit=lit \


  • -cc /Path/To/Compiler/bin/clang \

  • -test-suite=/Path/To/test-suite \

  • C target-x86_64-macosx \

  • C Os \

  • -cmake-define TEST_SUITE_BENCHMARKING_ONLY=On

Tools and Tricks

slide-35
SLIDE 35

Test-suite + LNT

Running a subset of LLVM test-suite:


 $ lnt runtest test-suite --sandbox /Path/To/Sandbox \
 —-use-lit=lit \


  • -cc /Path/To/Compiler/bin/clang \

  • -test-suite=/Path/To/test-suite \

  • C target-x86_64-macosx \

  • C Os \

  • -cmake-define TEST_SUITE_BENCHMARKING_ONLY=On \


—only-test MultiSource/Applications

Tools and Tricks

slide-36
SLIDE 36

Test-suite + LNT

Running a test-suite:


 $ lnt runtest test-suite --sandbox /Path/To/Sandbox \
 —-use-lit=lit \


  • -cc /Path/To/Compiler/bin/clang \

  • -test-suite=/Path/To/test-suite \

  • C target-x86_64-macosx \

  • C Os \

  • -cmake-define TEST_SUITE_BENCHMARKING_ONLY=On \


—only-test MultiSource/Applications $ ### Results will be in /Path/To/Sandbox/test-DATETIME/output*.json

Tools and Tricks

slide-37
SLIDE 37

Comparing results:


 $ pip install pandas $ /Path/To/test-suite/utils/compare.py -m compile_time output1.json output2.json Tests: 27
 Metric: compile_time

 Program output1 output2 diff

 flops-3.test 0.03 0.03 14.9%
 flops-2.test 0.03 0.03 -13.7%
 himenobmtxpa.test 0.10 0.12 11.6%
 ffbench.test 0.06 0.07 9.3%
 … $ ### The tool also has many useful options, see ‘—-help’ for details

Test-suite + LNT Tools and Tricks

slide-38
SLIDE 38

Test-suite + cmake + lit Tools and Tricks

slide-39
SLIDE 39

Building and running:


 $ cd /Path/To/Sandbox $ cmake -DCMAKE_C_COMPILER=/Path/To/Compiler/bin/clang \


  • C /Path/To/test-suite/cmake/caches/target-x86_64-macosx.cmake \

  • C /Path/To/test-suite/cmake/caches/Os.cmake \

  • DTEST_SUITE_RUN_BENCHMARKS=Off \

  • DTEST_SUITE_SUBDIRS=CTMark \


/Path/To/test-suite

Tools and Tricks Test-suite + cmake + lit

slide-40
SLIDE 40

Building and running:


 $ cd /Path/To/Sandbox $ cmake -DCMAKE_C_COMPILER=/Path/To/Compiler/bin/clang \


  • C /Path/To/test-suite/cmake/caches/target-x86_64-macosx.cmake \

  • C /Path/To/test-suite/cmake/caches/Os.cmake \

  • DTEST_SUITE_RUN_BENCHMARKS=Off \

  • DTEST_SUITE_SUBDIRS=CTMark \


/Path/To/test-suite $ ### Go to a subfolder if we don’t want to build all the tests: $ cd CTMark/bullet $ make -k -j 1 VERBOSE=1 all

Tools and Tricks Test-suite + cmake + lit

slide-41
SLIDE 41

Building and running:


 $ cd /Path/To/Sandbox $ cmake -DCMAKE_C_COMPILER=/Path/To/Compiler/bin/clang \


  • C /Path/To/test-suite/cmake/caches/target-x86_64-macosx.cmake \

  • C /Path/To/test-suite/cmake/caches/Os.cmake \

  • DTEST_SUITE_RUN_BENCHMARKS=Off \

  • DTEST_SUITE_SUBDIRS=CTMark \


/Path/To/test-suite $ ### Go to a subfolder if we don’t want to build all the tests: $ cd CTMark/bullet $ make -k -j 1 VERBOSE=1 all $ /Path/To/LLVM-Repo/utils/lit/lit.py -v -j 1 /Path/To/Sandbox/CTMark/bullet -o output.json

Tools and Tricks Test-suite + cmake + lit

slide-42
SLIDE 42

Per file stats:


 $ find CTMark/Bullet -name “*.time" CTMark/Bullet/bullet.link.time
 CTMark/Bullet/CMakeFiles/bullet.dir/BenchmarkDemo.cpp.o.time
 … CTMark/Bullet/CMakeFiles/bullet.dir/SphereTriangleDetector.cpp.o.time $ cat CTMark/Bullet/CMakeFiles/bullet.dir/SphereTriangleDetector.cpp.o.time exit 0
 real 0.1942
 user 0.1676
 sys 0.0172 $ size CTMark/Bullet/CMakeFiles/bullet.dir/SphereTriangleDetector.cpp.o __TEXT __DATA __OBJC others dec hex
 3755 88 0 288 4131 1023


Tools and Tricks Test-suite + cmake + lit

slide-43
SLIDE 43

Compiler Options Tools and Tricks

slide-44
SLIDE 44

Compiler Options Tools and Tricks

Collecting pass timings:


 $ clang myfile.c -O3 —c -ftime-report

===-------------------------------------------------------------------------===
 Miscellaneous Ungrouped Timers
 ===-------------------------------------------------------------------------===


  • --User Time--- --System Time-- --User+System-- ---Wall Time--- --- Name ---


6.7877 ( 97.5%) 0.5060 ( 96.7%) 7.2938 ( 97.5%) 7.4313 ( 97.3%) Code Generation Time
 0.1720 ( 2.5%) 0.0172 ( 3.3%) 0.1892 ( 2.5%) 0.2075 ( 2.7%) LLVM IR Generation Time
 6.9598 (100.0%) 0.5232 (100.0%) 7.4830 (100.0%) 7.6388 (100.0%) Total ===-------------------------------------------------------------------------===
 Register Allocation
 ===-------------------------------------------------------------------------===
 Total Execution Time: 0.2353 seconds (0.2364 wall clock)


  • --User Time--- --System Time-- --User+System-- ---Wall Time--- --- Name ---


0.1907 ( 83.5%) 0.0024 ( 34.6%) 0.1931 ( 82.1%) 0.1940 ( 82.0%) Global Splitting
 0.0213 ( 9.3%) 0.0010 ( 13.7%) 0.0222 ( 9.4%) 0.0222 ( 9.4%) Spiller
 ...

slide-45
SLIDE 45

Compiler Options Tools and Tricks

Collecting pass timings:


 $ clang myfile.c -O3 -c -ftime-report -save-stats=obj $ cat myfile.stats

{
 "time.regalloc.local_split.wall": 1.283169e-03,
 "time.regalloc.local_split.user": 1.176000e-03,
 "time.regalloc.local_split.sys": 9.700000e-05,
 "time.regalloc.spill.wall": 2.174950e-02,
 "time.regalloc.spill.user": 2.083200e-02,
 "time.regalloc.spill.sys": 8.420000e-04,
 ...
 }

slide-46
SLIDE 46

Compiler Options Tools and Tricks

Collecting pass timings:


 $ clang myfile.c -O3 -c -disable-llvm-passes -emit-llvm $ opt -O3 myfile.bc -o myfile.o -time-passes

===-------------------------------------------------------------------------===
 ... Pass execution timing report ...
 ===-------------------------------------------------------------------------===
 Total Execution Time: 5.9781 seconds (6.0340 wall clock)


  • --User Time--- --System Time-- --User+System-- ---Wall Time--- --- Name ---


0.5257 ( 9.2%) 0.0044 ( 1.7%) 0.5302 ( 8.9%) 0.5351 ( 8.9%) Global Value Numbering
 0.3432 ( 6.0%) 0.0035 ( 1.3%) 0.3467 ( 5.8%) 0.3494 ( 5.8%) Function Integration/Inlining
 0.2423 ( 4.2%) 0.0019 ( 0.7%) 0.2443 ( 4.1%) 0.2458 ( 4.1%) Combine redundant instructions
 ...

slide-47
SLIDE 47

Compiler Options Tools and Tricks

Collecting optimization remarks:


 $ clang myfile.c -O3 -c -fsave-optimization-record $ cat myfile.opt.yaml

  • -- !Passed


Pass: loop-unroll
 Name: FullyUnrolled
 DebugLoc: { File: myfile.c, Line: 3, Column: 3 }
 Function: foo
 Args:


  • String: 'completely unrolled loop with '

  • UnrollCount: '4'

  • String: ' iterations'


...


slide-48
SLIDE 48

Compiler Options Tools and Tricks

Inspecting optimization remarks:


 $ opt-viewer.py myfile.opt.yaml $ open html/myfile.c.html

slide-49
SLIDE 49

Compiler Options Tools and Tricks

Inspecting optimization remarks:


 $ opt-viewer.py myfile.opt.yaml $ open html/myfile.c.html $ opt-diff.py myfile1.opt.yaml myfile2.opt.yaml $ opt-viewer.py diff.opt.yaml

slide-50
SLIDE 50

Compiler Options Tools and Tricks

Inspecting optimization remarks:


 $ opt-viewer.py myfile.opt.yaml $ open html/myfile.c.html $ opt-diff.py myfile1.opt.yaml myfile2.opt.yaml $ opt-viewer.py diff.opt.yaml

More details: LLVM Dev 2016 Talk: Compiler-assisted Performance Analysis

slide-51
SLIDE 51

Summary

  • Test your patches for compile time
  • Use CTMark
  • Know your tools
  • Make LLVM faster!
slide-52
SLIDE 52
