SLIDE 1
Layers of GPU computing
GPU accelerated apps and libraries CUDA OpenCL AMD proprietary compiler Libclc, LLVM, Mesa, and amdgpu/nouveau AMD proprietary driver NVIDIA proprietary driver Clang
Our work
LLVM AMDGPU for High Performance Computing: are we competitive yet? - - PowerPoint PPT Presentation
LLVM AMDGPU for High Performance Computing: are we competitive yet? - - PowerPoint PPT Presentation

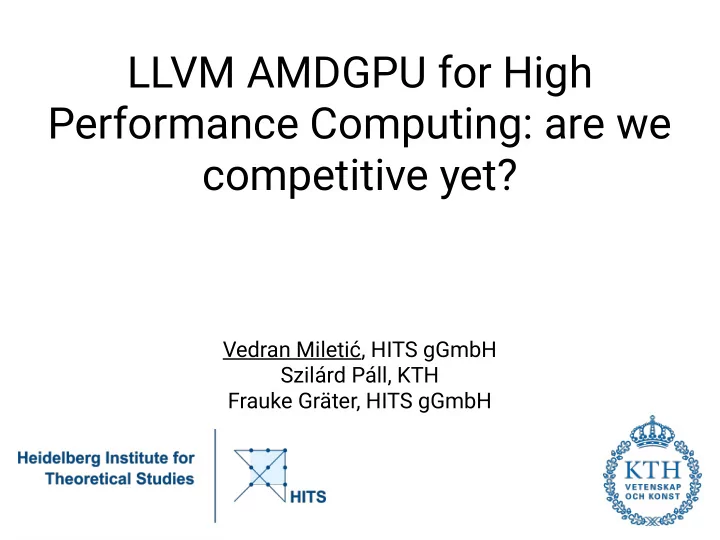

LLVM AMDGPU for High Performance Computing: are we competitive yet? Vedran Mileti, HITS gGmbH Szilrd Pll, KTH Frauke Grter, HITS gGmbH Layers of GPU computing GPU accelerated apps and libraries CUDA OpenCL Our work NVIDIA AMD
SLIDE 2
SLIDE 3
State of the art: CUDA and OpenCL
- CUDA
– 338 applications listed at
NVIDIA’s website
– Over 50% market share in
Top 500 (Nov 2016)
- OpenCL
– ~70 applications listed
- n Wikipedia
- ~30 in Scientifjc
computing category
- Couple of benchmarks
and toys
SLIDE 4
OpenCL applications
- Image taken from:
Ribeiro, João V., et al. "QwikMD—Integrative Molecular Dynamics Toolkit for Novices and Experts." Scientifjc reports 6 (2016).
- Focus on
GROMACS, LAMMPS, OpenMM, ASL
SLIDE 5
Running open source OpenCL stack on Radeon/FirePro/FireStream
- AMD’s proprietary OpenCL driver and compiler
– GPUs released 2012 or later – Will be open sourced soon™
- Mesa/LLVM
– AMD GPUs released 2009 or later – Open source from the beginning™
SLIDE 6
Our work
- No changes or minor changes in apps/libs
- Improvements to LLVM, Clang, libclc, Mesa
– Missing math functions, OpenCL 1.2 API calls – Bug fjxes
SLIDE 7
1,5 3 6 12 24 48 96 192 384 768 1536 3072 20 40 60 80 100 120 140
GROMACS OpenCL kernel execution time
AMDGPU-PRO AMDGPU
Systerm size Time
1,5 3 6 12 24 48 96 192 384 768 1536 3072 20 40 60 80 100 120 140
GROMACS OpenCL kernel execution time
AMDGPU-PRO AMDGPU
Systerm size Time
SLIDE 8
AndersenThermostat BrownianIntegrator LangevinIntegrator VerletIntegrator 10 20 30 40 50 60
OpenMM test execution time
AMDGPU-PRO AMDGPU
Test
Time
melt_imd-gpu 10 20 30 40 50 60 70 80
LAMMPS example execution time
AMDGPU-PRO AMDGPU
Example Time
SLIDE 9
testKernel testKernelMerger testPrivateVar 5 10 15 20 25 30 35 40 45 50
ASL test execution time
AMDGPU-PRO AMDGPU
Test Time
SLIDE 10
Other OpenCL software
- Blender
– Different users report performance issues and crashes
- BEAGLE, phylogenetics library
– Made some progress
- clBLAS and clFFT
– Implmented clEnqueueFillBuffer, requires more work – Required for Octopus (quantum chem), probably others
SLIDE 11
Other OpenCL software
- BOINC, CP2K, Theano
– Had users tell me “I would try it if worked”
- clpeak, opencl-stream, SNU NPB
– Benchmarks
- App or lib you care about?
SLIDE 12
Acknowledgments
- Matt Arsenault, AMD
- Jan Vesely, Aaron Watry and Serge Martin, Mesa
contributors
- Francisco Jerez, Intel
- Peter Eastman, OpenMM
- Tom Stellard, Red Hat
- Freenode channel #radeon
