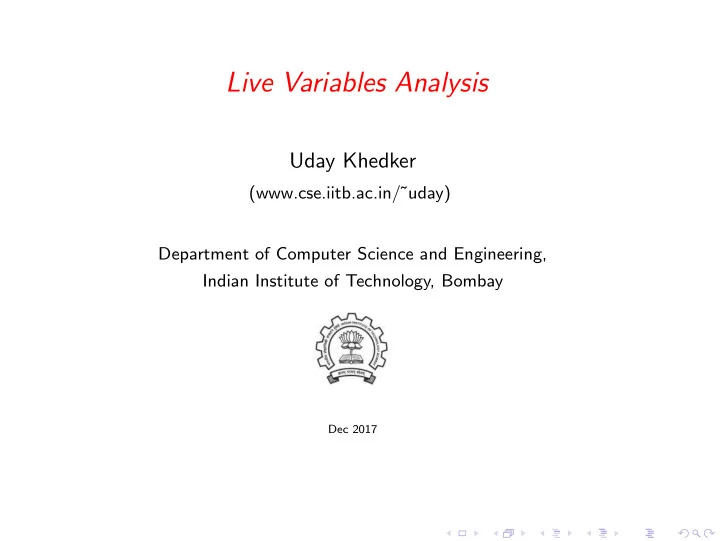

Live Variables Analysis

Uday Khedker

(www.cse.iitb.ac.in/˜uday) Department of Computer Science and Engineering, Indian Institute of Technology, Bombay

Dec 2017

slide-2
SLIDE 2

WSSE Pune Liveness Analysis: Outline 1/25

Outline

  • Live Variables Analysis
  • Strongly Live Variables Analysis
  • Some Observations

Dec 2017 IIT Bombay

slide-3
SLIDE 3

Part 1

Live Variables Analysis

slide-4
SLIDE 4

WSSE Pune Liveness Analysis: Live Variables Analysis 2/25

Defining Live Variables Analysis

A variable v is live at a program point p, if some path from p to program exit contains an r-value oc- currence of v which is not preceded by an l-value

  • ccurrence of v.

v =a∗b a=v +2 End

p

Start v =a∗b v =a+2 End

p

Start

v = v + 2

v =v +2 End

p

Start

Dec 2017 IIT Bombay

slide-5
SLIDE 5

WSSE Pune Liveness Analysis: Live Variables Analysis 2/25

Defining Live Variables Analysis

A variable v is live at a program point p, if some path from p to program exit contains an r-value oc- currence of v which is not preceded by an l-value

  • ccurrence of v.

v is live at p v =a∗b a=v +2 End

p

Start v =a∗b v =a+2 End

p

Start

v = v + 2

v =v +2 End

p

Start

Dec 2017 IIT Bombay

slide-6
SLIDE 6

WSSE Pune Liveness Analysis: Live Variables Analysis 2/25

Defining Live Variables Analysis

A variable v is live at a program point p, if some path from p to program exit contains an r-value oc- currence of v which is not preceded by an l-value

  • ccurrence of v.

v is live at p v is not live at p v =a∗b a=v +2 End

p

Start v =a∗b v =a+2 End

p

Start

v = v + 2

v =v +2 End

p

Start

Dec 2017 IIT Bombay

slide-7
SLIDE 7

WSSE Pune Liveness Analysis: Live Variables Analysis 2/25

Defining Live Variables Analysis

A variable v is live at a program point p, if some path from p to program exit contains an r-value oc- currence of v which is not preceded by an l-value

  • ccurrence of v.

v is live at p v is not live at p v is live at p v =a∗b a=v +2 End

p

Start v =a∗b v =a+2 End

p

Start

v = v + 2

v =v +2 End

p

Start

Dec 2017 IIT Bombay

slide-8
SLIDE 8

WSSE Pune Liveness Analysis: Live Variables Analysis 2/25

Defining Live Variables Analysis

A variable v is live at a program point p, if some path from p to program exit contains an r-value oc- currence of v which is not preceded by an l-value

  • ccurrence of v.

Path based specification v is live at p v is not live at p v is live at p v =a∗b a=v +2 End

p

Start v =a∗b v =a+2 End

p

Start

v = v + 2

v =v +2 End

p

Start

Dec 2017 IIT Bombay

slide-9
SLIDE 9

WSSE Pune Liveness Analysis: Live Variables Analysis 3/25

Defining Data Flow Analysis for Live Variables Analysis

INi Geni, Killi OUT

i

INj Genj, Killj OUT

j

INk = Genk ∪ (OUT

k − Killk)

Genk, Killk OUT

k = INi ∪ INj Dec 2017 IIT Bombay

slide-10
SLIDE 10

WSSE Pune Liveness Analysis: Live Variables Analysis 3/25

Defining Data Flow Analysis for Live Variables Analysis

INi Geni, Killi OUT

i

INj Genj, Killj OUT

j

INk = Genk ∪ (OUT

k − Killk)

Genk, Killk OUT

k = INi ∪ INj

Basic Blocks ≡ Single statements or Maximal groups

  • f sequentially executed statements

Dec 2017 IIT Bombay

slide-11
SLIDE 11

WSSE Pune Liveness Analysis: Live Variables Analysis 3/25

Defining Data Flow Analysis for Live Variables Analysis

INi Geni, Killi OUT

i

INj Genj, Killj OUT

j

INk = Genk ∪ (OUT

k − Killk)

Genk, Killk OUT

k = INi ∪ INj

Basic Blocks ≡ Single statements or Maximal groups

  • f sequentially executed statements

Control Transfer

Dec 2017 IIT Bombay

slide-12
SLIDE 12

WSSE Pune Liveness Analysis: Live Variables Analysis 3/25

Defining Data Flow Analysis for Live Variables Analysis

INi Geni, Killi OUT

i

INj Genj, Killj OUT

j

INk = Genk ∪ (OUT

k − Killk)

Genk, Killk OUT

k = INi ∪ INj

INi Geni, Killi OUT

i

INj Genj, Killj OUT

j

INk = Genk ∪ (OUT

k − Killk)

Genk, Killk OUT

k = INi ∪ INj Dec 2017 IIT Bombay

slide-13
SLIDE 13

WSSE Pune Liveness Analysis: Live Variables Analysis 3/25

Defining Data Flow Analysis for Live Variables Analysis

INi Geni, Killi OUT

i

INj Genj, Killj OUT

j

INk = Genk ∪ (OUT

k − Killk)

Genk, Killk OUT

k = INi ∪ INj

INi Geni, Killi OUT

i

INj Genj, Killj OUT

j

INk = Genk ∪ (OUT

k − Killk)

Genk, Killk OUT

k = INi ∪ INj

Local Data Flow Properties

Dec 2017 IIT Bombay

slide-14
SLIDE 14

WSSE Pune Liveness Analysis: Live Variables Analysis 4/25

Local Data Flow Properties for Live Variables Analysis

Genn = { v | variable v is used in basic block n and is not preceded by a definition of v } Killn = { v | basic block n contains a definition of v }

Dec 2017 IIT Bombay

slide-15
SLIDE 15

WSSE Pune Liveness Analysis: Live Variables Analysis 4/25

Local Data Flow Properties for Live Variables Analysis

Genn = { v | variable v is used in basic block n and is not preceded by a definition of v } Killn = { v | basic block n contains a definition of v } r-value occurrence

Value is only read, e.g. x,y,z in x.sum = y.data + z.data

Dec 2017 IIT Bombay

slide-16
SLIDE 16

WSSE Pune Liveness Analysis: Live Variables Analysis 4/25

Local Data Flow Properties for Live Variables Analysis

Genn = { v | variable v is used in basic block n and is not preceded by a definition of v } Killn = { v | basic block n contains a definition of v } r-value occurrence

Value is only read, e.g. x,y,z in x.sum = y.data + z.data

l-value occurrence

Value is modified e.g. y in y = x.lptr

Dec 2017 IIT Bombay

slide-17
SLIDE 17

WSSE Pune Liveness Analysis: Live Variables Analysis 4/25

Local Data Flow Properties for Live Variables Analysis

Genn = { v | variable v is used in basic block n and is not preceded by a definition of v } Killn = { v | basic block n contains a definition of v } r-value occurrence

Value is only read, e.g. x,y,z in x.sum = y.data + z.data

l-value occurrence

Value is modified e.g. y in y = x.lptr

within n

Dec 2017 IIT Bombay

slide-18
SLIDE 18

WSSE Pune Liveness Analysis: Live Variables Analysis 4/25

Local Data Flow Properties for Live Variables Analysis

Genn = { v | variable v is used in basic block n and is not preceded by a definition of v } Killn = { v | basic block n contains a definition of v } r-value occurrence

Value is only read, e.g. x,y,z in x.sum = y.data + z.data

l-value occurrence

Value is modified e.g. y in y = x.lptr

within n anywhere in n

Dec 2017 IIT Bombay

slide-19
SLIDE 19

WSSE Pune Liveness Analysis: Live Variables Analysis 5/25

Defining Data Flow Analysis for Live Variables Analysis

INi Geni, Killi OUT

i

INj Genj, Killj OUT

j

INk = Genk ∪ (OUT

k − Killk)

Genk, Killk OUT

k = INi ∪ INj Dec 2017 IIT Bombay

slide-20
SLIDE 20

WSSE Pune Liveness Analysis: Live Variables Analysis 5/25

Defining Data Flow Analysis for Live Variables Analysis

INi Geni, Killi OUT

i

INj Genj, Killj OUT

j

INk = Genk ∪ (OUT

k − Killk)

Genk, Killk OUT

k = INi ∪ INj

Global Data Flow Properties

Dec 2017 IIT Bombay

slide-21
SLIDE 21

WSSE Pune Liveness Analysis: Live Variables Analysis 5/25

Defining Data Flow Analysis for Live Variables Analysis

INi Geni, Killi OUT

i

INj Genj, Killj OUT

j

INk = Genk ∪ (OUT

k − Killk)

Genk, Killk OUT

k = INi ∪ INj

Global Data Flow Properties Edge based specifications

Dec 2017 IIT Bombay

slide-22
SLIDE 22

WSSE Pune Liveness Analysis: Live Variables Analysis 6/25

Data Flow Equations For Live Variables Analysis

INn = (OUT

n − Killn) ∪ Genn

OUT

n

=    BI n is End block

  • s∈succ(n)

INs

  • therwise

Dec 2017 IIT Bombay

slide-23
SLIDE 23

WSSE Pune Liveness Analysis: Live Variables Analysis 6/25

Data Flow Equations For Live Variables Analysis

INn = (OUT

n − Killn) ∪ Genn

OUT

n

=    BI n is End block

  • s∈succ(n)

INs

  • therwise
  • INn and OUT

n are sets of variables Dec 2017 IIT Bombay

slide-24
SLIDE 24

WSSE Pune Liveness Analysis: Live Variables Analysis 6/25

Data Flow Equations For Live Variables Analysis

INn = (OUT

n − Killn) ∪ Genn

OUT

n

=    BI n is End block

  • s∈succ(n)

INs

  • therwise
  • INn and OUT

n are sets of variables

  • BI is boundary information representing the effect of calling contexts

◮ ∅ for local variables except for the values being returned ◮ set of global variables used further in any calling context

(can be safely approximated by the set of all global variables)

Dec 2017 IIT Bombay

slide-25
SLIDE 25

WSSE Pune Liveness Analysis: Live Variables Analysis 7/25

Data Flow Equations for Our Example

w = x 1 while (x.data < max) 2 x = x.rptr 3 y = x.lptr 4 z = New class of z 5 y = y.lptr 6 z.sum = x.data + y.data 7 IN1 = (OUT

1 − Kill1) ∪ Gen1

OUT

1 = IN2

IN2 = (OUT

2 − Kill2) ∪ Gen2

OUT

2 = IN3 ∪ IN4

IN3 = (OUT

3 − Kill3) ∪ Gen3

OUT

3 = IN2

IN4 = (OUT

4 − Kill4) ∪ Gen4

OUT

4 = IN5

IN5 = (OUT

5 − Kill5) ∪ Gen5

OUT

5 = IN6

IN6 = (OUT

6 − Kill6) ∪ Gen6

OUT

6 = IN7

IN7 = (OUT

7 − Kill7) ∪ Gen7

OUT

7 = ∅ Dec 2017 IIT Bombay
