LHC 4.8 GHz Schottky Commissioning Ralph J. Pasquinelli Andreas Jansson April 8-15, 2010 Typical GUI Hardware Page R. J. Pasquinelli CCC R. J. Pasquinelli Service Building Point 4 R. J. Pasquinelli Calibration signal generator with 10

slide-1
SLIDE 1

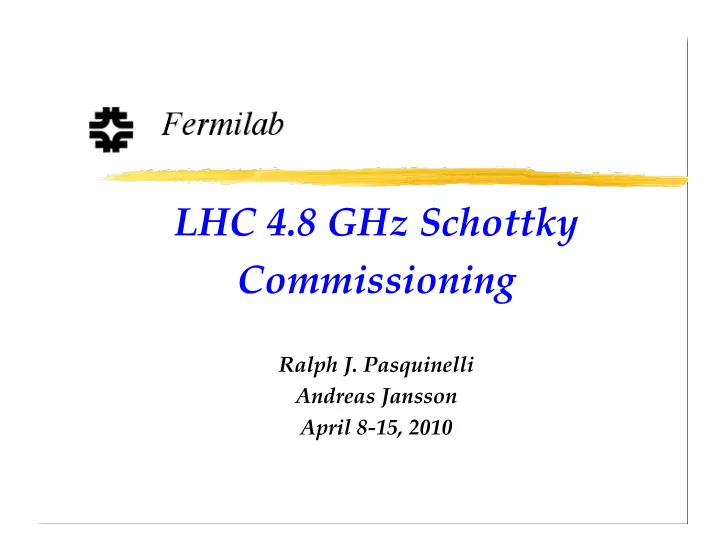

LHC 4.8 GHz Schottky Commissioning

Ralph J. Pasquinelli Andreas Jansson April 8-15, 2010

slide-2
SLIDE 2
  • R. J. Pasquinelli

Typical GUI Hardware Page

slide-3
SLIDE 3
  • R. J. Pasquinelli

CCC

slide-4
SLIDE 4
  • R. J. Pasquinelli

Service Building Point 4

slide-5
SLIDE 5
  • R. J. Pasquinelli

Calibration signal generator with 10 MHz ext ref from Beam 1 Tracking RF frequency change

slide-6
SLIDE 6
  • R. J. Pasquinelli

Beam 2 cal signals to 21.4 MHz IF Sidebands are line harmonics on sig gen Vertical higher IL due to 7/8” cable plant Horizontal Vertical

slide-7
SLIDE 7
  • R. J. Pasquinelli

2x2 store 3.5 TeV

slide-8
SLIDE 8
  • R. J. Pasquinelli

Un-gated base band signals 2x2 store NOTE LO frequencies set for revolution Frequency of 11245 Hz

slide-9
SLIDE 9
  • R. J. Pasquinelli

HB2 21.4 MHz IF with arbitrary 378 MHz LO

slide-10
SLIDE 10
  • R. J. Pasquinelli

Synchrotron f @ 3.5 TeV Freq=23 Hz HB1 21.4 MHz IF

slide-11
SLIDE 11
  • R. J. Pasquinelli

Gate on full time blue Gate Table green SA noise floor black Max noise reduction with gating observed to be approximately 10 dB HB1 21.4 MHz IF

slide-12
SLIDE 12
  • R. J. Pasquinelli

Debugging Gates using Tunnel Scope Bouncing (yellow) was a software error Scope is essential for gating studies

slide-13
SLIDE 13
  • R. J. Pasquinelli

Bunch loading table for 2x2 store

slide-14
SLIDE 14
  • R. J. Pasquinelli

Baseband 2x 2 store 3.5 TeV with

  • gating. Vertical Band 1 has modified

daughter card which looks good. Need to modify others.

slide-15
SLIDE 15
  • R. J. Pasquinelli

Zoom in on sideband with FNAL GUI

slide-16
SLIDE 16
  • R. J. Pasquinelli

Signal to Noise Limitations with Gating HB1 Comparison of 21.4 MHz to Baseband

slide-17
SLIDE 17
  • R. J. Pasquinelli

Dedicated 10 bunch store 450 GeV

slide-18
SLIDE 18
  • R. J. Pasquinelli

10 bunches approximately 1011 total

slide-19
SLIDE 19
  • R. J. Pasquinelli

Beam 2: 10 Bunch store 450 GeV Vertical gate settings

slide-20
SLIDE 20
  • R. J. Pasquinelli

First Schottky Signals FNAL GUI app 10 Bunches Beam 2: 450 GeV

slide-21
SLIDE 21
  • R. J. Pasquinelli

First Schottky Signals 10 Bunches Beam 2: 450 GeV with averaging Measured Accurate Tunes

slide-22
SLIDE 22
  • R. J. Pasquinelli
