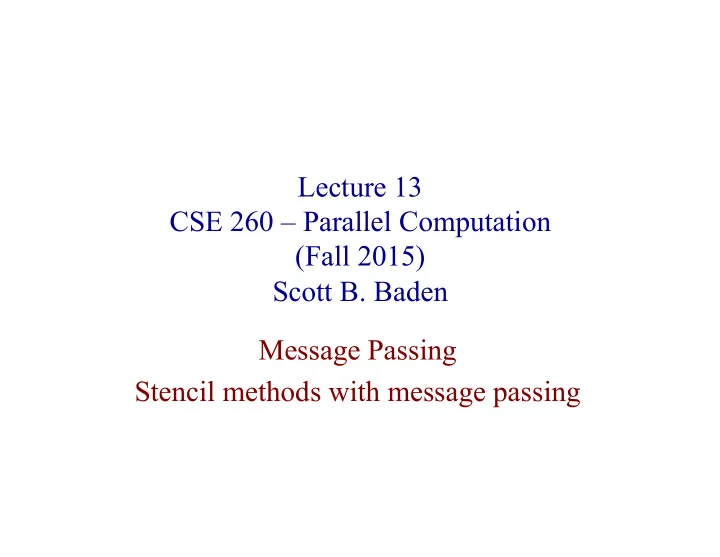

Lecture 13 CSE 260 – Parallel Computation (Fall 2015) Scott B. Baden Message Passing Stencil methods with message passing

Announcements

• Weds office hours changed for the remainder
• f quarter: 3:30 to 5:30

Scott B. Baden / CSE 260, UCSD / Fall '15 2

Today’s lecture

• Aliev Panfilov Method (A3)
• Message passing
• Stencil methods in MPI

Scott B. Baden / CSE 260, UCSD / Fall '15 3

Warp aware summation

__global__ void reduce(int *input, unsigned int N, int *total){ unsigned int tid = threadIdx.x; unsigned int i = blockIdx.x * blockDim.x + tid; unsigned int s; for (s = blockDim.x/2; s > 1; s /= 2) { __syncthreads(); if (tid < s ) x[tid] += x[tid + s ]; } if (tid == 0) atomicAdd(total,x[tid]); }

reduceSum <<<N/512,512>>> (x,N)

Scott B. Baden / CSE 260, UCSD / Fall '15 4 7 11 14 25 7 4 3 1 5 4 1 9 6 3

For next time: complete the code so it handles global data with arbitrary N

Recapping from last time

• Stencil methods use nearest neighbor

computations

• The Aliev-Panfilov method solves a coupled

set of differential equations on a mesh

• We showed how to implement it on a GPU
• We use shared memory (and registers) to store

“ghost cells” to optimize performance

Scott B. Baden / CSE 260, UCSD / Fall '15 5

Computational loop of the cardiac simulator

• ODE solver:

u No data dependency, trivially parallelizable u Requires a lot of registers to hold temporary variables

• PDE solver:

u Jacobi update for the 5-point Laplacian operator. u Sweeps over a uniformly spaced mesh u Updates voltage to weighted contributions from

the 4 nearest neighbors updating the solution as a function of the values in the previous time step

For a specified number of iterations, using supplied initial conditions repeat for (j=1; j < m+1; j++){ for (i=1; i < n+1; i++) { // PDE SOLVER E[j,i] = E_p[j,i]+α*(E_p[j,i+1]+E_p[j,i-1]-4*E_p[j,i]+E_p[j+1,i]+E_p[j-1,i]); // ODE SOLVER E[j,i] += -dt*(kk*E[j,i]*(E[j,i]-a)*(E[j,i]-1)+E[j,i]*R[j,i]); R[j,i] += dt*(ε+M1* R[j,i]/(E[j,i]+M2))*(-R[j,i]-kk*E[j,i]*(E[j,i]-b-1)); } } swap E_p and E End repeat

Scott B. Baden / CSE 260, UCSD / Fall '15 6

Where is the time spent (Sorken)?

• Loops are unfused

I1 cache: 32768 B, 64 B, 8-way associative D1 cache: 32768 B, 64 B, 8-way associative LL cache: 20971520 B, 64 B, 20-way associative Command: ./apf -n 256 -i 2000

• Ir I1mr ILmr Dr D1mr DLmr Dw D1mw DLmw

4.451B 2,639 2,043 1,381,173,237 50,592,465 7,051 3957M 16,794,937 26,115 PROGRAM TOTALS Dr D1mr

• 1,380,464,019 50,566,007 solve.cpp:solve( ...)

. . . // Fills in the TOP Ghost Cells 10,000 1,999 for (i = 0; i < n+2; i++) 516,000 66,000 E_prev[i] = E_prev[i + (n+2)*2]; // Fills in the RIGHT Ghost Cells 10,000 0 for i = (n+1); i < (m+2)*(n+2); i+=(m+2)) 516,000 504,003 E_prev[i] = E_prev[i-2]; // Solve for the excitation, a PDE 1,064,000 8,000 for(j =innerBlkRowStartIndx;j<=innerBlkRowEndIndx; j+=(m+)){ 0 E_prevj = E_prev + j; E_tmp = E + j; 512,000 0 for(i = 0; i < n; i++) { 721,408,002 16,630,001 E_tmp[i] = E_prevj[i]+alpha*(E_prevj[i+1]...) } // Solve the ODEs 4,000 4,000 for(j=innerBlkRowStartIndx; j <= innerBlkRowEndIndx;j+=(m+3)){ for(i = 0; i <= n; i++) { 262,144,000 33,028,000 E_tmp[i] += -dt*(kk*E_tmp[i]*(E_tmp[i]-a).. )*R_tmp[i]); 393,216,000 4,000 R_tmp[i] += dt*(ε+M1*R_tmp[i]/(E_tmp[i]+M2))*(…); }

Scott B. Baden / CSE 260, UCSD / Fall '15 7

Fusing the loops

• On Sorken

u Slows down the simulation by 20% u # data references drops by 35% u total number of L1 read misses drops by 48%

• What happened?
• Code didn’t vectorize

Scott B. Baden / CSE 260, UCSD / Fall '15 8

For a specified number of iterations, using supplied initial conditions repeat for (j=1; j < m+1; j++){ for (i=1; i < n+1; i++) { // PDE SOLVER E[j,i] = E_p[j,i]+α*(E_p[j,i+1]+E_p[j,i-1]-4*E_p[j,i]+E_p[j+1,i]+E_p[j-1,i]); // ODE SOLVER E[j,i] += -dt*(kk*E[j,i]*(E[j,i]-a)*(E[j,i]-1)+E[j,i]*R[j,i]); R[j,i] += dt*(ε+M1* R[j,i]/(E[j,i]+M2))*(-R[j,i]-kk*E[j,i]*(E[j,i]-b-1)); } } swap E_p and E End repeat

Vectorization output

• Gcc compiles with -ftree-vectorizer-verbose=1

Analyzing loop at solve.cpp:118 solve.cpp:43: note: vectorized 0 loops in function.

Scott B. Baden / CSE 260, UCSD / Fall '15 9

For a specified number of iterations, using supplied initial conditions repeat for (j=1; j < m+1; j++){ for (i=1; i < n+1; i++) { // PDE SOLVER E[j,i] = E_p[j,i]+α*(E_p[j,i+1]+E_p[j,i-1]-4*E_p[j,i]+E_p[j+1,i]+E_p[j-1,i]); // ODE SOLVER E[j,i] += -dt*(kk*E[j,i]*(E[j,i]-a)*(E[j,i]-1)+E[j,i]*R[j,i]); R[j,i] += dt*(ε+M1* R[j,i]/(E[j,i]+M2))*(-R[j,i]-kk*E[j,i]*(E[j,i]-b-1)); } } swap E_p and E End repeat

On Stampede

• We use the Intel compiler suite

icpc --std=c++11 -O3 -qopt-report=1 -c solve.cpp icpc: remark #10397: optimization reports are generated in *.optrpt files in the output location

LOOP BEGIN at solve.cpp(142,9) remark #25460: No loop optimizations reported LOOP END

Scott B. Baden / CSE 260, UCSD / Fall '15 10

for (j=1; j < m+1; j++){ for (i=1; i < n+1; i++) { // Line 142 // PDE SOLVER E[j,i] = E_p[j,i]+α*(E_p[j,i+1]+E_p[j,i-1]-4*E_p[j,i]+E_p[j+1,i]+E_p[j-1,i]); // ODE SOLVER E[j,i] += -dt*(kk*E[j,i]*(E[j,i]-a)*(E[j,i]-1)+E[j,i]*R[j,i]); R[j,i] += dt*(ε+M1* R[j,i]/(E[j,i]+M2))*(-R[j,i]-kk*E[j,i]*(E[j,i]-b-1)); } }

A vectorized loop

• We use the Intel compiler suite

icpc --std=c++11 -O3 -qopt-report=1 -c solve.cpp

Scott B. Baden / CSE 260, UCSD / Fall '15 11

6: for (j=0; j< 10000; j++) x[j] = j-1; 8: for (j=0; j< 10000; j++) x[j] = x[j]*x[j];

LOOP BEGIN at vec.cpp(6,3) remark #25045: Fused Loops: ( 6 8 ) remark #15301: FUSED LOOP WAS VECTORIZED LOOP END

Thread assignment in a GPU implementation

• We assign threads to interior cells only
• 3 phases
• 1. Fill the interior
• 2. Fill the ghost cells – red circles correspond to active

threads, orange to ghost cell data they copy into shared memory

• 3. Compute – uses the same thread mapping as in step 1

Scott B. Baden / CSE 260, UCSD / Fall '15 14

Today’s lecture

• Aliev Panfilov Method (A3)
• Message passing

u The Message Passing Programming Model u The Message Passing Interface - MPI u A first MPI Application – The Trapezoidal Rule

• Stencil methods in MPI

Scott B. Baden / CSE 260, UCSD / Fall '15 16

17

Architectures without shared memory

• Shared nothing architecture, or a multicomputer
• Hierarchical parallelism

uk.hardware.info tinyurl.com/k6jqag5 Wikipedia

Fat tree

Scott B. Baden / CSE 260, UCSD / Fall '15 17

Programming with Message Passing

• Programs execute as a set of P processes (user specifies P)
• Each process assumed to run on a different core

u Usually initialized with the same code, but has private state

SPMD = “Same Program Multiple Data”

u Access to local memory only u Communicates with other processes by passing messages u Executes instructions at its own rate according to its rank (0:P-1) and

the messages it sends and receives Node 0

P0

P1

P2 P3

…

Tan Nguyen

Node 0

P0

P1

P2 P3

Scott B. Baden / CSE 260, UCSD / Fall '15 18

Bulk Synchronous Execution Model

• A process is either communicating or computing
• Generally, all processors are performing the same

activity at the same time

• Pathological cases, when workloads aren’t well

balanced

Scott B. Baden / CSE 260, UCSD / Fall '15 20

Message passing

• There are two kinds of communication patterns
• Point-to-point communication:

a single pair of communicating processes copy data between address space

• Collective communication: all the processors

participate, possibly exchanging information

Scott B. Baden / CSE 260, UCSD / Fall '15 21

Point-to-Point communication

• Messages are like email; to send or receive one, we

specify

u A destination and a message body (can be empty)

• Requires a sender and an explicit recipient that

must be aware of one another

• Message passing performs two events

u Memory to memory block copy u Synchronization signal at recipient: “Data has arrived”

Scott B. Baden / CSE 260, UCSD / Fall '15 23

Send(y,1) Recv(x)

Process 0 Process 1

y

y x

Send and Recv

• Primitives that implement Pt to Pt communication
• When Send( ) returns, the message is “in transit”

u Return doesn’t tell us if the message has been received u The data is somewhere in the system u Safe to overwrite the buffer

• Receive( ) blocks until the message has been received

u Safe to use the data in the buffer

Send(y,1) Recv(x)

Process 0 Process 1

y

y x

Scott B. Baden / CSE 260, UCSD / Fall '15 24

Causality

A B C A B C A B X Y A X Y B

Scott B. Baden / CSE 260, UCSD / Fall '15 25

• If a process sends multiple messages to the same

destination, then the messages will be received in the order sent

• If different processes send messages to the same

destination, the order of receipt isn’t defined across sources

Today’s lecture

• Aliev Panfilov Method (A3)
• Message passing

u The Message Passing Programming Model u The Message Passing Interface - MPI u A first MPI Application – The Trapezoidal Rule

• Stencil methods in MPI

Scott B. Baden / CSE 260, UCSD / Fall '15 26

MPI

• We’ll use a library called MPI

“Message Passing Interface”

u 125 routines in MPI-1 u 7 minimal routines needed by every MPI program

• start, end, and query MPI execution state (4)
• non-blocking point-to-point message passing (3)
• Reference material:

cseweb.ucsd.edu/~baden/Doc/mpi.html

Scott B. Baden / CSE 260, UCSD / Fall '15 27

Functionality we’ll will cover today

• Point-to-point communication
• Message Filtering
• Communicators and Tags
• Application: the trapezoidal rule
• Collective Communication

Scott B. Baden / CSE 260, UCSD / Fall '15 28

A first MPI program : “hello world”

#include "mpi.h” int main(int argc, char **argv ){ MPI_Init(&argc, &argv); int rank, size; MPI_Comm_size(MPI_COMM_WORLD,&size); MPI_Comm_rank(MPI_COMM_WORLD,&rank); printf("Hello, world! I am process %d of %d.\n”, rank, size); MPI_Finalize(); return(0); }

Scott B. Baden / CSE 260, UCSD / Fall '15 29

const int Tag=99; int msg[2] = { rank, rank * rank}; if (rank == 0) { MPI_Status status; MPI_Recv(msg, 2, MPI_INT, 1, Tag, MPI_COMM_WORLD, &status); } else MPI_Send(msg, 2, MPI_INT, 0, Tag, MPI_COMM_WORLD);

Send and Recv

Message Buffer Message length SOURCE Process ID Destination Process ID Communicator Message Tag

Scott B. Baden / CSE 260, UCSD / Fall '15 33

Communicators

• A communicator is a name-space (or a context)

describing a set of processes that may communicate

• MPI defines a default communicator

MPI_C _COMM_W _WORLD containing all processes

• MPI provides the means of generating uniquely

named subsets (later on)

• A mechanism for screening or filtering messages

Scott B. Baden / CSE 260, UCSD / Fall '15 34

MPI Tags

• Tags enable processes to organize or screen

messages

• Each sent message is accompanied by a user-

defined integer tag:

u Receiving process can use this information to

• rganize or filter messages

u MPI_ANY_TAG inhibits tag filtering

Scott B. Baden / CSE 260, UCSD / Fall '15 35

MPI Datatypes

• MPI messages have a specified length
• The unit depends on the type of the data

u The length in bytes is sizeof(type) × # elements u We don’t specify the as the # byte

• MPI specifies a set of built-in types for each of

the primitive types of the language

• In C: MPI_INT, MPI_FLOAT, MPI_DOUBLE,


MPI_CHAR, MPI_LONG,
 MPI_UNSIGNED, MPI_BYTE,…

• Also defined types, e.g. structs

Scott B. Baden / CSE 260, UCSD / Fall '15 36

• An MPI_Status variable is a struct that contains the

sending processor and the message tag

• This information is useful when we aren’t filtering

messages

• We may also access the length of the received

message (may be shorter than the message buffer) MPI_Recv( message, count,

TYPE, MPI_ANY_SOURCE, MPI_ANY_TAG, COMMUNICATOR, &status); MPI_Get_count(&status, TYPE, &recv_count ); status.MPI_SOURCE status.MPI_TAG

Message status

Scott B. Baden / CSE 260, UCSD / Fall '15 37

Today’s lecture

• Aliev Panfilov Method (A3)
• Message passing

u The Message Passing Programming Model u The Message Passing Interface - MPI u A first MPI Application – The Trapezoidal Rule

• Stencil methods in MPI

Scott B. Baden / CSE 260, UCSD / Fall '15 38

The trapezoidal rule

• Use the trapezoidal rule to

numerically approximate a definite integral, area under the curve

• Divide the interval [a,b] into n

segments of size h=1/n

• Area under the ith trapezoid

½ (f(a+i×h)+f(a+(i+1)×h)) ×h

• Area under the entire curve

≈ sum of all the trapezoids h a+i*h a+(i+1)*h

f (x)dx

a b

∫

Scott B. Baden / CSE 260, UCSD / Fall '15 39

Reference material

• For a discussion of the trapezoidal rule

http:/

/ en.wikipedia.org/wiki/Trapezoidal_rule

• A applet to carry out integration

http:/ /www.csse.monash.edu.au/~lloyd/tildeAlgDS/Numerical/Integration

• Code on Bang/Sorken/Stampede

(from Pacheco’s MPI text)

• Serial Code

$PUB/Examples/MPI/Pacheco/ppmpi_c/chap04/serial.c Parallel Code $PUB/Examples/MPI/Pacheco/ppmpi_c/chap04/trap.c

Scott B. Baden / CSE 260, UCSD / Fall '15 40

Serial code (Following Pacheco)

main() { float f(float x) { return x*x; } // Function we're integrating float h = (b-a)/n; // h = trapezoid base width // a and b: endpoints // n = # of trapezoids float integral = (f(a) + f(b))/2.0; float x; int i; for (i = 1, x=a; i <= n-1; i++) { x += h; integral = integral + f(x); } integral = integral*h; }

Scott B. Baden / CSE 260, UCSD / Fall '15 41

Parallel Implementation of the Trapezoidal Rule

• Decompose the integration interval into sub-intervals, one

per processor

• Each processor computes the integral on its local subdomain
• Processors combine their local integrals into a global one

Scott B. Baden / CSE 260, UCSD / Fall '15 42

First version of the parallel code

int local_n = n/p; // # trapezoids; assume p divides n evenly float local_a = a + my_rank*local_n*h, local_b = local_a + local_n*h, integral = Trap(local_a, local_b, local_n); if (my_rank == ROOT) { // Sum the integrals calculated by
 // all processes total = integral; for (source = 1; source < p; source++) { MPI_Recv(&integral, 1, MPI_FLOAT, MPI_ANY_SOURCE,
 tag, WORLD, &status); total += integral; } } else MPI_Send(&integral, 1,
 MPI_FLOAT, ROOT, tag, WORLD);

Scott B. Baden / CSE 260, UCSD / Fall '15 43
