SLIDE 1

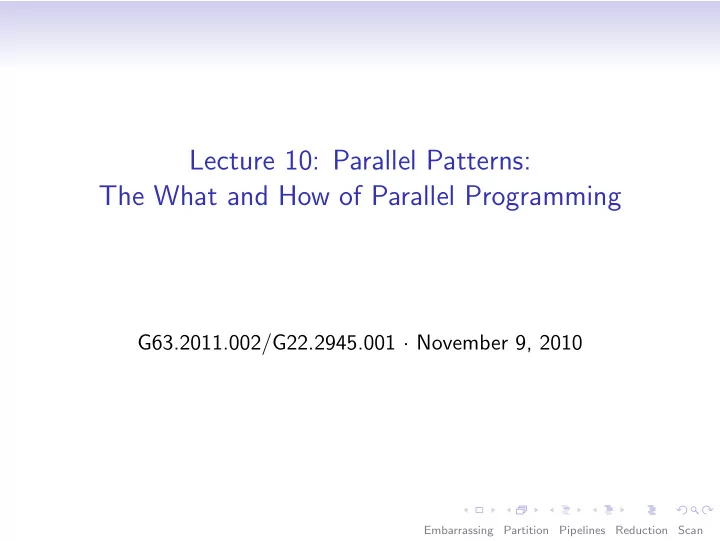

Lecture 10: Parallel Patterns: The What and How of Parallel Programming

G63.2011.002/G22.2945.001 · November 9, 2010

Embarrassing Partition Pipelines Reduction Scan

SLIDE 2

Tentative Plan for Rest of Class

Today: Parallel Patterns
Nov 16: Load Balancing
Nov 23: More performance tricks, tools
Nov 30: Odds and Ends in GPU Land
Dec 7: moved to Dec 14 (still ok?)
Dec 14, 21: Final Project Presentations
Will assign presentation date this week.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 3

Tentative Plan for Rest of Class

Today: Parallel Patterns
Nov 16: Load Balancing
Nov 23: More performance tricks, tools
Nov 30: Odds and Ends in GPU Land
Dec 7: moved to Dec 14 (still ok?)
Dec 14, 21: Final Project Presentations
Will assign presentation date this week.

Anything not on here that you would like covered?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 4

Tentative Plan for Rest of Class

Today: Parallel Patterns
Nov 16: Load Balancing
Nov 23: More performance tricks, tools
Nov 30: Odds and Ends in GPU Land
Dec 7: moved to Dec 14 (still ok?)
Dec 14, 21: Final Project Presentations
Will assign presentation date this week.

Will post HW3 solution soon. (list message) Graded HW3 next week.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 5

Today

“Traditional” parallel programming in a nutshell Key question:

Data Dependencies

Embarrassing Partition Pipelines Reduction Scan

SLIDE 6

Outline

Embarrassingly Parallel Partition Pipelines Reduction Scan

Embarrassing Partition Pipelines Reduction Scan

SLIDE 7

Outline

Embarrassingly Parallel Partition Pipelines Reduction Scan

Embarrassing Partition Pipelines Reduction Scan

SLIDE 8

Embarrassingly Parallel

yi = fi(xi)

where i ∈ {1, . . . , N}. Notation: (also for rest of this lecture)

xi: inputs
yi: outputs
fi: (pure) functions (i.e. no side effects)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 9

Embarrassingly Parallel

yi = fi(xi)

where i ∈ {1, . . . , N}. Notation: (also for rest of this lecture)

xi: inputs
yi: outputs
fi: (pure) functions (i.e. no side effects)

When does a function have a “side effect”? In addition to producing a value, it

modifies non-local state, or
has an observable interaction with the
utside world.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 10

Embarrassingly Parallel

yi = fi(xi)

where i ∈ {1, . . . , N}. Notation: (also for rest of this lecture)

xi: inputs
yi: outputs
fi: (pure) functions (i.e. no side effects)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 11

Embarrassingly Parallel

yi = fi(xi)

where i ∈ {1, . . . , N}. Notation: (also for rest of this lecture)

xi: inputs
yi: outputs
fi: (pure) functions (i.e. no side effects)

Often: f1 = · · · = fN. Then

Lisp/Python function map
C++ STL std::transform

Embarrassing Partition Pipelines Reduction Scan

SLIDE 12

Embarrassingly Parallel: Graph Representation

x0 y0 f0 x1 y1 f1 x2 y2 f2 x3 y3 f3 x4 y4 f4 x5 y5 f5 x6 y6 f6 x7 y7 f7 x8 y8 f8

Embarrassing Partition Pipelines Reduction Scan

SLIDE 13

Embarrassingly Parallel: Graph Representation

x0 y0 f0 x1 y1 f1 x2 y2 f2 x3 y3 f3 x4 y4 f4 x5 y5 f5 x6 y6 f6 x7 y7 f7 x8 y8 f8 Trivial? Often: no.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 14

Embarrassingly Parallel: Examples

Surprisingly useful:

Element-wise linear algebra:

Addition, scalar multiplication (not inner product)

Image Processing: Shift, rotate,

clip, scale, . . .

Monte Carlo simulation
(Brute-force) Optimization
Random Number Generation
Encryption, Compression

(after blocking)

Software compilation
make -j8

Embarrassing Partition Pipelines Reduction Scan

SLIDE 15

Embarrassingly Parallel: Examples

Surprisingly useful:

Element-wise linear algebra:

Addition, scalar multiplication (not inner product)

Image Processing: Shift, rotate,

clip, scale, . . .

Monte Carlo simulation
(Brute-force) Optimization
Random Number Generation
Encryption, Compression

(after blocking)

Software compilation
make -j8

But: Still needs a minimum of

coordination. How can that be

achieved?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 16

Mother-Child Parallelism

Mother-Child parallelism: Mother 1 2 3 4 Children Send initial data Collect results (formerly called “Master-Slave”)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 17

Embarrassingly Parallel: Issues

Process Creation:

Dynamic/Static?

MPI 2 supports dynamic process

creation

Job Assignment (‘Scheduling’):

Dynamic/Static?

Operations/data light- or

heavy-weight?

Variable-size data?
Load Balancing:
Here: easy

Embarrassing Partition Pipelines Reduction Scan

SLIDE 18

Embarrassingly Parallel: Issues

Process Creation:

Dynamic/Static?

MPI 2 supports dynamic process

creation

Job Assignment (‘Scheduling’):

Dynamic/Static?

Operations/data light- or

heavy-weight?

Variable-size data?
Load Balancing:
Here: easy

Can you think of a load balancing recipe?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 19

Outline

Embarrassingly Parallel Partition Pipelines Reduction Scan

Embarrassing Partition Pipelines Reduction Scan

SLIDE 20

Partition

yi = fi(xi−1, xi, xi+1)

where i ∈ {1, . . . , N}.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 21

Partition

yi = fi(xi−1, xi, xi+1)

where i ∈ {1, . . . , N}. Includes straightforward generalizations to dependencies on a larger (but not O(P)-sized!) set of neighbor inputs.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 22

Partition: Graph

x0 x1 x2 x3 x4 x5 x6 y1 y2 y3 y4 y5

Embarrassing Partition Pipelines Reduction Scan

SLIDE 23

Partition: Examples

Time-marching

(in particular: PDE solvers)

(Including finite differences → HW3!)
Iterative Methods
Solve Ax = b (Jacobi, . . . )
Optimization (all P on single problem)
Eigenvalue solvers
Cellular Automata (Game of Life :-)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 24

Partition: Issues

Only useful when the computation

is mainly local

Responsibility for updating one

datum rests with one processor

Synchronization, Deadlock,

Livelock, . . .

Performance Impact
Granularity
Load Balancing: Thorny issue
→ next lecture
Regularity of the Partition?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 25

Rendezvous Trick

Assume an irregular

partition.

Assume problem

components i, j on unknown partitions pi, pj need to communicate.

How can pi find pj (and vice

versa)? pi pj

i j

Embarrassing Partition Pipelines Reduction Scan

SLIDE 26

Rendezvous Trick

Assume an irregular

partition.

Assume problem

components i, j on unknown partitions pi, pj need to communicate.

How can pi find pj (and vice

versa)? Communicate via a third party, pf (i,j). For f : think ‘hash function’. pi pj

i j

pf (i,j)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 27

Rendezvous Trick

Assume an irregular

partition.

Assume problem

components i, j on unknown partitions pi, pj need to communicate.

How can pi find pj (and vice

versa)? Communicate via a third party, pf (i,j). For f : think ‘hash function’. pi pj

i j

pf (i,j) “I’m in pi.”

Embarrassing Partition Pipelines Reduction Scan

SLIDE 28

Rendezvous Trick

Assume an irregular

partition.

Assume problem

components i, j on unknown partitions pi, pj need to communicate.

How can pi find pj (and vice

versa)? Communicate via a third party, pf (i,j). For f : think ‘hash function’. pi pj

i j

pf (i,j) “I’m in pj.”

Embarrassing Partition Pipelines Reduction Scan

SLIDE 29

Rendezvous Trick

Assume an irregular

partition.

Assume problem

components i, j on unknown partitions pi, pj need to communicate.

How can pi find pj (and vice

versa)? Communicate via a third party, pf (i,j). For f : think ‘hash function’. pi pj

i j

pf (i,j)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 30

Rendezvous Trick

Assume an irregular

partition.

Assume problem

components i, j on unknown partitions pi, pj need to communicate.

How can pi find pj (and vice

versa)? Communicate via a third party, pf (i,j). For f : think ‘hash function’. pi pj

i j

pf (i,j)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 31

Outline

Embarrassingly Parallel Partition Pipelines Reduction Scan

Embarrassing Partition Pipelines Reduction Scan

SLIDE 32

Pipelined Computation

y = fN(· · · f2(f1(x)) · · · ) = (fN ◦ · · · ◦ f1)(x)

where N is fixed.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 33

Pipelined Computation: Graph

x y f1 f1 f2 f3 f4 f6

Embarrassing Partition Pipelines Reduction Scan

SLIDE 34

Pipelined Computation: Graph

x y f1 f1 f2 f3 f4 f6 Processor Assignment?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 35

Pipelined Computation: Examples

Image processing
Any multi-stage algorithm
Pre/post-processing or I/O
Out-of-Core algorithms

Specific simple examples:

Sorting (insertion sort)
Triangular linear system solve

(‘backsubstitution’)

Key: Pass on values as soon as

they’re available

(will see more efficient algorithms for both later)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 36

Pipelined Computation: Issues

Non-optimal while pipeline fills or

empties

Often communication-inefficient
for large data
Needs some attention to

synchronization, deadlock avoidance

Can accommodate some

asynchrony But don’t want:

Pile-up
Starvation

Embarrassing Partition Pipelines Reduction Scan

SLIDE 37

Outline

Embarrassingly Parallel Partition Pipelines Reduction Scan

Embarrassing Partition Pipelines Reduction Scan

SLIDE 38

Reduction

y = f (· · · f (f (x1, x2), x3), . . . , xN)

where N is the input size.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 39

Reduction

y = f (· · · f (f (x1, x2), x3), . . . , xN)

where N is the input size. Also known as. . .

Lisp/Python function reduce (Scheme: fold)
C++ STL std::accumulate

Embarrassing Partition Pipelines Reduction Scan

SLIDE 40

Reduction: Graph

y x1 x2 x3 x4 x5 x6

Embarrassing Partition Pipelines Reduction Scan

SLIDE 41

Reduction: Graph

y x1 x2 x3 x4 x5 x6 Painful! Not parallelizable.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 42

Approach to Reduction

f (x, y)?

Can we do better? “Tree” very imbalanced. What property

f f would allow ‘rebalancing’?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 43

Approach to Reduction

f (x, y)?

Can we do better? “Tree” very imbalanced. What property

f f would allow ‘rebalancing’?

f (f (x, y), z) = f (x, f (y, z)) Looks less improbable if we let x ◦ y = f (x, y): x ◦ (y ◦ z)) = (x ◦ y) ◦ z Has a very familiar name: Associativity

Embarrassing Partition Pipelines Reduction Scan

SLIDE 44

Reduction: A Better Graph

y x0 x1 x2 x3 x4 x5 x6 x7

Embarrassing Partition Pipelines Reduction Scan

SLIDE 45

Reduction: A Better Graph

y x0 x1 x2 x3 x4 x5 x6 x7 Processor allocation?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 46

Mapping Reduction to the GPU

Obvious: Want to use tree-based approach.
Problem: Two scales, Work group and Grid
Need to occupy both to make good use of the machine.
In particular, need synchronization after each tree stage.

With material by M. Harris (Nvidia Corp.)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 47

Mapping Reduction to the GPU

Obvious: Want to use tree-based approach.
Problem: Two scales, Work group and Grid
Need to occupy both to make good use of the machine.
In particular, need synchronization after each tree stage.
Solution: Use a two-scale algorithm.

4 7 5 9 11 14 25 3 1 7 0 4 1 6 3 4 7 5 9 11 14 25 3 1 7 0 4 1 6 3 4 7 5 9 11 14 25 3 1 7 0 4 1 6 3 4 7 5 9 11 14 25 3 1 7 0 4 1 6 3 4 7 5 9 11 14 25 3 1 7 0 4 1 6 3 4 7 5 9 11 14 25 3 1 7 0 4 1 6 3 4 7 5 9 11 14 25 3 1 7 0 4 1 6 3 4 7 5 9 11 14 25 3 1 7 0 4 1 6 3 4 7 5 9 11 14 25 3 1 7 0 4 1 6 3

In particular: Use multiple grid invocations to achieve inter-workgroup synchronization.

With material by M. Harris (Nvidia Corp.)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 48

Kernel V1

kernel void reduce0( global T ∗g idata, global T ∗g odata, unsigned int n, local T∗ ldata) { unsigned int lid = get local id (0); unsigned int i = get global id (0); ldata [ lid ] = (i < n) ? g idata [ i ] : 0; barrier (CLK LOCAL MEM FENCE); for(unsigned int s=1; s < get local size (0); s ∗= 2) { if (( lid % (2∗s)) == 0) ldata [ lid ] += ldata[lid + s]; barrier (CLK LOCAL MEM FENCE); } if ( lid == 0) g odata[get group id(0)] = ldata [0]; }

Embarrassing Partition Pipelines Reduction Scan

SLIDE 49

Interleaved Addressing

2 11 7 2

3
2

5 3

2
1

8 1 10

Values (shared memory)

2 4 6 8 10 12 14

2 2 11 11 7 9

3
5

5 8

2
2
1

7 1 11

Values

4 8 12

2 2 11 13 7 9

3

4 5 8

2

6

1

7 1 18

Values

8

2 2 11 13 7 9

3

17 5 8

2

6

1

7 1 24

Values

2 2 11 13 7 9

3

17 5 8

2

6

1

7 1 41

Values Thread IDs Step 1 Stride 1 Step 2 Stride 2 Step 3 Stride 4 Step 4 Stride 8 Thread IDs Thread IDs Thread IDs

With material by M. Harris (Nvidia Corp.)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 50

Interleaved Addressing

2 11 7 2

3
2

5 3

2
1

8 1 10

Values (shared memory)

2 4 6 8 10 12 14

2 2 11 11 7 9

3
5

5 8

2
2
1

7 1 11

Values

4 8 12

2 2 11 13 7 9

3

4 5 8

2

6

1

7 1 18

Values

8

2 2 11 13 7 9

3

17 5 8

2

6

1

7 1 24

Values

2 2 11 13 7 9

3

17 5 8

2

6

1

7 1 41

Values Thread IDs Step 1 Stride 1 Step 2 Stride 2 Step 3 Stride 4 Step 4 Stride 8 Thread IDs Thread IDs Thread IDs

Issue: Slow modulo, Divergence

With material by M. Harris (Nvidia Corp.)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 51

Kernel V2

kernel void reduce2( global T ∗g idata, global T ∗g odata, unsigned int n, local T∗ ldata) { unsigned int lid = get local id (0); unsigned int i = get global id (0); ldata [ lid ] = (i < n) ? g idata [ i ] : 0; barrier (CLK LOCAL MEM FENCE); for(unsigned int s= get local size (0)/2; s>0; s>>=1) { if ( lid < s) ldata [ lid ] += ldata[lid + s]; barrier (CLK LOCAL MEM FENCE); } if ( lid == 0) g odata[ get local size (0)] = ldata [0]; }

Embarrassing Partition Pipelines Reduction Scan

SLIDE 52

Sequential Addressing

2 11 7 2

3
2

5 3

2
1

8 1 10

Values (shared memory)

1 2 3 4 5 6 7

2 11 7 2

3
2

7 3 9 6 10

2

8

Values

1 2 3

2 11 7 2

3
2

7 3 9 13 13 7 8

Values

1

2 11 7 2

3
2

7 3 9 13 13 20 21

Values

2 11 7 2

3
2

7 3 9 13 13 20 41

Values Thread IDs Step 1 Stride 8 Step 2 Stride 4 Step 3 Stride 2 Step 4 Stride 1 Thread IDs Thread IDs Thread IDs

With material by M. Harris (Nvidia Corp.)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 53

Sequential Addressing

2 11 7 2

3
2

5 3

2
1

8 1 10

Values (shared memory)

1 2 3 4 5 6 7

2 11 7 2

3
2

7 3 9 6 10

2

8

Values

1 2 3

2 11 7 2

3
2

7 3 9 13 13 7 8

Values

1

2 11 7 2

3
2

7 3 9 13 13 20 21

Values

2 11 7 2

3
2

7 3 9 13 13 20 41

Values Thread IDs Step 1 Stride 8 Step 2 Stride 4 Step 3 Stride 2 Step 4 Stride 1 Thread IDs Thread IDs Thread IDs

Better! But still not “efficient”. Only half of all work items after first round, then a quarter, . . .

With material by M. Harris (Nvidia Corp.)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 54

Thinking about Parallel Complexity

Distinguish:

Time on T processors: TP
Step Complexity/Span T∞: Minimum number of steps

taken if an infinite number of processors are available

Work per step St
Work Complexity/Work T1 = T∞

t=1 St: Total number of

perations performed
Parallelism T1/T∞: average amount of work along span
P > T1/T∞ doesn’t make sense.

Algorithm-specific!

Embarrassing Partition Pipelines Reduction Scan

SLIDE 55

Thinking about Parallel Complexity

Distinguish:

Time on T processors: TP
Step Complexity/Span T∞: Minimum number of steps

taken if an infinite number of processors are available

Work per step St
Work Complexity/Work T1 = T∞

t=1 St: Total number of

perations performed
Parallelism T1/T∞: average amount of work along span
P > T1/T∞ doesn’t make sense.

Algorithm-specific! Lower Bounds:

TP ≥ . . . ? (in terms of T1)
TP ≥ . . . ? (in terms of T∞)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 56

Parallel Complexity for Reduction

Number of Items N Actual work to be done: W = O(N) additions. Step Complexity: Let d = ⌈log2 N⌉. Then T∞ = d, St = O(2d−t). Work Complexity: T1 =

T

t=1

St = O T

t=1

2d−t

= O(2d) = O(N)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 57

Parallel Complexity for Reduction

Number of Items N Actual work to be done: W = O(N) additions. Step Complexity: Let d = ⌈log2 N⌉. Then T∞ = d, St = O(2d−t). Work Complexity: T1 =

T

t=1

St = O T

t=1

2d−t

= O(2d) = O(N)

“Work-efficient:” T1 ∼ W .

Embarrassing Partition Pipelines Reduction Scan

SLIDE 58

Greedy Scheduling

Theorem (Graham ‘68, Brent ‘75)

A parallel algorithm with span T∞ and work complexity T1 can be executed on a shared-memory machine with P processors in no more than TP ≤ T1 P + T∞ steps. Observations:

Think of T∞ as the length of the “critical path”.
The first summand can be made to go away by increasing P.
Only valid for shared-memory.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 59

Greedy Scheduling

Theorem (Graham ‘68, Brent ‘75)

A parallel algorithm with span T∞ and work complexity T1 can be executed on a shared-memory machine with P processors in no more than TP ≤ T1 P + T∞ steps. Observations:

Think of T∞ as the length of the “critical path”.
The first summand can be made to go away by increasing P.
Only valid for shared-memory.

Estimate for P = 1? Proof sketch?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 60

Brent for Reduction

Again: Number of items N. Brent says TP = O T1 P + T∞

= O

N P + log N

.

Within a work group: N = P ⇒ TN = O(log N).

Embarrassing Partition Pipelines Reduction Scan

SLIDE 61

Brent for Reduction

Again: Number of items N. Brent says TP = O T1 P + T∞

= O

N P + log N

.

Within a work group: N = P ⇒ TN = O(log N). But: Work groups are an illusion! Machine has finite width. Thus TP > O(log N)! How low can we take P before we hurt our asymptotic runtime TP?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 62

Brent for Reduction

Again: Number of items N. Brent says TP = O T1 P + T∞

= O

N P + log N

.

Within a work group: N = P ⇒ TN = O(log N). But: Work groups are an illusion! Machine has finite width. Thus TP > O(log N)! How low can we take P before we hurt our asymptotic runtime TP? Asymptotically optimal TP = O(log N) for P ≥ N log N . Result: We’re free to reduce P by a factor of (log N) without increasing TP. ⇒ Do (log N) items in sequence per work item without increasing asymptotic TP.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 63

Brent for Reduction

Again: Number of items N. Brent says TP = O T1 P + T∞

= O

N P + log N

.

Within a work group: N = P ⇒ TN = O(log N). But: Work groups are an illusion! Machine has finite width. Thus TP > O(log N)! How low can we take P before we hurt our asymptotic runtime TP? Asymptotically optimal TP = O(log N) for P ≥ N log N . Result: We’re free to reduce P by a factor of (log N) without increasing TP. ⇒ Do (log N) items in sequence per work item without increasing asymptotic TP. Think of this in terms of cost: Cost = P × TP

Embarrassing Partition Pipelines Reduction Scan

SLIDE 64

Brent for Reduction

Again: Number of items N. Brent says TP = O T1 P + T∞

= O

N P + log N

.

Within a work group: N = P ⇒ TN = O(log N). But: Work groups are an illusion! Machine has finite width. Thus TP > O(log N)! How low can we take P before we hurt our asymptotic runtime TP? Asymptotically optimal TP = O(log N) for P ≥ N log N . Result: We’re free to reduce P by a factor of (log N) without increasing TP. ⇒ Do (log N) items in sequence per work item without increasing asymptotic TP. Think of this in terms of cost: Cost = P × TP Brent gives lower bound on P. Fewer Processors ⇒ less cost!

Embarrassing Partition Pipelines Reduction Scan

SLIDE 65

Brent for Reduction

Again: Number of items N. Brent says TP = O T1 P + T∞

= O

N P + log N

.

Within a work group: N = P ⇒ TN = O(log N). But: Work groups are an illusion! Machine has finite width. Thus TP > O(log N)! How low can we take P before we hurt our asymptotic runtime TP? Asymptotically optimal TP = O(log N) for P ≥ N log N . Result: We’re free to reduce P by a factor of (log N) without increasing TP. ⇒ Do (log N) items in sequence per work item without increasing asymptotic TP. Think of this in terms of cost: Cost = P × TP Brent gives lower bound on P. Fewer Processors ⇒ less cost! “Algorithm cascading”

Embarrassing Partition Pipelines Reduction Scan

SLIDE 66

Kernel V3 Part 1

kernel void reduce6( global T ∗g idata, global T ∗g odata, unsigned int n, volatile local T∗ ldata) { unsigned int lid = get local id (0); unsigned int i = get group id(0)∗( get local size (0)∗2) + get local id (0); unsigned int gridSize = GROUP SIZE∗2∗get num groups(0); ldata [ lid ] = 0; while (i < n) { ldata [ lid ] += g idata[i ]; if (i + GROUP SIZE < n) ldata [ lid ] += g idata[i+GROUP SIZE]; i += gridSize; } barrier (CLK LOCAL MEM FENCE);

Embarrassing Partition Pipelines Reduction Scan

SLIDE 67

Kernel V3 Part 2

if (GROUP SIZE >= 512) { if ( lid < 256) { ldata[ lid ] += ldata[lid + 256]; } barrier (CLK LOCAL MEM FENCE); } // ... if (GROUP SIZE >= 128) { /∗ ... ∗/ } if ( lid < 32) { if (GROUP SIZE >= 64) { ldata[lid] += ldata[lid + 32]; } if (GROUP SIZE >= 32) { ldata[lid] += ldata[lid + 16]; } // ... if (GROUP SIZE >= 2) { ldata[lid] += ldata[lid + 1]; } } if ( lid == 0) g odata[get group id(0)] = ldata [0]; }

Embarrassing Partition Pipelines Reduction Scan

SLIDE 68

Performance Comparison

0.01 0.1 1 10 131072 262144 524288 1048576 2097152 4194304 8388608 16777216 33554432 Time (ms) 1: Interleaved Addressing: Divergent Branches 2: Interleaved Addressing: Bank Conflicts 3: Sequential Addressing 4: First add during global load 5: Unroll last warp 6: Completely unroll 7: Multiple elements per thread (max 64 blocks)

With material by M. Harris (Nvidia Corp.)

Embarrassing Partition Pipelines Reduction Scan

SLIDE 69

Reduction: Examples

Sum, Inner Product, Norm
Occurs in iterative methods
Minimum, Maximum
Data Analysis
Evaluation of Monte Carlo

Simulations

List Concatenation, Set Union
Matrix-Vector product (but. . . )

Embarrassing Partition Pipelines Reduction Scan

SLIDE 70

Reduction: Issues

When adding: floating point

cancellation?

Serial order goes faster:

can use registers for intermediate results

Requires availability of neutral

element

GPU-Reduce: Optimization

sensitive to data type

Embarrassing Partition Pipelines Reduction Scan

SLIDE 71

Map-Reduce

y = f (· · · f (f (g(x1), g(x2)), g(x3)), . . . , g(xN))

where N is the input size.

Lisp naming, again
Mild generalization of reduction

Embarrassing Partition Pipelines Reduction Scan

SLIDE 72

Map-Reduce: Graph

y x0 g x1 g x2 g x3 g x4 g x5 g x6 g x7 g

Embarrassing Partition Pipelines Reduction Scan

SLIDE 73

MapReduce: Discussion

MapReduce ≥ map + reduce:

Used by Google (and many others) for

large-scale data processing

Map generates (key, value) pairs
Reduce operates only on pairs with

identical keys

Remaining output sorted by key
Represent all data as character strings
User must convert to/from internal repr.
Messy implementation
Parallelization, fault tolerance, monitoring,

data management, load balance, re-run “stragglers”, data locality

Works for Internet-size data
Simple to use even for inexperienced users

Embarrassing Partition Pipelines Reduction Scan

SLIDE 74

MapReduce: Examples

String search
(e.g. URL) Hit count from Log
Reverse web-link graph
desired: (target URL, sources)
Sort
Indexing
desired: (word, document IDs)
Machine Learning, Clustering, . . .

Embarrassing Partition Pipelines Reduction Scan

SLIDE 75

Outline

Embarrassingly Parallel Partition Pipelines Reduction Scan

Embarrassing Partition Pipelines Reduction Scan

SLIDE 76

Scan

y1 = x1 y2 = f (y1, x2) . . . = . . . yN = f (yN−1, xN)

where N is the input size.

Also called “prefix sum”.
Or cumulative sum (‘cumsum’) by Matlab/NumPy.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 77

Scan: Graph

x0 y0 x1 y1 x2 y2 x3 y3 x4 y4 x5 y5 y1 Id y2 Id y3 Id y4 Id y5 Id Id

Embarrassing Partition Pipelines Reduction Scan

SLIDE 78

Scan: Graph

x0 y0 x1 y1 x2 y2 x3 y3 x4 y4 x5 y5 y1 Id y2 Id y3 Id y4 Id y5 Id Id This can’t possibly be parallelized. Or can it?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 79

Scan: Graph

x0 y0 x1 y1 x2 y2 x3 y3 x4 y4 x5 y5 y1 Id y2 Id y3 Id y4 Id y5 Id Id This can’t possibly be parallelized. Or can it? Again: Need assumptions on f . Associativity, commutativity.

Embarrassing Partition Pipelines Reduction Scan

SLIDE 80

Scan: Implementation

Embarrassing Partition Pipelines Reduction Scan

SLIDE 81

Scan: Implementation

Work-efficient?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 82

Scan: Implementation II

Two sweeps: Upward, downward, both tree-shape On upward sweep:

Get values L and R from left and right

child

Save L in local variable Mine
Compute Tmp = L + R and pass to parent

On downward sweep:

Get value Tmp from parent
Send Tmp to left child
Sent Tmp+Mine to right child

Embarrassing Partition Pipelines Reduction Scan

SLIDE 83

Scan: Implementation II

Two sweeps: Upward, downward, both tree-shape On upward sweep:

Get values L and R from left and right

child

Save L in local variable Mine
Compute Tmp = L + R and pass to parent

On downward sweep:

Get value Tmp from parent
Send Tmp to left child
Sent Tmp+Mine to right child

Work-efficient? Span rel. to first attempt?

Embarrassing Partition Pipelines Reduction Scan

SLIDE 84

Scan: Examples

Anything with a loop-carried

dependence

One row of Gauss-Seidel
One row of triangular solve
Segment numbering if boundaries

are known

Low-level building block for many

higher-level algorithms algorithms

FIR/IIR Filtering
G.E. Blelloch:

Prefix Sums and their Applications

Embarrassing Partition Pipelines Reduction Scan

SLIDE 85

Scan: Issues

Subtlety: Inclusive/Exclusive Scan
Pattern sometimes hard to

recognize

But shows up surprisingly often
Need to prove

associativity/commutativity

Useful in Implementation:

algorithm cascading

Do sequential scan on parts, then

parallelize at coarser granularities

Embarrassing Partition Pipelines Reduction Scan

SLIDE 86

Questions?

?

Embarrassing Partition Pipelines Reduction Scan
