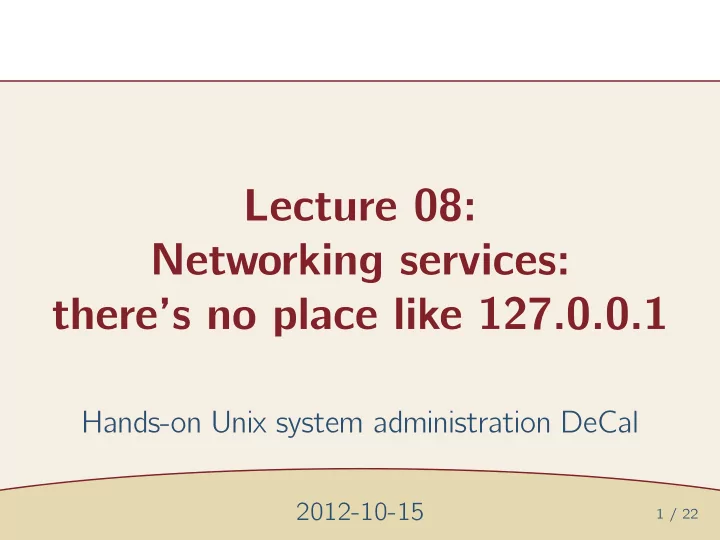

Lecture 08: Networking services: there’s no place like 127.0.0.1

Hands-on Unix system administration DeCal

2012-10-15

SLIDE 2

DNS

DNS ❖ About DNS ❖ Common DNS records ❖ Other DNS records Networking SSH Network users 2 / 22

SLIDE 3

About DNS

DNS ❖ About DNS ❖ Common DNS records ❖ Other DNS records Networking SSH Network users 3 / 22

Domain Name Service
Internet’s /etc/hosts file
client software (e.g., web browser)

automatically asks DNS server for records

✦

requests passed between servers

see also host, dig

SLIDE 4

Common DNS records

DNS ❖ About DNS ❖ Common DNS records ❖ Other DNS records Networking SSH Network users 4 / 22

A: IPv4 address
AAAA: IPv6 address
CNAME an alias for another record

(Canonical Name)

MX: mail server(s) for a domain (Mail

Exchanger)

PTR: reverse A record (Pointer)

SLIDE 5

Other DNS records

DNS ❖ About DNS ❖ Common DNS records ❖ Other DNS records Networking SSH Network users 5 / 22

SRV: service
TXT: text

SLIDE 6

Networking

DNS Networking ❖ Too many TLAs ❖ TCP ❖ UDP ❖ NATs ❖ Port forwarding ❖ HTTP ❖ NFS SSH Network users 6 / 22

SLIDE 7

Too many TLAs

DNS Networking ❖ Too many TLAs ❖ TCP ❖ UDP ❖ NATs ❖ Port forwarding ❖ HTTP ❖ NFS SSH Network users 7 / 22

OSI reference model, we focus on

application layer

transport protocols: TCP, UDP
ports numbered between 1 and 65535

(unsigned 16 bit integer)

ports below 1024 (e.g., 22/tcp – SSH,

80/tcp – HTTP), require root access

n Unix

SLIDE 8

TCP

DNS Networking ❖ Too many TLAs ❖ TCP ❖ UDP ❖ NATs ❖ Port forwarding ❖ HTTP ❖ NFS SSH Network users 8 / 22

Transmission Control Protocol
reliable, more overhead, stateful
most network services use TCP

(HTTP, SMTP, SSH, etc.)

✦

some may use both TCP and UDP

SLIDE 9

UDP

DNS Networking ❖ Too many TLAs ❖ TCP ❖ UDP ❖ NATs ❖ Port forwarding ❖ HTTP ❖ NFS SSH Network users 9 / 22

User Datagram Protocol
unreliable, simple (“fast”), stateless
ften used by DNS, DHCP, TFTP,

VoIP, streaming media, etc.

✦

DNS uses TCP, however, for larger responses

SLIDE 10

NATs

DNS Networking ❖ Too many TLAs ❖ TCP ❖ UDP ❖ NATs ❖ Port forwarding ❖ HTTP ❖ NFS SSH Network users 10 / 22

Network Area Translation
accomplished by home/office router

✦

rewrite packets for many computers to use one public IP address (Source NAT, IP Masquerading)

✦

private IP addresses: 192.168.0.0–192.168.255.255, 10.0.0.0–10.255.255.255, 172.16.0.0–172.31.255.255

SLIDE 11

Port forwarding

DNS Networking ❖ Too many TLAs ❖ TCP ❖ UDP ❖ NATs ❖ Port forwarding ❖ HTTP ❖ NFS SSH Network users 11 / 22

also called Destination NAT (DNAT)
forward a public IP addressed port to

an internal IP addressed port

required to access services behind a

Source NAT

SLIDE 12

HTTP

DNS Networking ❖ Too many TLAs ❖ TCP ❖ UDP ❖ NATs ❖ Port forwarding ❖ HTTP ❖ NFS SSH Network users 12 / 22

Hyper-Text Transfer Protocol
simple, text-based protocol

✦

basic web server can be implemented in a 25-line bash script with netcat

popular servers: Apache, IIS, lighttpd,

nginx

SLIDE 13

NFS

DNS Networking ❖ Too many TLAs ❖ TCP ❖ UDP ❖ NATs ❖ Port forwarding ❖ HTTP ❖ NFS SSH Network users 13 / 22

Network File System
mounts can be defined in

/etc/fstab

usually need to be root to mount

SLIDE 14

SSH

DNS Networking SSH ❖ About SSH ❖ SSH public-private keys ❖ Public- private keys ❖ Symmetric keys ❖ PAM Network users 14 / 22

SLIDE 15

About SSH

DNS Networking SSH ❖ About SSH ❖ SSH public-private keys ❖ Public- private keys ❖ Symmetric keys ❖ PAM Network users 15 / 22

Secure SHell
different authentication mechanisms:

PAM, public key, GSSAPI (Kerberos)

remote encrypted terminal/console on

remote machine

ther features: port forwarding, X

forwarding, file transfer, can be combined with other protocols

SLIDE 16

SSH public-private keys

DNS Networking SSH ❖ About SSH ❖ SSH public-private keys ❖ Public- private keys ❖ Symmetric keys ❖ PAM Network users 16 / 22

alternative to password-based

authentication

✦

uses public/private key cryptography

SSH agent caches key in memory
SSH forwarding forwards key

challenges

SLIDE 17

Public-private keys

DNS Networking SSH ❖ About SSH ❖ SSH public-private keys ❖ Public- private keys ❖ Symmetric keys ❖ PAM Network users 17 / 22

public key: everyone can see lock
private key: one person has key
encrypt with public key, decrypt with

private key

sign with private key, verify with public

key

ciphers: RSA, DSA

SLIDE 18

Symmetric keys

DNS Networking SSH ❖ About SSH ❖ SSH public-private keys ❖ Public- private keys ❖ Symmetric keys ❖ PAM Network users 18 / 22

ne shared key
advantage: speed, security
disadvantage: often impractical to

verify, especially against man-in-the-middle attacks

ciphers: AES, 3DES, blowfish, arcfour

SLIDE 19

PAM

DNS Networking SSH ❖ About SSH ❖ SSH public-private keys ❖ Public- private keys ❖ Symmetric keys ❖ PAM Network users 19 / 22

Pluggable Authentication

Modules

API for authentication commonly used
n Unix
pam_unix: /etc/shadow password

hashes

SLIDE 20

Network users

DNS Networking SSH Network users ❖ LDAP ❖ Kerberos 20 / 22

SLIDE 21

LDAP

DNS Networking SSH Network users ❖ LDAP ❖ Kerberos 21 / 22

Lightweight Directory Access

Protocol

distributed directory information

service, like phone book

arranged as records with attributes
ften used to populate user accounts

across a network

CalNet is an LDAP directory

SLIDE 22

Kerberos

DNS Networking SSH Network users ❖ LDAP ❖ Kerberos 22 / 22

trusted third party provides mutual

authentication between machines and users

arranged as principals which can be

fetched as tickets to authenticate

CalNet is also a Kerberos realm
