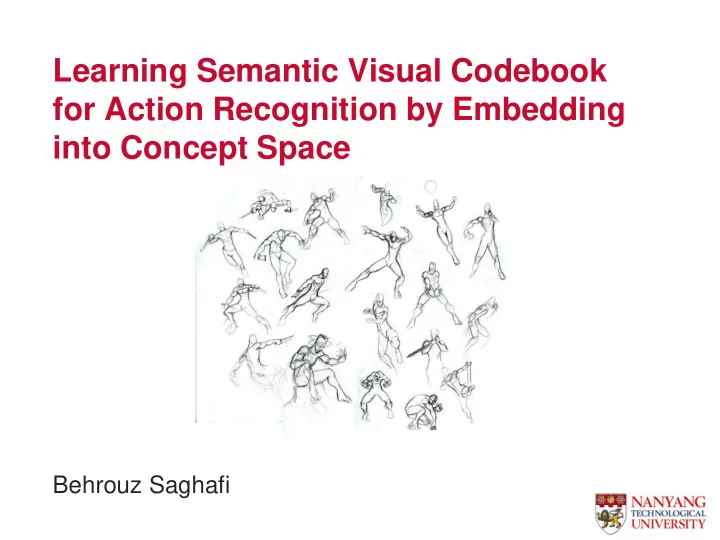

Learning Semantic Visual Codebook for Action Recognition by Embedding into Concept Space

Behrouz Saghafi

Using Spatio-temporal Features

Action recognition using silhouettes or optical flow encounters difficulties when dealing with non-uniform background, severe camera jitter and noise Local spatio-temporal features are fast and easy to extract and reliable.

Bag of Words model

The raw features are clustered based on the their appearance rather than their semantic relations. By utilizing the semantics, the recognition accuracy will improve.

Incorporating Semantics into BoW model (Related work)

• Build a model for each category and fit the query to
• ne of the models in an unsupervised framework, like

Probabilistic Latent Semantic Analysis and Latent Dirichlet Allocation.

• Their unsupervised nature limits their performance
• The number of topics = the number of categories,

which limits their efficiency.

Generative methods

• Try to construct a semantic vocabulary and use it with

a classifier.

• Liu and shah (CVPR 2008): maximization of mutual

information between visual words and videos > The formed clusters do not necessarily represent topics or synonym words.

• Liu et al. (CVPR 2009): use Diffusion Map (DM) to

construct a semantic visual vocabulary > Considering connectivity in measuring the semantic distance is not appropriate in the presence of polysemy.

Discriminative methods

Embedding into Concept Space (Proposed)

• We propose a framework for constructing a semantic visual

vocabulary via computing a rich semantic space (Concept space). The concept space is computed by Latent Semantic Models or Canonical Correlation Analysis.

• The visual words are embedded into concept space to form

meaningful clusters representing semantic topics, consequently the formed histograms are more discriminative.

• As opposed to generative methods which do not use category labels,
• ur method uses a classifier trained on the training histograms.
• The number of topics can be more than categories as opposed to

the unsupervised framework, which allows analysis in more details.

• By using pLSA in constructing the concept space, the problem of

polysemy is handled.

Overview of the proposed framework

Constructing the semantic visual vocabulary: Training steps of the proposed method:

Latent Semantic Analysis (LSA) (1)

• Latent Semantic Analysis (LSA) originally used in text mining

applications, is the factorization of word-video co-occurrence matrix into linear subspaces of words and videos.

• The word vectors reveal the semantic relations of words,

since semantically synonymous words occur in similar documents.

Videos words

MxN word-video co-occurrence matrix

word vector video vector

Latent Semantic Analysis (LSA) (2)

• The word vectors are sparse so their correlation may not be so

representative of their semantic relations. Therefore, we need to find the reduced dimensional space. Rank L optimal representation:

• The correlation of words based on word vectors:

Rows of are a good representation of rows of (words) in the sense that they approximate the correlation between words.

NxM ~= NxL x LxL x LxM videos videos topics topics topics topics words words

Embedding into concept space using LSA

NxL

: representation of word i in the L-dimensional concept space

Probabilistic Latent Semantic Analysis (pLSA)

Observed word distributions word distributions per topic Topic distributions per document

w d z

Probabilistic Latent Semantic Analysis (pLSA)

w d z

known unknown

Likelihood

Probabilistic Latent Semantic Analysis (pLSA)

w d z

E-step: M-step:

Maximum Likelihood by EM

Embedding into concept space using pLSA

Embedding into concept space using pLSA

representation of word i in the L-dimensional concept space

Using LSA vs pLSA

• pLSA can handle polysemy

– Polysemes are the words which have more than one meaning.

Table

Using LSA vs pLSA

• LSA can perform faster.

LSA pLSA Mean Training time

(having the initial vocabulary)

62 sec 4261 sec Mean Testing time

(having learned the concept space)

0.54 sec 0.71 sec

Canonical Correlation Analysis (CCA)

• Given a pair of vector sets, CCA finds the direction for each set,

such that the projection of the vectors onto these directions have maximal correlation.

Canonical Correlation Analysis (CCA) (2)

Embedding into concept space using CCA

noisy Noise covariance is reduced Raw feature representation Semantic representation

Constructing the semantic visual vocabulary using CCA

Local Feature Extractor

Performance of proposed method (Latent Semantic Space) on KTH dataset with different number of topics

LSA pLSA

Comparison of results with the classic framework for different sizes of vocabulary (KTH)

Confusion matrix for the best result achieved using Latent Semantic Space (KTH)

Best recognition accuracy: 93.94% by pLSA with L=50, Kf=400.

Effect of changing the vocabulary size (CCA Space)

Confusion matrix for the best result on KTH dataset using CCA

Best recognition accuracy: 93.39% by Kf=700.

Comparison with reported results on KTH dataset
