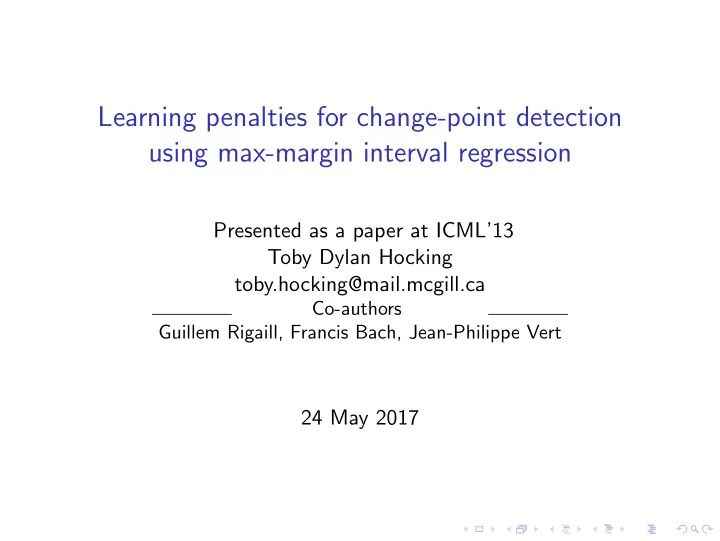

Learning penalties for change-point detection using max-margin - - PowerPoint PPT Presentation

Learning penalties for change-point detection using max-margin interval regression

Presented as a paper at ICML’13 Toby Dylan Hocking toby.hocking@mail.mcgill.ca

Co-authors Guillem Rigaill, Francis Bach, Jean-Philippe Vert

24 May 2017

Introduction: how to detect changes in copy number? From labels to interval regression A convex relaxation of the label error Results on the neuroblastoma data Conclusions and future work

Motivation: tumor genome copy number analysis

◮ Comparative genomic hybridization microarrays (aCGH) allow

genome-wide copy number analysis since logratio is proportional to DNA copy number (Pinkel et al., 1998).

◮ Tumors often contain breakpoints, amplifications, and

deletions at specific chromosomal locations that we would like to detect.

◮ Which genomic alterations are linked with good or bad patient

• utcome?

◮ To answer clinical questions like this one, we first need to

accurately detect these genomic alterations.

aCGH neuroblastoma copy number data

Copy number profiles are predictive of progression in neuroblastoma

Gudrun Schleiermacher, et al. Accumulation of Segmental Alterations Determines Progression in Neuroblastoma. J Clinical Oncology 2010. 2 types of profiles:

◮ Numerical: entire chromosome amplification. Good outcome. ◮ Segmental: deletion 1p 3p 11q, gain 1q 2p 17q. Bad outcome.

But which model is the best?

◮ GLAD: adaptive weights smoothing (Hup´

e et al., 2004)

◮ DNAcopy: circular binary segmentation (Venkatraman and

Olshen, 2007)

◮ cghFLasso: fused lasso signal approximator with heuristics

(Tibshirani and Wang, 2007)

◮ HaarSeg: wavelet smoothing (Ben-Yaacov and Eldar, 2008) ◮ GADA: sparse Bayesian learning (Pique-Regi et al., 2008) ◮ flsa: fused lasso signal approximator path algorithm (Hoefling

2009)

◮ cghseg: pruned dynamic programming (Rigaill 2010) ◮ PELT: pruned exact linear time (Killick et al., 2011)

Comparison study: Learning smoothing models of copy number profiles using breakpoint annotations (Hocking et al., 2012).

But which model is the best?

◮ GLAD: adaptive weights smoothing (Hup´

e et al., 2004)

◮ DNAcopy: circular binary segmentation (Venkatraman and

Olshen, 2007)

◮ cghFLasso: fused lasso signal approximator with heuristics

(Tibshirani and Wang, 2007)

◮ HaarSeg: wavelet smoothing (Ben-Yaacov and Eldar, 2008) ◮ GADA: sparse Bayesian learning (Pique-Regi et al., 2008) ◮ flsa: fused lasso signal approximator path algorithm (Hoefling

2009)

◮ cghseg: pruned dynamic programming (Rigaill 2010) ◮ PELT: pruned exact linear time (Killick et al., 2011)

Comparison study: Learning smoothing models of copy number profiles using breakpoint annotations (Hocking et al., 2012).

The cghseg.k/pelt.n least squares model

For a signal y ∈ Rd, we define ˆ yk, the maximum likelihood model with k ∈ {1, . . . , d} segments as arg min

µ∈Rd

||y − µ||2

2

subject to k − 1 =

d−1

• j=1

1µj=µj+1 and select the number of segments using the penalty k∗(λ) = arg min

k

λkd + ||y − ˆ yk||2

2

and use the constant λ which maximizes agreement with a database of labels. But why this particular penalty? Should we normalize using the variance of the signal y?

The cghseg.k/pelt.n least squares model

For a signal y ∈ Rd, we define ˆ yk, the maximum likelihood model with k ∈ {1, . . . , d} segments as arg min

µ∈Rd

||y − µ||2

2

subject to k − 1 =

d−1

• j=1

1µj=µj+1 and select the number of segments using the penalty k∗(λ) = arg min

k

λkd + ||y − ˆ yk||2

2

and use the constant λ which maximizes agreement with a database of labels. But why this particular penalty? Should we normalize using the variance of the signal y?

Introduction: how to detect changes in copy number? From labels to interval regression A convex relaxation of the label error Results on the neuroblastoma data Conclusions and future work

Creating breakpoint labels (demo)

Labels for 2 signals

1breakpoint 0breakpoints

0.0 0.4 0.8 1.2 0.0 0.4 0.8 1.2 signal i = 4.17 signal i = 6.15 25 50 75 100

position on chromosome (mega base pairs) logratio

Estimated model with 1 segment

1breakpoint 0breakpoints

0.0 0.4 0.8 1.2 0.0 0.4 0.8 1.2 signal i = 4.17 signal i = 6.15 25 50 75 100

position on chromosome (mega base pairs) logratio status

correct false negative

Estimated model with 2 segments

1breakpoint 0breakpoints

0.0 0.4 0.8 1.2 0.0 0.4 0.8 1.2 signal i = 4.17 signal i = 6.15 25 50 75 100

position on chromosome (mega base pairs) logratio status

correct false positive

Estimated model with 3 segments

1breakpoint 0breakpoints

0.0 0.4 0.8 1.2 0.0 0.4 0.8 1.2 signal i = 4.17 signal i = 6.15 25 50 75 100

position on chromosome (mega base pairs) logratio status

false positive

Estimated model with 4 segments

1breakpoint 0breakpoints

0.0 0.4 0.8 1.2 0.0 0.4 0.8 1.2 signal i = 4.17 signal i = 6.15 25 50 75 100

position on chromosome (mega base pairs) logratio status

false positive

Label error curves for 2 signals

1 1 signal i = 4.17 signal i = 6.15 1 5 10 20

number of segments k annotation error ei(k)

Definition of label error

For signal i we have a set of labels Si where for each label (r, a) ∈ Si we have

◮ a specific labeled region e.g. r = [10, 30]. ◮ a labeled number of allowed change-points e.g. a = {0}

The label error ei : {1, . . . , kmax} → R+ is the total number of incorrectly predicted labels for the model with k segments: ei(k) =

• (r,a)∈Si

1|ˆ

Pk

i ∩r|∈a,

where ˆ Pk

i is the set of predicted change-point positions, e.g.

{25, 35}.

Penalized model label error

For a log penalty L = log λ ∈ R we define the optimal number of segments z∗

i (L) =

arg min

k∈{1,...,kmax}

exp(L)k + ||yi − ˆ yk

i ||2 2

and the penalized model annnotation error Ei : R → R+ Ei(L) = ei [z∗

i (L)]

Both are piecewise constant functions that can be calculated exactly.

Error and model selection curves for 2 signals

signal i = 4.17 signal i = 6.15 1 5 10 20 1 segments z∗

i (L)

error Ei(L)

• 4
• 2

2

• 4
• 2

2

log penalty L

Error and model selection curves for 2 signals

signal i = 4.17 signal i = 6.15 1 5 10 20 1 segments z∗

i (L)

error Ei(L)

• 4
• 2

2

• 4
• 2

2

log penalty L

Label error curves for 2 signals

0.00 0.25 0.50 0.75 1.00 0.00 0.25 0.50 0.75 1.00 signal i = 4.17 signal i = 6.15

• 4
• 2

2

log penalty L annotation error Ei(L) limit

Li Li

Target interval [Li, Li] for 2 signals

• 4
• 2

2

• 2.7
• 2.4
• 2.1

variance estimate log ˆ si log penalty L limit

Li Li

Target interval [Li, Li] for all signals

• 4
• 2

2

• 2.7
• 2.4
• 2.1

variance estimate log ˆ si log penalty L limit

Li Li

Limit point representation

• 4
• 2

2

• 2.7
• 2.4
• 2.1

variance estimate log ˆ si log penalty L limit

Li Li

Max margin regression line

• 4
• 2

2

• 2.7
• 2.4
• 2.1

variance estimate log ˆ si log penalty L limit

Li Li

Max margin interval regression is a linear program

◮ Let xi ∈ Rm be the signal features, i.e. number of points

sampled log di, variance estimate log ˆ si, ...

◮ Learn an affine function f (xi) = w′xi + β from features to

model complexity using a linear program: maximize

β∈R,w∈Rm,µ∈R+ µ

subject to ∀i, if Li > −∞, w′xi + β − Li ≥ µ ∀i, if Li < ∞, Li − w′xi − β ≥ µ.

◮ Linear objective, linear constraints ⇒ linear program. ◮ Many solvers exist, i.e. simplex, interior point, dual methods. ◮ Implemented in R: lpSolve, quadprog, ...

Learning the penalty function

◮ For every signal i, calculate a variance estimate feature

xi = log ˆ si.

◮ Use that to predict model complexity using an affine function

f (xi) = w log ˆ si + β.

◮ Equivalent to learning a penalty function

z∗

i [f (xi)]

= arg min

k

||yi − ˆ yk

i ||2 2 + exp[f (xi)]k

= arg min

k

||yi − ˆ yk

i ||2 2 + ˆ

sw

i eβk.

Learning the penalty function

◮ For every signal i, calculate a variance estimate feature

xi = log ˆ si.

◮ Use that to predict model complexity using an affine function

f (xi) = w log ˆ si + β.

◮ Equivalent to learning a penalty function

z∗

i [f (xi)]

= arg min

k

||yi − ˆ yk

i ||2 2 + exp[f (xi)]k

= arg min

k

||yi − ˆ yk

i ||2 2 + ˆ

sw

i eβk.

Introduction: how to detect changes in copy number? From labels to interval regression A convex relaxation of the label error Results on the neuroblastoma data Conclusions and future work

Learning problem

◮ Signal features xi ∈ Rm i.e. variance, number of points, etc. ◮ We would like to find a penalty function f : Rm → R with

minimal label error arg min

f n

• i=1

Ei[f (xi)].

◮ But Ei is a non-convex, piecewise constant function. ◮ Grid search?

◮ Many features m ⇒ intractable. ◮ No guarantee to find the global min.

◮ Instead, we propose to minimize a margin-based convex

relaxation arg min

f n

• i=1

li[f (xi)].

Error and relaxation for 4 labeled signals

• 5.0
• 2.5

0.0 2.5

penalty exponent L error/loss

curve annotation error Ei(L) surrogate loss li(L)

Regularize using the ℓ1-norm for variable selection

◮ Convex surrogate loss li : R → R+. ◮ Learn an affine function f (xi) = w′xi + β by solving

arg min

β∈R,w∈Rm γ||w||1 + 1

n

n

• i=1

li(w′xi + β).

◮ This is a convex optimization problem, so we can use

accelerated proximal gradient methods to find the global minimum (i.e. FISTA, Beck and Teboulle 2009).

◮ The ℓ1 norm encourages w to be sparse

||w||1 =

m

• j=1

|wj|.

Coefficients depend on degree of ℓ1 regularization γ

For each signal i, we use features xi ∈ R3: number of points sampled di, variance estimate ˆ si, length in base pairs bi. β log bi log di log ˆ si test train

• 2
• 1

1 5 6 7 coefficients percent ann. error 1 2 3 4

Model complexity − log10(γ)

Introduction: how to detect changes in copy number? From labels to interval regression A convex relaxation of the label error Results on the neuroblastoma data Conclusions and future work

Original data (Systematic): label the same regions

Detailed data (Any): draw rectangles around regions

Two labeled data sets to analyze

• riginal

detailed.low.density protocol Systematic Any annotated signals n 3418 3526 annotations 3418 4149 0breakpoints 2845 3214 1breakpoint 514 >0breakpoints 573 421 Both labels of data(neuroblastoma,package="neuroblastoma") on CRAN.

Optimal model complexity depends on variance

Optimal model complexity depends on variance

Optimal model complexity depends on number of points

Optimal model complexity depends on number of points

Interactive figures

If we have time, show how learned regression line is different from BIC. http://members.cbio.ensmp.fr/~thocking/ figure-regression-interactive/ http://bl.ocks.org/ tdhock/raw/9fc37a7aaf291cef364aab3fb41dd898/ http://bl.ocks.org/tdhock/raw/ eee5fd673c258ae554702d9c7c60f69b/

Learned coefficients

Model with two features:

◮ Variance estimate log ˆ

si.

◮ Number of points sampled log di. ◮ Learned model complexity

f (xi) = w1 log ˆ si + w2 log di + β.

◮ Learned penalty function

z∗

i [f (xi)] = arg min k

||yi − ˆ yk

i ||2 2 + ˆ

sw1

i

dw2

i

eβk. annotation data set w1 w2 β

• riginal

1.02 0.95 −2.64 ±0.05 ±0.02 ±0.17 detailed.low.density 1.30 0.93 −2.00 ±0.01 ±0.03 ±0.17 Mean ± 1 standard deviation over 4 folds.

Test error estimated using K-fold cross-validation

log λi = f (xi) BIC f (xi) = log log di, no learned parameters. cghseg.k f (xi) = β + log di, learn β using grid search. log.d f (xi) = β + w log di, learn β, w by minimizing the un-regularized (γ = 0) surrogate loss li. log.s.log.d f (xi) = β + w1 log ˆ si + w2 log di learn β, w1, w2. L1-reg f (xi) = β + w′xi variance estimate, signal size, model error, chromosome indicator features xi ∈ R117, CV to choose the degree of ℓ1 regularization γ.

• riginal

detailed.low.density

• L1−reg

log.s.log.d log.d cghseg.k BIC 2.5 5.0 7.5 6 9 12

percent incorrect labels (test error in 4−fold CV) model

Introduction: how to detect changes in copy number? From labels to interval regression A convex relaxation of the label error Results on the neuroblastoma data Conclusions and future work

Conclusions

◮ Labels can be quickly produced using a GUI. ◮ Labels + convex optimization = learned penalty functions. ◮ Learned penalties are more accurate changepoint detectors

than unsupervised methods. Availability:

◮ Python Package Index: annotate regions GUI. ◮ R package implementing penalty learning algorithms:

https://github.com/tdhock/penaltyLearning

◮ R package neuroblastoma on CRAN

(3418 labeled changepoint detection problems).

Discussion and future work

◮ Un-regularized generative linear interval regression models

have been extensively studied in the survival analysis

• literature. e.g. survival::survreg function in R implements

Accelerated Failure Time models.

◮ This was the first paper to explore a regularized

discriminative linear model for interval regression.

◮ Implementation on the web for interactive change-point

detection: SegAnnDB, Bioinformatics 2014.

◮ Non-linear penalty functions? Tree model submitted to NIPS

2017.

◮ Multi-dimensional interval regression to learn arbitrary penalty

constants.

Thanks for your attention!

Supplementary slides appear after this one.

Gradient of surrogate loss

We define the surrogate loss as li(L) = φ(L − Li) + φ(Li − L) so its partial derivatives are ∂ ∂ β li(w′xi + β) = φ′(w′xi + β − Li) − φ′(Li − w′xi − β) ∂ ∂ wj li(w′xi + β) = xij

• φ′(w′xi + β − Li) − φ′(Li − w′xi − β)
• .

where the derivative of the squared hinge loss φ is φ′(L) =

• 2(L − 1)

if L ≤ 1 if L ≥ 1.

Optimality condition

Let the average surrogate loss be L(β, w) = 1 n

n

• i=1

li(w′xi + β). The optimization problem is arg min

β∈R,w∈Rm γ||w||1 + L(β, w),

and the approximate optimality condition is

• ∂

∂ β L(β, w)

• ≤ ǫ,

and for every variable j ∈ {1, . . . , m},         

• −γ +

∂ ∂ wj L(β, w)

• ≤ ǫ

if wj < 0

• ∂

∂ wj L(β, w)

• − γ
• + ≤ ǫ

if wj = 0

• γ +

∂ ∂ wj L(β, w)

• ≤ ǫ

if wj > 0.

Proximal operator

To apply the FISTA method we need to solve the proximal

• perator pη : Rp+1 → Rp+1, which in our case is

pη(β, w) =     β − 1

η ∂ ∂ βL(β, w)

sγ/η

• w1 − 1

η ∂ ∂ w1 L(β, w)

• .

. .     where

◮ η = m√m is a Lipshitz constant of the smooth loss. ◮ The soft-thresholding function sλ : R → R is

sλ(x) =

• if |x| < λ

x − λ sign(x)

• therwise.
