Learning from evolving streams Online triage of bug reports Grzegorz Chrupa la Spoken Language Systems Saarland University EACL 2012 G. Chrupa la (Saarland Uni) Learning from streams EACL 2012 1 / 23 Issue trackers Used to track

slide-1

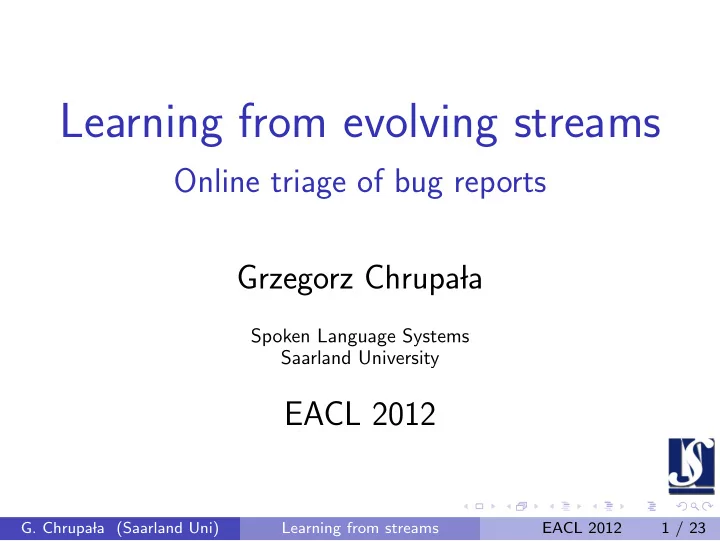

SLIDE 1

Learning from evolving streams

Online triage of bug reports Grzegorz Chrupa la

Spoken Language Systems Saarland University

EACL 2012

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 1 / 23

slide-2
SLIDE 2

Issue trackers

Used to track bugs or feature requests in software projects May receive hundreds of reports per day Need to be triaged: labeled and assigned developers Domain-specific challenges

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 2 / 23

slide-3
SLIDE 3
  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 3 / 23

slide-4
SLIDE 4

Automate

Predict project subcomponent labels Predict developers assigned to bugs

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 4 / 23

slide-5
SLIDE 5

As social media

Issue trackers:

◮ very specialized social media

Practices (labeling, triage)

◮ Negotiated explicitly ◮ Emerging via imitation ◮ Influenced by automation

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 5 / 23

slide-6
SLIDE 6

Concept drift

Practices evolve Software projects mature People involved come and go For a learner, input and output change over time.

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 6 / 23

slide-7
SLIDE 7

Contributions

Collect data from modern software projects Analyze concept drift Apply state-of-the-art online learning and improve on current approaches

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 7 / 23

slide-8
SLIDE 8

Data

Alternate items assigned to dev and test Dev sets sizes:

Tracker Output # Items # Labels Chromium Subcomponent 31,953 75 Chromium Assigned 16,154 591 Android Subcomponent 888 12 Android Assigned 718 72 Firefox Assigned 12,733 503 Launchpad Assigned 18,634 1,970

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 8 / 23

slide-9
SLIDE 9

Evolving class distribution

Chromium Subcomponent

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 9 / 23

slide-10
SLIDE 10

Evolving class distribution

Launchpad Assigned

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 10 / 23

slide-11
SLIDE 11

Progressive validation

For i = 1 to ∞

◮ Send input i to learner ◮ Receive prediction i and record error i ◮ Send true output i to learner

Error(n) = n

i=1 error(i)

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 11 / 23

slide-12
SLIDE 12

Evaluation of ranking

Triage assistant

◮ show user a ranked list of suggested targets

Mean reciprocal rank MRR = 1 N

N

  • i=1

rank(i)−1

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 12 / 23

slide-13
SLIDE 13

Features

Title unigram and bigram counts Description unigram and bigram counts Author ID Year, month and day of submission

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 13 / 23

slide-14
SLIDE 14

Baselines

Window frequency

◮ Relative class frequencies in previous

k ∈ {100, 1000} items

SVM minibatch

◮ Retrain every n = 100 steps on previous

k = 1000 items

Perceptron

◮ Single pass, constant learning rate

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 14 / 23

slide-15
SLIDE 15

Bugzie

Tamrawi et al. 2011, Fuzzy set and cache-based approach for bug triaging. Based on a fuzzy set membership function:

µ(y, X) = 1 −

  • x∈X
  • 1 −

n(y, x) n(y, ·) + n(·, x) − n(y, x)

  • Counts n(·, ·) updated incrementally

Feature cache: keep track of k most significant features

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 15 / 23

slide-16
SLIDE 16

→ Regression SGD

SGD with square loss as basic learner. w(t+1) = w(t) − η(t)∇L(y(t), w(t)Tx(t)) L(y, ˆ y) = (y − ˆ y)2 Adaptive, per-feature learning rate (Duchi et

  • al. 2010, Streeter and McMahan 2010)

Learning rate larger for infrequent features.

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 16 / 23

slide-17
SLIDE 17

Reduction from multiclass

One-versus-all reduction

T(x, y) = {(x′, I(y = y′)) | y′ ∈ Y, x′

h(i,y′) = xi}

h(i, y′) composes the index i with the label y′ by hashing.

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 17 / 23

slide-18
SLIDE 18

Summary of results (test)

CS AS CA AA FA LA Win Svm Perc Bugz Regr MRR 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 18 / 23

slide-19
SLIDE 19

Chromium Subcomponent

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 19 / 23

slide-20
SLIDE 20

Firefox Assigned

Data becomes more difficult around 9.000

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 20 / 23

slide-21
SLIDE 21

Launchpad Assigned

Little concept drift ≈ 2000 labels: hashing collisions

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 21 / 23

slide-22
SLIDE 22

Best improvement over Window

ChS AnS ChA AnA FiA LaA 0.0 0.1 0.2 0.3 0.4

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 22 / 23

slide-23
SLIDE 23

To conclude

Concept drift is a crucial concern Modern online learner successfully tracks stream evolution Data available at: www.lsv.uni-saarland.de/resources.htm Ready to go beyond bag-of-words

  • G. Chrupa

la (Saarland Uni) Learning from streams EACL 2012 23 / 23
