RADIATOR HEATING SYSTEM: from conventional to low-temperature systems . June 2009 Evolution in the temperatures of the system T = 60 K T = 50 K T = 30 K Ti = 85 C Ti = 75 C Ti = 55 C Tu=75 C Tu=65 C Tu=45 C 1980s 1990s


slide-1
SLIDE 1

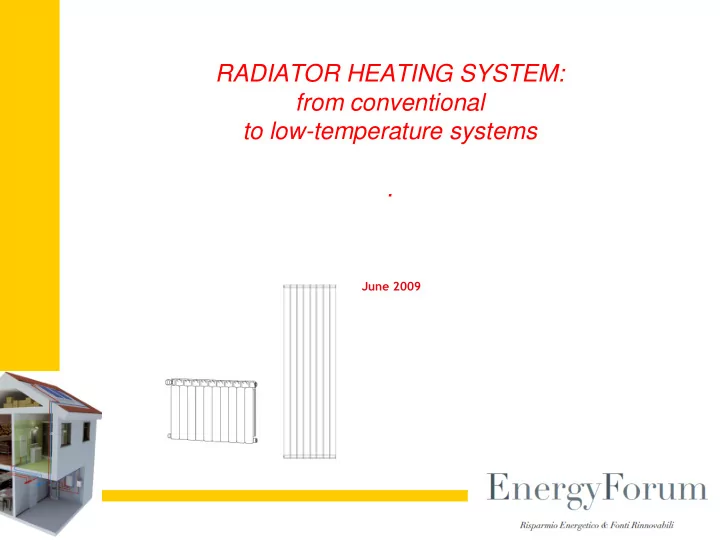

RADIATOR HEATING SYSTEM: from conventional to low-temperature systems .

June 2009

slide-2
SLIDE 2

ΔT = 60 K ΔT = 50 K ΔT = 30 K 1980s 1990s 2010

Ti = 85 °C Tu=75 °C Ti = 75 °C Ti = 55 °C Tu=65 °C Tu=45 °C

Evolution in the temperatures of the system

slide-3
SLIDE 3

Is the radiator heating system compatible with new houses and new heat- production technologies?

A pivotal question

slide-4
SLIDE 4

The amount of heat required to keep a room warm depends solely on its constructional features, i.e. the degree of insulation from the outside and from adjacent rooms. This amount of heat is always the same, regardless of the heating system installed.

slide-5
SLIDE 5

The differences between one emission system and another depend on how and when the heat is supplied to the room. The lower the waste, the more the set environmental conditions are maintained and the more suitable the system is.

slide-6
SLIDE 6

The assessment of a heating system must be based on:

  • comfort
  • running costs
  • installation costs
  • environmental impact
  • flexible use
slide-7
SLIDE 7

When the temperature of the water inside the radiator drops, there is a change in the temperature distribution in the room with a sharp drop in stratification. The temperature gradient is reduced and the temperature at the occupants’ height remains virtually constant.

= Comfort

slide-8
SLIDE 8

Aluminium radiators have low thermal inertia and can be turned

  • n and off and regulated very quickly. This allow them to adapt

to all climate conditions, to sudden changes in outdoor temperature or to free heat sources. This avoids energy wastage and undesired changes in indoor temperature.

= Comfort + Saving

slide-9
SLIDE 9

The graph shows the ability of a radiator heating system to respond to changes in indoor and outdoor temperatures over 3 days in winter. The temperature in the room does not undergo any noticeable change.

slide-10
SLIDE 10

The belief that radiators consume more than

  • ther systems is widespread.

Consumption Actually, truth is the opposite.

slide-11
SLIDE 11
  • The heating system must cover the

requirements.

  • The requirements are the same, regardless of

the heating system.

  • The differences in consumption are assessed
  • ver a whole season.
slide-12
SLIDE 12

High consumption by the system can only be the result of:

  • inability to follow the user’s settings
  • inability to exploit free heat sources
  • drifts in temperature compared to the set value.

A low-thermal-inertia and low-temperature system is the best way to limit consumption.

slide-13
SLIDE 13

Studies carried out in Scandinavian countries where high- inertia panel heating systems are used (as they are thought to be more suitable for long cold periods) have shown that fuel consumption is 15% higher compared to aluminium radiators.

U, haeting sys. Ey (kWh) Floor heating energy consumption vs radiators (%) 0,4, floor heating 13945 0,4, radiators 12053 0,2, floor heating 5372 0,2, radiators 4744 + 15,7% + 13,2%

Source: Peter Roots, Carl Eric Hagentoft – Floor heating, heating demand – Building Physics 2002

slide-14
SLIDE 14

Consumption: assessment using commercial software

Calculations performed using two different methods of operation: 1) Continuous for radiators and floor heating 2) Intermittent for radiators and continuous for floor heating

slide-15
SLIDE 15

The basic building used for the simulation is a two-storey semi- detached house with building envelope structures that comply with the minimum requirements of Italian Legislative Decree 311 for new buildings.

  • Province Florence
  • Altitude 40 m above sea level
  • Latitude 43.41
  • Wind zone 2
  • Growing degree days 1821
  • Climatic zone D
  • Gross volume 615.22 m3
  • Net volume 415.13 m3
  • Gross surface area 461.89 m2
  • Net surface area 147.28 m2
  • S/V 0.751
  • Mean seasonal temperature difference 9.798 °C
  • Number of heating days 166
  • Operating conditions: continuous over 24 hours, optimised activation (as per Italian law
  • no. 10 and subsequent amendments).
slide-16
SLIDE 16

Results of the simulation

1) Continuous operation for radiators and floor heating An analysis of the data reveals a small difference in energy consumption in favour of radiators, which consumes 2.11 kWh/m2 per year less compared to floor heating systems. In economic terms, this difference is equivalent to about a €30 saving a year when using radiators. 2) Intermittent operation for radiators The result is that on/off radiators consume about 35% less than radiating panels. (mettiamo un valore in euro) If we also consider the energy required to restore the room temperature

  • f 20°C after an off-period (limited to new buildings), a saving of around

20% can definitely be achieved.

slide-17
SLIDE 17

A cost-to-benefit analysis cannot fail to include initial installation costs as well, which are lower with radiators.

slide-18
SLIDE 18

Comparison of consumption between high and low temperature radiators in a condensing boiler system

slide-19
SLIDE 19

Virtually all existing buildings have radiators. The conversion to low temperature requires each radiator to be increased in size to compensate the drop in thermal output. In such cases, it is advisable to check whether the existing radiators are already oversized compared to the actual requirements. This will avoid increasing their dimensions unnecessarily.

Existing buildings

slide-20
SLIDE 20

If the building complies with the insulation requirements, it will not be necessary to increase the radiators dimensions.

Condensing boilers can be used without modifying the radiators dimensions by reducing the flow rate and promoting a higher thermal drop in the heating units. This results in low input temperatures which guarantee condensation.

Existing buildings

slide-21
SLIDE 21

Savings that can be achieved with radiators in a low-temperature system compared to a high-temperature boiler system

Existing Buildings

Risparmio % rispetto ad impianto con caldaia ad alta temperatura 34% 45% 40% 53%

0,1 0,2 0,3 0,4 0,5 0,6 Caldaia a bassa temperatura Caldaia a bassa temperatura + radiatori a valvola termostatica Caldaia a condensazione Caldaia a condensazione e radiatori a valvole termostatiche

slide-22
SLIDE 22

In order to save energy, new buildings must be well insulated. The energy requirement for heating a room is now much lower than in the past. It only takes a few hundred watts to heat an average-sized room, so the presence of free sources is of great importance in order to limit energy consumption.

New Buildings

slide-23
SLIDE 23

The Radiator size depends on:

  • the building’s energy requirement
  • the design temperature
  • the place of installation
  • the type of radiator

Radiator Size

When the energetic need is low, it is possible to operate with very low water temperatures, avoiding extremely cumbersome radiators dimensions.

slide-24
SLIDE 24

Current use ΔT = 50 K On new up until 31/12/2009 ΔT = 30 K On new as from 01/01/2010 at ΔT = 30 K 20 m2 room 2000/150 = 13 elements 600/111 = 8 elements 490/76 = 7 elements ΔT = 50 K ΔT = 40 K ΔT = 30 K Output per section 150 W 111 W 76 W Current use (Not under law 10) In new buildings until 31/12/2009

11 March 2008 Decree implementing 2008 Financial Law

On new as from 01/01/2010

11 March 2008 Decree implementing 2008 Financial Law

20 m2

room

design ΔT = 50 K 2000W/150W = 13 elements 600W/150W = 4 elements 490W/150W = 3 elements

Size Installation with aluminium radiators, centre distance 600 mm, depth 100 mm

Example: a 20m2 room in climatic zone E

slide-25
SLIDE 25
  • Fitting radiators with thermostatic valves allows the

temperature to be regulated separately for each room, saving up to 15%.

  • Radiators should be located below windows

whenever possible.

  • A reflecting panel should be placed behind each

radiator.

  • Connect the flow pipe at the top and the return pipe

at the bottom of the radiators (both connections at the bottom slightly reduce the thermal output).

Some simple rules for saving energy

slide-26
SLIDE 26

1 mm 5 mm 10 mm 15 mm 20 mm 25 mm 50 mm 100 mm T8 M4 T7 M4 T6 M4 T6 M3 T7 M3 T8 M3 T1 M4 T2 M4 T3 M4 T4 M4 T5 M4 Temperature Distanza

Mappa Termica Posteriore - Alimentazione 100W

32,50-35,00 30,00-32,50 27,50-30,00 25,00-27,50 22,50-25,00 20,00-22,50 17,50-20,00 15,00-17,50 12,50-15,00 10,00-12,50

slide-27
SLIDE 27

Spatial variation of the temperature

Loss

Radiator

radiation Tambient 20°C

L x w x h = 4 x 2.55 x 2.5

Temperature readings

h = 0.25 h = 0.75 h = 1.5 h = 2.25

T = 20°C T = 20°C

Outdoor environment

Air (30 m3/h)

Radiator

Convection

slide-28
SLIDE 28

Vertical gradient according to radiance and position

  • 1

1 2 3 4 10 20 30 40

Irraggiamento (%) Gradiente verticale di temperatura (°C) Bassa Temperatura (DT 20 K) - s. finestra Media temperatura (DT 30 K) - s.finestra Alta Temperatura (DT 40 K) - s.finestra Bassa Temperatura (DT 20 K) - opposto f. Alta Temperatura (DT 40 K) - opposto f. Media Temperatura (DT 30 K) - opposto f.

Irraggiamento radiatori pressofusi a ΔT 50

Spatial temperature change Spatial variation of the temperature

slide-29
SLIDE 29
  • 0,10

0,00 0,10 0,20 0,30 0,40 10 20 30 Irraggiamento (%) Taria - Toperativa (°C) Bassa Temperatura (DT 20 K) - s.finestra Media Temperatura (DT 30 K) - s. finestra Alta Temperatura (DT 40 K) - s. finestra

Irraggiamento Radiatori pressofusi a ΔT 50

Changes compared to operating temperature

Spatial temperature change Spatial variation of the temperature

slide-30
SLIDE 30

The first two parts of UNI TD 11300 were published in May 2008. “Energy performance of buildings” - national implementation of UNI EN ISO 13790:2008 and in replacement of UNI 10379:2005, UNI 10347:1993 and UNI 10348:1993.

UNI TS 11300

Part 1 covers the determination of a building’s thermal energy requirement for air conditioning in summer and heating in winter. Part 2 covers the determination of primary energy requirements and efficiency for heating in winter and the production of domestic hot water.

slide-31
SLIDE 31

Part 2 contains the standard output efficiency and regulation efficiency values for various emission systems, radiators and panels, an analysis of which leads to the obvious conclusion that any system can achieve a high output and hence reduced consumption if designed correctly – the difference will lie in the development costs.

UNI TS 11300

slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34

A radiator system is perfectly compatible with low temperatures. It is in fact one of the best possible applications in both existing and new buildings.

Radiators and low temperatures

slide-35
SLIDE 35

Thank you very much
