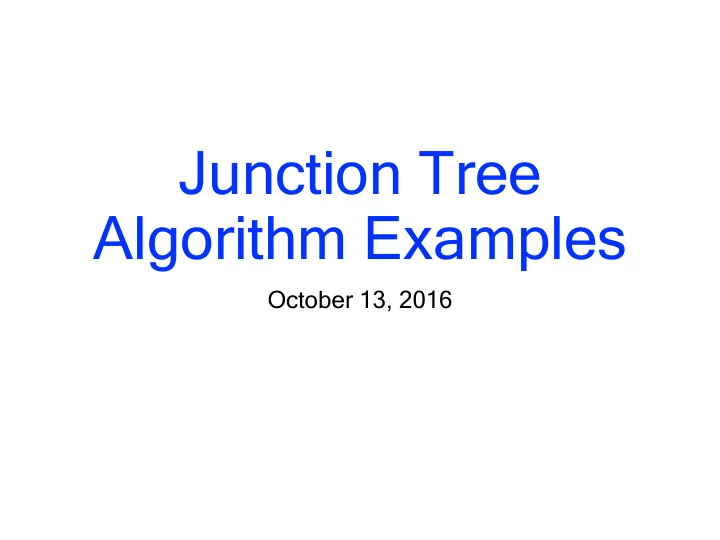

Junction Tree Algorithm Examples October 13, 2016 Junction Tree Algorithm Moralize (if starting from a directed graphical model) Triangulate (make it chordal) Construct a junction tree (maximum cardinality search) Define

Junction Tree Algorithm Examples October 13, 2016
Junction Tree Algorithm • Moralize (if starting from a directed graphical model) • Triangulate (make it chordal) • Construct a junction tree (maximum cardinality search) • Define potentials on maximal cliques • Introduce evidence (if any) • Propagate probabilities
CHILD Example from Spiegelhalter et al (1993) Statistical Science
Conditional Probability Tables
Visualization of Updated Beliefs on Every Node
Visualization of Updated Beliefs on Every Node
Moralize
Triangulation and Maximum Cardinality Search
Construct Junction Tree and Define Potentials on Maximal Cliques
Introduce Evidence and Propagate Probabilities
Comments: 1. Read Spiegelhalter, David J.; Dawid, A. Philip; Lauritzen, Steffen L.; Cowell, Robert G. Bayesian Analysis in Expert Systems. Statist. Sci. 8 (1993), no. 3, 219--247. doi: 10.1214/ss/1177010888. http://projecteuclid.org/euclid.ss/1177010888. 2. Convince yourself the numbers in Figure 13 are correct. 3. We will proceed to approximate inference. 4. Enjoy your Fall break! 5. Fill out the midterm survey: https://goo.gl/forms/AMfJ1t1d0gQbgQXI3

Download Presentation

Download Policy: The content available on the website is offered to you 'AS IS' for your personal information and use only. It cannot be commercialized, licensed, or distributed on other websites without prior consent from the author. To download a presentation, simply click this link. If you encounter any difficulties during the download process, it's possible that the publisher has removed the file from their server.

Recommend

Why the Junction Tree Algorithm? The Junction Tree Algorithm The JTA is a general-purpose

Why the Junction Tree Algorithm? The Junction Tree Algorithm The JTA is a general-purpose algorithm for computing (conditional) marginals on graphs. It does this by creating a tree of cliques, and carrying out a Chris Williams 1 message-passing

186 views • 7 slides

Junction-tree algorithm Probabilistic Graphical Models Sharif University of Technology Spring

Junction-tree algorithm Probabilistic Graphical Models Sharif University of Technology Spring 2016 Soleymani Junction-tree algorithm: a general approach Junction trees as opposed to the sum-product on trees can be applied on general graphs

461 views • 35 slides

Junction-tree algorithm Probabilistic Graphical Models Sharif University of Technology Spring

Junction-tree algorithm Probabilistic Graphical Models Sharif University of Technology Spring 2018 Soleymani Inference on general GM Now, what if the GM is not a tree-like graph? Can we still directly run message-passing protocol along

773 views • 41 slides

Junction Tree Algorithm and a case study of the Hidden Markov Model Probabilistic Graphical

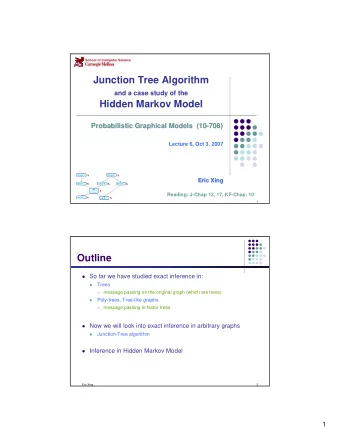

School of Computer Science Junction Tree Algorithm and a case study of the Hidden Markov Model Probabilistic Graphical Models (10- Probabilistic Graphical Models (10 -708) 708) Lecture 6, Oct 3, 2007 Receptor A Receptor A X 1 X 1 X 1
