Good Management Practices in Forestry Reducing Diffuse Pollution from Forestry Related Activities in Galloway and Eskdalemuir Forests John Gorman Senior Environment Protection Officer Project Aims Improve Communication links with State and

SLIDE 1

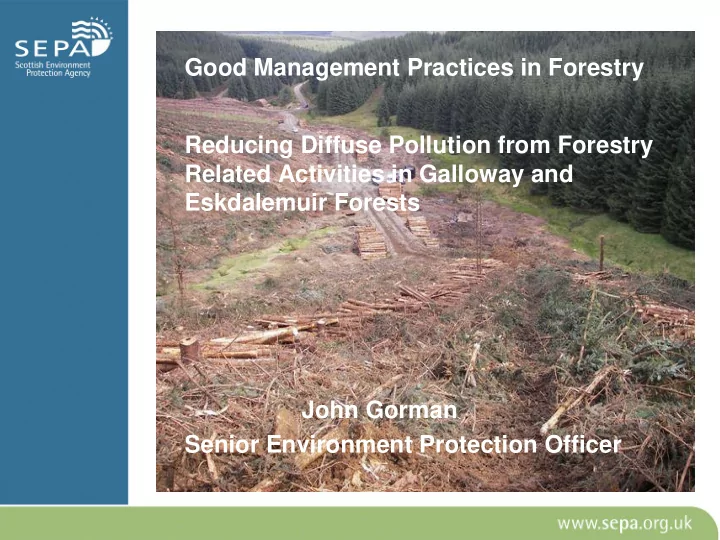

Good Management Practices in Forestry Reducing Diffuse Pollution from Forestry Related Activities in Galloway and Eskdalemuir Forests John Gorman Senior Environment Protection Officer

SLIDE 2

Project Aims

 Improve Communication links with State and private forestry – liaison meetings  Workshops, awareness days, training & site visits, shared learning  Site inspections –clearfelling, restocking, drainage works, road construction, quarries, pesticide/herbicide/fertilisers applications  Help develop Best Practice Guide for forestry activities via DPMAG

SLIDE 3

Main Problems

 Siltation from ground preparation, cultivation, harvesting and restocking  Contaminated run-off from roadways  Historical drainage systems  Standing sales  National disease obligations versus FWG5  Quarry runoff  Natural Regen  Waste

SLIDE 4

SLIDE 5

What is Diffuse Pollution

River Cree at Bargrennan

3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 10-MAY-1956 06-MAR-1959 10-JAN-1961 06-OCT-1964 02-JUN-1969 07-AUG-1973 13-DEC-1977 26-JAN-1982 28-NOV-1984 28-JUL-1986 10-MAR-1988 19-JAN-1990 10-JAN-1992 04-FEB-1994 23-JUN-1995 09-APR-1997 16-DEC-1998 31-JUL-2001 05-APR-2004 23-OCT-2005 29-MAR-2007 04-SEP-2008 20-APR-2010 30-NOV-2011 23-JAN-2014 pH Units pH Harmful effects Chorionase enzyme

SLIDE 6

River Cree at Bargrennan

3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 18-JAN-2000 29-NOV-2000 18-FEB-2002 10-FEB-2003 03-FEB-2004 02-SEP-2004 08-DEC-2004 04-OCT-2005 20-MAR-2006 31-AUG-2006 29-MAR-2007 02-OCT-2007 24-MAR-2008 06-OCT-2008 02-APR-2009 10-NOV-2009 17-JUN-2010 24-NOV-2010 20-OCT-2011 15-MAR-2012 15-NOV-2012 07-NOV-2013 pH Units pH Harmful effects Chorionase enzyme

SLIDE 7

Forwarder brash track decomp

SLIDE 8

Timber Stack near Burn

SLIDE 9

Forestry Inspections

Summary – February 2015

Total Inspections 216 Compliant 159 [74%] Non Compliant 57 [26%] Pollution Incidents 48 GBR20 32 GBR21 46 GBR22 6

SLIDE 10

Breaking the Source/Pathway/Receptor

SLIDE 11

DRAINAGE, DRAINAGE, DRAINAGE !!

SLIDE 12

CHRONOLOGICAL DRAINAGE REVIEW

 FWG2, 1991 [23 Years ago] prevent roadside drains discharging direct to watercourses; where unavoidable provide silt traps and maintain them regularly.  FWG3, 1993 [21 Years ago] Roadside drains carry high sediment load must not be allowed to directly connect to watercourses, re-direct to buffer areas  FWG4, 2003 [12 Years ago] Old drain clearing presents high risk of pollution, drains should be realigned to ensure volume flows onto vegetated ground and NOT into watercourses. Existing drains should not drain directly into watercourses  FWG5, 2011 [3 Years ago] Realign existing drains, avoid watercourse connections, redirect to buffer zones

SLIDE 13

Historical roadside ditches

Disconnect

SLIDE 14

Solution – Sump and Natural filter

SLIDE 15

Receptor protected

SLIDE 16

Disconnection FC Operations Note 25 - Roadside drain

Silt Trap Cut off Culvert Filter Zone Disconnect

SLIDE 17

Communication

SLIDE 18

Poor Communication & Site Responsibilities

SLIDE 19

Poor Crossing Point

SLIDE 20

Culvert Blocked

SLIDE 21

New Grip Drain for spring water

SLIDE 22

Dry Crossing Point

SLIDE 23

Contractor Competency Dalwhat Burn

SLIDE 24

Dalwhat Burn 1Km D/Stream

SLIDE 25

Dalwhat Burn 4Km d/stream

SLIDE 26

Galloway Flailing

SLIDE 27

What & Why

SLIDE 28

Working Quarries High Pollution Risks

SLIDE 29

Poor Rock Quality & Gross Pollution

SLIDE 30

Iron & Unknown Leachate

SLIDE 31

Quarry Runoff

SLIDE 32

Roadside Ditch Sump

SLIDE 33

Grass Swale Soakaway

SLIDE 34

Irish pipe bridges

SLIDE 35

Polbae IPB Before

SLIDE 36

Polbae IPB After

SLIDE 37

Waste

SLIDE 38

Contractor Waste Dumped in Woods

SLIDE 39

Contractor Waste behind Caravan

SLIDE 40

Good & Bad Forestry 1

SLIDE 41

Good & Bad Forestry 2

SLIDE 42

Good & Bad Forestry 3

SLIDE 43

Terram Trials

SLIDE 44

Terram in RSD

SLIDE 45

SUMMARY

 A Good Management Practice “Champion”  Competency attainment for contractors  Contracts – Duties & Responsibilities  Urgent need for Do’s and Don’t’s Guide  Good Quality Site Pre-Planning, Work Plans- Pull out flow chart of key decisions & tick list

 Themes: [1] Clear lines of communication [2] Improved site management [3] Pollution prevention NOT remediation [4] Guidelines are’nt seasonal [5] Carrot and Stick [6] Scotland’s wet, Plan for it

SLIDE 46

“The bitterness of poor Quality is remembered long after the sweet taste of low price has faded from memory”

Aldo Gucci

SLIDE 47

“Quality is doing it right when no-one is looking”

Henry T Ford

SLIDE 48

Thank you

John.Gorman@Sepa.Org.Uk Tel: 01671 402618
