J RAPID: Ground and Aerial Robots for Rapid Response; Remote Autonomous Exploration and Mapping Kazuya Yoshida, Keiji Nagatani, Satoshi Tadokoro and Kazunori Ohno Tohoku University, Sendai Japan Vijay Kumar and Nathan Michael, University of

slide-1
SLIDE 1

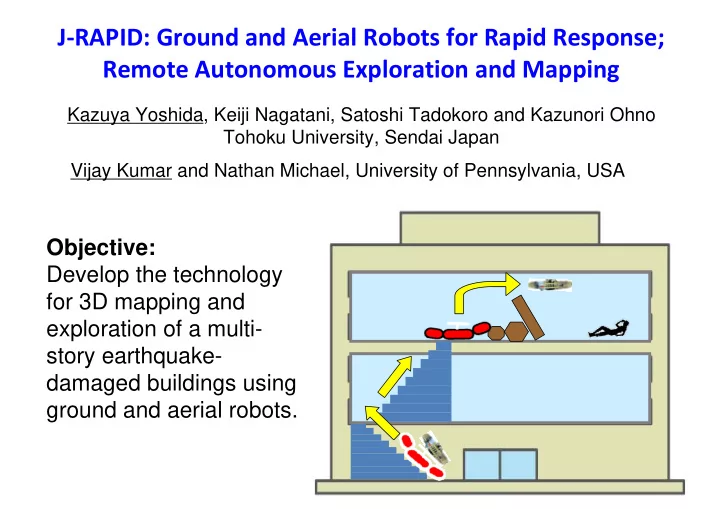

J‐RAPID: Ground and Aerial Robots for Rapid Response; Remote Autonomous Exploration and Mapping

Vijay Kumar and Nathan Michael, University of Pennsylvania, USA Kazuya Yoshida, Keiji Nagatani, Satoshi Tadokoro and Kazunori Ohno Tohoku University, Sendai Japan

Objective: Develop the technology for 3D mapping and exploration of a multi- story earthquake- damaged buildings using ground and aerial robots.

slide-2
SLIDE 2

アプローチ Mission Consideration

Even though ground robot vehicles, Kenaf and Quince are

very capable ground vehicles, surface mobility is limited.

There is certain demand and advantage on the exploration

from higher view points and the inspection of high place infrastructures (ceiling, pipeline, power line etc..)

Battery-driven Micro Aerial Vehicles have limited operation

time (〜10 minutes of flight time.)

Our idea is… Combine Ground Vehicles

and MAVs

Use Ground Vehicles as a

carrier and battery-charging station of MAVs.

slide-3
SLIDE 3

Robot System

Pelican :

Micro Arial Vehicle

Kenaf :

Precursor ground vehicle for reconnaissance and mapping

Quince:

MAV carrier ground vehicle

slide-4
SLIDE 4

Pelican : Micro Arial Vehicle

  • Battery-driven Quad-rotor

robot platform sold Ascending Technologies, GmbH.

  • Equipped with an IMU

(accelerometer, gyroscope, magnetometer) and pressure sensor

  • 60(w) x 60(l) x 25(h) cm,

weighing about 2.0kg

  • Customized onboard system: 1.6GHz Atom + 1GB RAM
  • Hokuyo UTM-30LX (laser) + Microsoft Kinect
  • Communication via an 802.11n access point mounted on Quince
  • Autonomous lift-off and landing control
  • Semi-autonomous (waypoint) and manual control is possible
slide-5
SLIDE 5

Kenaf : Ground vehicle for m apping

Rotary connector Motor HOKUYO sensor Rotational table

  • Research test bed
  • 58(w) x 45(l) x 30(h) cm, weighing about 20 kg
  • Main track + 4-sub tracks
  • HOKUYO laser range sensor with a rotary table, 40 Hz scan freq.

30 m ranging capability

  • Gyro + odometry
slide-6
SLIDE 6

Quince : Ground vehicle w ith a Heli-port

  • Research test bed
  • 48(w) x 112(l) x 42(h) cm,

weighing about 25 kg

  • Main track + 4-sub tracks
  • Heli-port and wifi access point

are mounted for Pelican.

slide-7
SLIDE 7
  • Electrical Engineering # 1 building of Tohoku University
  • Severely damaged by 3.11 earthquake
  • With a risk of collapse in future quakes

Demo Site

slide-8
SLIDE 8
  • Electrical Engineering # 1 building of Tohoku University
  • Severely damaged by 3.11 earthquake
  • With a risk of collapse in future quakes

Demo Site

slide-9
SLIDE 9

Demo Site July 2 7 – August 1 , 2 0 1 1

slide-10
SLIDE 10

Mapping result by Kenaf

9F 8F 7F

slide-11
SLIDE 11

Operation (2)

slide-12
SLIDE 12

Operation (3)

slide-13
SLIDE 13

Operation (4)

slide-14
SLIDE 14

Final Mapping Result

9F 8F 7F

slide-15
SLIDE 15

Final Mapping Result

9F 8F 7F

slide-16
SLIDE 16

Problem and proposed solution:

  • Ground-based robots have limitation of mobility to steep steps or walls.

Aerial robots have a very short operation time.

  • Aerial robots are transported by ground robots and take off/land on them.
  • Experiments were conducted in a building that was critically damaged by

the 2011 East Japan earthquake.

Results:

  • Full 2D/3D maps of the building floors

were successfully obtained. The maps clearly show the features of the environment

Ground and Aerial Robots for Rapid Response: Remote Autonomous Exploration and Mapping

Japanese PI: Kazuya Yoshida, Tohoku University Counterpart PI: Vijay Kumar, University of Pennsylvania Overview/purpose of the project

Develop the technology necessary to enable extensive exploration of damaged buildings by combining ground-based and aerial-flying robots.

slide-17
SLIDE 17

Publication

Collaborative m apping of an earthquake‐dam aged

building via ground and aerial robots Nathan Michael, Shaojie Shen, Kartik Mohta, Yash Mulgaonkar, Vijay Kumar, Keiji Nagatani, Yoshito Okada, Seiga Kiribayashi, Kazuki Otake, Kazuya Yoshida, Kazunori Ohno, Eijiro Takeuchi, Satoshi Tadokoro Journal of Field Robotics vol. 29, no. 5, pp.832-841, 2012

A TED talk by Prof. Vijay Kumar, also broadcasted in Japan

as a program “Super Presentation” by NHK-E.

slide-18
SLIDE 18

Future Issues

Combination of Ground Vehicles and Micro Aerial

Vehicles for investigation of disaster devastated areas is a very powerful method.

There are a number of potential applications:

such as plant buildings and structures, including nuclear power plant, their exterior and interior, for regular monitoring and maintenance, and disaster response.

Rapid response to volcanic eruptions is also important

application.

Development of higher degrees of autonom y to decrease

the complexity of the operation, and thereby increase the safety is a priority issue for future study.
