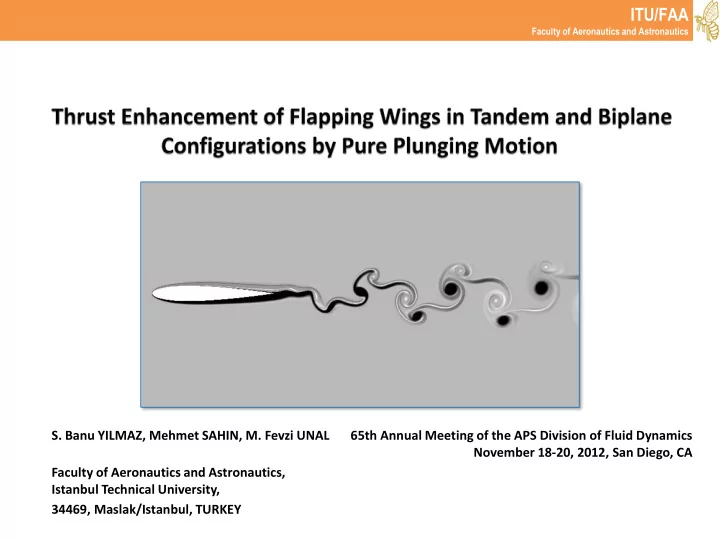

• S. Banu YILMAZ, Mehmet SAHIN, M. Fevzi UNAL

Faculty of Aeronautics and Astronautics, Istanbul Technical University, 34469, Maslak/Istanbul, TURKEY 65th Annual Meeting of the APS Division of Fluid Dynamics November 18-20, 2012, San Diego, CA

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 2

1.

The Motivation

2.

Governing Equations and Numerical Formulation

3.

Validation Cases

• Case 1, Re = 20000
• Case 2, Re = 252

4.

Simulation Results

• Tandem Configurations
• Biplane Configurations

5.

Conclusions and Future Work

Contents

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012

 Understanding the Nature

• 3D, combined pitch plunge sweep

motions of birds, insects and fishes

 Imitating Nature

• MAVs; potential civil and military

applications such as terrestrial and indoor monitoring

• Alternative propulsion systems
• Power generators, energy harvesting

3

The Motivation

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 4

Governing Equations and Numerical Formulation (continued…)

The governing equations of an incompressible unsteady Newtonian fluid can be written in dimensionless form as follows: Integrating the differential equations over an arbitrary moving irregular control volume .

(a) Two-dimensional dual volume (b) Three-dimensional dual volume The side centered finite volume method used by Hwang (1995) and Rida et al. (1997). The present arrangement of the primitive variables leads to a stable numerical scheme and it does not require any ad-hoc modifications in order to enhance pressure-velocity

• coupling. The most appealing feature of this primitive variable arrangement is the

availability of very efficient multigrid solvers. An unstructured finite volume solver based on Arbitrary Lagrangian-Eulerian formulation is utilized in order to solve the incompressible unsteady Navier-Stokes equations. ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 5

Governing Equations and Numerical Formulation (continued…)

The discrete contribution from the right cell is given for the momentum equation along the x-axis. The time derivation: The convective term The pressure term The viscous term ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 6

Governing Equations and Numerical Formulation (continued…)

The continuity equation is integrated within each quadrilateral elements and evaluated using the mid-point rule on each of the element faces. The discretization of above equations leads to a saddle point problem of the form: ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012

The preconditioner matrix is Where . For the inverse of the scaled Laplacian S, we use two- cycle AMG solver provided by the HYPRE library, a high performance preconditioning package developed at Lawrence Livermore National Laboratory, which we access through the PETSC library.

7

Governing Equations and Numerical Formulation (continued…)

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 8

The computational mesh consists of 747,597 quadrilateral elements and 748,508 nodes (DOF = 3,739,807) including a fine boundary layer region around airfoil. The boundary layer grid is created using Gambit2.1.6 software and the rest of the grid is generated via Cubit9.1 software using mapping and paving algorithms.

Computational Domain

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 9

Re=20000, k=4, h=0.0125

(Young and Lai, Aust. Fluid Mech. Conf., 2001) (Lai and Platzer , AIAA Journal, 1999)

Current study ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012

Validation- Case 1

Current study

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 10

Re=252, k=12.3, h=0.12 (Jones and Platzer, Exp. Fluids, 2009) Current study

Validation- Case 2

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 11

Grid Convergence

Fine mesh (747597 elements) Coarse mesh (191606 elements)

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 12

= 180o = 90o

Depending on the location of start-up vortices, the calculations indicate strong hysteresis effects and multiple periodic solutions.

Effect of Phase Angle

Deflected Symmetric

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 13

NACA0012 Re = 252

3D Solution

No strong three-dimensional effects are visible.

2,040,568 elements DOF= 20,598,994 𝑧 𝑢 = 0.12 sin (12.3𝑢 + ∅) ∅ = 180° Mild three-dimensional effects 0 < z < c

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 14

• Biplane Asynchroneous, closer

Detailed look

Numerical Simulations

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 15

• The Reynolds number is chosen as 252
• The equation of motion is,
• The time between two

iterations ∆t is calculated as 1/400 of a period of airfoil motion as,

k = 2𝜌𝑔𝑑/𝑉∞

• The reduced frequency k is 12.3 and

plunge amplitude h is 0.12

Flow Parameters

∆𝑢 = 2𝜌/(400𝑔) 𝑧 𝑢 = 0.12 sin (12.3𝑢 + ∅)

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 16

k = 12.3 h = 0.12 kh = 1.48

(Tuncer and Platzer, AIAA Jou., 1996)

y = h sin(t)

Flow Parameters (continued…)

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012

Simulation Results

17

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 18

Tandem Shifted Tandem, -0.12c Tandem Synchroneous Tandem Asynchroneous

Tandem Wing Configurations

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 19

Biplane Biplane Synchroneous Biplane Aynchroneous Biplane Asynchroneous-closer

Biplane Wing Configurations

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 20

A period of shedding

Tandem Shifted Tandem Tandem Synchroneous Tandem Asynchroneous

Comparison of Tandem Configurations

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 21

Streamlines

Single Tandem Shifted Tandem Tandem Synchroneous Tandem Asynchroneous

Comparison of Tandem Configurations

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 22

Biplane Biplane Synchroneous Biplane Aynchroneous Biplane Asynchroneous-closer

A period of shedding

Comparison of Biplane Configurations

Biplane Synchroneous later on

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 23

Single Biplane Biplane Synchroneous Biplane Aynchroneous Biplane Asynchroneous-closer

Streamlines

Comparison of Biplane Configurations

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012

Single Tandem Shifted Tandem

Forewing Hindwing

CT & Power Spectrum - Tandem Configurations

CTmean = 0.9776 CTmean = 0.9843 CTmean = - 0.1002 CTmean = 1.0334 CTmean = - 0.0657 24 Fx

Fx Fx Fx Fx

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012

Fx

27.11.2012 25

Tandem Synchroneous Tandem Asynchroneous Single

Forewing Hindwing

CT & Power Spectrum - Tandem Configurations

CTmean = 0.9776 CTmean = 1.1066 CTmean = 1.3104 CTmean = 0.8931 CTmean = - 0.0424 25 Fx

Fx Fx Fx

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 26

Biplane Biplane Synchroneous Single

Upper wing Lower wing

CT & Power Spectrum - Biplane Configurations

CTmean = 0.9776 CTmean = 0.9519 CTmean = - 0.2359 CTmean = 0.7033 CTmean = 0.6587 26 Fx

Fx Fx Fx Fx

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012

Fx

27.11.2012 27

Biplane Asynchroneous Biplane Asynchroneous closer Single

Upper wing Lower wing

CT & Power Spectrum - Biplane Configurations

CTmean = 0.9776 CTmean = 1.6702 CTmean = 1.6705 CTmean = 1.7554 CTmean = 1.7556 27 Fx

Fx Fx Fx

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 28

Mean Lift and Thrust

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012 29

U∞

Experimental Setup

Kollmorgen/Danaher Motion AKM33E servo motor and gear system

Large scale water channel

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012

 The numerical method has been validated for the numerical and the

experimental results available in the literature.

 The temporal and spatial resolution scales have been investigated.  The single plunging airfoil case at Re=252 reveals a very strong hysteresis

effects and multiple periodic solutions even though the Reynolds number is relatively low.

 Several wing combinations are investigated, by means of flow field

characteristics and force statistics,

 The most interesting vortex fields appeared at biplane synchroneous and

asynchroneous cases,

 In tandem synchroneus , biplane asynchroneous and asynchroneous-closer

cases, the thrust force is increased considerably.

 Frequency, Reynolds number effects will be studied both experimentally and

numerically.

 Experiments will be conducted using PIV (Particle Image Velocimetry) for

further validation of the results.

30

Conclusions and Future Work

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012

The authors gratefully acknowledge the use of the Chimera machine at the Faculty of Aeronautics and Astronautics at ITU, the computing resources provided by the National Center for High Performance Computing of Turkey (UYBHM) under grant number 10752009 and the computing facilities at TUBITAK ULAKBIM, High Performance and Grid Computing Center.

31

Acknowledgement

ITU/FAA

Faculty of Aeronautics and Astronautics

DFD 2012

Thank you, Any questions?
