ISOEN 2011|Jin Huang|CSE@TAMU Overview Introduction What is active sensing? Infrared Fabry Perot interferometry Methods Non negative least squares Multi modal search Wavelength selection Results

slide-1
SLIDE 1

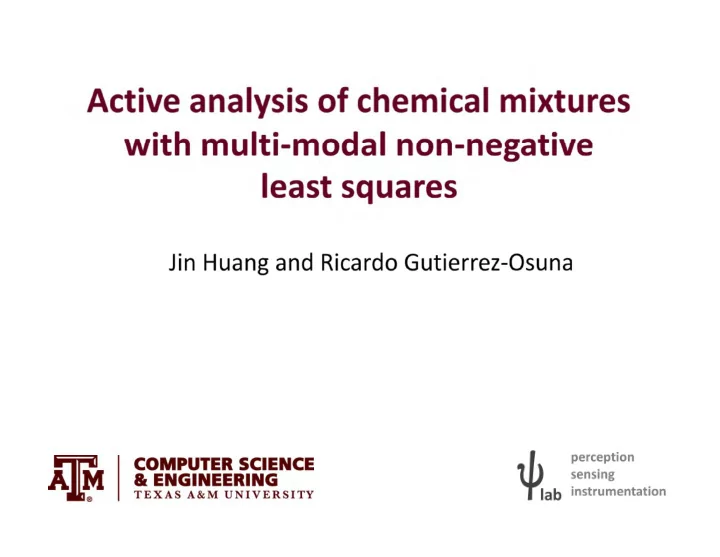

ISOEN 2011|Jin Huang|CSE@TAMU

slide-2
SLIDE 2

ICASSP 2013 | lab | CSE@TAMU 2

Overview

  • Introduction

– What is active sensing? – Infrared Fabry‐Perot interferometry

  • Methods

– Non‐negative least squares – Multi‐modal search – Wavelength selection

  • Results

– Chemical dataset – System behavior – Comparison with passive sensing

  • Discussion
slide-3
SLIDE 3

ICASSP 2013 | lab | CSE@TAMU 6

  • Perception is an active process

– “We not only see but we look, we not only touch we feel” ‐J.J. Gibson

  • Active sensor vs. active sensing

– Active sensor: a device that transmits energy in order to make measurements

  • E.g., radar, sonar

– Active sensing: a control strategy that dynamically adapts the sensor’s configuration as it interacts with the environments

  • E.g., changing camera viewpoints

What is active sensing?

slide-4
SLIDE 4

ICASSP 2013 | lab | CSE@TAMU 9

What is active sensing?

  • Analogy

– Guessing games

  • 20 questions, Pictionary, Battleship, Yes and no, Hangman

Question Answer Is your character real? Yes Isyour character male? Yes Is he alive? Yes Is he an actor? No Is he linked with sports? No Is he a musician? Yes Is he more than 50 years old? Yes Does he play the guitar? Yes Is he American? Yes Does he wear headgear? Yes Does he have messy hair? Yes Is it Bob Dylan? Yes

Vague Specific

slide-5
SLIDE 5

ICASSP 2013 | lab | CSE@TAMU 10

What is active sensing?

  • Analogy

– Guessing games

  • 20 questions, Pictionary, Battleship, Yes and no, Hangman

– Two seemingly conflicting problems at the same time

  • Find the right answer
  • Ask the right questions

– Advantage

  • Incorporate decision early in the signal processing pipeline
  • Reduce sensing costs ($, energy, time, computing power)
  • Lower sensor requirements
slide-6
SLIDE 6

ICASSP 2013 | lab | CSE@TAMU 11

Chemical Identity Concentration Sensor Reference Single Unknown Fixed MOX Gosangi et al. 2010 IEEE Sensors J Single Unknown Unknown (continuous) FPI Huang et al. 2012 IEEE Sensors J Mixture Known Unknown (discrete) MOX Gosangi et al. 2013 S&A B: Chemical Mixture Unknown Unknown (continuous) FPI Huang et al. 2013 ICASSP

Prior work

slide-7
SLIDE 7

ICASSP 2013 | lab | CSE@TAMU 12

Infrared absorption spectroscopy

IR source

  • log
  • IR spectrometer
  • Gas cell
slide-8
SLIDE 8

ICASSP 2013 | lab | CSE@TAMU 13

IR source Gas cell FPI d

  • Fabry‐Perot interferometer

, … ,

slide-9
SLIDE 9

ICASSP 2013 | lab | CSE@TAMU 18

  • Properties

– Absorption spectrum is linear (Beer’s law)

  • ⋮
  • ⋮
  • Concentration of each

chemical

  • +

Absorption spectrum

  • f the mixture
  • IR absorption

Absorption spectrum of each chemical

slide-10
SLIDE 10

ICASSP 2013 | lab | CSE@TAMU 22

  • ( )

( 1) ( 1)

Traditional mixture analysis

  • Problem definition

– Estimate , given (all wavelengths)

  • …

…

Wavelengths Chemicals

. . : 0

slide-11
SLIDE 11

ICASSP 2013 | lab | CSE@TAMU 23

  • Problem definition

– Estimate , but measuring one wavelength at a time

  • ( )

( 1) ( 1)

Active mixture analysis

  • …

…

Wavelengths Chemicals

. . : 0

slide-12
SLIDE 12

ICASSP 2013 | lab | CSE@TAMU 24

  • Problem definition

– Select the best wavelengths in to solve

  • ( )

( 1) ( 1)

Active mixture analysis

  • …

…

Wavelengths Chemicals

. . : 0

slide-13
SLIDE 13

ICASSP 2013 | lab | CSE@TAMU 25

  • …

…

  • Interpretation

– Each wavelength equals one element in

  • ( )

( 1) ( 1)

Active mixture analysis

Wavelengths Chemicals

. . : 0

slide-14
SLIDE 14

ICASSP 2013 | lab | CSE@TAMU 26

  • Interpretation

– Which allows us to use an additional row in

  • ( )

( 1) ( 1)

Active mixture analysis

…

…

Wavelengths Chemicals

. . : 0

slide-15
SLIDE 15

ICASSP 2013 | lab | CSE@TAMU 27

  • …

…

  • Interpretation

– Each new wavelength adds a new row in

  • ( )

( 1)

Active mixture analysis

( 1) Wavelengths Chemicals

. . : 0

slide-16
SLIDE 16

ICASSP 2013 | lab | CSE@TAMU 28

  • Issue

– The underlying linear system may be under‐determined

  • (2 )

( 1)

Active mixture analysis

(2 1)

  • …

…

Wavelengths Chemicals

. . : 0

slide-17
SLIDE 17

ICASSP 2013 | lab | CSE@TAMU 29

  • …

…

  • Solution

– Assume that is sparse

  • (2 )

( 1)

Active mixture analysis

(2 1)

  • Wavelengths

Chemicals

. . : 0

slide-18
SLIDE 18

ICASSP 2013 | lab | CSE@TAMU 30

  • …

…

  • Subset selection

– Select 1‐2 elements in

  • (2 )

( 1)

Active mixture analysis

(2 1) Wavelengths Chemicals

. . : 0

slide-19
SLIDE 19

ICASSP 2013 | lab | CSE@TAMU 31

  • …

…

  • Interpretation

– One element in implies one column in

  • (2 )

( 1)

Active mixture analysis

(2 1) Wavelengths Chemicals

. . : 0

slide-20
SLIDE 20

ICASSP 2013 | lab | CSE@TAMU 33

  • …

…

  • The selection is not unique

– A combinatorial problem ⇒ search

  • Active mixture analysis

. . : 0

Chemicals ( 1)

slide-21
SLIDE 21

ICASSP 2013 | lab | CSE@TAMU 37

Unimodal candidate selection

slide-22
SLIDE 22

ICASSP 2013 | lab | CSE@TAMU 43

Multimodal candidate selection

  • Iterative deepening

memory‐bounded heuristic search Iterative deepening memory‐bounded heuristic search

slide-23
SLIDE 23

ICASSP 2013 | lab | CSE@TAMU 44

Wavelength selection

Sensor Feature Selection Select Maximum variance Solutions:

  • ,

, … MM‐NNLS solver Unknown spectra b

  • Projection
slide-24
SLIDE 24

ICASSP 2013 | lab | CSE@TAMU 45

Case study

  • Dataset

– 100 chemicals from NIST WebBook (randomly chosen) – Wavelength range: 3 11.5 – Downsampled to 660 spectral lines – Added 2% Gaussian noise

  • Setup

– 3 chemicals mixture (sparsity 3%) – Search space 100 10 – We consider up to 10 alternate paths

slide-25
SLIDE 25

ICASSP 2013 | lab | CSE@TAMU 46

  • Step 1

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=1 Ground truth Measurement Projection Selected feature 10 20 30 40 50 60 70 80 90 100 l2 error Candidate error ranking

slide-26
SLIDE 26

ICASSP 2013 | lab | CSE@TAMU 47

  • Step 2

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=2 Ground truth Measurement Projection Selected feature 200 400 600 800 1000 1200 1400 1600 1800 l2 error Candidate error ranking

slide-27
SLIDE 27

ICASSP 2013 | lab | CSE@TAMU 48

  • Step 3

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=3 Ground truth Measurement Projection Selected feature 500 1000 1500 2000 2500 3000 3500 4000 l2 error Candidate error ranking

slide-28
SLIDE 28

ICASSP 2013 | lab | CSE@TAMU 49

  • Step 4

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=4 Ground truth Measurement Projection Selected feature 500 1000 1500 2000 2500 3000 3500 4000 l2 error Candidate error ranking

slide-29
SLIDE 29

ICASSP 2013 | lab | CSE@TAMU 50

  • Step 5

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=5 Ground truth Measurement Projection Selected feature 1000 2000 3000 4000 5000 6000 l2 error Candidate error ranking

slide-30
SLIDE 30

ICASSP 2013 | lab | CSE@TAMU 51

  • Step 6

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=6 Ground truth Measurement Projection Selected feature 1000 2000 3000 4000 5000 6000 7000 800 l2 error Candidate error ranking

slide-31
SLIDE 31

ICASSP 2013 | lab | CSE@TAMU 52

  • Step 7

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=7 Ground truth Measurement Projection Selected feature 1000 2000 3000 4000 5000 6000 l2 error Candidate error ranking

slide-32
SLIDE 32

ICASSP 2013 | lab | CSE@TAMU 53

  • Step 8

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=8 Ground truth Measurement Projection Selected feature 1000 2000 3000 4000 5000 6000 7000 l2 error Candidate error ranking

slide-33
SLIDE 33

ICASSP 2013 | lab | CSE@TAMU 54

  • Step 9

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=9 Ground truth Measurement Projection Selected feature 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 l2 error Candidate error ranking

slide-34
SLIDE 34

ICASSP 2013 | lab | CSE@TAMU 55

  • Step 10

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=10 Ground truth Measurement Projection Selected feature 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 l2 error Candidate error ranking

slide-35
SLIDE 35

ICASSP 2013 | lab | CSE@TAMU 56

  • Step 11

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=11 Ground truth Measurement Projection Selected feature 1000 2000 3000 4000 5000 6000 7000 8000 l2 error Candidate error ranking

slide-36
SLIDE 36

ICASSP 2013 | lab | CSE@TAMU 57

  • Step 12

3 4 5 6 7 8 9 10 11 2 4 6 x 10

  • 3

Wavelength (m) Absorption t=12 Ground truth Measurement Projection Selected feature 1000 2000 3000 4000 5000 6000 7000 8000 l2 error Candidate error ranking

Converged Converged

slide-37
SLIDE 37

ICASSP 2013 | lab | CSE@TAMU 58

Overall performance

  • Baseline: passive sensing

– Sequential forward feature selection – Trained to distinguish all 100 chemicals – Generates a fixed sequence of wavelengths

  • Experimental protocol

– Randomly pick chemicals and assign random concentrations

  • Concentration has to be significant (larger than 10%)

– Mixtures have from 1 up to 10 chemical components – Stopping criteria: same error threshold for both methods

slide-38
SLIDE 38

ICASSP 2013 | lab | CSE@TAMU 59

  • Number of measurements needed

– Fewer measurements means cost savings – For each # components we ran 100 examples

slide-39
SLIDE 39

ICASSP 2013 | lab | CSE@TAMU 60

  • Stability of the solution

– Measured with the condition number of ′

  • A measure of correlation among wavenumbers

– Higher condition # ⇒ higher correlation ⇒ less stability

slide-40
SLIDE 40

ICASSP 2013 | lab | CSE@TAMU 61

Discussion and future work

  • Discussion

– Multimodal search provides alternative candidates, which help tackle ill‐posed problems – Only a small fraction of candidate solutions are needed to reveal the uncertainty (by virtue of the back‐projection)

  • Future work

– Experimental validation on real FPI sensor – Improvements to the algorithm

  • Encouraging diversity to the candidate pool
  • Over‐fitting criteria for trace analysis
slide-41
SLIDE 41

Thank you Questions?
