iSMART 4.0.X S.M.A.R.T ( Self-Monitoring, Analysis and Reporting Technology ) A monitoring system for computer hard disk drives to detect and report on various indicators of reliability, in the hope of anticipating failures. 1992 1995 iSMART

slide-1
SLIDE 1

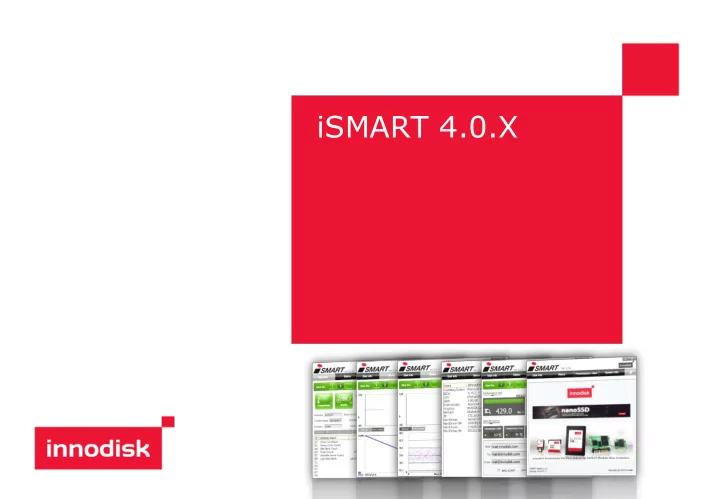

iSMART 4.0.X

slide-2
SLIDE 2

S.M.A.R.T

(Self-Monitoring, Analysis and Reporting Technology)

A monitoring system for computer hard disk drives to detect and report on various indicators of reliability, in the hope of anticipating failures.

Predictive Failure Analysis

1992 1995

Intellisafe SMART Small Form Factor committee

iSMART

slide-3
SLIDE 3

Innodisk iSMART tool

iSMART

Monitor Record Analysis Report Enhance

Value added

slide-4
SLIDE 4

Innodisk iSMART Features

  • Green software
  • Device information
  • Enhance Innodisk SSDs products
  • SMART information
  • Alert function
  • iAnalyzer
  • Write Protect
  • Easy to customization
  • Free for all function

Device Health Power saving Lifespan Temperatur e Write protetct Alert function Device information Wear leveling Performanc e Test

slide-5
SLIDE 5
  • Monitor max. 8 SSD at the same time
  • Real time monitor and display

Detail of Disk Information

iSMART

slide-6
SLIDE 6

Detail of Disk Information

Monitoring and display SSD SPEC. information

  • FW version
  • Serial number
  • Model name
  • Transfer mode
  • Support features
slide-7
SLIDE 7

Clearly display SMART information

Check SSD situation

  • Bad block count
  • Erase count
  • Unstable power count
  • Later bad block

E E

L

L

slide-8
SLIDE 8

Trigger Write Protect effortlessly

  • Giving users easy one touch

access to the Write Protect.

slide-9
SLIDE 9
  • Green Design to reduce power consumption
  • Dynamic power management (Firmware)
  • Extreme low power consumption
  • Enable/Disable by API/iSMART tool

Low power, Green Design

119.1mA 79.5mA

Idle power save 35%

slide-10
SLIDE 10

Real time temperature display

  • Display & recording real time temperature of SSD.
  • Estimating system temperature.
slide-11
SLIDE 11
  • Predicting SSD lifespan by Usage patterns.

Predicting lifespan by Usage patterns

slide-12
SLIDE 12
  • Each block of Erase count
  • Dynamic Wear-Leveling
  • Static Wear-Leveling

Real status of wear leveling

Low Hig h

w/o wear leveling with wear leveling

Program and Erase Cycles

Damage occurs due to intensive programing and erasing Maximizing the storage’s lifetime with uniform programing and erasing

s

slide-13
SLIDE 13

iAnalyzer- Data Pattern Record

  • Real-time collection provides in-depth knowledge of

behavior and application

  • Easily use by iSMART
slide-14
SLIDE 14

iAnalyzer- Data Pattern Record

  • iAnalyzer flow chart

–classify each data into different file size category form 4K to 8MB.

Host Read Multiple Read DMA Read Sector Read DMA EXT Read FPDMA Write Multiple Write DMA Write Sector Write DMA EXT Write FPDMA iAnalyzer

  • Classify systematically

4KB 8KB 16KB 32KB 64KB 128KB 1MB 2MB 4MB 8MB

slide-15
SLIDE 15

iAnalyzer- Data Pattern Record

  • A free tool that records the read/write behavior of the

disk without the need for a driver or external analyzer.

iAnalyzer information of Window 7

  • 76% write command, 24% read command, and host write is 6.03GB.
slide-16
SLIDE 16

Terminate and Stay Resident

slide-17
SLIDE 17

Testing performance immediately

  • Testing performance of SSD through simple
  • peration
slide-18
SLIDE 18

Alert when SSD is out of setting

Alert inform by mail

  • Temperature
  • Health
  • Lifespan
  • Free Capacity

C1 C2 C3 C4 C5

iSMART

User

Alert

slide-19
SLIDE 19

Easy know system Information

  • Show the detail system information
  • Easy to get system info. for technical support
slide-20
SLIDE 20

Multiple OS supported

Windows OS

  • Windows XP SP3
  • Windows 7
  • Windows 8

Linux

  • Linux kernel 3
  • Linux kernel 2

64bit 32bit

slide-21
SLIDE 21

Customized your SMART tool

  • Customized your SMART tool.
  • Providing Linux API for customer.

company

Company logo

Company information

Utility name

company

slide-22
SLIDE 22

What the next of iSMART

  • Upgrade FW
  • Remote Monitor

–Linux –Windows

iSMART

slide-23
SLIDE 23

iSMART Tool

slide-24
SLIDE 24

Q&A

slide-25
SLIDE 25
