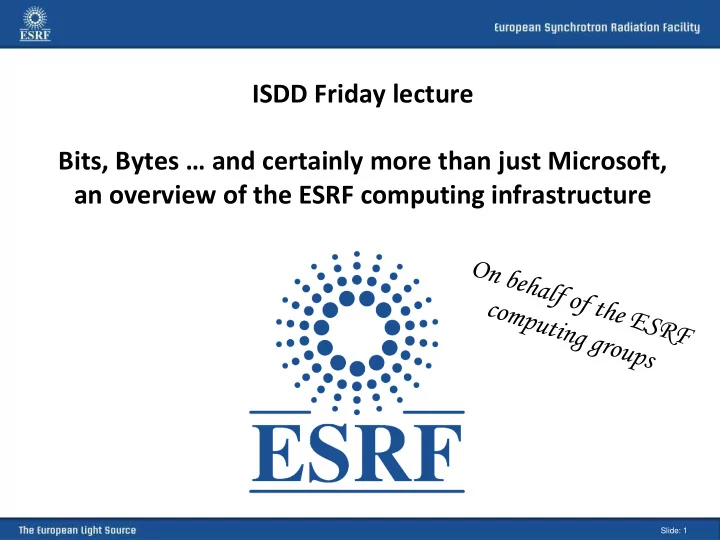

ISDD Friday lecture Bits, Bytes and certainly more than just - - PowerPoint PPT Presentation

Slide: 1

ISDD Friday lecture Bits, Bytes … and certainly more than just Microsoft, an overview of the ESRF computing infrastructure

Slide: 2

Organisational

• Today, many of us are computer experts … or at least computer literate
• Home computing (PCs, Smartphones, tablets, Playstations, smartTVs, etc.)
• Desktop computing (office applications, data analysis, etc.)
• IT (Information Technology) or ICT (Information and Communication Technology) is

transforming our lives

• Two Divisions provide professional computing support at ESRF:

ISDD Friday lecture – Computing Infrastructure

Slide: 3 ISDD Friday lecture – Computing Infrastructure

Management Information Systems Management Information Systems & Web

Computing Groups/Units

Software Windows UNIX Network Hotline MIS Web Data Analysis Accelerator Control Beamline Control

Jeremy Claude

Slide: 4

• Monthly Computer Coordination Meetings (CCMs)
• To discuss cross divisional computing matters like standards, support, developments

Participants:

• ISDD: G. Beruyer, JM. Chaize, C. Ferrero, A. Götz
• TID: R. Dimper, B. Lebayle, D. Porte
• AF. Maydew (notes)
• Bi-monthly Computer Security Working Group (CSWG) meetings
• To discuss all matters concerning IT security, define policies, follow up incidents

Participants:

• F. Calvelo-Vazquez, R. Dimper, L. Duparchy, B. Dupré, B. Lebayle, AF. Maydew (notes), C.

Rolland

• Many thematic meetings:
• LINUX
• Buffer Storage, etc.

ISDD Friday lecture – Computing Infrastructure

Organisational

“At this point in the meeting we’ll

• pen a discussion of whether or not

we needed to have this meeting.”

Slide: 5

This presentation is not about:

• Software design,
• software standards,
• control systems,
• field buses,
• stepper motor controllers,
• programmable logic controllers,
• digital electronics,
• Microsoft Office,
• OpenOffice,
• data analysis software,
• ISDD activities,
• EX2,
• CPER,
• :
• a million other interesting things
• :

This presentation is about:

• the computer rooms,
• the network,
• data storage, data management,
• IT support,
• Upcoming projects
• :
• computer infrastructure!

ISDD Friday lecture – Computing Infrastructure

Overview

Slide: 6

Outline

 Organisational

• Overview
• Network
• Computer rooms
• Keeping our data safe
• Analysing data
• Around the desktop
• Its all virtual
• Databases
• What’s on our plate?

ISDD Friday lecture – Computing Infrastructure

Slide: 7

Today IT (Information Technology) is underpinning everybody’s work

• Many systems/computers are critical for everyday work
• Desktop PC
• Printers
• Network
• Internet
• Databases  Management Information Systems
• Smartphones
• to assure functions like:
• e-mail
• Internet browsing
• Text editing
• Order processing
• Data analysis
• Vacation requests
• :
• :

Overview

ISDD Friday lecture – Computing Infrastructure

Slide: 8

Core mission of the ESRF – produce data (and publications!)

The data life cycle

ISDD Friday lecture – Computing Infrastructure

Overview

Step 1 Generation Step 2 Verification Step 3 Transfer+ Storage Step 4 Transformation/ Analysis Step 5 Archival Step 6 Publication Step 7 Destruction

Slide: 9

Outline

 Organisational  Overview

• Network
• Computer rooms
• Keeping our data safe
• Analysing data
• Around the desktop
• Its all virtual
• Databases
• What’s on our plate?

ISDD Friday lecture – Computing Infrastructure

Slide: 10 ISDD Friday lecture – Computing Infrastructure

Network

IT is everywhere…the network is everywhere!

ESRF operates with a class B IP address:

• 160.103.a.b  a=subnet, b=host
• Network speed: Mbps or Gbps = Mega or Giga

bits per second Network backbone based on Extreme Network switches:

• BlackDiamond8k switches with multiple 10 Gbps

backbone links

• On the beamlines: Extreme Summit X450-48P
• 398 switches, all with 1 Gbps or 10Gbps ports
• Inter-switch links based on up to 8 x 10 Gbps ports
• Extreme Networks = fast (10 G wires-peed routing,

filtering), reliable (dual power, dual management, dual modules), stable

• First 40 Gbps ports ordered

Slide: 11

Inventory

• 280 networks
• 8 627 nodes
• 46 routers
• 398 network switches
• >15 000 x 1Gbps capable copper ports
• >1 000 x 10Gbps fibre ports
• Beamlines with 10Gbps uplinks:
• BM5, BM14, ID14, ID15, ID17Sat1, ID19, ID20, BM23, ID23, ID24, ID29, ID30
• Computers with “private” 10Gbps links:
• hexsalsa (ID15), wid15dimax (ID15), id19sat1 (ID19), lid29io (ID29), id29gate (ID29)

And the network is also:

• Wi-Fi, SSL gateways, firewall, copper cabling, fibre optic cabling, network monitoring

and ...

• Network standby for the accelerators and beamlines

ISDD Friday lecture – Computing Infrastructure

Network

Slide: 12 ISDD Friday lecture – Computing Infrastructure

Network

Synopsis

80 Gbps 40 Gbps 10 Gbps 1 Gbps 100 Mbps Backup links

Standard beamline

High-throughput beamline

Control Room Building Computer Room Central Building Computer Room

Offices Internet

Slide: 13

ESRF/ILL/EMBL connected via RENATER Network

ISDD Friday lecture – Computing Infrastructure

Slide: 14

ILL8

Site Entrance H2 Restaurant Roundabout Tigre 1 active Tigre 2 passive Tigre 1 passive Tigre 2 active A480 / Campus St Martin d'Heres A B C D1 D2 E ILL/ILL17 ESRF/Central Building EMBL Active device

Metronet / Tigre

Fiber optic termination Site router Avenue des Martyrs / INPG

Z5

Network – Internet cabling

ISDD Friday lecture – Computing Infrastructure

Slide: 15

Router ESRF LAN ILL LAN EMBL LAN ESRF Premises ILL Premises Tigre1 Tigre2 Renater Grenoble

DMZ DMZ DMZ

PacketShaper Firewall+router Level2 switch BGP BGP

Network – Firewall et al

ISDD Friday lecture – Computing Infrastructure

Slide: 16

Outline

 Organisational  Overview  Network

• Computer rooms
• Keeping our data safe
• Analysing data
• Around the desktop
• Its all virtual
• Databases
• What’s on our plate?

ISDD Friday lecture – Computing Infrastructure

Slide: 17

Computer rooms / data centres

• Two computer rooms – data centres
• CTRM – 150 kW electrical power, 110 m2
• Central Building – 370 kW electrical power, 300 m2
• Why?
• Never put all eggs into the same basket
• keep a copy of all data in the two rooms
• Disks  tapes
• Split fault tolerant systems between the two rooms
• Many technical rooms, at least one in each building – network hubs

ISDD Friday lecture – Computing Infrastructure

Why a new+bigger data centre?

• Insufficient power
• Insufficient cooling
• Insufficient floor space
• Inadequate infrastructure
• Instant provisioning required:
• rack space
• network connections
• power outlets

Slide: 18

Data Centre - Construction

• Built around the existing computing room, all equipement kept operational

during the works

• Reinforced slab and false floor supporting 1000 kg/m2
• Fireproof glass windows
• Noise reduction

ISDD Friday lecture – Computing Infrastructure

Slide: 19

• 10 months (without preparatory works)
• Dust minimized
• Noise minimized
• Disturbance minimized
• Cooling kept efficient
• Computing equipment kept up and running (even when replacing the racks!)

Data Centre - Construction

ISDD Friday lecture – Computing Infrastructure

Slide: 20

Data Centre - design

• 300 m2
• 370 kW
• 1000 kg/m2
• Cold aisle / hot aisle
• Low density area = 66 racks, 170 kW
• High density area = 10 racks, 200 kW

ISDD Friday lecture – Computing Infrastructure

Slide: 21

Data Centre – behind the scene

 Dual power supply for all equipment  Dual UPS in separate rooms  Aerial cable trays for electricity + network  Flexible and modular electrical distribution  Dual cooling system = chilled water + air exchangers  Smoke extraction system (in case of fire)  Chilled water circuit for the high density area  False floor: several fan-equipped tiles

ISDD Friday lecture – Computing Infrastructure

Slide: 22

Cold aisle / Hot aisle principle – section view

Rack

Computer

Inject cold air in false floor Extract hot air

ISDD Friday lecture – Computing Infrastructure

Data Centre – cooling

Slide: 23

Cold aisle / Hot aisle principle – aerial view

ISDD Friday lecture – Computing Infrastructure

Data Centre – cooling

Slide: 24

Why a high density area?

 A perforated tile is not sufficient for cooling a single rack full of powerful servers (20-30 kW/rack), free air flow typically allows for 10-15 kW/rack maximum Rack

ISDD Friday lecture – Computing Infrastructure

Computer

 More efficient: cold air has not to be pushed over 20 meters to the computers  More reliable: one of the 6 units can fail without consequence 6 dedicated AC units

Door

Top view

Slide: 25

Data Centre

Two rows of racks (cold aisle) “The cube” (closed hot aisle, up to 200 kW)

ISDD Friday lecture – Computing Infrastructure

Slide: 26

Data Centre – to house what?

• Network equipment
• Disk systems
• Tape libraries
• Infrastructure servers

ISDD Friday lecture – Computing Infrastructure

Slide: 27 ISDD Friday lecture – Computing Infrastructure

>160 infrastructure servers

AD Patching Antivirus Printing LDAP

Antivirus email UNIX Printing

LINUX repository

Email

Sysadmin Netadmin

Mailing lists Calendar Mysql databases

DNS SSH/NX

MIS UNIX Virtualization NIS

DHCP

PXE/Rembo Licenses

Web proxies

Backup Storage

Firewall (DNS, ssh) MAIL Transfer Agents

Time

File sharing

WiKi

Samba

Web/plone

ISPyB database

ECAPS

OAR

• Perf. Clusters

Paleo database

Radius

• Perf. Network

Jira

Graindb database

Antispam email

Web filtering

Linux clusters WiFi service UNIX WINDOWS NETWORK Co-admin

Terminal services

Slide: 28

E-mail infrastructure

ISDD Friday lecture – Computing Infrastructure

MAIL Transfer Agent MAIL Transfer Agent

Antivirus e-mail

e-mail

Antispam e-mail

ESRF Spam filtering > 70%

(60 000-400 000 emails/day for ESRF + ILL))

Spam filtering > 50%

Slide: 29

Outline

 Organisational  Overview  Network  Computer rooms

• Keeping our data safe
• Analysing data
• Around the desktop
• Its all virtual
• Databases
• What’s on our plate?

ISDD Friday lecture – Computing Infrastructure

Slide: 30

What is RAID?

• No, its not the stuff to kill bugs
• RAID stands for Redundant Array of Independent/Inexpensive Disks
• There are different RAID levels, the most popular being RAID-0, RAID-1, and

RAID-5

ISDD Friday lecture – Computing Infrastructure

Slide: 31

Central disk storage

• All central disk storage is based on NetApp NAS filers
• Capacity:
• 150 TB legacy disk storage system
• 600 TB GX disk storage system

– 685 TB for NICE in total, including 311 TB /data/visitor, – 120 filesystems, including 106 for Beamline data

• 500 TB under commissioning
• Access modes:
• UNIX - NFS
• Windows - CIFS

ISDD Friday lecture – Computing Infrastructure

Slide: 32

Central disk storage

Performance

• Performance – single thread
• Typical 80 MB/s write and 50 MB/s read on legacy and GX
• Typical 400 MB/s read/write requested in CFT 2011
• Typical 500 MB/s write and 200 MB/s read currently obtained
• Performance - overall
• Typical 1 GB/s total bandwidth for legacy and GX
• Typical 4 GB/s total bandwidth requested in CFT 2011
• Typical 1.7 GB/s total bandwidth currently obtained on new system
• New system will be used for /data/visitors exclusively
• The older GX systems will be reconfigured for higher performance (8 TB file

systems)

• Next step:
• Tendering in 2012 = 1 to 2 PB, probably use of pNFS (parallel NFS,

NFS V4.1) for higher performance

ISDD Friday lecture – Computing Infrastructure

Slide: 33

NICE data management policy

• /data/visitor (proposals)
• accounts and data deleted 30 days after the end date
• can be extended for one month on request, once only
• inhouse data
• deleted after one year (twice a year, 30/06 and 31/12)
• can be kept indefinitely on request, i.e. user manages disk space
• home directories (10 GB) and e-mail (4 GB)
• kept indefinitely

ISDD Friday lecture – Computing Infrastructure

Slide: 34

What is LTO?

• LTO = Linear Tape Open (successor of the DLT)
• First released in year 2000 (HP/IBM), now in the 5th

generation

• Serpentine recording/reading, multiple tracks at once
• Coherent + downward compatible road map
• Same form factor of tapes and tape drives
• Tape cost: ~25€/tape = ~25€/TB
• 64 km to write an entire LTO4 tape @ 3.2 m/s (a

pedestrian walks at 1.4 m/s)

ISDD Friday lecture – Computing Infrastructure

Slide: 35

LTO evolution

LTO Generation

Attribute LTO-1 LTO-2 LTO-3 LTO-4 LTO-5 LTO-6 LTO-7 LTO-8 Release Year 2000 2003 2005 2007 2010 TBA TBA TBA Native Data Capacity 100 GB 200 GB 400 GB 800 GB 1.5 TB 3.2 TB 6.4 TB 12.8 TB Max r/w Speed (MB/s) 20 40 80 120 140 200 315 472 Tape Thickness 8.9 µm 8.9 µm 8 µm 6.6 µm 6.4 µm Tape Length 609 m 609 m 680 m 820 m 846 m Tracks written per pass 8 8 16 16 16 Passes to write entire tape 48 64 44 56 80 Total tracks 384 512 704 896 1280

ISDD Friday lecture – Computing Infrastructure

Slide: 36

Backup Overview

160 infrastructure servers 280 BL workstations 6 Oracle databases Nice disk storage 2 tape libraries 3 file servers Time Navigator (TiNa) software 16 backup servers

ISDD Friday lecture – Computing Infrastructure

Slide: 37

Backup Timeline

Full backups

 Backup of all current data  Performed typically every month (depends on data)  Varies from once a week (databases) to 3 months (LTPs)  Done systematically prior to removing a proposal account

Incremental backups

 Backup of all new data…  … and data modified since last backup  Performed daily (typically during the night)

Retention time

 Data kept for 6 months after it has been backed up  Afterwards backup media is re-used for new backups…

ISDD Friday lecture – Computing Infrastructure

Slide: 38

Tape Backup Libraries

2 STK L8500 tape libraries:



Capacity of 8500 tapes each (37% used)



8 redundant robots (handbots) in each



63 LTO-3 and LTO-4 tape drives in total in both libraries

Data protection:



1 tape library in each computer room



Data stored in one room is backed up in the other



Some critical data is duplicated in both rooms

ISDD Friday lecture – Computing Infrastructure

Slide: 39

Tape Backup Media

Visitors 46% Inhouse 35% Infra 9% Archiving 8% Misc 2%

Over 6300 tapes (LTO3+4) and 3.7 PB of data

 3.1 PB used by Nice, of which 1.7 PB for /data/visitor  325 TB used by infrastructure servers and databases  312 TB used by Data Archiving

ISDD Friday lecture – Computing Infrastructure

Slide: 40

Further Backup Activities

• Beamline Backup
• Automated handling (installation & monitoring) of backup clients
• Data available to users for 24/7 restoration
• Low-latency disk-based storage for fast backups & restores
• 21 TB total backup data (0.5 % of tape backup !)
• Data Archiving
• Currently 156 TB stored forever (2 x 200 tapes)
• Data duplicated on 2 sets of tapes in 2 libraries in 2 buildings
• Data will be migrated on newer tape technologies when needed
• Data Externalization
• Selected data (8 TB) stored in a safe place every 2 months

ISDD Friday lecture – Computing Infrastructure

Slide: 41

Outline

 Organisational  Overview  Network  Computer rooms  Keeping our data safe

• Analysing data
• Around the desktop
• Its all virtual
• Databases
• What’s on our plate?

ISDD Friday lecture – Computing Infrastructure

Slide: 42

Intel Nehalem Processor 731 000 000 transistors

Slide: 43

Multicore architecture

• CPUs (Central Processing Units) have reached

a frequency/heat limit in 2003

• This was the end of sequential computing
• Since then, processors have more and more

“cores”, i.e. independent processing units

• This triggered a software revolution, starting

with games

• Multi-core architectures are now common place
• This is pushed to the extreme in GPUs

(Graphical Processing Units)

• Nvidia Fermi processor = 512 cores, 1.2

GHz, 3 billion transistors!

• Low power consumption, i.e. many cores at low

frequency

• A new challenge: how to get the data quickly

in/out of the processors

ISDD Friday lecture – Computing Infrastructure

Slide: 44

Compute clusters

• OAR job scheduler (accessible via rnice, resource reservation, interactive / batch)
• Linux compute clusters

– NICE grid: 507 cores on 89 nodes – Dedicated: 446 cores on 62 nodes (bliss, cronus, mx, violet)

• Many ageing HP and SUN pizza boxes, 1 IBM blade cluster (14 blades)
• 3 BullX clusters with

– CPU blades – up to 96GB RAM, 2 Intel processors – GPU blades – up to 48GB RAM, 2 Intel processors, 2 Fermi GPUs – Optional Infiniband – Up to 18 CPU blades or 9 GPU blades per chassis

• Scientific software: Matlab, Mathematica, Octave, IDL, Python, etc.

ISDD Friday lecture – Computing Infrastructure

MX group blade cluster:

• 18 CPU blades
• 36 x 6-core Intel 3GHz

processors, 8GB per core)

• total 216 cores
• total 1 728GB RAM
• 2.6 Tflops

Slide: 45

LinkSCEEM2 – GPU codes

• LinkSCEEM-2 – Linking Scientific Computing in Europe and the Easter Mediterranean
• Porting SR data analysis code to GPUs (D. Karkoulis)
• Shadow ray tracing code optimised
• Comparison of CUDA and OpenCL

ISDD Friday lecture – Computing Infrastructure

Slide: 46

Outline

 Organisational  Overview  Network  Computer rooms  Keeping our data safe  Analysing data

• Around the desktop
• Its all virtual
• Databases
• What’s on our plate?

ISDD Friday lecture – Computing Infrastructure

Slide: 47

Around the desktop

• Windows office system
• store procurement,
• definition of standards,
• installation,
• printing,
• anti-virus,
• patching,
• file sharing,
• multimedia,
• loan pools,
• user support
• Hotline (Jira) → 20 calls per day on average

ISDD Friday lecture – Computing Infrastructure

Slide: 48

PC procurement

• All PCs and laptops are from DELL
• Standard configurations for Windows PCs and Laptops in the Stores

Over 5 years: 810 PCs, 456 laptops

ISDD Friday lecture – Computing Infrastructure

Slide: 49

The brand new DELL keyboard (Windows 8 compatible) Now available in the Stores!

ISDD Friday lecture – Computing Infrastructure

Slide: 50

Outline

 Organisational  Overview  Network  Computer rooms  Keeping our data safe  Analysing data  Around the desktop

• Its all virtual
• Databases
• What’s on our plate?

ISDD Friday lecture – Computing Infrastructure

Slide: 51

Virtualisation

• Virtulisation allows to optimise the use of server computers
• Several operating system instances run a physical server
• Operating system instances are independent, i.e.
• They are managed independently like separate computers
• Problems do not propagate to other instances
• Allows to keep old UNIX releases, i.e. ideal for software development platforms
• Allows to optimise hardware usage
• We use XEN and KVM
• KVM will be our standard platform

ISDD Friday lecture – Computing Infrastructure

Slide: 52

Cloud computing

• What is the “cloud computing”?
• The next big thing in IT after the Grid hype
• A metaphor for the delivery of computing requirements as a service.
• Sharing of resources for economies of scale
• Access through a web browser or a light weight application
• Used by companies to meet unpredictable business needs (flexibility)
• Infrastructure as a Service (IaaS)
• Software as a Service (SaaS)
• Commonly known examples:
• Dropbox
• Picasa
• Google docs
• iCloud
• CERN, EMBL, and ESA currently investigate

Cloud computing within EIROforum

ISDD Friday lecture – Computing Infrastructure

Slide: 53

Outline

 Organisational  Overview  Network  Computer rooms  Keeping our data safe  Analysing data  Around the desktop  Its all virtual

• Databases
• What’s on our plate?

ISDD Friday lecture – Computing Infrastructure

Slide: 54 ISDD Friday lecture – Computing Infrastructure

MIS infrastructure

Slide: 55

MIS applications

ISDD Friday lecture – Computing Infrastructure

Applications

• E-business Suite
• Alfresco
• Orchestra
• SLX
• Sagere
• Ever
• Trèsorerie
• Pleiades
• QlickView
• E-recruitment
• SALTO
• Cyperplus paiement
• Business Object
• ORACLE ERP
• SMIS
• Safety trainings
• ISPyB
• TomoDB
• TBS Pools
• Phone Directory
• Site entrance
• Gas tracking
• Store withdrawal
• Magellan
• Paperless PO
• BAT
• Budget expenditure
• Resource booking
• Allshare
• :

Support

• Web - Plone
• PC support
• Server support
• Backup

Slide: 56

Outline

 Organisational  Overview  Network  Computer rooms  Keeping our data safe  Analysing data  Around the desktop  Its all virtual  Databases

• What’s on our plate?

ISDD Friday lecture – Computing Infrastructure

Slide: 57

Key issues

• Extending our disk capacity
• Find the right balance between price, performance, reliability, ease of operation
• Replace ageing data analysis clusters
• Upgrade the ORACLE ERP system
• Upgrade the CMS (Content Management System) of our Web
• Replace the RICOH photocopiers/printers
• Upgrade or replace PLEIADES
• Work on the Peer Review Process and the new BTAPs
• In the frame of the CRISP and PaN-data projects, and together with ISDD and EXPD:
• Work on the beamline local buffer solution
• Work on Identity Management, Authorisation
• Work on metadata capture, data preservation, data continuum
• Further discuss the data policy at ESRF
• Continue observing the EIROforum Cloud initiative
• Try to do all this despite a very difficult budgetary context

Slide: 58

CRISP WP 18 – The data challenge

• CRISP – WP18  ISDD + TID
• Typically 10 Beamlines, each with 3 x 16 Mpixel detectors producing at 100-200

MB/s with sustained peak performance of minutes to hours → 21.7 TB/hour maximum

• Not all detectors operate simultaneously → 1 TB/hour
• Because of the cycle time of experiments → 100 GB/hour
• 2015 figure = 10 times more → 1TB/hour = 24 TB/day
• Local buffer storage on the Beamlines to:
• Guaranteed data rate from detector
• Allow for fast online data analysis
• Provide a buffer for 2 days of data production
• Allow automatic export of data

ISDD Friday lecture – Computing Infrastructure

“Now that we can tell time, I’d like to suggest that we begin imposing deadlines.”

Slide: 59

CRISP WP 18 – Local buffer storage

• ESRF requirements
• Very fast write while reading for on-line data analysis
• Complementary to central disk storage
• 3 fast CCD detectors/experiment
• Peak write/read 300 MB/s now and 3 GB/s in 3 years
• Average (sustained) write/read 1/10th of the above
• Local buffer for 2 days (weekend), i.e. ~10TB/beamline
• NFS V3/V4 and CIFS
• List 10 000 files < 3s
• Multiple 10Gbps network attachments

ISDD Friday lecture – Computing Infrastructure

Slide: 60

• We are going to investigate and eventually prototype the following:
• High performance RAID hardware, SSDs
• RAM disks
• Parallel NFS
• Double buffering
• Linux kernel I/O scheduling
• Very recent LINUX kernels
• The challenge: finding the right balance between performance and ease of maintenance.

ISDD Friday lecture – Computing Infrastructure

CRISP WP 18 – Local buffer storage

Slide: 61

Thank you for your attention!

ISDD Friday lecture – Computing Infrastructure

I wish to thank all my colleagues from the Systems & Communications group and Management Information Systems group
