SLIDE 1

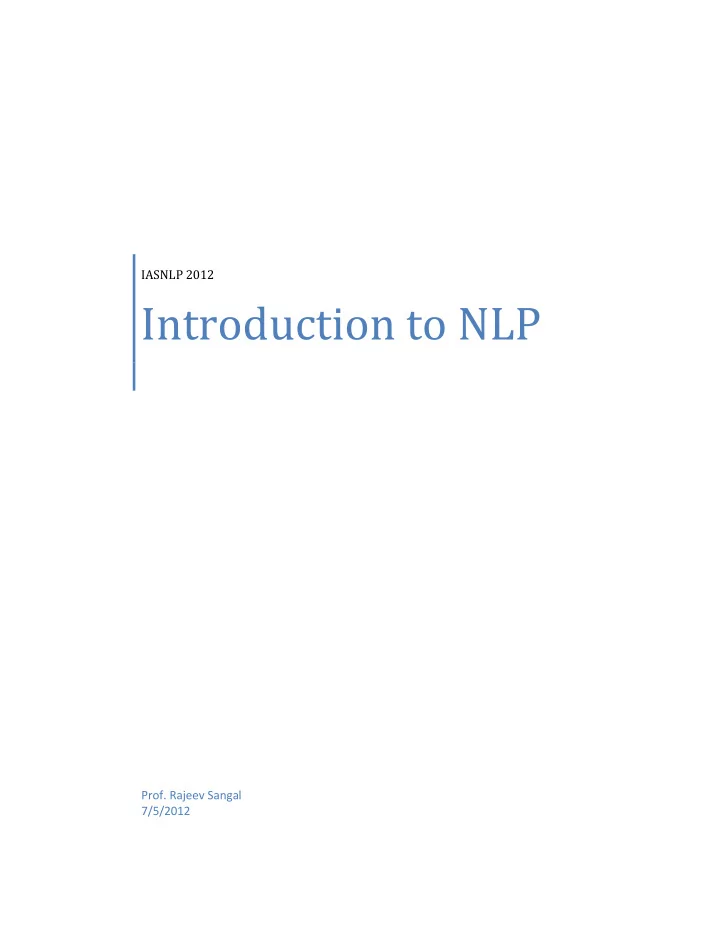

IASNLP 2012

Introduction to NLP

Prof. Rajeev Sangal

7/5/2012

SLIDE 2

IIIT-H Advanced Summer School

n

Natural Language Processing 23 May - 4 June 2011 IIIT Hyderabad

SLIDE 3

======================================================== INTRODUCTION ======================================================== NLP : General

Language: A unique ability of humans
Language for communication
Major function of language: communication.

* How ideas get transferred?

Applications
Information retrieval

* User gives keywords, machine retrieves relevant documents.

Uses structure of web for ranking
Information extraction

* Machine goes through text, fills in a template * A "NLP programmer" has to setup the template

Question answering

* Goes beyond IR or IE * Understanding required

Machine translation

* Sentential analyzer in sourec language * Bilingual dictionary etc. * Sentential generator in target language

Dialogue systems

* Expectation * Focus * Topic

SLIDE 4

NLP: Block Diagram

Form & meaning
Sentences -> Meaning

* Done in layers. Output of each layer successively makes meaning more explicit (i.e., closer to meaning or gives a representation which machine can handle more easily)

How can meaning be represented ?
Techniques for "extracting meaning"
Word analysis
Phrasal analysis
Sentential analysis

etc.

Statistical analysis: tagging,

grammatical attachment, word sense

Modules
Morphological analyzer
Chunker / Part-of-speech tagger
Sentence parser
Semantic processor
Pragmatics processor
Difference between:
Processing algorithms (NLP and ML)
Rules/data for processing (Computational Linguistics)
Understanding language (Linguistics)
Without understanding the nature and structure of language,

and proper structuring of the data,

Machine learning is not very effective.

SLIDE 5

How do we analyze language? Consider the sentence:

Children are watching some programmes
n television in the house
Analysis into Chunks
What are the "chunks"?

+ [[ Children ]] (( are watching )) [[ some programmes ]] [[ on television ]] [[ in the house ]]

Chunks

* Noun chunks (NP, PP) in square brackets * Verb chunks (VG) in parentheses

Chunks represent objects
Noun chunks represent objects/concepts
Verb chunks represent actions
1

(( NP 1.1 children )) 2 (( VG 2.1 are 2.2 watching )) 3 (( NP 3.1 some 3.2 programmes )) 4 (( PP 4.1

n

4.2 (( 4.2.1 television )) )) 5 (( PP 5.1 in 5.2 (( 5.2.1 the 5.2.2 house )) ))

SLIDE 6

Part-of-speech Tagging [[ Children_NNS ]] (( are_VBP watching_VBG )) [[ some_DT programmes_NNS ]] [[ on_IN television_NN ]] [[ in_IN the_DT house_NN ]] A part-of-speech (POS) tag attached to each word. 'NNS' stands for plural common noun.

Towards Shakti Standard Format

1 (( NP 1.1 children NNS )) 2 (( VG 2.1 are VBP 2.2 watching VBG )) 3 (( NP 3.1 some DT 3.2 programmes NNS )) 4 (( PP 4.1

n

IN 4.1.1 (( NP 4.1.2 television NN )) )) 5 (( PP 5.1 in IN 5.2 (( NP 5.2.1 the DT 5.2.2 house NN )) ))

SLIDE 7

Morphological Analysis Children < fs af=child,n,m,p,3,0,,> are < fs af=are,n,m,s,3,0,,>|< fs af=be,v,m,p,3,0,,> watching < fs af=watch,v,m,s,3,0,,/aspect='PROG'> some < fs af=some,D,m,s,3,0,,>|< fs af=some,det,m,s,3,0,,>|< fs af=some,P,m,p,3,0,,> programmes < fs af=programme,n,m,p,3,0,,>|< fs af=programme,v,m,s,3,0,, |tense='PRES'>

n

< fs af=on,p,m,s,3,0,,>|< fs af=on,n,m,s,3,0,,>|< fs af=on,adj,m,s,3,0,,>|< fs af=on,D,m,s,3,0,,>|< fs af=on,p,m,s,3,0,,> television < fs af=television,n,m,s,3,0,,> in < fs af=in,p,m,s,3,0,,>|< fs af=in,D,m,s,3,0,,>|< fs af=in,p,m,s,3,0,,> the < fs af=the,det,m,s,3,0,,> house < fs af=house,n,m,s,3,0,,>|< fs af=house,v,m,s,3,0,,> Shakti Standard Format

1 (( NP 1.1 children NNS < fs af='child,n,m,p,3,0,,'> )) | | | | | | | | | | | | | | | | | \ root | | |pers | | | | | cat |number case gender 2 (( VG 2.1 are VBP < fs af=are,n,m,s,3,0,,>|< fs af=be,v,m,p,3,0,,> 2.2 watching VBG < fs af=watch,v,m,s,3,0,, /aspect='PROG'> )) 3 (( NP 3.1 some DT < fs af=some,D,m,s,3,0,,>|< fs af=some,det,m,s,3,0,,>|< fs af=some,P,m,p,3,0,,> 3.2 programmes NNS < fs af=programme,n,m,p,3,0,,>|< fs af=programme,v,m,s,3,0,, /tense='PRES'> )) 4 (( PP 4.1

n

IN < fs af=on,p,m,s,3,0,,>|< fs af=on,n,m,s,3,0,,>|< fs af=on,adj,m,s,3,0,,>|< fs af=on,D,m,s,3,0,,>|< fs af=on,p,m,s,3,0,,> 4.1.1 (( NP 4.1.2 television NN < fs af=television,n,m,s,3,0,,> )) )) 5 (( PP 5.1 in IN < fs af=in,p,m,s,3,0,,>|< fs af=in,D,m,s,3,0,,>|< fs af=in,p,m,s,3,0,,> 5.2 (( NP 5.2.1 the DT < fs af=the,det,m,s,3,0,,> 5.2.2 house NN < fs af=house,n,m,s,3,0,,>|< fs af=house,v,m,s,3,0,,> )) ))

SLIDE 8

Layers of Processing

1. T1 - Mark n/v tags

The child has plucked a flower in the mango garden.

--- ------ ----- ------

n v n x n + Ex. POS tagging using dictionary lookup

2. T2 - Chunking

After marking POS tags, mark the phrases/chunks and their types such as NG (noun group), VG (verb group): (The child) (has plucked) (a flower) (in the mango garden)

---- ------- ------ ------

n vm n x n

---------- ------------ -------- -------------------

NG VG NG NG +Ex. 'The' applies to 'child', making it definite.

Ex. 'a' applies to 'flower', making it indefinite.
3. Putting the above two (T1 and T2) together:

| sentence V

|T1|
|sentence with POS tags

V

|T2|
|sentence with POS tags and chunks

V

Normally, do T1 then do T2

+ Ex. Is 'mango' (1) adjective or (2) noun? If option (1) is taken in calling mango as adjective, task T1 becomes harder, and T2 becomes easier: x (1) (2) Mango= | adjective noun

T1 | hard easy

T2 | easy hard

In real life chosen: (2)

But sometimes, one does T2 and comes back to complete T1

SLIDE 9

======================================================== CONTEXT FREE GRAMMER ======================================================== CONTEXT-FREE GRAMMAR FOR ENGLISH

WRITING A TOY ENGLISH GRAMMAR:

Context free grammar or (a restricted) phrase structure grammar + An example grammar given below. The first rule says that a sentence (S) consists of a noun-phrase (NP) and a verb phrase (VP):

S -> NP VP
NP -> det adj* n
NP -> n-proper
VP -> v [NP] [NP] PP*
PP -> prep NP

where: + NP: noun phrase (Ex. the red block, a sharp arrow) + VP: verb phrase (Ex. lifted the red block, fired an arrow) + PP: preposition phrase (Ex. with hands, at the deer)

n: noun (Ex. boy, child, arrow, block)
n-proper: proper noun (Ex. Ram, Mohan)
v: verb (Ex. lift, fire, give)
det: determiner (Ex. a, the)
adj: adjective (Ex. big, red, sharp)
EXAMPLE PHRASE STRUCTURE TREE:

SLIDE 10

PHRASE STRUCTURE TREE

Leaf nodes of tree, read in left to right order give us sentence

Groups - related elements togehter

Hierarchy of grouped elements

+ Ex.1: Groupings

v (for verb 'saw')
NP (for 'Mohan')

* Put them together in VP. + Ex.2: Groupings:

NP (for 'the child')
VP (for 'saw Mohan')

* They are put together in S.

Terminology: Mother and daughter nodes

+ Ex. NP is mother node, and 'det' and 'n' are daughter (or children) nodes.

SLIDE 11

PHRASE STRUCTURE TREE to MEANING

Relating a phrase structure tree to a modifier-modified tree
Example sentence 1: 'arrow of son of Dasarath'

Notion of the head of a phrase
What is the head of NP_1 ?

+ Consider Ex. The arrow of son of Dasarath is sharp

Who/what is sharp: arrow, son, Dasarath?

. Ans: Arrow. Therefore, 'arrow' is the head of NP_1 + Consider Ex. The son of Dasarath is sincere.

Who is sincere: Son, Dasarath?

. Ans: Son. Therefore, 'son' is the head of NP_2 * Head of a phrase is determined by rules of the language:

In case of NPs with 'of' in English, the noun on

the left is the head.

Modifier-modified tree 1 (for the example on the top):

arrow | |of | son | |of | Dasarath

SLIDE 12

Example sentence 2: 'Ram saw Mohan'

Rules can be prepared for converting from ps-tree to mm-tree

(later)

SLIDE 13

CFG: Example PS Trees Indicating Meaning

Ex.1: The child plucked a flower in the garden.

S |

| |

NP VP | |

----- ---------------------------

| | | | | det n v NP PP | | | | | | | | ------- ---------- | | | | | | | the child plucked det n prep NP | | | | | | | ------- | | | | | a flower in det n | | the garden * Note that PP is a child of VP indicating that PP denotes a participant in the action of plucking (denoted by VP)

Ex.2: The child plucked a flower in the pot
Where the above means that flower is in the pot

(child is not in the pot, and plucking did not take place in the pot).

Thus 'in the pot' is related to flower directly,

but not directly to plucking. S |

| |

NP VP | |

----- -------------------

| | | | det n V NP | | | | | | | --------------- | | | | | the child plucked NP PP | |

------ --------

| | | | det n prep NP | | | | | | | ----- | | | | | a flower in det n | | the pot

SLIDE 14

* Note PP is a child of NP in the above.

Indicates that PP is directly related to

(or modifies) NP, and not the VP.

Augment the toy grammar with following rule

NP -> NP PP NP and PP Phrase Structure

raama kii miThaaii kii duukaana

Ram 's sweet 's shop

The above has two possible meanings.

The head is the same: duukaana 1 First meaning - ( (Ram's sweet)'s shop)

Ex. Shop of Ram's sweet
ie. Shop which sells Ram's sweet

2 Second meaning - ( Ram's (sweet's shop))

Ex. Sweet shop of Ram
ie. Sweet shop which belongs to Ram
Structures Representing the Above Meaning

SLIDE 15

Above Phrase Structures with Heads Marked (by ~)

SLIDE 16

To handle adverbs which come at the end, augment the VP rule

with optional 'adv': VP -> v [NP] [NP] PP* [adv] + Ex. The child plucked a flower quickly. S | |

| |

NP VP | |

----- ---------------------

| | | | | | | | | | det n v NP adv | | | | | | | | ------- | | | | | | | the child plucked det n quickly | | | | a flower

To handle proper nouns and pronouns, add the rule

NP -> proper-noun | pronoun

SLIDE 17

Relational Structure

Constituent Structure
Example sentence:

The child has plucked a flower in the mango garden.

-------- ----------- -------- -------------------

NG1 VG NG2 NG3 (with prep)

Different ways of combining the above units into larger constituents
How do we decide
Constituent structure of the room

Is it a good way to define constituents?

. Good for inventory, not for teaching (or function)

Relational structure - Take basic units, connect them with labelled arcs
Nodes - Basic units
Edges - between related nodes
Labels on edge - Indicating type of relationship
Relational structure - Ex Room

/--------------> chair 2 visibility | Black board -------> table | \--------------> chair 1 adjacency

Relational structure for sentence above:

VG | .------------. |subj |obj |place | | | NG1 NG2 NG3 Labels on edges represent grammatical relations.

SLIDE 18

With thematic and karaka roles

With karaka level

VG | .------------. |k1 |k2 |k7p | | | NG1 NG2 NG3
