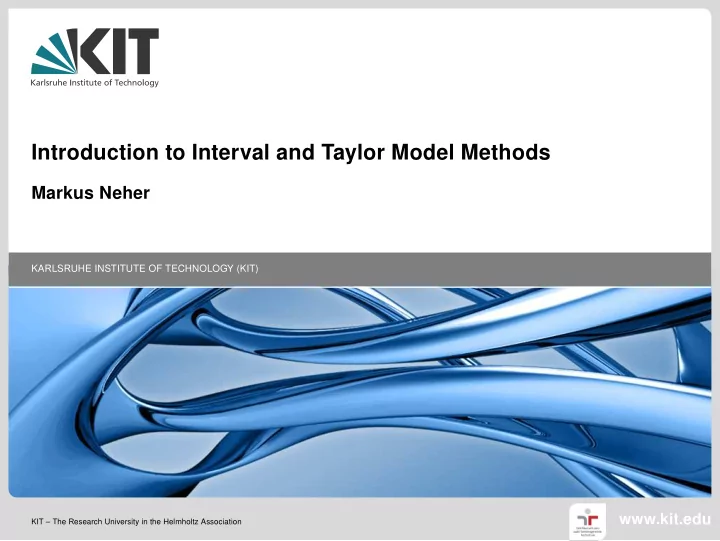

Introduction to Interval and Taylor Model Methods Markus Neher - - PowerPoint PPT Presentation

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

KARLSRUHE INSTITUTE OF TECHNOLOGY (KIT)

Introduction to Interval and Taylor Model Methods

Markus Neher

KIT – The Research University in the Helmholtz Association

www.kit.edu

Outline

1

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

1 Enclosure methods 2 Interval analysis 3 Taylor models 4 Interval and Taylor model methods for ODEs

2

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Enclosure Methods

Enclosure Methods

3

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Also called: guaranteed methods, rigorous methods, validated methods, verified methods, . . . Aim: Compute guaranteed bounds for the solution of a problem, including

Discretization errors (ODEs, PDEs, optimization), Truncation errors (Newton’s method, summation), Roundoff errors.

Used for

Modelling of uncertain data, Sensitivity analysis, Bounding of roundoff errors.

4

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Interval Arithmetic

Interval Arithmetic

5

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Compact real intervals (Warmus 1956, Sunaga 1958, Moore&Yang 1959, Moore 1962, 1966): IR = {x = [x, x] | x ≤ x} (x, x ∈ R). Width: w(x) = x − x. Hausdorff distance: q(x, y) = q [x, x], [y, y] = max x − y

• , |x − y|
• .

Interval vectors, interval matrices:

Analogously. x = (xi) ∈ IRn: w(x) =

n

max

i=1 w(xi).

Interval Arithmetic

6

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Basic arithmetic operations: x ◦ y := {x ◦ y | x ∈ x, y ∈ y},

• ∈ {+, −, ∗, /}

(0 ∈ y for /). x + y = [x + y, x + y], x − y = [x − y, x − y], x ∗ y = [min{xy, xy, xy, xy, }, max{xy, xy, xy, xy, }], x / y = x ∗ [1 / y, 1 / y]. No inverses: [0, 1] − [0, 1] = [−1, 1], [1, 2]/[1, 2] = 1 2, 2

• .

Floating point IA: x y =

• x

y, x y ], etc.

Ranges and Inclusion Functions

7

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Range of f : D → E: Rg (f, D) := {f(x) | x ∈ D}. Inclusion function F : IR → IR of f : D ⊆ R → R: F(x) ⊇ Rg (f, x) for all x ⊆ D. Examples:

Rational functions: For f : x → f(x), replace each occurrence of x by x, evaluate using interval arithmetic: f(x) = x 1 + x ⇒ F [0, 1] = [0, 1] 1 + [0, 1] = [0, 1] [1, 2] = [0, 1]. Elementary functions: For f ∈ {exp, ln, cos, arcsin, tanh, . . . } let F(x) := Rg (f, x): exp [−1, 1] =

• e−1,

e

• ,

sin [1, 2] =

• sin 1, 1
• .

IA: Dependency

8

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Multiple instances of the same variable are considered independent. f(x) = x 1 + x = 1 − 1 1 + x , x = [0, 1]:

x 1 + x = [0, 1] [1, 2] = [0, 1], 1 − 1 1 + x = 1 − 1 [1, 2] = 1 − 1 2, 1 =

• 0, 1

2 = Rg (f, x).

Theorem

Let f : D ⊂ Rm → R be Lipschitz-continuous and let x ⊆ x0 ⊆ D. Then q

• F(x), Rg (f, x)

≤ γw(x), γ ≥ 0.

Ranges and Inclusion Functions

9

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Centered form: f(x) = f(c) + g(x, c)(x − c) ⇒ Rg (f, x) ⊆ F(c) + G(x, c)(x − c). Mean value form: Rg (f, x) ⊆ f(c) + F ′(x)(x − c), c ∈ x. f(x) = x 1 + x , x = [0, 1], c = 1 2 : f 1 2

• + F ′([0, 1])
• [0, 1] − 1

2

• =
• − 1

6, 5 6

• ⊃
• 0, 1

2

• = Rg (f, x) .

Theorem

Let f : D ⊂ Rm → R be a sufficiently smooth function and be represented in the centered form. Furthermore, let x ⊆ x0 ⊆ D. Then q

• f(x), Rg (f, x)

≤ γ

• w(x)

2, γ ≥ 0.

IA: Wrapping Effect

10

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Enclosing non-intervals by intervals causes overestimation. Example: f : (x, y) → √ 2 2 (x + y, y − x) (Rotation) Interval evaluation of f on [−1, 1], [−1, 1]

• :

−2 −1 1 2 −2 −1 1 2 x y −2 −1 1 2 −2 −1 1 2 x y

11

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Taylor Models

Taylor Models

12

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Taylor model Tn,f = (pn,f , in,f ) of order n of f : x → R (Berz and Hoffstätter 1994, Makino and Berz 1996): ∀x ∈ x : f(x) ∈ pn,f (x − x0) + in,f Rg (p, i) =

• p(x) + ξ | x ∈ x, ξ ∈ i

⊂ Rm. Example: x = [−1, 1], x0 = 0: ex = 1 + x + 1 2x2 + 1 6x3 + 1 24x4eξ, x, ξ ∈ x, T3,ex = 1 + x + 1

2x2 + 1 6x3 + [0.015, 0.114],

x ∈ x.

Taylor Models

13

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Minimized dependency: pn,f is processed symbolically to order n. Higher order terms are enclosed into the interval of the result. Minimized wrapping effect: TMs can represent non-convex sets. Example:

T2,f =

• x1

2 + x2

1 + x2

• ,

xi ∈ [−1, 1]. −1

1 2 x1 x2

14

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Interval and Taylor Model Methods for IVPs

Initial Value Problem

15

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

IVP: u′ = f(t, u), u(t0) = u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ Rm, tend > t0

Initial Value Problem

15

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

IVP: u′ = f(t, u), u(t0) = u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ Rm, tend > t0

Initial Value Problem

15

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

IVP: u′ = f(t, u), u(t0) = u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ Rm, tend > t0

Initial Value Problem

15

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

IVP: u′ = f(t, u), u(t0) = u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ Rm, tend > t0

Verified Initial Value Problem

16

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

IVP: u′ = f(t, u), u(t0) = u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ Rm, tend > t0

Interval Method for IVP with Uncertainty

17

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Interval IVP: u′ = f(t, u), u(t0) = u0 ∈ u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ IRm, tend > t0

Interval Method for IVP with Uncertainty

17

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Interval IVP: u′ = f(t, u), u(t0) = u0 ∈ u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ IRm, tend > t0

Interval Method for IVP with Uncertainty

17

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Interval IVP: u′ = f(t, u), u(t0) = u0 ∈ u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ IRm, tend > t0

Interval Method for IVP with Uncertainty

17

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Interval IVP: u′ = f(t, u), u(t0) = u0 ∈ u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ IRm, tend > t0

Interval Method for IVP with Uncertainty

17

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Interval IVP: u′ = f(t, u), u(t0) = u0 ∈ u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ IRm, tend > t0

Interval Method for IVP with Uncertainty

17

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Interval IVP: u′ = f(t, u), u(t0) = u0 ∈ u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ IRm, tend > t0

Interval Method for IVP with Uncertainty

17

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Interval IVP: u′ = f(t, u), u(t0) = u0 ∈ u0, t ∈ t = [t0, tend] f : R × Rm → Rm sufficiently smooth, u0 ∈ IRm, tend > t0

Taylor Method for IVPs

18

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Autonomous IVP: u′ = f(u), u(t0) = u0, where f : D ⊂ Rm → Rm, f ∈ Cn(D), u0 ∈ D Taylor method: u(t) =

n

∑

k=0

(t − t0)k k! u(k)(t0) + Rn Automatic (recursive) computation of Taylor coefficients: u(0) = f [0](u) = u, u(1) = f [1](u) = f(u), 1 k!u(k) = f [k](u) = 1 k

• ∂f [k−1]

∂u f

• (u) for k ≥ 2

Moore’s enclosure method

19

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Interval IVP: u′ = f(u), u(t0) = u0 ∈ u0, t ∈ t = [t0, tend], where f : D ⊂ Rm → Rm, f ∈ Cn(D), u0 ⊂ D Interval iteration: For j = 1, 2, . . . : A priori enclosure: vj ⊇ u(t) for all t ∈ [tj−1, tj] ("Alg. I") Truncation error:

zj := hn+1

j

f [n+1](vj),

hj = tj − tj−1

u(tj) ∈ uj := uj−1 +

n

∑

k=1

hk

j f [k](uj−1) + zj

("Algorithm II")

Predictor-Corrector Scheme

20

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

t0 t1 t2 u0 u1 u2 v1 v2 t u

A Priori Enclosures

21

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Constant a priori enclosure by Picard iteration: Find hj, vj such that uj−1 + [0, hj]f(vj) ⊆ vj Step size restrictions: Explicit Euler steps A priori enclosures using Picard iterations:

Interval polynomials: Lohner 1988, Corliss & Rihm 1996, Makino 1998, Nedialkov & Jackson 2001 Arbitrary interval functions: Rauh, Auer & Hofer 2005

Alternative a priori bounds: Neumaier 1994, N. 1999, N. 2007, Alexandre dit Sandretto & Chapoutot 2016

Refinement step

22

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

The iteration uj = uj−1 +

n

∑

k=1

hk

j f [k](uj−1) + zj

is width increasing: w(uj) = w(uj−1) +

n

∑

k=1

hk

j w

• f [k](uj−1)

+ w(zj) → Reduce overestimation by improved evaluation of rhs

Modifications of Algorithm II

23

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Local coordinate systems (Moore 1965, Eijgenraam 1981, Lohner 1988) Zonotopes (Kühn 1998) Hermite-Obreshkov-Method (Nedialkov & Jackson 1998) Implicit methods (Rihm 1998) Runge-Kutta-Methods (Petras & Hartmann 1999, Bouissou & Martel 2006, Alexandre dit Sandretto & Chapoutot 2016)

Dependency Reduction: Direct Interval Method

24

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Apply mean value form to f [k](uj−1): For fixed uj−1 ∈ uj−1,

• f [k](uj−1) | uj−1 ∈ uj−1
• ⊆ f [k](

uj−1) + J

• f [k](uj−1)

(uj−1 − uj−1), where J

• f [k]

is the Jacobian of f [k] Let I denote the identity matrix and let Sj−1 := I +

n

∑

k=1

hk

0J

• f [k](uj−1)
• ,

zj = hn+1 f [n](vj) Then u(tj; u0) ∈ uj := uj−1 +

n

∑

k=1

hk

j f [k](

uj−1) + zj + Sj−1(uj−1 − uj−1)

Wrapping Effect in Global Error Propagation

25

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Wrapping effect: Sj−1(uj−1 − uj−1) may overestimate S = {Sj−1(uj−1 − uj−1) | Sj−1 ∈ Sj−1, uj−1 ∈ uj−1} → propagate S as a parallelepiped

• u0 := m(u0), B0r0 = u0 −

u0, B0 = I; for some nonsingular Bj−1:

• uj

=

• uj−1 +

n

∑

k=1

hk

j−1f [k](

uj−1) + m(zj), uj =

• uj−1 +

n

∑

k=1

hk

j−1f [k](

uj−1) + zj + (Sj−1Bj−1)rj−1,         

• uj: approximate point solution for the central IVP

zj: local error; rj: global error

Global Error Propagation

26

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Global error: rj =

• B−1

j

(Sj−1Bj−1)

• rj−1 + B−1

j

(zj − m(zj)) Direct method: Bj = I Pep method (Eijgenraam, Lohner): Bj = m(Sj−1Bj−1) QR method (Lohner): m(Sj−1Bj−1) = QjRj, Bj := Qj Blunting method (Berz, Makino): Bj = m(Sj−1Bj−1) + εQj, ε > 0 + = ⊂

Wrapping Effect

27

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Direct method: Pep method: QR method:

Taylor Model Methods for ODEs

28

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Taylor expansion of solution w.r.t. time and initial values → minimized dependency problem Enclosure sets for flow can be non-convex → minimized wrapping effect Computation of Taylor coefficients by Picard iteration: Parameters describing initial set treated symbolically Interval remainder bounds by fixed point iteration (Makino 1998)

Example: Quadratic Problem

29

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

u′ = v, u(0) ∈ [0.95, 1.05], v′ = u2, v(0) ∈ [−1.05, −0.95].

• 1.5
• 1
• 0.5

0.5 1 1.5

• 1
• 0.8
• 0.6
• 0.4
• 0.2

0.2 0.4 0.6 0.8 1 1.2

• 2
• 1.5
• 1
• 0.5

0.5 1

• 2
• 1.5
• 1
• 0.5

0.5 1 1.5

COSY Infinity AWA

Applications

30

Dagstuhl Seminar 16491 Introduction to Interval and Taylor Model Methods Dec 5, 2016

Solar system dynamics, orbits of NEOs (Berz et al.) Space flight simulation (Armellin & Di Lizia) Parametric ODEs in chemistry, biology, engineering (Stadtherr, Lin & Enszer) Control problems in engineering (Rauh, Auer et al.) → other talks
