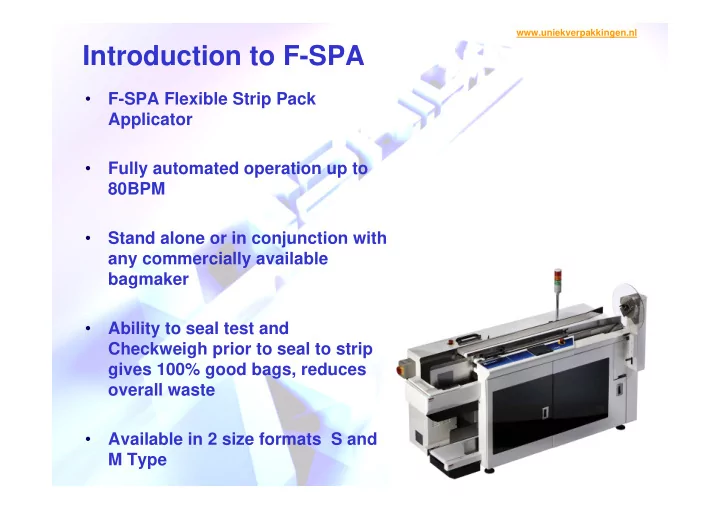

Introduction to F-SPA

• F-SPA Flexible Strip Pack

Applicator

• Fully automated operation up to

80BPM

• Stand alone or in conjunction with

any commercially available bagmaker

• Ability to seal test and

Checkweigh prior to seal to strip gives 100% good bags, reduces

• verall waste
• Available in 2 size formats S and

M Type

www.uniekverpakkingen.nl

Product Overview

• F-SPA produces a ready-to-

display hanging strip of bagged products that promote point-of-purchase sales

• The strips can be hung in

wasted areas, such as end of shelves, of supermarkets, garage forecourts, public houses, and any other retail

• utlet.

www.uniekverpakkingen.nl

Tape Details

• Ishida offer two unique patented types of

strip tape

• The standard tape allows packs to be heat

sealed to the tape and when they are removed there is no damage to the

• riginal pack
• The re sealable tape is also heat sealed

however once the adhesive has been activated if a pack is removed it can be replaced if not required

www.uniekverpakkingen.nl

Strip Details

• Strips are 35mm wide.
• Roll is 900M
• There is an 8mm hole punch in the header
• The header length is adjustable between 50 and 100mm
• The pitch of the packs is adjustable between 50 and 100mm
• The number of packs per strip is adjustable
• The maximum pack weight is 100g
• The maximum strip weight is 600g

www.uniekverpakkingen.nl

Machine Overview

Inline Conveyor Drop Conveyor Clamp and Heater Out feed Conveyor Turn back chute Tape Reel Gripper

www.uniekverpakkingen.nl

Outline of Product flow

1. Product feed, either from inline conveyor or by hand feeding. 2. Pack travels along the in-feed conveyor and the drop conveyor 3. Brushes smooth out end seal, grippers grips product 4. Product travels to clamp head 5. Packs heat sealed to tape 6. Strip guided towards discharge conveyor 7. Conveys the completed strips to operator

www.uniekverpakkingen.nl

Machine Overview

• Two size options
• S type from 50mm to 127mm wide bags currently IJ prototype
• M type from 127mm to 203 wide bags
• Bag length from 127mm to 330mm long
• Maximum mechanical speed 80ppm in automatic mode
• Minimum tape batches are 300 rolls.
• Surcharge of 50% added to machine base price when not
• rdering Ishida tape.

www.uniekverpakkingen.nl

Machine Options

• Preferred options

– Inline conveyor, for automated configuration – Mist spray, for use with re sealable tape – One off turn back chute included optional sizes

• 127-139mm
• 140-170mm
• 171-190mm
• 191-203mm
• Other options

– Take up conveyor, for bagmaker – Conditioning brush, for take up conveyor

Uniek Verpakkingen BV Keizerswoert 21 3881 LE PUTTEN +31 (0) 341 35 33 75 info@uniekverpakkingen.nl www.uniekverpakkingen.nl
