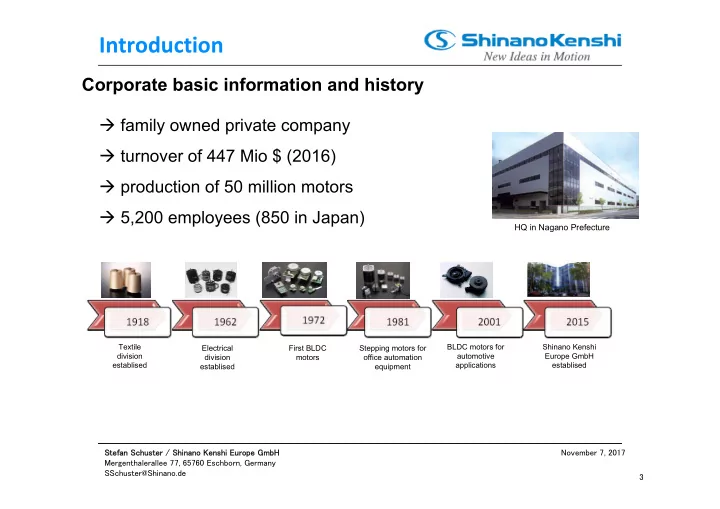

Introduction Corporate basic information and history family owned private company turnover of 447 Mio $ (2016) production of 50 million motors 5,200 employees (850 in Japan) HQ in Nagano Prefecture Textile BLDC motors for

slide-1
SLIDE 1

Stefan Schuster / Shinano Kenshi Europe GmbH Mergenthalerallee 77, 65760 Eschborn, Germany SSchuster@Shinano.de November 7, 2017 3

Introduction

 family owned private company  turnover of 447 Mio $ (2016)  production of 50 million motors  5,200 employees (850 in Japan)

Corporate basic information and history

HQ in Nagano Prefecture

Textile division establised Electrical division establised First BLDC motors Stepping motors for

  • ffice automation

equipment BLDC motors for automotive applications Shinano Kenshi Europe GmbH establised

slide-2
SLIDE 2

Stefan Schuster / Shinano Kenshi Europe GmbH Mergenthalerallee 77, 65760 Eschborn, Germany SSchuster@Shinano.de November 7, 2017 4

Introduction

Global footprint Global footprint of production and service areas

US HQ: 6065 Bristol Parkway Culver City, CA Eastern Office 5000 Tilghman St Allentown, PA Dongguan Shinano Motor Co., Ltd. Xiangxin West Road, Yantian Village, Fenggang Town, Dongguan City, Guangdong Province, CHINA

slide-3
SLIDE 3

Stefan Schuster / Shinano Kenshi Europe GmbH Mergenthalerallee 77, 65760 Eschborn, Germany SSchuster@Shinano.de November 7, 2017 5

Introduction

Our business units

Industrial solution (IS) Industrial solution (IS) Assistive technology (AT) Assistive technology (AT) Motor business Data logger with high-speed camera Reading machine for visually challenged persons

slide-4
SLIDE 4

Stefan Schuster / Shinano Kenshi Europe GmbH Mergenthalerallee 77, 65760 Eschborn, Germany SSchuster@Shinano.de November 7, 2017 6

Introduction

Global figures - application share

Shinano Kenshi worldwide motor products share (based on sales volume)

slide-5
SLIDE 5

Stefan Schuster / Shinano Kenshi Europe GmbH Mergenthalerallee 77, 65760 Eschborn, Germany SSchuster@Shinano.de November 7, 2017 7

Introduction

Global figures - product share

slide-6
SLIDE 6

Stefan Schuster / Shinano Kenshi Europe GmbH Mergenthalerallee 77, 65760 Eschborn, Germany SSchuster@Shinano.de November 7, 2017 8

  • More than 50 years

experience in motor manufacturing

  • World leading

manufacturer

  • Customized motor

solutions:

˗ Technical specs. (torque, speed, voltage, …) ˗ Type of Connector ˗ Lenght of lead wire ˗ position of pitches

  • Develop according to

customer requirments

Customized solutions

Production capability, capacity & utilization

slide-7
SLIDE 7

Stefan Schuster / Shinano Kenshi Europe GmbH Mergenthalerallee 77, 65760 Eschborn, Germany SSchuster@Shinano.de November 7, 2017 9

Engineering, Planning, Quality

R&D - The Path towards continuous growth

slide-8
SLIDE 8

Stefan Schuster / Shinano Kenshi Europe GmbH Mergenthalerallee 77, 65760 Eschborn, Germany SSchuster@Shinano.de November 7, 2017 10

ISO 9001 ISO 14001 ISO TS16949

Certificates and quality management

Certifications

slide-9
SLIDE 9

Stefan Schuster / Shinano Kenshi Europe GmbH Mergenthalerallee 77, 65760 Eschborn, Germany SSchuster@Shinano.de November 7, 2017 11

Motor Solutions Stepper Motors

http://shinanokenshi.de/products/step‐motors/

Size Shinano Type / Model Step Angle NEMA 11

e.g. SST28D 1.8 deg

NEMA 14

e.g. SST35D 1.8 deg

NEMA 16

e.g. SST36C 0.9 & 1.8 deg

NEMA 17

e.g. SST45D 0.9 & 1.8 deg

NEMA 23

e.g. STA56D 0.9 & 1.8 deg

NEMA 24

e.g. SST60D 1.8 deg

NEMA 34

e.g. SST86D 1.8 deg

slide-10
SLIDE 10

Stefan Schuster / Shinano Kenshi Europe GmbH Mergenthalerallee 77, 65760 Eschborn, Germany SSchuster@Shinano.de November 7, 2017 12

Motor Solutions BLDC / Outer Rotor

http://shinanokenshi.de/products/bldc‐motors/

Output [W] Size / Ø [mm]

1 2 10 30 50 80 10 15 20 25 30 40 60 80 100 150

DR-14 0.5 W 12V / 11,000 rpm DR-20 0.7W 12V / 3,000 rpm DR-24 0.7 W 12V / 2,000 rpm DR-29 0.5 ~2 W 12V / 1,400 rpm DR-62 25 W 24V / 1,800 rpm DR-76 45 W 24V / 1,800 rpm DR-87 80 W 24V / 1,800 rpm DR-82316 130 W 24V / 2,000 rpm DR-43 50 W 24V / 5,400 rpm DR-38 1.4 ~9W 12V / 1,200 rpm DR-55 20 W 14V / 3,000 rpm

slide-11
SLIDE 11

Stefan Schuster / Shinano Kenshi Europe GmbH Mergenthalerallee 77, 65760 Eschborn, Germany SSchuster@Shinano.de November 7, 2017 13

Motor Solutions BLDC / Inner Rotor http://shinanokenshi.de/products/bldc‐motors/

20 40 60 100 150 200 Output [W]

Size / Ø [mm]

30 40 50 60 70 80 90 100 110

Blower Motor

80

SDR-6038 60W / 60x60mm / 24~48V / 3,000 rpm SDR-3434 30W / Ø 36mm / 24V~310V / 10,500 rpm SDR-42310 30W / 42x42mm / 24~48V / 3,000 rpm LA052 series 40~110W / 52x52mm / 24~140V / 3,000 rpm DR-6638 26W / Ø 68mm / 24~48V / 5,000 rpm DR-7738 50W / Ø 79mm / 24~48V / 6,000 rpm DR-8538 60W / Ø 88mm / 140~280V / 3,000 rpm DR-8838 40W / Ø 93mm / 140~280V / 1,800 rpm SDR-8538-002 110W / 90x90mm / 48V / 3,000 rpm SDR-8538-004 220W / 90x90mm / 310V / 3,000 rpm DRF-7738 DRF-8538A DRF-8538B DR-9538 65W / Ø 97mm / 280V / 850 rpm DR-5236 10W / Ø 56.4mm / 12V / 2,200 rpm
