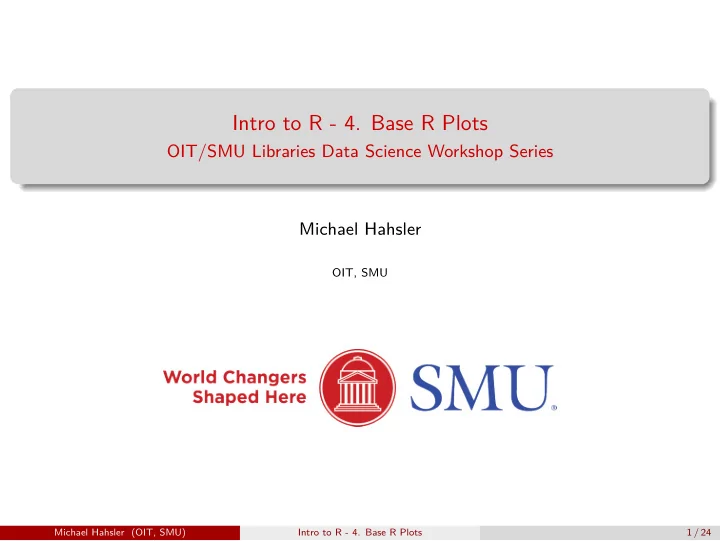

Intro to R - 4. Base R Plots

OIT/SMU Libraries Data Science Workshop Series Michael Hahsler

OIT, SMU

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 1 / 24

1

Simple Plots

2

High-level Graphics Functions

3

Low-level Graphics Functions

4

Exercises

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 2 / 24

Section 1 Simple Plots

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 3 / 24

Introduction

Ploting is an integral part of R. R plots on devices (e.g., X11(), quarz(), windows(), pdf(), png()) Plotting commands are divided into three basic groups:

1

High-level plotting functions create a new plot on the graphics device, possibly with axes, labels, titles and so on.

2

Low-level plotting functions add more information to an existing plot, such as extra points, lines and labels.

3

Interactive graphics functions allow you interactively add information to, or extract information from, an existing plot, using a pointing device such as a mouse. We will only discuss “base” graphics here. A very popular alternative is ggplot.

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 4 / 24

Section 2 High-level Graphics Functions

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 5 / 24

plot

x <- 1:100 y <- x^2 plot(x, y)

20 40 60 80 100 2000 4000 6000 8000 10000 x y

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 6 / 24

plot

# use type l = line, line width 3 and red plot(x, y, type = "l", lwd = 3, col = "red") # add a vertical dashed (line type 2) line abline(v=50, lty=2) # add a vertical line

20 40 60 80 100 2000 4000 6000 8000 10000 x y

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 7 / 24

Getting help for plot

? plot Shows that plot is a so called generic function. Generic functions have implementations dor different data types which get “dispatched” at call-time. ? plot.default This is the default function for plot. ? par Graphical parameters which typically can be passed on as ... to plot.

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 8 / 24

Scatterplot

mlb <- read.csv(paste0("https://michael.hahsler.net/SMU/", "DS_Workshop_Intro_R/examples/MLB_cleaned.csv")) plot(x = mlb$Height.inches., y = mlb$Weight.pounds., xlab = "Height", ylab = "Weight", main = "Weight by Height")

70 75 80 160 180 200 220 240 260 280

Weight by Height

Height Weight

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 9 / 24

Scatterplot matrix (pairs plot)

plot() is generic which means that it produces different results depending on the type of data. For example, data frames result in a pairwise scatterplot matrix. data(iris) head(iris, n=1) # iris is a data.frame ## Sepal.Length Sepal.Width Petal.Length Petal.Width Species ## 1 5.1 3.5 1.4 0.2 setosa plot(iris[,-5], col= iris[,5]) # use Species (col 5) for color

Sepal.Length

2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 0.5 1.0 1.5 2.0 2.5 2.0 2.5 3.0 3.5 4.0

Sepal.Width Petal.Length

1 2 3 4 5 6 7 0.5 1.0 1.5 2.0 2.5 4.5 5.5 6.5 7.5 1 2 3 4 5 6 7

Petal.Width Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 10 / 24

barplot - Bar Charts

gpa <- c(Sandra = 3.8, Michael = 4.0, Peter = NA) gpa.sort <- sort(gpa, na.last = TRUE) barplot(gpa.sort, ylab = "GPA", xlab = "Student")

Sandra Michael Peter Student GPA 1 2 3 4

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 11 / 24

barplot - Bar Charts

How many players do the Texas Rangers have for each position?

mlb_tex <- mlb[mlb$Team == "TEX", ] # use par to make space for labels see ? par and look for mar (plot margin)

• ldpar <- par(mar = c(10, 4, 4, 1) + .1)

barplot(sort(table(mlb_tex$Position), decreasing = TRUE), las = 2, ylab = "Count", main = "Texas Rangers: Players per position")

Relief Pitcher Starting Pitcher Outfielder Catcher Shortstop Designated Hitter First Baseman Second Baseman Third Baseman

Texas Rangers: Players per position

Count 2 4 6 8 10

par(oldpar) Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 12 / 24

hist - Histogram

hist(mlb$Age, breaks=20)

Histogram of mlb$Age

mlb$Age Frequency 20 25 30 35 40 45 50 20 40 60 80 100

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 13 / 24

hist - Histogram with estimated density

hist(mlb$Age, breaks=20, prob=TRUE) lines(density(mlb$Age), col="red")

Histogram of mlb$Age

mlb$Age Density 20 25 30 35 40 45 50 0.00 0.02 0.04 0.06 0.08 0.10

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 14 / 24


volcano is a R data set with elevation measurements of Maunga Whau on a 10m by 10m grid. data(volcano) dim(volcano) ## [1] 87 61 image(volcano)

0.0 0.2 0.4 0.6 0.8 1.0 0.0 0.2 0.4 0.6 0.8 1.0

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 15 / 24

Commmon arguments for plot functions

add=TRUE: add to an existing plot? axes=FALSE: plot axes? log="x", log="y" or log="xy": Use a logarithmic scale? type="l": plot lines instead of points xlab, ylab: axis labels main: figure title sub: sub-title

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 16 / 24

Section 3 Low-level Graphics Functions

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 17 / 24

Some low-level functions

These functions can be used to add elements to a plot. points(x, y) lines(x, y) text(x, y, labels, ...) abline(a, b) or abline(h=y) or abline(v=x) polygon(x, y, ...) legend(x, y, legend, ...) title(main, sub) axis(side, ...)

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 18 / 24

Graphical parameter list: par

R maintains a list of graphics parameters to control line style, colors, figure arrangement and text justification. A separate list of graphics parameters is maintained for each active device.

• ldpar <- par(col = "blue", pch=4, cex = 2)

plot(x, y, axes = FALSE) axis(1); axis(2)

x y 20 40 60 80 100 4000 8000

par(oldpar) # restore the original parameters Many parameters from par() can also be passed to plot(). Try par() and ?par

Danger

Do not forget to reset par to the original settings! You can also reset par by closing the plotting device or with the little broom symbol in the Plots tab of RStudio.

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 19 / 24

Important parameters in par

pch=4: Plotting symbol (0-25) lty=2: Line type lwd=2: Line width col=2: Color for points, lines, etc. cex=1.5: Character expansion (e.g., 50% larger than default text size) mai=c(1, 0.5, 0.5, 0): Widths of the bottom, left, top and right margins, respectively, measured in inches. mar is the same, just measured in rows. mfcol, mfrow: Put multiple plots next to each other.

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 20 / 24

Saving a plot as an image

png(file="plot.png") # open device plot(x, y) dev.off() # close device ## pdf ## 2 Other devices are ‘jpeg(), tiff(),‘ ‘pdf(), postscript(),‘ ‘win.metafile()‘ (Windows). Use ‘?Devices‘ for a complete list.

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 21 / 24

Advanced and InteractiveGraphics

The most populare advanced graphics packages are: ggplot2: Grammar of graphics. Produces elegant visualizations (see http://ggplot2.org/). grid: Advanced graphics can be programmed using flexible low level ploting functions (viewports, different coordinate systems and units, lines, points, text, etc.) See also package lattice. Interactive Graphics are available via several extension packages. Here are some examples: https://www.r-graph-gallery.com/interactive-charts.html

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 22 / 24

Section 4 Exercises

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 23 / 24

Exercises

1

Plot a ‘sin(x)/x‘. Hint: Trigonometric functions in R use angles in radians (see ‘sin‘)

2

The “cars” data set gives the speed of cars and the distances taken to stop. Note that the data were recorded in the 1920s. Plot the “cars” data set as a scatter plot. Plot all data points with distances taken to stop greater than 80 in red.

3

Plot histograms for speed and dist in “cars”.

Michael Hahsler (OIT, SMU) Intro to R - 4. Base R Plots 24 / 24
