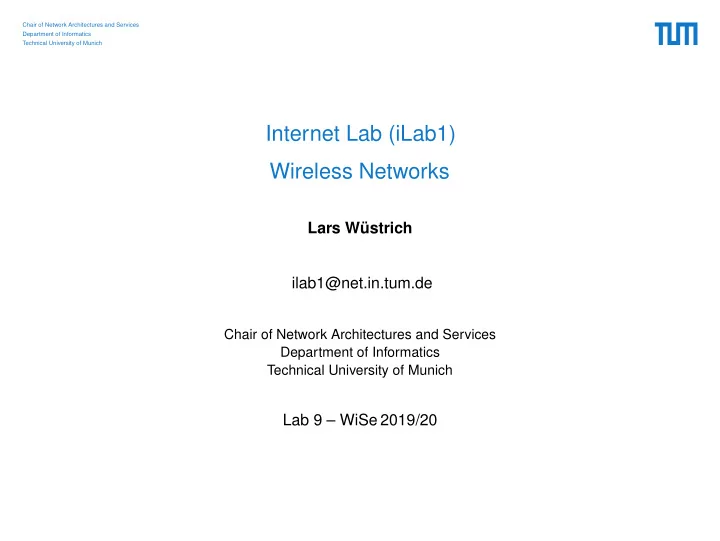

Internet Lab (iLab1) Wireless Networks

Lars Wüstrich ilab1@net.in.tum.de

Chair of Network Architectures and Services Department of Informatics Technical University of Munich

Lab 9 – WiSe 2019/20

Outline

Meta Wireless Communication General Problems Channel Access Methods Types of Wireless Networks Wireless LAN (IEEE 802.11) Physical Layer Data Link Layer Medium Access Control WLAN Security

1/30

Outline

Meta Wireless Communication Wireless LAN (IEEE 802.11) WLAN Security

2/30

Attestation slots

How to get an attestation slot:

• choose in Moodle

else we’ll choose for you

• open until today, Wednesday, 8. Jan. 2020, 23:00
• if you have not chosen a slot yet, please do so as soon as possible
• 2020-01-27 Mon
• 2020-01-28 Tue
• 2020-01-29 Wed
• 2020-01-30 Thu

3/30

Access to the Lab room

• keys on key card expire after 24h or at midnight (not sure)
• To regain access to the room, reload keys at white boxes at
• the entrance of the FMI
• the entrance of any chair

4/30

Outline

Meta Wireless Communication General Problems Channel Access Methods Types of Wireless Networks Wireless LAN (IEEE 802.11) WLAN Security

5/30

General Problems in Wireless Data Transmission

• half-duplex operation (self interference)
• interference – there is only one shared medium
• signal strength decreasing quadratically with the distance
• multipath propagation due to reflection and refraction

source: http://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/82068-omni-vs-direct.html

6/30

Recap: Ethernet (IEEE 802.3)

• full-duplex, high-speed data transmission
• negligible interference
• usually no medium access control (CSMA/CD) necessary

switches limit collision domains to only two endpoints

• no built-in security

7/30

Channel Access Methods Frequency Division Multiple Access (FDMA)

• each data stream uses a different frequency band

Time Division Multiple Access (TDMA)

• each data stream uses a different time-slot

Code Division Multiple Access (CDMA)

• multiplexing based on spreading-codes

Space Division Multiple Access (SDMA)

• frequency reuse in different physical areas

8/30

FDMA: Frequency Spectrum (US, 3KHz – 30 GHz)

source: http://www.ntia.doc.gov/files/ntia/publications/spectrum_wall_chart_aug2011.pdf

9/30

FDMA: Frequency Spectrum (DE, cellular networks)

source: https://www.bundesnetzagentur.de/SharedDocs/Downloads/DE/Allgemeines/Presse/Pressemitteilungen/ 2010/100830VerlosungGraphikFrequenzspektrum_pdf.pdf?__blob=publicationFile&v=3

10/30

Frequency Spectrum Summary Unlicensed Operation

• 13.56 MHz NFC, RFID
• 2.4 GHz WLAN, Bluetooth, ZigBee, microwave ovens, RFID, etc.
• 5 GHz WLAN

Mobile Networks (Germany)

• GSM (2G) 900, 1800 MHz
• UMTS (3G) 2100 MHz
• LTE (4G) 800, 1800, 2600 MHz

11/30

Space Division Multiple Access (SDMA)

CC BY-SA 2.5 by Andrew pmk source: https://upload.wikimedia.org/wikipedia/ commons/e/ee/Frequency_reuse.svg Cellular base stations in Munich source: http://emf3.bundesnetzagentur.de/karte/default.aspx

12/30

Types of Wireless Networks

single-hop multi-hop infrastructure- less WLAN (ad-hoc mode), Bluetooth, ZigBee Mobile ad-hoc networks e.g. car-to-car infrastructure- based WLAN (infrastructre mode), cellular networks (GSM, WIMAX, LTE) Wireless mesh networks

13/30

Outline

Meta Wireless Communication Wireless LAN (IEEE 802.11) Physical Layer Data Link Layer Medium Access Control WLAN Security

14/30

Terminology

Infrastructure Mode

• station wireless host
• access point base station
• basic service set (BSS) group of communica-

tion partners that use the same channel

• extended service set (ESS) group of multiple

interconnected BSS with common service set identifier (SSID)

• distribution system interconnection network

15/30

Physical Layer: IEEE 802.11 PHY Standards

Name Frequency

• Max. data rate

Published 802.11 2.4 GHz 2 Mbit/s 1997 802.11a 5 GHz 54 Mbit/s 1999 802.11b 2.4 GHz 11 Mbit/s 1999 802.11g 2.4 GHz 54 Mbit/s 2003 802.11n 2.4 + 5 GHz 600 Mbit/s 2009 802.11ac 5 GHz 6.77 Gbit/s 2013 802.11ax 2.4 + 5 Ghz 11 Gbit/s 2019

16/30

Data Link Layer: Frames Management Frames

• beacon frame (periodical announcement by the AP

, e.g. SSID)

• association request frame / association response frame (station joins the network)
• authentication frame

Control Frames

• acknowledgement (ACK) frame, reliability
• request-to-send (RTS) frame (optional extension)
• clear-to-send (CTS) frame (optional extension)

Data Frames

• actual data transmission

17/30

Datagram Header

15 16 31

ver type

subtype to DS fr DS

... duration / ID address 1 address 1 address 2 address 2 address 3 address 3 sequence control address 4 address 4 data (0–2312 Byte) frame check seq.

18/30

Use of Address Fields

• (0,0) data frame from station to station (ad-hoc mode)
• (0,1) data frame from AP to station (infrastructure mode)
• (1,0) data frame from station to AP (infrastructure mode)
• (1,1) data frame in the DS from one AP to another AP (wireless distribution system)

to DS from DS A1 A2 A3 A4 RA = DA TA = SA BSSID 1 RA = DA TA = BSSID SA 1 RA = BSSID TA = SA DA 1 1 RA TA DA SA DA = destination address, SA = source address, RA = receiver address, TA = transmitter address, BSSID = AP MAC address

19/30

Medium Access Control Carrier Sense Multiple Access / Collision Avoidance (CSMA/CA)

• collision detection not possible
• sensing while sending is difficult
• a collision may only be visible to a part of the nodes
• a frame is always fully transmitted
• link layer acknowledgements

20/30

Medium Access Control Carrier Sense Multiple Access / Collision Avoidance (CSMA/CA)

• collision detection not possible
• sensing while sending is difficult
• a collision may only be visible to a part of the nodes
• a frame is always fully transmitted
• link layer acknowledgements
• remember: collision != interference

20/30

CSMA/CA – Inter-Frame Spacing

• prioritization of control traffic
• SIFS (Short Interframe Spacing): highest priority for control frames: e.g. ACK, CTS
• DIFS (DCF Interframe Spacing): lower priority (longer interframe spacing) for data traffic
• backoff time tbo = Random([0, CW]) ∗ SlotTime

source: S. Günther, et al. “Analysis of Injection Capabilities and Media Access of IEEE 802.11 Hardware in Monitor Mode”, NOMS 2014

21/30

CSMA/CA – Inter-Frame Spacing Example

source: https://www.cs.purdue.edu/homes/park/cs536-wireless-3.pdf

• SIFS = 10µs or 16µs
• DIFS = 28µs, 34µs, or 50µs
• slot time = 9µs or 20µs
• 15 ≤ CW ≤ 1023

22/30

Collison Avoidance Algorithm (sending side)

data link layer receives frame from upper layer choose random backoff time tbo = Random([0, CW]) ∗ SlotTime wait until channel is idle for DIFS while tbo > 0: wait for one slot time and decrement tbo transmit frame ACK received before timeout? CW = CW ∗ 2

loop no yes busy 23/30

Collison Avoidance Algorithm (receiving side)

data link layer receives frame from the physical layer is received frame ok? wait for SIFS transmit ACK

yes no 24/30

CSMA/CA – Backoff Example

source: IEEE Std 802.11-2012, http://standards.ieee.org/getieee802/download/802.11-2012.pdf

• no acknowledgements shown for simplicity

25/30

Ready-to-Send and Clear-to-Send (CTS / RTS)

• optional extension to IEEE 802.11
• before any transmission the sender transmits a request-to-send (RTS) message

contains the expected duration of the transmission

• the receiver has to confirm with a clear-to-send (CTS) message

everyone who received the CTS knows that the medium will be busy for the specified duration

• solves the hidden terminal problem

26/30

Outline

Meta Wireless Communication Wireless LAN (IEEE 802.11) WLAN Security

27/30

Wireless LAN Security Protocols

WEP

• standardized in 1999, first broken in 2001
• N. Borisov et al., Intercepting Mobile Communications: The Insecurity of 802.11, MOBICOM 2001
• many design flaws including:
• nly 40 bit key length
• initialization vector is too small (16 million possible values)
• integrity check via CRC32 (linear function)
• no replay-protection

WPA

• standardized in 2003
• stopgap replacement for WEP

WPA2

• standardized in 2004 (IEEE 802.11i)
• CCMP (CTR mode with CBC-MAC Protocol) encryption protocol uses AES with 128-bit block size

WPA3

• announced in 2018 as replacement for WPA2

28/30

WPA2 Authentication

Pre-shared Key Mode (WPA-PSK)

• 256 bit key derived from 64 hexadecimal digits or an ASCII-String (8 to 63 characters) using the PBKDF2

key derivation function and the SSID as salt

External Authentication Server (WPA-802.1X)

• relies on an external server for authentication
• advantages: mutual authentication, centralized authentication

Wi-Fi Protected Setup (WPS)

• goal: make adding new devices as simple as possible
• push-button method
• assumption: attacker has no physical access to the access point
• PIN method is insecure (brute-force attack [1])

[1] https://sviehb.files.wordpress.com/2011/12/viehboeck_wps.pdf

29/30

WPA-802.1X

• relies on an external server for authentication (via RADIUS or Diameter protocol)
• supplicant (station) negotiates with an authentication server, the authenticator (access point) acts as a

relay

source: https://en.wikipedia.org/wiki/File:802.1X_wired_protocols.png
