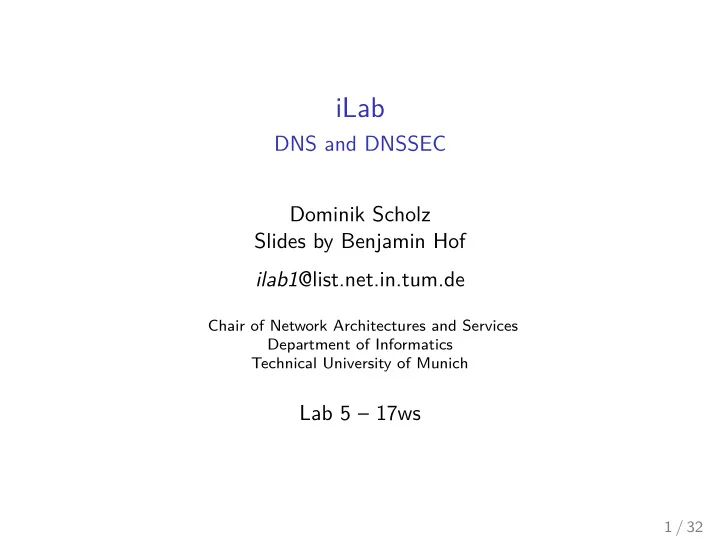

iLab DNS and DNSSEC Dominik Scholz Slides by Benjamin Hof ilab1 - - PowerPoint PPT Presentation

iLab

DNS and DNSSEC Dominik Scholz Slides by Benjamin Hof ilab1@list.net.in.tum.de

Chair of Network Architectures and Services Department of Informatics Technical University of Munich

Lab 5 – 17ws

1 / 32

Outline

Domain Name System Authoritative name server Resolver Security

2 / 32

Outline

Domain Name System Authoritative name server Resolver Security

3 / 32

The quest for memorable names

◮ IP addresses hard to remember for humans ◮ symbolic names mapped to addresses

address resolution

• 1. host files

◮ file with mappings ◮ copy between all machines ◮ /etc/hosts

• 2. protocol: Domain Name System

◮ by Paul Mockapetris in 1983 ◮ wide deployment in 1988

4 / 32

Domain Name System

◮ application layer protocol on UDP, TCP

◮ glibc call getaddrinfo(3)

◮ distributed name database

◮ deployed globally ◮ hierarchical structure

◮ extensible

◮ e.g. DNSSEC: security extensions inside the protocol itself

5 / 32

Distributed hierarchical name space

. net lwn edu tum cs mail ma ei

• rg

gnu debian Fully qualified domain name (FQDN) by label concatenation: mail.cs.tum.edu.

6 / 32

Distributed hierarchical name space

root zone (empty label) top level domain second level domain . net lwn edu tum cs mail ma ei

• rg

gnu debian Fully qualified domain name (FQDN) by label concatenation: mail.cs.tum.edu.

6 / 32

Name server

Name servers can fulfill different functions:

• 1. authoritative name servers

◮ operated by a site on the Internet

• 2. resolver

◮ asked to resolve names ◮ contacts authoritative name servers

Example

Knot and unbound

7 / 32

Outline

Domain Name System Authoritative name server Resolver Security

8 / 32

Zone

◮ subtree of the global name space ◮ delegated by parent ◮ managed by one organization ◮ hosted on an authoritative name server

Example

tum.edu. delegated by edu., containing www.tum.edu. and mail.in.tum.edu.

9 / 32

Authoritative name server

◮ only knows about its own part of the name space ◮ responsible, “authoritative”, for its zone ◮ may serve multiple zones ◮ usually primary and secondary servers exist for a zone

◮ synchronized with zone transfer ◮ avoid disappearance of the zone in case of outage ◮ load balancing

10 / 32

Zones: example

. net lwn edu tum cs mail ma ei

• rg

gnu debian

11 / 32

Resource record

◮ zone contains resource records (RR)

example.net. 3600 IN A 198.51.100.5

• wner

TTL class type RDATA domain name where RR is found

12 / 32

Resource record

◮ zone contains resource records (RR)

example.net. 3600 IN A 198.51.100.5

• wner

TTL class type RDATA validity period in seconds when cached

12 / 32

Resource record

◮ zone contains resource records (RR)

example.net. 3600 IN A 198.51.100.5

• wner

TTL class type RDATA

• nly Internet is relevant for us

12 / 32

Resource record

◮ zone contains resource records (RR)

example.net. 3600 IN A 198.51.100.5

• wner

TTL class type RDATA record type, e.g. IPv4 address

12 / 32

Resource record

◮ zone contains resource records (RR)

example.net. 3600 IN A 198.51.100.5

• wner

TTL class type RDATA resource data: e.g. 32 bit IPv4 address

12 / 32

Resource records

• wner

TTL class type RDATA i.example.net. 3600 IN AAAA 2001:db8::1 like.example.net. 3600 IN AAAA 2001:db8:af23::eb2 dns.example.net. 3600 IN A 192.0.2.25 i.example.net. 3600 IN A 192.0.2.205

13 / 32

Resource records

• wner

type RDATA i.example.net. AAAA 2001:db8::1 like.example.net. AAAA 2001:db8:af23::eb2 dns.example.net. A 192.0.2.25 i.example.net. A 192.0.2.205 i.example.net. AAAA 2001:db8::2

◮ RRset for i.example.net. type AAAA with more than one record! ◮ note: TTL and class usually omitted 13 / 32

Zone file and record types

$ORIGIN example.net. ; everything will be relative to this $TTL 1h ; default TTL could be overwritten later

14 / 32

Zone file and record types

$ORIGIN example.net. ; everything will be relative to this $TTL 1h ; default TTL could be overwritten later example.net. IN SOA ns1 hostmaster [. . . ]

14 / 32

Zone file and record types

$ORIGIN example.net. ; everything will be relative to this $TTL 1h ; default TTL could be overwritten later example.net. IN SOA ns1 hostmaster [. . . ] ; RRset with two records: NS example.net. NS ns1 ; primary authoritative NS example.net. NS ns2.registrar.example. ; secondary

14 / 32

Zone file and record types

$ORIGIN example.net. ; everything will be relative to this $TTL 1h ; default TTL could be overwritten later example.net. IN SOA ns1 hostmaster [. . . ] ; RRset with two records: NS example.net. NS ns1 ; primary authoritative NS example.net. NS ns2.registrar.example. ; secondary ns1 A 198.51.100.1

14 / 32

Zone file and record types

$ORIGIN example.net. ; everything will be relative to this $TTL 1h ; default TTL could be overwritten later example.net. IN SOA ns1 hostmaster [. . . ] ; RRset with two records: NS example.net. NS ns1 ; primary authoritative NS example.net. NS ns2.registrar.example. ; secondary ns1 A 198.51.100.1 example.net. MX 10 mail ; priority to order multiple MX RRs

14 / 32

Zone file and record types

$ORIGIN example.net. ; everything will be relative to this $TTL 1h ; default TTL could be overwritten later example.net. IN SOA ns1 hostmaster [. . . ] ; RRset with two records: NS example.net. NS ns1 ; primary authoritative NS example.net. NS ns2.registrar.example. ; secondary ns1 A 198.51.100.1 example.net. MX 10 mail ; priority to order multiple MX RRs mail AAAA 2001:db8::1 A 198.51.100.2

14 / 32

Zone file and record types

$ORIGIN example.net. ; everything will be relative to this $TTL 1h ; default TTL could be overwritten later example.net. IN SOA ns1 hostmaster [. . . ] ; RRset with two records: NS example.net. NS ns1 ; primary authoritative NS example.net. NS ns2.registrar.example. ; secondary ns1 A 198.51.100.1 example.net. MX 10 mail ; priority to order multiple MX RRs mail AAAA 2001:db8::1 A 198.51.100.2 webmail CNAME mail ; alias for a canonical name

14 / 32

Delegation

sub.example.net. NS ns.sub.example.net. ns.sub.example.net. A 198.51.100.3

◮ make ns.sub.example.net. responsible for the sub.example.net.

zone

◮ glue record to make the new name server findable ◮ possible misconfigurations

• 1. missing glue records
• 2. delegation loops

15 / 32

Outline

Domain Name System Authoritative name server Resolver Security

16 / 32

Resolving name server tasks

◮ query: owner, class, type ◮ resolve a query from the root downwards ◮ cache responses based on TTL ◮ changes might only be visible after days

Allow access only from your network, never open for everybody

17 / 32

DNS packet layout

IP UDP DNS header query answer authoritative additional ID, flags, number of RRs records

header

c,s QR query or response s AA authoritative answer s TC truncation (TCP as fallback) c RD recursion desired s RA recursion available s 4 bit response code: no error, name error, server failure, refused

◮ number of resource records in each section 18 / 32

DNS packet layout

IP UDP DNS header query answer authoritative additional ID, flags, number of RRs records

record sections

◮ query: only one record with owner, type, class ◮ answer: answer RRs ◮ authoritative section: name server delegation ◮ additional section: glue records, EDNS pseudo record

packet size limited to 512 octets

18 / 32

Lookup

stub forwarder recursor in.tum.de. IP?

◮ recursive queries 19 / 32

Lookup

stub forwarder recursor in.tum.de. k.root-servers.net. 2001:7fd::1 in.tum.de. A

• de. NS a.nic.de.

a.nic.de. A 194.0.0.53

◮ recursive queries ◮ iterative queries ◮ glue 19 / 32

Lookup

stub forwarder recursor in.tum.de. k.root-servers.net. a.nic.de. in.tum.de. A tum.de. NS dns1.lrz.de. dns1.lrz.de A 129.187.19.183

◮ recursive queries ◮ iterative queries ◮ glue 19 / 32

Lookup

stub forwarder recursor in.tum.de. k.root-servers.net. a.nic.de. dns1.lrz.de. in.tum.de. A in.tum.de. A 131.159.0.35

◮ recursive queries ◮ iterative queries ◮ glue 19 / 32

Lookup

stub forwarder recursor in.tum.de. k.root-servers.net. a.nic.de. dns1.lrz.de.

◮ recursive queries ◮ iterative queries ◮ glue 19 / 32

Lookup

stub forwarder recursor in.tum.de. k.root-servers.net. a.nic.de. dns1.lrz.de. 131.159.0.35

◮ recursive queries ◮ iterative queries ◮ glue 19 / 32

Reverse lookup

IPv4

◮ PTR record type ◮ special domain in-addr.arpa. ◮ 198.51.100.5 → 5.100.51.198.in-addr.arpa. ◮ small subnets require lots of CNAMEs

IPv6

◮ ip6.arpa. ◮ can be delegated per nibble ◮ 2001:db8::1 is:

1.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0.8.b.d.0.1.0.0.2.ip6.arpa.

20 / 32

Outline

Domain Name System Authoritative name server Resolver Security

21 / 32

Common attacks using DNS

Cache poisoning

◮ send many packets with fake responses to a resolver ◮ spoofed source IP: address of an authoritative name server ◮ try to answer a query before the legitimate server does

Counter: randomize as much as possible: source port, query id

Distributed denial of service

◮ send queries with spoofed source address to open resolvers ◮ spoofed source address is attack target ◮ queries with high amplification factor

Counter: no open resolvers, ingress filtering (BCP 38)

22 / 32

Security extensions in DNS: DNSSEC

◮ data origin authentication ◮ data integrity ◮ no confidentiality ◮ inside the protocol, no *S layer ◮ no flag day

Basic idea

◮ signatures with public key cryptography ◮ zone owner signs RRsets offline using private key ◮ full resolvers verify signatures using public key

How do we know that the signing key really belongs to the zone

• wner?

23 / 32

Changes

New RR types

◮ RRSIG: signature over RRset

◮ signature validity introduces absolute time into DNS

◮ DS (delegation signer): hash of public key ◮ DNSKEY: public key ◮ NSEC, NSEC3: for nonexisting domains 24 / 32

Changes (cont’d)

header bits

c CD checking disabled: request delivery of DNSSEC records s AD answer authenticated: DNSSEC successfully verified

EDNS extension

◮ uses pseudo record ◮ larger UDP payload size

c DO bit: DNSSEC OK: include RRSIGs, DS

25 / 32

Zone signing

child zone RRset RRset private key public key signed child zone RRset RRset parent zone Note: root key comes with resolver software

26 / 32

Zone signing

child zone RRset RRset private key public key signed child zone RRset RRset RRSIG RRSIG parent zone Note: root key comes with resolver software

26 / 32

Zone signing

child zone RRset RRset private key public key signed child zone RRset RRset DNSKEY RRSIG RRSIG RRSIG parent zone Note: root key comes with resolver software

26 / 32

Zone signing

child zone RRset RRset private key public key signed child zone RRset RRset DNSKEY RRSIG RRSIG RRSIG parent zone DS RRSIG Note: root key comes with resolver software

26 / 32

Record collection

g.root-servers.net. resolver torproject.org.? torproject.org. AAAA

• rg. NS a0.org.afilias-nst.info.
• rg. DS
• rg. RRSIG DS

+ glue

27 / 32

Record collection

g.root-servers.net. resolver a0.org.afilias-nst.info. torproject.org. AAAA torproject.org. NS ns1.torproject.org. torproject.org. DS torproject.org. RRSIG DS + glue

27 / 32

Record collection

g.root-servers.net. resolver a0.org.afilias-nst.info. ns1.torproject.org. torproject.org. AAAA torproject.org. AAAA torproject.org. RRSIG AAAA

27 / 32

Record collection

g.root-servers.net. resolver a0.org.afilias-nst.info. ns1.torproject.org. . DNSKEY . DNSKEY . RRSIG DNSKEY

27 / 32

Record collection

g.root-servers.net. resolver a0.org.afilias-nst.info. ns1.torproject.org.

• rg. DNSKEY
• rg. DNSKEY
• rg. RRSIG DNSKEY

27 / 32

Record collection

g.root-servers.net. resolver a0.org.afilias-nst.info. ns1.torproject.org. torproject.org. DNSKEY torproject.org. DNSKEY torproject.org. RRSIG DNSKEY

27 / 32

Discussion

We have for each zone:

◮ DS ◮ RRSIG DS ◮ DNSKEY ◮ RRSIG DNSKEY

as well as the RRSIG AAAA.

Verify from the top:

• 1. org. DS, RRSIG using root DNSKEY/stored key
• 2. org. DS, org. DNSKEY
• 3. torproject.org. DS, RRSIG using org. DNSKEY
• 4. torproject.org. DS, torproject.org. DNSKEY
• 5. torproject.org. AAAA, RRSIG using torproject.org. DNSKEY

28 / 32

Alternative signing scheme

parent zone DS (KSK) RRSIG child zone DNSKEY: KSK DNSKEY: ZSK RRSIG RRset RRSIG

29 / 32

Deal with nonexisting domains

NSEC

sign the hole between two domains: alice.example.net. NSEC charlie.example.net. A RRSIG NSEC

◮ + RRSIG ◮ no domains between alice and charlie ◮ alice only has A, RRSIG and NSEC records ◮ zone walking

NSEC3

◮ hash all domains ◮ order by hash value

• 0him. . . lfhr.example.net.

NSEC3

• 0lver. . . oj3l A RRSIG

30 / 32

Operational considerations

◮ offline signing ◮ small key sizes recommended for speed ◮ many parameter choices ◮ limited key lifetime, frequent rollover required ◮ best practice: key signing key, zone signing key

⇒ operational complexity

Example

Software like OpenDNSSEC or Knot automates a lot of this.

31 / 32

Security gaps

◮ TLD/root key operators cannot be removed or replaced! ◮ last mile ◮ confidentiality ◮ actual connection content ◮ DDoS 32 / 32
