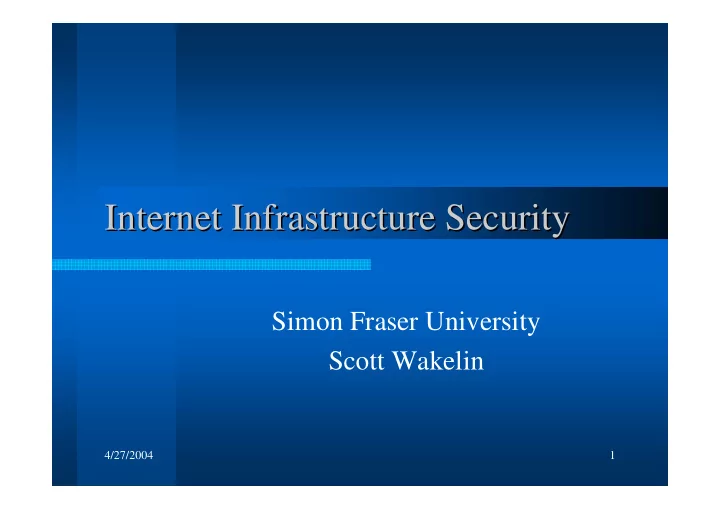

Internet Infrastructure Security Internet Infrastructure Security Simon Fraser University Scott Wakelin 4/27/2004 1 Road Map Road Map Project Goals and Overview Project Status Network Infrastructure ISP Topology ISP

slide-1
SLIDE 1

4/27/2004 1

Internet Infrastructure Security Internet Infrastructure Security

Simon Fraser University Scott Wakelin

slide-2
SLIDE 2

4/27/2004 2

Road Map Road Map

Project Goals and Overview Project Status Network Infrastructure

– ISP Topology – ISP Interconnection

Routing Protocols Routing Protocol Security Issues Example Case: OSPF Future Work References

slide-3
SLIDE 3

4/27/2004 3

Project Goals Project Goals

Understand Internet Infrastructure

and typical topology

Understand routing protocols Understand attacks against Internet

Infrastructure

Demonstrate weaknesses of routing

protocols using OPNET and NS-2.

slide-4
SLIDE 4

4/27/2004 4

Is it important? Is it important?

“Our very way of life depends on the secure and safe operations of critical systems that depend on cyberspace”

  • Richard Clarke, Former US Homeland Security Advisor on

Cyberterrorism

slide-5
SLIDE 5

4/27/2004 5

Current Status Current Status

  • Completed:

– Implemented OSPF network using OPNET – Created “misbehaving” router scenario in OPNET – Used FlowAnalysis to analyze routing tables, in addition to link and host statistics – Examined internal implementation of OSPF process module, function blocks, identified potential code changes – Built NS model to simulate link cutting attacks

  • Work Remaining:

– Determine feasibility of modifying OPNET to support “faulty” router operation (eg. I know what to do, but can it be done?) – Gather additional traffic statistics – Code link selection/cutting algorithm in Tcl for NS-2 – Demo, and Final Report

slide-6
SLIDE 6

4/27/2004 6

Internet Infrastructure Internet Infrastructure

“Network of Networks” Subscriber networks connect to ISP POP’s ISP POP’s interconnected via IP backbone

routers

ISP’s interconnected IXP (eg. MAE-WEST)

ISP = Internet Service Provider POP = Point of Presence IXP = Internet Exchange Point

slide-7
SLIDE 7

4/27/2004 7

Subscriber to ISP Network Subscriber to ISP Network

ADM OC-48 OC-48 GE DS3 OC-3 OC-12 Metro SONET Ring OC-192/STM64 Network A Network B Network C

slide-8
SLIDE 8

4/27/2004 8

Typical POP Architecture Typical POP Architecture

R b0 R a0 R a1 R a2 R a3 R b 1 To S ubscribers To "B ackbone"

slide-9
SLIDE 9

4/27/2004 9

ISP POP Interconnect ISP POP Interconnect

Ab0 Aa0 Aa1 Aa2 Aa3 Ab1 Seattle POP Sb1 Sa0 Sa1 Sa2 Sa3 Sb0 Chicago POP Cb1 Ca0 Ca1 Ca2 Ca3 Cb0 Portland POP Lb0 La0 La1 La2 La3 Lb1 San Jose POP

End User A End User B End User C

slide-10
SLIDE 10

4/27/2004 10

Interconnecting ISP Interconnecting ISP’ ’s s

Ab0 Aa0 Aa1 Aa2 Aa3 Ab1 ISP A POP Sb1 Sa0 Sa1 Sa2 Sa3 Sb0 ISP B POP Cb1 Ca0 Ca1 Ca2 Ca3 Cb0 ISP C POP Lb0 La0 La1 La2 La3 Lb1 ISP D POP

to other POP's to other POP's to other POP's to other POP's

Internet Exchange Point (IXP)

slide-11
SLIDE 11

4/27/2004 11

Routing Protocols: OSPF Routing Protocols: OSPF

OSPF is defined in RCF 2328 Link State Routing protocol Intra-domain protocol OSPF Phases:

– Neighbor Discovery – LSA Generation – LSA Propagation – Shortest Path Calculation

OSPF runs over IP

OSPF: Open Shorted Path First LSA: Link State Advertisement

slide-12
SLIDE 12

4/27/2004 12

OSPF Packet Header OSPF Packet Header

Version Packet Type Packet Length Router ID Area ID Checksum Authentication Type Authentication Data Octets

1 1 2 4 4 2 2 8

slide-13
SLIDE 13

4/27/2004 13

Routing Protocols: BGP Routing Protocols: BGP-

  • 4

4

BGP-4 is defined in RFC 1771 Path-Vector algorithm Inter-domain protocol BGP Phases:

– Opening a BGP Connection – Exchange of routing tables – Maintenance of the connection

BGP Runs over TCP

BGP: Border Gateway Protocol

slide-14
SLIDE 14

4/27/2004 14

OSPF/BGP OSPF/BGP Interworking Interworking

OSPF and BGP work alongside each

  • ther in a router

Router maintain two route tables,

  • ne internal, one external

Router uses BGP next-hop to index

into OSPF table

slide-15
SLIDE 15

4/27/2004 15

Routing Protocol Security Routing Protocol Security

….or lack thereof… Implicit trust relationship amongst routers Attacks can be devastating:

– Service disruption – Loss of confidentiality

And difficult to detect

– How does one router know another is lying?

slide-16
SLIDE 16

4/27/2004 16

OSPF Example OSPF Example

One router can lie and advertise incorrect

costs

The lying router then becomes the part of

the preferred route to some other router (perhaps gateway)

The lying router can then do just about

anything it wants with the traffic

slide-17
SLIDE 17

4/27/2004 17

Example Topology using Example Topology using OPNET OPNET

  • Assume gateway1 has

sensitive data to send to gateway2

  • Assume all link costs equal
  • Normal route:
  • G1 -> R1 -> R2 -> G2
slide-18
SLIDE 18

4/27/2004 18

But what if But what if… …

Router 3 lies? Routers 1, 2 and the gateway routers

don’t know that Router 3 is lying.

They assume that what Router 3

advertises is correct

slide-19
SLIDE 19

4/27/2004 19

OSPF Failure Case OSPF Failure Case

Now all traffic from

G1 -> G2 goes through Router 3

New Route:

– G1 -> R1 -> R3 -> R2 -> G2

Possible results:

– Snooping – Packet mistreatment – Congestion – ???

slide-20
SLIDE 20

4/27/2004 20

But what about OSPF Auth? But what about OSPF Auth?

Authentication field in OSPF only

provides assurance that Router 3 sent the message

Authentication field DOES NOT mean

that the information is correct

slide-21
SLIDE 21

4/27/2004 21

S S-

  • OSPF: A Solution?

OSPF: A Solution?

One solution is to have each router

digitally sign/authenticate each LSA

Problems:

– Computationally expensive – Requires PKI for certification – Others

Still not a complete solution

– Link Cutting

slide-22
SLIDE 22

4/27/2004 22

Link Cutting Link Cutting

Targetting specific hosts/links and bringing them down How?

– Fibre cuts (for the serious attacker) – DDoS attacks – Others…

Idea: Force traffic to go through a node/link controlled by an

attacker

Requires some knowledge of the network topology:

– Not so hard to obtain…See Rocketfuel research.

Bellovin et al. developed algorithm to select which links to

cut.

slide-23
SLIDE 23

4/27/2004 23

Link Cutting Link Cutting… …cont. cont.

Traceroute can provide a lot of

information:

Tracing route to www.sprint.net [199.0.233.22]

  • ver a maximum of 30 hops:

1 20 ms 30 ms 20 ms 209.53.1.226 2 20 ms 30 ms 20 ms 208.181.229.118 3 20 ms 30 ms 20 ms vancbc01gr01.bb.telus.com [154.11.4.97] 4 30 ms 30 ms 30 ms vancbc01br01.bb.telus.com [154.11.10.49] 5 20 ms 30 ms 30 ms sttlwa01gr01.bb.telus.com [209.53.75.166] 6 20 ms 30 ms 30 ms sl-gw14-sea-10-0.sprintlink.net [144.224.23.33] 7 20 ms 30 ms 30 ms sl-bb21-sea-9-1.sprintlink.net [144.232.6.133] 8 70 ms 70 ms 70 ms sl-bb25-chi-2-0.sprintlink.net [144.232.20.157] 9 70 ms 71 ms 70 ms sl-bb23-chi-15-0.sprintlink.net [144.232.26.93] 10 90 ms 90 ms 90 ms sl-bb27-rly-11-0.sprintlink.net [144.232.20.185] 11 90 ms 90 ms * sl-bb22-rly-10-0.sprintlink.net [144.232.14.177]

slide-24
SLIDE 24

4/27/2004 24

Link Cutting Example: NS Link Cutting Example: NS-

  • 2

2

Network built using ISP topology

shown on pg. 7.

Attacker wants to see traffic flowing

between Node 27 and 25

Assume attacker has control of

backbone router 4

Normal path:

– Nodes 27 -> 18 -> 23 -> 10 -> 6 -> 25

slide-25
SLIDE 25

4/27/2004 25

Normal Case: NS Normal Case: NS-

  • 2

2

slide-26
SLIDE 26

4/27/2004 26

Link Cutting Attack Link Cutting Attack

Attack Links 23-10, 22-17 Causes traffic to flow through

backbone router 4

New route:

– 27, 18, 23, 5, 4, 11, 6, 25

slide-27
SLIDE 27

4/27/2004 27

Link Cutting Attack, cont. Link Cutting Attack, cont.

slide-28
SLIDE 28

4/27/2004 28

Future Work Future Work

Implement S-BGP

– IBGP, EBGP peers communicate using IPSec – Each router cryptographically signs its advertisements

Implement S-OSPF Are the solutions scalable? What other pitfalls exist?

slide-29
SLIDE 29

4/27/2004 29

References References

  • [1] J. Moy, “OSPF Version 2”, RFC 2328, April 1998.
  • [2] Y. Rekhter and P. Gross, “Application of the Border Gateway Protocol in the Internet”, RFC 1772,

March 1995.

  • [3] C. Metz, “Interconnecting ISP Networks”, IEEE Internet Computing, vol. 5, no. 2, March-April

2001, pp 74-80.

  • [4] S. Kent, C. Lynn, and K. Seo, “Secure Border Gateway Protocol (S-BGP)”, IEEE Journal on

Selected Areas in Communications, vol. 18, no. 4, April 2000. pp. 582-592.

  • [5] S. Kent, C. Lynn, and K. Seo, “Public-key infrastructure for the Secure Border Gateway Protocol

(S-BGP)”, Proc. Darpa Information Survivability Conference and Exposition II, vol. 1, June 2001, pp. 239-252.

  • [6] S. Kent, C. Lynn, and K. Seo, “Design and analysis of the Secure Border Gateway Protocol (S-

BGP)”, Proc. Darpa Information Survivability Conference and Exposition II, vol. 1, Jan. 2000, pp 18- 33.

  • [7] H. Papadimitratos, “Securing the Routing Infrastructure”, IEEE Communications Magazine, vol.

40, no. 10, Oct. 2002, pp. 60-68.

  • [8] A. Chakrabarti, and G. Manimaran, “Internet Infrastructure Security: A Taxonomy”, IEEE

Network, vol. 16, no. 6, Nov.-Dec. 2002, pp. 13-21.

  • [9] S. M. Bellovin, and E. R. Gansner, “Using Link Cuts to Attack Internet Routing”, DRAFT, May

2003.

  • [10] Rocketfuel, http://www.cs.washington.edu/research/networking/rocketfuel/
  • [11] Marc Greis’ Tutorial for the UCB/LBNL/VINT Network Simulator “ns”,

http://www.isi.edu/nsnam/ns/tutorial/index.html

slide-30
SLIDE 30

4/27/2004 30

Questions? Questions?
