CSE497b Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

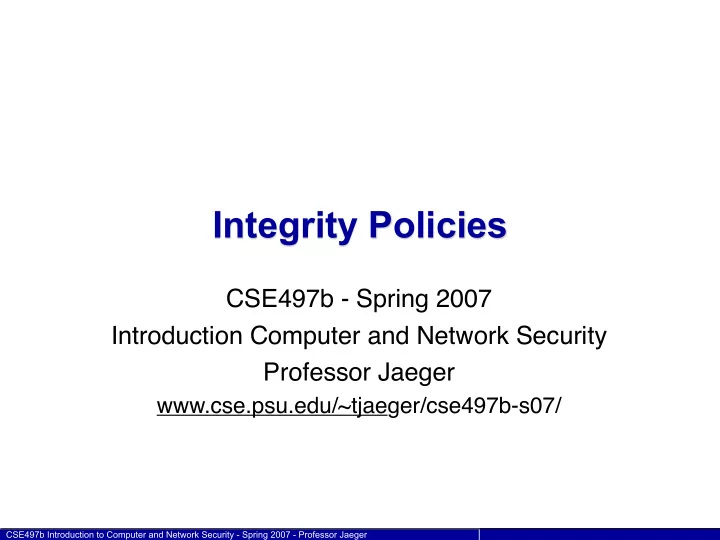

Integrity Policies

CSE497b - Spring 2007 Introduction Computer and Network Security Professor Jaeger

www.cse.psu.edu/~tjaeger/cse497b-s07/

Page CSE497b Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Integrity

• Does the following access matrix protect the integrity of

J’s public key file O2?

2

O1 O2 O3 J R R W R W S2 N R R W S3 N R R W

Page CSE497b Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Integrity

• What determines the integrity of a file or process?

– The inputs that an object depends on

• What does this dependency mean?

– File: integrity of data written into the file

• Depends on the integrity of the writers...

– Process: what the execution of the process depends on

• What concrete actions determine what a process

depends on?

– Read/Execute Code – Read/Execute Libraries – Read/Write Data

3

Page CSE497b Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Integrity Approximation

4

Object Subject

• Integrity

– A conservative view

• The integrity of objects (data and code) is determined

by the integrity of its writers

• The integrity of a subjects (processes) is determined by

the integrity of the objects it reads

Integrity of Obj Integrity of Subj

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Biba Integrity

• Information Flow Works for Secrecy

– Try Integrity Too

5

Very Secret Mostly Secret Pretty Secret Secret ?

High Integrity Good Integrity

Solid Integrity Low Integrity

?

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Biba Integrity Levels

• High and Low

– System and users

• Other levels?

6

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Integrity Example

• SSH Daemon (sshd)

7

• penSSH

Listen *:22 Network Connection Time Key Exchange Authentication User Network Data

• penSSH

(forked for request) Monitor fork

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Biba and SSH

• Does it work?

8

sshd

Remote Subject

Requests

Guard

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Low Water Mark (LOMAC) Integrity

• Subject Integrity Level

– Highest integrity level initially

• Object Integrity Level

– Based on level of subjects that have written (lowest)

• Subject Integrity Level

– Changes as objects are read – Minimum of object levels

9

Highest Integrity Good Integrity

Solid Integrity Remote Subject

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Self-Revocation Problem

• Self-Revocation Problem

– Process starts with high integrity – Open high integrity object o1 – Read from low integrity object o2 – LOMAC semantics reduce process’s integrity to low – No longer can write to o1 – Inconsistent with UNIX

10

Step 1: initial state ps grep pipe ps Step 2: ps reads low file pipe grep Step 3: demotion ps pipe pipe grep grep ps Step 4: pipe write denied

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

SSH and LOMAC

• Does SSH work with LOMAC?

11

sshd Good Integrity

Solid Integrity Remote Subject

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Privilege Separation

• Limit the amount of code that runs with privilege

– Decompose program

• Privileged component
• Unprivileged component
• Interface between the two
• Each component is designed to minimize the amount of code

with privilege!

• Build secure application

– Postfix mail system – SSH daemon – Not too many others

12

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Privilege Separated OpenSSH

• Current version of OpenSSH

13

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Integrity and Privilege Separated OpenSSH

• Should this improve integrity?

– Fewer commands – Filter inputs – Limit legal command orders – Remove direct access to network input

• Does this enable Biba integrity?

– Are low integrity inputs made to privileged component? – Are they upgraded?

• Does this enable LOMAC integrity?

– How do the inputs to the privileged component impact its integrity level?

14

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Clark-Wilson Integrity

• Propose that high integrity programs can protect

themselves from low integrity inputs!

• How are low integrity inputs processed?

– Upgrade: turn them into high integrity data – Discard: drop them immediately

• How do we know that the high integrity program did this

correctly?

– Need complete program assurance

• Still working on this...

– Discuss later in Linux and Virtual Machine Systems

15

Page CSE497 Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger

Take Away

• Integrity has to do with dependence

– Harder to pin down than secrecy

• If dependence is based on reading

– Integrity is the dual of secrecy

• Integrity models

– Biba, LOMAC, Clark-Wilson – Don’t exactly correspond to real-world

• What do we do?

– Protect the integrity of high secrecy data and code

16
