SLIDE 1

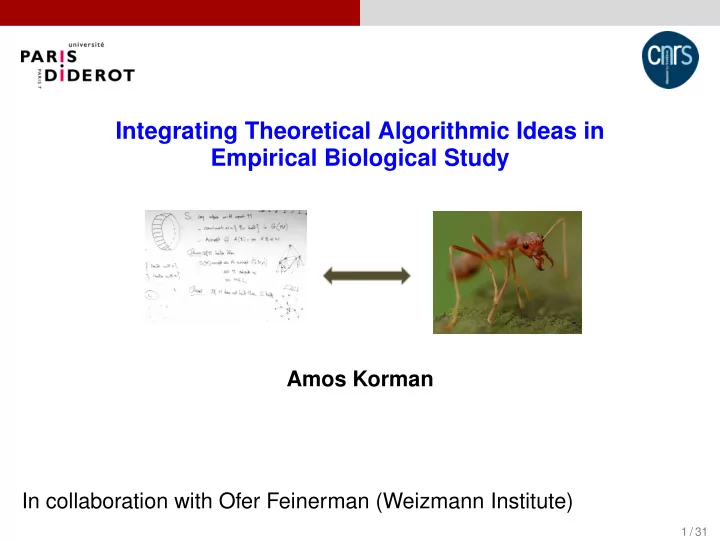

Integrating Theoretical Algorithmic Ideas in Empirical Biological Study

Amos Korman In collaboration with Ofer Feinerman (Weizmann Institute)

1 / 31

SLIDE 2

Scientific frameworks

Outline

1

Scientific frameworks

2

How can an algorithmic perspective contribute?

3

A novel scientific framework

4

Searching for a nearby treasure

5

Information lower bounds for probabilistic search (DISC 2012)

6

Conclusions

2 / 31

SLIDE 3

Scientific frameworks

Classical scientific frameworks in biology Experimental framework:

1

Preprocessing stage: observe and analyze

2

“Guess” a mathematical model

3

Data analysis: tune the parameters

3 / 31

SLIDE 4

Scientific frameworks

Example: the Albatross (Nature 1996, 2007)

Pr(l =d) ¡≈ ¡1/dα ¡

The Albatross is performing a Lévy flight

4 / 31

SLIDE 5

Scientific frameworks

Example: the Albatross (Nature 1996, 2007)

Pr(l =d) ¡≈ ¡1/dα ¡

The Albatross is performing a Lévy flight What is α? do statistics on experiments and obtain e.g., α = 2

4 / 31

SLIDE 6

Scientific frameworks

Theoretical framework:

1

Guess an abstract mathematical model

2

Analyze the model

5 / 31

SLIDE 7

Scientific frameworks

Theoretical framework:

1

Guess an abstract mathematical model

2

Analyze the model

Find parameters maximizing a utility function

5 / 31

SLIDE 8

Scientific frameworks

Theoretical framework:

1

Guess an abstract mathematical model

2

Analyze the model

Find parameters maximizing a utility function Example: if you perform a Lévy flight search under some certain food distribution then α = 2 is optimal [Viswanathan et al. Nature 1999]

5 / 31

SLIDE 9

Scientific frameworks

Theoretical framework:

1

Guess an abstract mathematical model

2

Analyze the model

Find parameters maximizing a utility function Example: if you perform a Lévy flight search under some certain food distribution then α = 2 is optimal [Viswanathan et al. Nature 1999] “Explain” a known phenomena Example: Kleinberg’s analysis of the greedy routing algorithm in small world networks “explains” Milgram’s experiment [Nature 2000]

5 / 31

SLIDE 10

How can an algorithmic perspective contribute?

Outline

1

Scientific frameworks

2

How can an algorithmic perspective contribute?

3

A novel scientific framework

4

Searching for a nearby treasure

5

Information lower bounds for probabilistic search (DISC 2012)

6

Conclusions

6 / 31

SLIDE 11

How can an algorithmic perspective contribute?

An algorithmic perspective Recently, CS theoreticians have tried to contribute from an algorithmic perspective [Alon, Chazelle, Kleinberg, Papadimitriou, Valiant, etc.].

7 / 31

SLIDE 12

How can an algorithmic perspective contribute?

An algorithmic perspective Recently, CS theoreticians have tried to contribute from an algorithmic perspective [Alon, Chazelle, Kleinberg, Papadimitriou, Valiant, etc.]. Guiding principle Algorithms’ people are good at:

7 / 31

SLIDE 13

How can an algorithmic perspective contribute?

An algorithmic perspective Recently, CS theoreticians have tried to contribute from an algorithmic perspective [Alon, Chazelle, Kleinberg, Papadimitriou, Valiant, etc.]. Guiding principle Algorithms’ people are good at:

1

Formulating sophisticated guesses (algorithms)

2

Analyzing the algorithms

7 / 31

SLIDE 14

How can an algorithmic perspective contribute?

Algorithmic perspective in classical frameworks Experimental framework:

1

Preprocessing stage: observe and analyze

2

Guess a mathematical model [Afek et al., Science’11]

3

Data analysis: tune the parameters

Theoretical framework:

1

Guess a mathematical model

2

Analyze the model Maximize a utility function [Papadimitriou et al., PNAS 2008] Explain a known phenomena [Kleinberg, Nature, 2000]

8 / 31

SLIDE 15

How can an algorithmic perspective contribute?

Algorithmic perspective in classical frameworks Experimental framework:

1

Preprocessing stage: observe and analyze

2

Guess a mathematical model [Afek et al., Science’11]

3

Data analysis: tune the parameters

Theoretical framework:

1

Guess a mathematical model

2

Analyze the model Maximize a utility function [Papadimitriou et al., PNAS 2008] Explain a known phenomena [Kleinberg, Nature, 2000]

Can an algorithmic perspective contribute

therwise?

8 / 31

SLIDE 16

How can an algorithmic perspective contribute?

Systems biology Biology is lacking tools for dealing with large, complex and interactive systems.

9 / 31

SLIDE 17

How can an algorithmic perspective contribute?

Systems biology Biology is lacking tools for dealing with large, complex and interactive systems. Early 90’s – Systems Biology (a holistic approach)

9 / 31

SLIDE 18

How can an algorithmic perspective contribute?

Systems biology Biology is lacking tools for dealing with large, complex and interactive systems. Early 90’s – Systems Biology (a holistic approach) Mathematics tools: differential equations.

9 / 31

SLIDE 19

How can an algorithmic perspective contribute?

Systems biology Biology is lacking tools for dealing with large, complex and interactive systems. Early 90’s – Systems Biology (a holistic approach) Mathematics tools: differential equations. Distributed computing: closer to mainstream CS than to physics.

9 / 31

SLIDE 20

How can an algorithmic perspective contribute?

Systems biology Biology is lacking tools for dealing with large, complex and interactive systems. Early 90’s – Systems Biology (a holistic approach) Mathematics tools: differential equations. Distributed computing: closer to mainstream CS than to physics.

How can a distributed algorithmic perspective contribute to biology?

9 / 31

SLIDE 21

How can an algorithmic perspective contribute?

The big challenge: reduce the parameter space

10 / 31

SLIDE 22

How can an algorithmic perspective contribute?

The big challenge: reduce the parameter space In physics: rules of nature Obtain equation (or connection) between parameters. E.g., E = MC2, ∆U = Q + W, σx · σp ≥ , etc.

10 / 31

SLIDE 23

How can an algorithmic perspective contribute?

The big challenge: reduce the parameter space In physics: rules of nature Obtain equation (or connection) between parameters. E.g., E = MC2, ∆U = Q + W, σx · σp ≥ , etc. What about biology? 1st solution: borrow connections from physics. 2nd solution: ignore seemingly negligable parameters.

10 / 31

SLIDE 24

How can an algorithmic perspective contribute?

The big challenge: reduce the parameter space In physics: rules of nature Obtain equation (or connection) between parameters. E.g., E = MC2, ∆U = Q + W, σx · σp ≥ , etc. What about biology? 1st solution: borrow connections from physics. 2nd solution: ignore seemingly negligable parameters. We propose: obtain connections between parameters using an algorithmic approach. Tradeoffs: use lower bounds from CS to show that, e.g., any algorithm that runs in time T must use x amount of resources (x > f(T)).

10 / 31

SLIDE 25

A novel scientific framework

Outline

1

Scientific frameworks

2

How can an algorithmic perspective contribute?

3

A novel scientific framework

4

Searching for a nearby treasure

5

Information lower bounds for probabilistic search (DISC 2012)

6

Conclusions

11 / 31

SLIDE 26

A novel scientific framework

Connecting parameters using an algorithmic perspective

Algorithmic ¡tradeoff ¡ ¡

Time ¡vs. ¡Informa4on ¡capacity ¡

Measurements ¡ ¡

Time ¡

Lower ¡bound ¡on ¡

Informa4on ¡capacity ¡ Ants ¡ Food ¡

12 / 31

SLIDE 27

A novel scientific framework

Remarks: simplified experimental verifications

Algorithmic ¡tradeoff ¡ ¡ Measurements ¡ ¡ Biological ¡bound ¡

Se7ng ¡

¡Simple ¡
¡Realis+c ¡

100% ¡correct ¡ ¡ Requires ¡ verifica+on ¡

Tradeoffs are invariant of the algorithm =

⇒ Instead of verifying setting+algorithm, only need to verify the setting!

13 / 31

SLIDE 28

A novel scientific framework

A proof of concept This talk Introduce the model (semi-realistic) Discuss the theoretical tradeoffs Experimental part: on-going

14 / 31

SLIDE 29

A novel scientific framework

A proof of concept This talk Introduce the model (semi-realistic) Discuss the theoretical tradeoffs Experimental part: on-going Remark The work is not complete. This presentation is a proof of concept

14 / 31

SLIDE 30

Searching for a nearby treasure

Outline

1

Scientific frameworks

2

How can an algorithmic perspective contribute?

3

A novel scientific framework

4

Searching for a nearby treasure

5

Information lower bounds for probabilistic search (DISC 2012)

6

Conclusions

15 / 31

SLIDE 31

Searching for a nearby treasure

Inspiration: the Cataglyphis niger and Honey bee The Cataglyphis niger:

16 / 31

SLIDE 32

Searching for a nearby treasure

Inspiration: the Cataglyphis niger and Honey bee The Cataglyphis niger: Desert ant– does not leave traces, more individual

16 / 31

SLIDE 33

Searching for a nearby treasure

Inspiration: the Cataglyphis niger and Honey bee The Cataglyphis niger: Desert ant– does not leave traces, more individual Relatively smart– big brain, good navigation abilities

16 / 31

SLIDE 34

Searching for a nearby treasure

Good distance and location estimations [Wehner et al.]

17 / 31

SLIDE 35

Searching for a nearby treasure

Goal: find nearby treasures fast Reasons for proximity Increasing the rate of food collection in case a large quantity of food is found [Orians and Pearson, 1979], Decreasing predation risk [Krebs, 1980], The ease of navigating back after collecting the food using familiar landmarks [Collett et al., 1992], etc.

18 / 31

SLIDE 36

Searching for a nearby treasure

Central place foraging

Goal: find nearby treasures fast (biologically motivated) No communication once out of the nest Grid network: the visual radius determines the grid resolution Fact: The expected running time is Ω(D + D2/k)

19 / 31

SLIDE 37

Searching for a nearby treasure

Searching with one ant (k = 1) An optimal algorithm Perform a spiral search from the nest (takes O(D2) time).

20 / 31

SLIDE 38

Searching for a nearby treasure

Searching with one ant (k = 1) An optimal algorithm Perform a spiral search from the nest (takes O(D2) time). Random walk is not efficient Expected time to visit any given node is ∞. Even in a bounded region– scales badly with # agents.

20 / 31

SLIDE 39

Searching for a nearby treasure

Optimal algorithm (PODC 2012) [Feinerman, Korman, Lotker, Sereni] Lemma There exists an algorithm running in time O(D + D2/k)

2i ti

= 22i+2/k

21 / 31

SLIDE 40

Searching for a nearby treasure

Optimal algorithm (PODC 2012) [Feinerman, Korman, Lotker, Sereni] Lemma There exists an algorithm running in time O(D + D2/k)

2i ti

= 22i+2/k

Observe: algorithm assumes that agents know k. Is it really necessary to know k? How much initial information is necessary?

21 / 31

SLIDE 41

Information lower bounds for probabilistic search (DISC 2012)

Outline

1

Scientific frameworks

2

How can an algorithmic perspective contribute?

3

A novel scientific framework

4

Searching for a nearby treasure

5

Information lower bounds for probabilistic search (DISC 2012)

6

Conclusions

22 / 31

SLIDE 42

Information lower bounds for probabilistic search (DISC 2012)

What is the amount of information that agents need initially? The oracle (modelling the pre-processing stage inside the nest)

Being extremely liberal: oracle is a probabilistic centralized algorithm. Input: k agents Output: An advice Ai for each agent a.

4" 3" 4" 7"

?

3" 6" 23 / 31

SLIDE 43

Information lower bounds for probabilistic search (DISC 2012)

Information theoretic approach Advice complexity Given k agents, the advice complexity f(k) is the maximum #bits used for representing the advice of an agent

24 / 31

SLIDE 44

Information lower bounds for probabilistic search (DISC 2012)

Information theoretic approach Advice complexity Given k agents, the advice complexity f(k) is the maximum #bits used for representing the advice of an agent State complexity Note, a lower bound f on the advice complexity implies a lower bound of 2f on the # of possible advices (states) when coming out of the nest

24 / 31

SLIDE 45

Information lower bounds for probabilistic search (DISC 2012)

Main theorem [Feinerman and Korman, DISC 2012] Theorem For every 0 < ǫ ≤ 1, if the search time is O(log1−ǫ k · (D + D2/k)) then the advice complexity is ǫ log log k − O(1)

25 / 31

SLIDE 46

Information lower bounds for probabilistic search (DISC 2012)

Main theorem [Feinerman and Korman, DISC 2012] Theorem For every 0 < ǫ ≤ 1, if the search time is O(log1−ǫ k · (D + D2/k)) then the advice complexity is ǫ log log k − O(1) Corollary If time is T = O(log1−ǫ k · (D + D2/k)) then number of states when coming out of the nest is S = Ω(logǫ k)

25 / 31

SLIDE 47

Information lower bounds for probabilistic search (DISC 2012)

Main theorem [Feinerman and Korman, DISC 2012] Theorem For every 0 < ǫ ≤ 1, if the search time is O(log1−ǫ k · (D + D2/k)) then the advice complexity is ǫ log log k − O(1) Corollary If time is T = O(log1−ǫ k · (D + D2/k)) then number of states when coming out of the nest is S = Ω(logǫ k) Remarks Results are asymptotically tight Hidden constants are small

25 / 31

SLIDE 48

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (for a weaker version of the lower bound (appeared in PODC 2012) Lemma If running time is o(log k · (D + D2/k)) then advice > 0.

26 / 31

SLIDE 49

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (for a weaker version of the lower bound (appeared in PODC 2012) Lemma If running time is o(log k · (D + D2/k)) then advice > 0. Proof

Assume all agents start with the same advice regardless of k

26 / 31

SLIDE 50

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (for a weaker version of the lower bound (appeared in PODC 2012) Lemma If running time is o(log k · (D + D2/k)) then advice > 0. Proof

Assume all agents start with the same advice regardless of k Assume running in time is (D + D2

k ) · φ(k) (and φ(·) is non-decreasing)

I.e., the expected time to visit u is Tu ≤ (d(u, s) + d(u,s)2

k

) · φ(k)

26 / 31

SLIDE 51

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (for a weaker version of the lower bound (appeared in PODC 2012) Lemma If running time is o(log k · (D + D2/k)) then advice > 0. Proof

Assume all agents start with the same advice regardless of k Assume running in time is (D + D2

k ) · φ(k) (and φ(·) is non-decreasing)

I.e., the expected time to visit u is Tu ≤ (d(u, s) + d(u,s)2

k

) · φ(k) Fix W (upper bound on # agents)

26 / 31

SLIDE 52

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (for a weaker version of the lower bound (appeared in PODC 2012) Lemma If running time is o(log k · (D + D2/k)) then advice > 0. Proof

Assume all agents start with the same advice regardless of k Assume running in time is (D + D2

k ) · φ(k) (and φ(·) is non-decreasing)

I.e., the expected time to visit u is Tu ≤ (d(u, s) + d(u,s)2

k

) · φ(k) Fix W (upper bound on # agents) Structure of proof: we show that by time T = 2W · φ(W), an agent is expected to visit many nodes: ≈ W · log(W). Since she can visit at most 1 node in 1 time unit, we cannot have φ(W) = o(log W).

26 / 31

SLIDE 53

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (cont.)

√W

S1

Si

ki =22i |Si|=W∙ki

√W∙2i

Fix i = 1, 2, · · · , log W

2

− 1, and consider Si := {u | √ W · 2i−1 < d(u, s) ≤ √ W · 2i}. Note, |Si| ≈ W · 22i

27 / 31

SLIDE 54

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (cont.)

√W

S1

Si

ki =22i |Si|=W∙ki

√W∙2i

Fix i = 1, 2, · · · , log W

2

− 1, and consider Si := {u | √ W · 2i−1 < d(u, s) ≤ √ W · 2i}. Note, |Si| ≈ W · 22i Assume now that ki = 22i. So, |Si| ≈ W · ki. Note that ki < W.

27 / 31

SLIDE 55

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (cont.)

√W

S1

Si

ki =22i |Si|=W∙ki

√W∙2i

Fix i = 1, 2, · · · , log W

2

− 1, and consider Si := {u | √ W · 2i−1 < d(u, s) ≤ √ W · 2i}. Note, |Si| ≈ W · 22i Assume now that ki = 22i. So, |Si| ≈ W · ki. Note that ki < W. Moreover, ki = 2i+1 · 2i−1 ≤ √ W · 2i−1. I.e., ki ≤ d(u, s), ∀u ∈ Si.

27 / 31

SLIDE 56

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (cont.)

√W

S1

Si

ki =22i |Si|=W∙ki

√W∙2i

Fix i = 1, 2, · · · , log W

2

− 1, and consider Si := {u | √ W · 2i−1 < d(u, s) ≤ √ W · 2i}. Note, |Si| ≈ W · 22i Assume now that ki = 22i. So, |Si| ≈ W · ki. Note that ki < W. Moreover, ki = 2i+1 · 2i−1 ≤ √ W · 2i−1. I.e., ki ≤ d(u, s), ∀u ∈ Si. Therefore, Tu ≤ (d(u, s) + d(u,s)2

ki

) · φ(ki) ≤ 2 · d(u,s)2

ki

· φ(ki) < 2W · φ(W) = T.

27 / 31

SLIDE 57

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (cont.) So, probability of visiting u ∈ Si by time 2T is at least 1/2.

28 / 31

SLIDE 58

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (cont.) So, probability of visiting u ∈ Si by time 2T is at least 1/2. Thus, the expected number of nodes in Si that all agents visit by time 2T is roughly |Si| ≈ W · ki. Hence, the expected number of nodes in Si that one agent visits by time 2T is |Si|/ki ≈ W.

28 / 31

SLIDE 59

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (cont.) So, probability of visiting u ∈ Si by time 2T is at least 1/2. Thus, the expected number of nodes in Si that all agents visit by time 2T is roughly |Si| ≈ W · ki. Hence, the expected number of nodes in Si that one agent visits by time 2T is |Si|/ki ≈ W. Observe, this holds ∀i ∈ [1, log W

2

).

28 / 31

SLIDE 60

Information lower bounds for probabilistic search (DISC 2012)

Simplified proof (cont.) So, probability of visiting u ∈ Si by time 2T is at least 1/2. Thus, the expected number of nodes in Si that all agents visit by time 2T is roughly |Si| ≈ W · ki. Hence, the expected number of nodes in Si that one agent visits by time 2T is |Si|/ki ≈ W. Observe, this holds ∀i ∈ [1, log W

2

). Hence, the expected number of nodes that a single agent visits by time 2T is ≈ W · log W. As T ≈ W · φ(W), this implies that we cannot have φ(W) = o(log W).

28 / 31

SLIDE 61

Information lower bounds for probabilistic search (DISC 2012)

A novel scientific framework? Combine the theoretical lower bound with an experiment on living ants

29 / 31

SLIDE 62

Information lower bounds for probabilistic search (DISC 2012)

A novel scientific framework? Combine the theoretical lower bound with an experiment on living ants

1

Measure the search time - approximate T as a function of k and D (relatively easy)

29 / 31

SLIDE 63

Information lower bounds for probabilistic search (DISC 2012)

A novel scientific framework? Combine the theoretical lower bound with an experiment on living ants

1

Measure the search time - approximate T as a function of k and D (relatively easy)

2

If the search time T < log1−ǫ k · (D + D2/k) then the number of states of ants when coming out of the nest is Ω(logǫ k)

29 / 31

SLIDE 64

Conclusions

Outline

1

Scientific frameworks

2

How can an algorithmic perspective contribute?

3

A novel scientific framework

4

Searching for a nearby treasure

5

Information lower bounds for probabilistic search (DISC 2012)

6

Conclusions

30 / 31

SLIDE 65

Conclusions

Conclusions and future work This work is a proof of concept for a novel scientific framework

31 / 31

SLIDE 66

Conclusions

Conclusions and future work This work is a proof of concept for a novel scientific framework To fully illustrate it there is a need for experimental work. This will undoubtedly require some tuning in model and theoretical results

31 / 31

SLIDE 67

Conclusions

Conclusions and future work This work is a proof of concept for a novel scientific framework To fully illustrate it there is a need for experimental work. This will undoubtedly require some tuning in model and theoretical results The framework can be applied to other biological contexts. What about bacteria? tradeoffs between efficiency and communication?

31 / 31

SLIDE 68

Conclusions

Conclusions and future work This work is a proof of concept for a novel scientific framework To fully illustrate it there is a need for experimental work. This will undoubtedly require some tuning in model and theoretical results The framework can be applied to other biological contexts. What about bacteria? tradeoffs between efficiency and communication?

Thanks!

31 / 31
