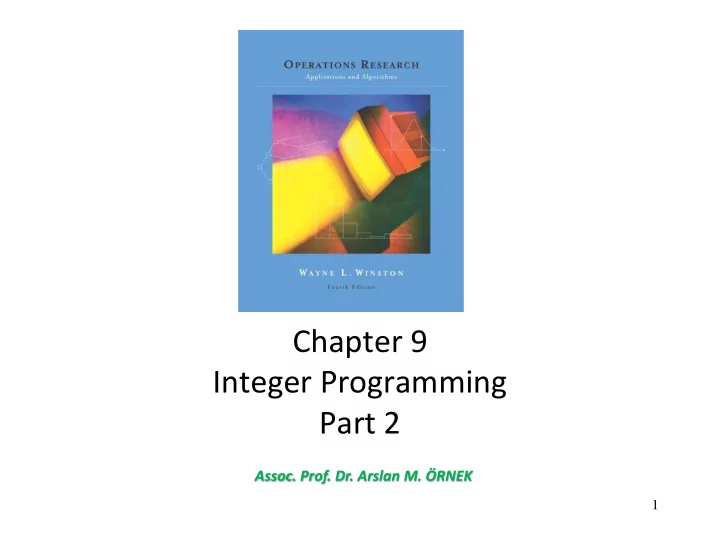

Chapter 9 Integer Programming Part 2

• Assoc. Prof. Dr. Arslan M. ÖRNEK

1

2

9.3. Branch-and-Bound Method (Pure IP)

• Branch-and-Bound methods find the optimal solution to an IP by

efficiently enumerating the points in a subproblem’s feasible region.

• IMPORTANT OBSERVATION: If you solve the LP relaxation of a

pure IP and obtain a solution in which all variables are integers, then the optimal solution to the LP relaxation is also the optimal solution to the IP.

3

9.3. Branch-and-Bound Method (Pure IP)

• The Telfa Corporation manufactures tables and chairs.
• A table requires 1 hour of labor and 9 square board feet of wood,

and a chair requires 1 hour of labor and 5 square board feet of wood.

• Currently, 6 hours of labor and 45 square board feet of wood are

available.

• Each table contributes $8 to profit, and each chair contributes $5

to profit.

• Formulate and solve an IP to maximize Telfa’s profit.

4

9.3. Branch-and-Bound Method (Pure IP)

5

9.3. Branch-and-Bound Method (Pure IP)

Upper bound

6

9.3. Branch-and-Bound Method (Pure IP)

• Chose any variable that is

fractional at the moment.

• Let’s chose x1:
• At the optimal solution it

can be either <=3 or >=4.

• We partition the solution

space by branching on this variable.

• Two new subproblems:

7

9.3. Branch-and-Bound Method (Pure IP)

• Chose a subproblem to solve

(arbitrarily):

• Subproblem 2 LP relaxation:

8

9.3. Branch-and-Bound Method (Pure IP)

A node of the branch and bound tree An arc of the branch and bound tree Solution not integer, branch

• n x2

9

9.3. Branch-and-Bound Method (Pure IP)

Chose this node to solve (LIFO): Infeasible – Fathomed. Then, chose this node

10

9.3. Branch-and-Bound Method (Pure IP)

Upper bound Subproblem 5:

11

9.3. Branch-and- Bound Method (Pure IP)

12

9.3. Branch-and- Bound Method (Pure IP)

Lower bound on the original IP: Incumbent Solution

13

9.3. Branch-and- Bound Method (Pure IP)

NEW Lower bound

• n the original IP

New Incumbent Solution

14

9.3. Branch-and-Bound Method (Pure IP)

• Only remaining subproblem:
• Subproblem 3: Solve LP relaxation:

This is smaller than the current LB , so fathom.

15

9.3. Branch-and- Bound Method (Pure IP)

Incumbent Solution = Best LB = Optimal Solution

16

9.3. Branch-and-Bound Method (Pure IP)

17

9.4. Branch-and-Bound Method (Mixed IP)

• In a mixed IP, some variables are required to be integers and
• thers are allowed to be either integers or nonintegers.
• Branch only on variables that are required to be integers.

Optimal solution of the LP-relaxation:

Branch-and-Bound Method (Binary Prog.)

18

Prototype Example: Bounding

19

Prototype Example: Bounding

20

Prototype Example: Fathoming

• A subproblem can be fathomed in three ways:
• 1. LP relaxation of the subproblem gives an integer

solution, so we do not need to branch further, the subproblem is solved optimally.

21

Prototype Example: Fathoming

• A subproblem can be fathomed in three ways:
• 2. A subproblem is fathomed if its bound ≤ incumbent soln.
• Ex. Since Z*=9, there is no need to consider any solution

whose bound is below 9.

22

Prototype Example: Fathoming

• A subproblem can be fathomed in three ways:
• 3. If a subproblem’s LP relaxation has no feasible solution,

then the subproblem itself must have no feasible solutions, so it can be dismissed (fathomed).

23

Prototype Example continued – Iteration 2

24

Prototype Example continued – Iteration 2

Cannot fathom. Cannot fathom.

25

Prototype Example continued – Iteration 2

Resulting solution tree after iteration 2:

26

Prototype Example continued- Iteration 3

27

Prototype Example continued – Iteration 3

Resulting solution tree after iteration 3:

28

Prototype Example continued- Iteration 4

New incumbent!

29

Prototype Example continued – Iteration 3

Resulting solution tree after iteration 4 (final):

30

B&B for Minimization Problems
