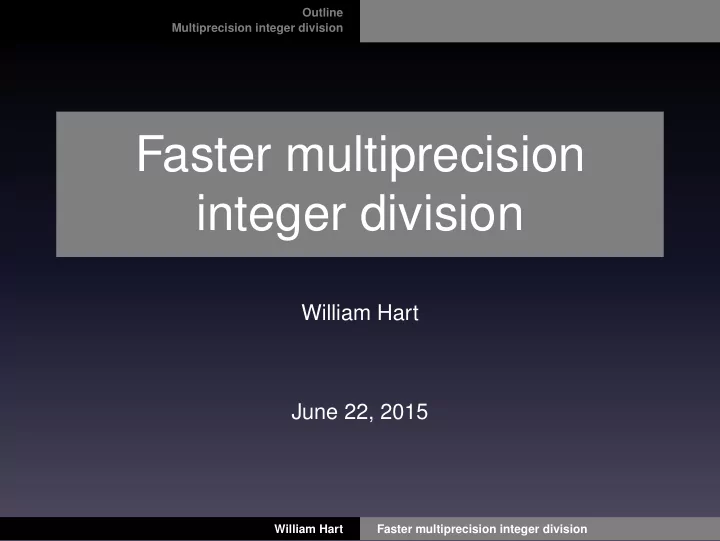

SLIDE 1

Outline Multiprecision integer division

Faster multiprecision integer division

William Hart June 22, 2015

William Hart Faster multiprecision integer division

SLIDE 2

Outline Multiprecision integer division

Multiprecision integer division

William Hart Faster multiprecision integer division

SLIDE 3

Outline Multiprecision integer division

Multiprecision integer division

Given:
A =< am−1, am−2, am−3, . . . , a1, a0 >
D =< dn−1, . . . , d1, d0 >

William Hart Faster multiprecision integer division

SLIDE 4

Outline Multiprecision integer division

Multiprecision integer division

Given:
A =< am−1, am−2, am−3, . . . , a1, a0 >
D =< dn−1, . . . , d1, d0 >
Compute:
Approximate quotient Q⋆

William Hart Faster multiprecision integer division

SLIDE 5

Outline Multiprecision integer division

Multiprecision integer division

Given:
A =< am−1, am−2, am−3, . . . , a1, a0 >
D =< dn−1, . . . , d1, d0 >
Compute:
Approximate quotient Q⋆
Exact quotient Q

William Hart Faster multiprecision integer division

SLIDE 6

Outline Multiprecision integer division

Multiprecision integer division

Given:
A =< am−1, am−2, am−3, . . . , a1, a0 >
D =< dn−1, . . . , d1, d0 >
Compute:
Approximate quotient Q⋆
Exact quotient Q
Quotient Q and remainder R

William Hart Faster multiprecision integer division

SLIDE 7

Outline Multiprecision integer division

Machine primitive

Machine does 2 × 1 division

William Hart Faster multiprecision integer division

SLIDE 8

Outline Multiprecision integer division

Machine primitive

Machine does 2 × 1 division
< u1, u0 > by < v0 >, quotient and remainder both 1 limb

William Hart Faster multiprecision integer division

SLIDE 9

Outline Multiprecision integer division

Machine primitive

Machine does 2 × 1 division
< u1, u0 > by < v0 >, quotient and remainder both 1 limb
Require v0 normalised

William Hart Faster multiprecision integer division

SLIDE 10

Outline Multiprecision integer division

Machine primitive

Machine does 2 × 1 division
< u1, u0 > by < v0 >, quotient and remainder both 1 limb
Require v0 normalised
If B = 232 or 264 then B < v0 ≤ B/2

William Hart Faster multiprecision integer division

SLIDE 11

Outline Multiprecision integer division

Machine primitive

Machine does 2 × 1 division
< u1, u0 > by < v0 >, quotient and remainder both 1 limb
Require v0 normalised
If B = 232 or 264 then B < v0 ≤ B/2
Also require u1 < v0

William Hart Faster multiprecision integer division

SLIDE 12

Outline Multiprecision integer division

Schoolbook algorithm

Shift A and D left so that D is normalised

William Hart Faster multiprecision integer division

SLIDE 13

Outline Multiprecision integer division

Schoolbook algorithm

Shift A and D left so that D is normalised
Ensure top n limbs of A are less than D

William Hart Faster multiprecision integer division

SLIDE 14

Outline Multiprecision integer division

Schoolbook algorithm

Shift A and D left so that D is normalised
Ensure top n limbs of A are less than D
i ← m − n + 1
while i ≥ 0
qi ← quotient of < an+i, an+i−1 > by < dn−1 >
A ← A − qiDBi
i ← i − 1

William Hart Faster multiprecision integer division

SLIDE 15

Outline Multiprecision integer division

Schoolbook algorithm

Shift A and D left so that D is normalised
Ensure top n limbs of A are less than D
i ← m − n + 1
while i ≥ 0
qi ← quotient of < an+i, an+i−1 > by < dn−1 >
A ← A − qiDBi
i ← i − 1
Shift remainder right

William Hart Faster multiprecision integer division

SLIDE 16

Outline Multiprecision integer division

Problems

May have < an+i, an+i−1 > ≥ dn−1B

William Hart Faster multiprecision integer division

SLIDE 17

Outline Multiprecision integer division

Problems

May have < an+i, an+i−1 > ≥ dn−1B
qiD may be too large

William Hart Faster multiprecision integer division

SLIDE 18

Outline Multiprecision integer division

Problems

May have < an+i, an+i−1 > ≥ dn−1B
qiD may be too large
Need tests and adjustments for both cases

William Hart Faster multiprecision integer division

SLIDE 19

Outline Multiprecision integer division

Standard improvement No. 1

Multiply by precomputed inverse ν of dn−1 instead of

division

William Hart Faster multiprecision integer division

SLIDE 20

Outline Multiprecision integer division

Standard improvement No. 1

Multiply by precomputed inverse ν of dn−1 instead of

division

1986 Barret used B2n/d

William Hart Faster multiprecision integer division

SLIDE 21

Outline Multiprecision integer division

Standard improvement No. 1

Multiply by precomputed inverse ν of dn−1 instead of

division

1986 Barret used B2n/d
1986 Beame, Cook, Hoover suggested using an under

approximation of the inverse

William Hart Faster multiprecision integer division

SLIDE 22

Outline Multiprecision integer division

Standard improvement No. 1

Multiply by precomputed inverse ν of dn−1 instead of

division

1986 Barret used B2n/d
1986 Beame, Cook, Hoover suggested using an under

approximation of the inverse

1951 Wallace, diode transistor circuits

William Hart Faster multiprecision integer division

SLIDE 23

Outline Multiprecision integer division

Standard improvement No. 1

Multiply by precomputed inverse ν of dn−1 instead of

division

1986 Barret used B2n/d
1986 Beame, Cook, Hoover suggested using an under

approximation of the inverse

1951 Wallace, diode transistor circuits
2000 BC, Babylonian “Clay tablet” PC’s

William Hart Faster multiprecision integer division

SLIDE 24

Outline Multiprecision integer division

Precomputed inverses

1994, Granlund, Montgomery suggested

ν = ⌊(B2 − 1)/dn−1⌋ − B

William Hart Faster multiprecision integer division

SLIDE 25

Outline Multiprecision integer division

Precomputed inverses

1994, Granlund, Montgomery suggested

ν = ⌊(B2 − 1)/dn−1⌋ − B

One mulhigh, one mul

William Hart Faster multiprecision integer division

SLIDE 26

Outline Multiprecision integer division

Precomputed inverses

1994, Granlund, Montgomery suggested

ν = ⌊(B2 − 1)/dn−1⌋ − B

One mulhigh, one mul
At most 3 correction steps for 2 × 1 division

William Hart Faster multiprecision integer division

SLIDE 27

Outline Multiprecision integer division

Precomputed inverses

1994, Granlund, Montgomery suggested

ν = ⌊(B2 − 1)/dn−1⌋ − B

One mulhigh, one mul
At most 3 correction steps for 2 × 1 division

Additional problem:

Quotient limb may now be too small or too large!!

William Hart Faster multiprecision integer division

SLIDE 28

Outline Multiprecision integer division

M¨

ller-Granlund (2011)
Same precomputed inverse

William Hart Faster multiprecision integer division

SLIDE 29

Outline Multiprecision integer division

M¨

ller-Granlund (2011)
Same precomputed inverse
Algorithm improved to one mul, one mullow

William Hart Faster multiprecision integer division

SLIDE 30

Outline Multiprecision integer division

M¨

ller-Granlund (2011)
Same precomputed inverse
Algorithm improved to one mul, one mullow
One correction with unpredicted branch

William Hart Faster multiprecision integer division

SLIDE 31

Outline Multiprecision integer division

M¨

ller-Granlund (2011)
Same precomputed inverse
Algorithm improved to one mul, one mullow
One correction with unpredicted branch
One very unlikely correction

William Hart Faster multiprecision integer division

SLIDE 32

Outline Multiprecision integer division

Improvement No. 2

Problem : multiprecision corrections very expensive

William Hart Faster multiprecision integer division

SLIDE 33

Outline Multiprecision integer division

Improvement No. 2

Problem : multiprecision corrections very expensive

Idea : use 3 × 2 divisions to reduce probability of

MP-correction

William Hart Faster multiprecision integer division

SLIDE 34

Outline Multiprecision integer division

Improvement No. 2

Problem : multiprecision corrections very expensive

Idea : use 3 × 2 divisions to reduce probability of

MP-correction

M¨
ller-Granlund give 3 × 2 version of their algorithm

William Hart Faster multiprecision integer division

SLIDE 35

Outline Multiprecision integer division

Our precomputed inverse

Use ν = ⌊B2/(dn−1 + 1)⌋ − B

William Hart Faster multiprecision integer division

SLIDE 36

Outline Multiprecision integer division

Our precomputed inverse

Use ν = ⌊B2/(dn−1 + 1)⌋ − B
Because we used dn−1 + 1, quotient is never too large

William Hart Faster multiprecision integer division

SLIDE 37

Outline Multiprecision integer division

Our precomputed inverse

Use ν = ⌊B2/(dn−1 + 1)⌋ − B
Because we used dn−1 + 1, quotient is never too large
Approximate quotient can be done with no corrections

William Hart Faster multiprecision integer division

SLIDE 38

Outline Multiprecision integer division

Our precomputed inverse

Use ν = ⌊B2/(dn−1 + 1)⌋ − B
Because we used dn−1 + 1, quotient is never too large
Approximate quotient can be done with no corrections
3 × 2 divapprox possible with this precomputed inverse

William Hart Faster multiprecision integer division

SLIDE 39

Outline Multiprecision integer division

Our precomputed inverse

Use ν = ⌊B2/(dn−1 + 1)⌋ − B
Because we used dn−1 + 1, quotient is never too large
Approximate quotient can be done with no corrections
3 × 2 divapprox possible with this precomputed inverse
Multiprecision corrections rare, always in same direction

William Hart Faster multiprecision integer division

SLIDE 40

Outline Multiprecision integer division

Our precomputed inverse

Use ν = ⌊B2/(dn−1 + 1)⌋ − B
Because we used dn−1 + 1, quotient is never too large
Approximate quotient can be done with no corrections
3 × 2 divapprox possible with this precomputed inverse
Multiprecision corrections rare, always in same direction
Moreover, MP corrections in same direction as 3 × 2

corrections

William Hart Faster multiprecision integer division

SLIDE 41

Outline Multiprecision integer division

Timings (MP divappr)

limbs GMP 6.0.0a Our code 3 6.7e − 8s 5.7e − 8s 4 8.8e − 8s 7.5e − 8s 6 1.36e − 7s 1.17e − 7s 7 1.85e − 7s 1.41e − 7s 9 2.27e − 7s 1.89e − 7s 11 2.98e − 7s 2.38e − 7s 15 4.35e − 7s 3.64e − 7s 19 6.07e − 7s 4.89e − 7s 21 7.05e − 7s 5.96e − 7s 27 1.05e − 6s 8.7e − 7s 33 1.45e − 6s 1.2e − 6s 37 1.72e − 6s 1.48e − 6s

William Hart Faster multiprecision integer division

SLIDE 42

Outline Multiprecision integer division

Problem

3 × 2 divapprox good for small MP divisions

William Hart Faster multiprecision integer division

SLIDE 43

Outline Multiprecision integer division

Problem

3 × 2 divapprox good for small MP divisions
... but MP corrections eventually become significant

William Hart Faster multiprecision integer division

SLIDE 44

Outline Multiprecision integer division

Problem

3 × 2 divapprox good for small MP divisions
... but MP corrections eventually become significant
Need 3 × 2 division with exact quotient and remainder

William Hart Faster multiprecision integer division

SLIDE 45

Outline Multiprecision integer division

Problem

3 × 2 divapprox good for small MP divisions
... but MP corrections eventually become significant
Need 3 × 2 division with exact quotient and remainder
Idea : divide by dn−1 + 1 first, then adjust

William Hart Faster multiprecision integer division

SLIDE 46

Outline Multiprecision integer division

Problem

3 × 2 divapprox good for small MP divisions
... but MP corrections eventually become significant
Need 3 × 2 division with exact quotient and remainder
Idea : divide by dn−1 + 1 first, then adjust
Yields 3 × 2 divrem with same precomputed inverse

William Hart Faster multiprecision integer division

SLIDE 47

Outline Multiprecision integer division

Problem

3 × 2 divapprox good for small MP divisions
... but MP corrections eventually become significant
Need 3 × 2 division with exact quotient and remainder
Idea : divide by dn−1 + 1 first, then adjust
Yields 3 × 2 divrem with same precomputed inverse
One correction with unpredicted branch, one unlikely

correction

William Hart Faster multiprecision integer division

SLIDE 48

Outline Multiprecision integer division

Problem

3 × 2 divapprox good for small MP divisions
... but MP corrections eventually become significant
Need 3 × 2 division with exact quotient and remainder
Idea : divide by dn−1 + 1 first, then adjust
Yields 3 × 2 divrem with same precomputed inverse
One correction with unpredicted branch, one unlikely

correction

One additional 2 limb subtraction over M¨
ller-Granlund

William Hart Faster multiprecision integer division

SLIDE 49

Outline Multiprecision integer division

Problem

3 × 2 divapprox good for small MP divisions
... but MP corrections eventually become significant
Need 3 × 2 division with exact quotient and remainder
Idea : divide by dn−1 + 1 first, then adjust
Yields 3 × 2 divrem with same precomputed inverse
One correction with unpredicted branch, one unlikely

correction

One additional 2 limb subtraction over M¨
ller-Granlund
No real time difference to M¨
ller-Granlund for MP division

William Hart Faster multiprecision integer division

SLIDE 50

Outline Multiprecision integer division

Improvement 3: divapprox

Given:
A =< am−1, am−2, am−3, . . . , a1, a0 >
D =< dn−1, . . . , d1, d0 >

William Hart Faster multiprecision integer division

SLIDE 51

Outline Multiprecision integer division

Improvement 3: divapprox

Given:
A =< am−1, am−2, am−3, . . . , a1, a0 >
D =< dn−1, . . . , d1, d0 >

Let s ← m − n + 1

Compute:
Approx. quotient Q⋆ =< qs−1, . . . , q1, q0 >

William Hart Faster multiprecision integer division

SLIDE 52

Outline Multiprecision integer division

Improvement 3: divapprox

Given:
A =< am−1, am−2, am−3, . . . , a1, a0 >
D =< dn−1, . . . , d1, d0 >

Let s ← m − n + 1

Compute:
Approx. quotient Q⋆ =< qs−1, . . . , q1, q0 >
A ← A − n+s−2

i+j=n−2 qidjBn−3

William Hart Faster multiprecision integer division

SLIDE 53

Outline Multiprecision integer division

Improvement 3: divapprox

Given:
A =< am−1, am−2, am−3, . . . , a1, a0 >
D =< dn−1, . . . , d1, d0 >

Let s ← m − n + 1

Compute:
Approx. quotient Q⋆ =< qs−1, . . . , q1, q0 >
A ← A − n+s−2

i+j=n−2 qidjBn−3

Only affects top s + 2 limbs of A

William Hart Faster multiprecision integer division

SLIDE 54

Outline Multiprecision integer division

Exact MP quotient

Can compute exact quotient Q from divapprox (same cost)

William Hart Faster multiprecision integer division

SLIDE 55

Outline Multiprecision integer division

Exact MP quotient

Can compute exact quotient Q from divapprox (same cost)
Can compute remainder R from Q using mullo

William Hart Faster multiprecision integer division

SLIDE 56

Outline Multiprecision integer division

Exact MP quotient

Can compute exact quotient Q from divapprox (same cost)
Can compute remainder R from Q using mullo
Complexity same as schoolbook divrem
Can we compute integer divapprox in subquadratic time

William Hart Faster multiprecision integer division

SLIDE 57

Outline Multiprecision integer division

Middle product

2004, Hanrot, Quercia, Zimmermann

William Hart Faster multiprecision integer division

SLIDE 58

Outline Multiprecision integer division

Middle product

2004, Hanrot, Quercia, Zimmermann

William Hart Faster multiprecision integer division

SLIDE 59

Outline Multiprecision integer division

Middle product

2004, Hanrot, Quercia, Zimmermann

William Hart Faster multiprecision integer division

SLIDE 60

Outline Multiprecision integer division

Subquadratic divapprox

Q. Can we compute divapprox in subquadratic time?

William Hart Faster multiprecision integer division

SLIDE 61

Outline Multiprecision integer division

Subquadratic divapprox

Q. Can we compute divapprox in subquadratic time?
A. Yes. Relies on subquadratic integer mulmid

William Hart Faster multiprecision integer division

SLIDE 62

Outline Multiprecision integer division

Subquadratic divapprox

Q. Can we compute divapprox in subquadratic time?
A. Yes. Relies on subquadratic integer mulmid
(Harvey 2012) Karatsuba =

⇒ mulmid toom42 (Tellegen’s principle)

William Hart Faster multiprecision integer division

SLIDE 63

Outline Multiprecision integer division

Subquadratic divapprox

Q. Can we compute divapprox in subquadratic time?
A. Yes. Relies on subquadratic integer mulmid
(Harvey 2012) Karatsuba =

⇒ mulmid toom42 (Tellegen’s principle)

A =< am−1, am−2, am−3, . . . , a1, a0 >
B =< bn−2, . . . , b1, b0 >

William Hart Faster multiprecision integer division

SLIDE 64

Outline Multiprecision integer division

Subquadratic divapprox

Q. Can we compute divapprox in subquadratic time?
A. Yes. Relies on subquadratic integer mulmid
(Harvey 2012) Karatsuba =

⇒ mulmid toom42 (Tellegen’s principle)

A =< am−1, am−2, am−3, . . . , a1, a0 >
B =< bn−2, . . . , b1, b0 >
Mulmidm,n(A, B) =< ov1, ov0, pm−n, . . . , p1, p0 >=

m−1

i+j=n−1 aibjBi+j−n+1

William Hart Faster multiprecision integer division

SLIDE 65

Outline Multiprecision integer division

Subquadratic divapprox

Q. Can we compute divapprox in subquadratic time?
A. Yes. Relies on subquadratic integer mulmid
(Harvey 2012) Karatsuba =

⇒ mulmid toom42 (Tellegen’s principle)

A =< am−1, am−2, am−3, . . . , a1, a0 >
B =< bn−2, . . . , b1, b0 >
Mulmidm,n(A, B) =< ov1, ov0, pm−n, . . . , p1, p0 >=

m−1

i+j=n−1 aibjBi+j−n+1

Roughly : computes middle third of 2n × n product

William Hart Faster multiprecision integer division

SLIDE 66

Outline Multiprecision integer division

Divide-and-conquer divapprox

s ← m − n + 1

William Hart Faster multiprecision integer division

SLIDE 67

Outline Multiprecision integer division

Divide-and-conquer divapprox

s ← m − n + 1
sh = ⌊s/2⌋, sl = s − sh

William Hart Faster multiprecision integer division

SLIDE 68

Outline Multiprecision integer division

Divide-and-conquer divapprox

s ← m − n + 1
sh = ⌊s/2⌋, sl = s − sh
Recursively compute top sh limbs of Q⋆ using DC

divapprox

William Hart Faster multiprecision integer division

SLIDE 69

Outline Multiprecision integer division

Divide-and-conquer divapprox

s ← m − n + 1
sh = ⌊s/2⌋, sl = s − sh
Recursively compute top sh limbs of Q⋆ using DC

divapprox

– Affects only top sh + 2 limbs of A

William Hart Faster multiprecision integer division

SLIDE 70

Outline Multiprecision integer division

Divide-and-conquer divapprox

s ← m − n + 1
sh = ⌊s/2⌋, sl = s − sh
Recursively compute top sh limbs of Q⋆ using DC

divapprox

– Affects only top sh + 2 limbs of A
Subtract Mulmid(Q⋆, D) to adjust next sl limbs of A

William Hart Faster multiprecision integer division

SLIDE 71

Outline Multiprecision integer division

Divide-and-conquer divapprox

s ← m − n + 1
sh = ⌊s/2⌋, sl = s − sh
Recursively compute top sh limbs of Q⋆ using DC

divapprox

– Affects only top sh + 2 limbs of A
Subtract Mulmid(Q⋆, D) to adjust next sl limbs of A
– In total (sh + 2) + sl = s + 2 limbs of A affected

William Hart Faster multiprecision integer division

SLIDE 72

Outline Multiprecision integer division

Divide-and-conquer divapprox

s ← m − n + 1
sh = ⌊s/2⌋, sl = s − sh
Recursively compute top sh limbs of Q⋆ using DC

divapprox

– Affects only top sh + 2 limbs of A
Subtract Mulmid(Q⋆, D) to adjust next sl limbs of A
– In total (sh + 2) + sl = s + 2 limbs of A affected
Recursively compute low sl limbs of Q⋆ using DC

divapprox

William Hart Faster multiprecision integer division

SLIDE 73

Outline Multiprecision integer division

Problem

Algorithm occasionally returns incorrect result!!

William Hart Faster multiprecision integer division

SLIDE 74

Outline Multiprecision integer division

Problem

Algorithm occasionally returns incorrect result!!
Carries can cause each limb of quotient to be wrong

William Hart Faster multiprecision integer division

SLIDE 75

Outline Multiprecision integer division

Problem

Algorithm occasionally returns incorrect result!!
Carries can cause each limb of quotient to be wrong
Due to massive cancellation of correction terms, there is a

linear time fixup to yield correct base B arithmetic

William Hart Faster multiprecision integer division

SLIDE 76

Outline Multiprecision integer division

Timings (MP divappr)

William Hart Faster multiprecision integer division

SLIDE 77

Outline Multiprecision integer division

Thank You

Thank You!

William Hart Faster multiprecision integer division
