[PPT] - Ink detachment, fragmentation and alkali darkening during pulping PowerPoint Presentation

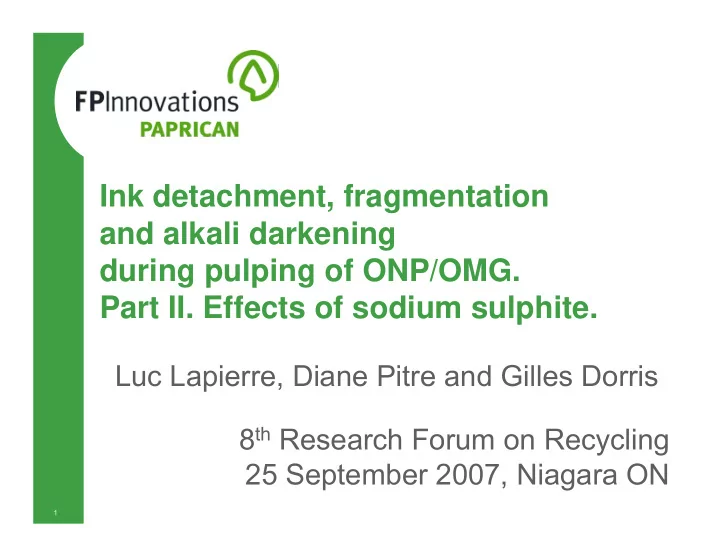

SLIDE 1

1

Ink detachment, fragmentation and alkali darkening during pulping of ONP/OMG. Part II. Effects of sodium sulphite.

Luc Lapierre, Diane Pitre and Gilles Dorris 8th Research Forum on Recycling 25 September 2007, Niagara ON

SLIDE 2

2

During repulping of ONP:OMG, high pH in the pulper increases the…

darkening of mechanical fibres

– Requires peroxide and sodium silicate to counteract

Increases cost of deinking (5-15 $/T)
fragmentation of large stickies

– Removal by screens is less efficient

release of COD
sensitivity to flexo-printed papers

– Water-based inks become more dispersed – More prone to irreversible deposition in lumen

acid addition before paper machine (neutralization)

SLIDE 3

3

Lowering the pH in the pulper can lead to many advantages

How to transition from

alkaline to neutral chemistry ?

SLIDE 4

4

Replacing (sodium hydroxide + peroxide) by sodium sulphite

Alkaline pulping (pH 10-10.5):

0.8% NaOH (varies seasonally)

– Deflaking, ink dislodging – Alkaline darkening

1.1% H2O2 (varies seasonally)

– Bleaching

1.8% Silicate

– Slow down peroxide decomposition

0.2% surfactant blend

Neutral pulping (pH 7-8):

1-2% sulphite (varies seasonally)

– Bleaching

0.5-2% Silicate

– Reduces ink fragmentation / increases ink agglomeration – Reduces bound ink

Proprietary additive(s)

SLIDE 5

5

Isolate effect of sulphite is not straightforward

Aqueous sulphite solution is alkaline

– Difficult to differentiate effect of pH from Sulphite

pH varies with pulping time

– Initial pH ? – Final pH ?

Solution: pulping in buffered solutions

– Fixed Ca concentration – No surfactant – No bleaching agent

SLIDE 6

6

Experimental : Buffers

7.4 , 8.0, 9.4 and 11.0
When adding ONP:OMG,

– 7.4 7.4 – 8.0 8.0 – 9.4 9.0 – 11.0 9.8

When adding ONP:OMG + sulphite

– 8.0 8.2

SLIDE 7

7

Furnish is 70:30 mixture of newspapers and magazines

Printed ONP:OMG

– ONP: Journal de Montréal – OMG: LWC magazine

Unprinted NP:MG

– UNP: Unprinted Journal de Montréal – UMG: Close match to printed LWC

SLIDE 8

8

Pulping

625 g
10% consistency
50°C
60 ppm Ca+2

SLIDE 9

9

Measurement: Total ink

3.42 g pad from standard British sheet machine
Addition of an ink retention aid

(alum + cationic polyacrilamide)

Leads to relative ERIC values

(ISO opacity > 0.97)

SLIDE 10

10

Measurement: Bound ink (undetached + redeposited)

Time Time

Hyperwashing, then 1.2 g handsheet

SLIDE 11

11

Reminder: in part I JPPS, 32(3):150-155 (2006)

Pulping ONP:OMG in different buffers
60 ppm of Ca+2
Nothing else added

– No soap/surfactant – No bleaching agent

SLIDE 12

12

9.1

Total ink after pulping

600 800 1000 1200 2 4 6 8 10

Time of pulping (min) ERIC after pulping (ppm)

7.4 8.0 10.3

Decrease in ink fragmentation

SLIDE 13

13

700 800 900 1000 7 8 9 10 11 pH in pulper ERIC after 3 m inutes of pulping (ppm )

Total ink after 3 min. of pulping

vs. pH
Rapid

decrease

Start

leveling off at around pH 8.5

SLIDE 14

14

8.0

Bound ink after pulping

70 7.4 9.1 10.3

70 100 130 160 2 4 6 8 10 Time of pulping (min) ERIC after pulping and hyperwashing (ppm) 100 130 160 2 4 6 8 10 Time of pulping (min) ERIC after pulping and hyperwashing (ppm)

Decrease in bound ink Minimum at around 3 minutes

SLIDE 15

15

70 90 110 7 8 9 10 11 pH in pulper ERI C after 3 m inutes of pulping and after hyperwashing (ppm )

Bound ink after 3 min. of pulping

vs. pH
Linear

decrease

SLIDE 16

16

ISO brightness after pulping

40 8.0 9.1 10.3 7.4

40 41 42 43 44 45 2 4 6 8 10 Time of pulping (min) ISO brightness after pulping (% ) 41 42 43 44 45 2 4 6 8 10 Time of pulping (min) ISO brightness after pulping (% )

Curve at pH 10.3 is not following the expected order ALKALINE DARKENING !

SLIDE 17

17

ISO brightness after hyperwashing

51 52 53 54 55 56 2 4 6 8 10 Pulping time (min) ISO brightness after pulping and hyperwashing (% )

7.4 8.0 9.1 10.3

51 52 53 54 55 56 2 4 6 8 10 Pulping time (min) ISO brightness after pulping and hyperwashing (% )

Plot of ISO brightness at 3 minutes vs. pH At pH 8, best compromise between maximizing ink detachment and minimizing alkali darkening

SLIDE 18

18

52 53 54 55 56 7 8 9 10 11 pH in pulper

I SO brightness after 3 m inutes of pulping and after hyperwashing (% )

ISO brightness after 3 minutes of pulping followed by hyperwashing

No surfactant

added in pulper

Highest ISO bright.

near pH 8

The more the pH

deviates from 8, the more chemical needed to regain brightness

SLIDE 19

19

Part II : Effect of sulphite

Since pH 8 is optimal for brightness, we

decided to test suphite in buffer at pH 8

SLIDE 20

20

Total ERIC after pulping vs. pulping time

700 800 900 1000 1100 1200 2 4 6 8 10 Time, min ERIC AP, ppm

pH 8.2 (buffer + sulphite) pH 8.0 (buffer only)

700 800 900 1000 1100 1200 2 4 6 8 10 Time, min ERIC AP, ppm

pH 8.2 (buffer + sulphite) pH 8.0 (buffer only)

Reduces ink fragmentation

SLIDE 21

21

80 120 160 200 2 4 6 8 10 Time, min ERIC AW, ppm

pH 8.2 (buffer + sulphite) pH 8.0 (buffer only)

80 120 160 200 2 4 6 8 10 Time, min ERIC AW, ppm

pH 8.2 (buffer + sulphite) pH 8.0 (buffer only)

Bound ERIC after pulping vs. pulping time

Improves ink detachment

SLIDE 22

22

Effect of sulphite on ERIC

ERIC values are lower with sulphite

– Reduces ink fragmentation – Improves ink detachment

60% of the benefit due to the sulphite only

– 40% due to pH

SLIDE 23

23

40 41 42 43 44 45 2 4 6 8 10 Pulping time ISO brightness AP, % pH 8.2 (buffer + sulphite) pH 8.0 (buffer only) 40 41 42 43 44 45 2 4 6 8 10 Pulping time ISO brightness AP, % pH 8.2 (buffer + sulphite) pH 8.0 (buffer only)

ISO brightness after pulping vs. pulping time

1.9 2.5

SLIDE 24

24

52 53 54 55 56 2 4 6 8 10 Time, min ISO brightness AW, %

pH 8.2 (buffer + sulphite) pH 8.0 (buffer only)

52 53 54 55 56 2 4 6 8 10 Time, min ISO brightness AW, %

pH 8.2 (buffer + sulphite) pH 8.0 (buffer only)

ISO brightness after hyperwashing and pulping

vs. pulping time

1.9 2.5

SLIDE 25

25

Sodium sulphite …

Reduces the extent of alkali darkening and

provides a bleaching benefit

Slightly reduces ink fragmentation and

improves ink detachment

– Changes in rheological properties – Pulp slurry becomes less viscous – Reduces shear forces on ink – Reduces ink break-up and redeposition

Presence of ink masks the “bleaching” benefits

SLIDE 26

26

Repeated experiments with Unprinted newspaper and Unprinted magazine

Used the same buffers
Compare with 2% sulphite + 2% silicate

– Unbuffered, final pH of 8.3

SLIDE 27

27

ISO brightness AP vs. pulping time

57 59 61 63 2 4 6 8 10 Pulping time (min.) ISO brightness AP, %

7.0 7.8 9.0 9.8 Fully deflaked pulp Sulphite + silicate (pH 10.0 8.3)

57 59 61 63 2 4 6 8 10 Pulping time (min.) ISO brightness AP, %

7.0 7.8 9.0 9.8 Fully deflaked pulp Fully deflaked pulp Sulphite + silicate (pH 10.0 8.3)

SLIDE 28

28

ISO brightness after 10 min. of pulping

vs. pH at 10 min.

56.5 58.5 60.5 62.5 6.5 7.5 8.5 9.5 10.5

pH in repulper ISO brightness AP, %

2% sulp. + 2% sil. Buffers Tap water 2% silicate NaOH

4.2

56.5 58.5 60.5 62.5 6.5 7.5 8.5 9.5 10.5

pH in repulper ISO brightness AP, %

2% sulp. + 2% sil. Buffers Tap water 2% silicate NaOH

4.2

SLIDE 29

29

Conclusion Addition of sodium sulphite in the repulper…

Increases brightness of ONP:OMG

– Gains will depend on pH and ERIC – At 2% dosage and ERIC≈200 ppm, gains of 3.0±0.5 % are expected

Seems to reduce ink fragmentation and to

increase ink detachment

– Effect is small – Mechanism: reduced viscosity of pulp slurry

Reduces shear forces on ink
Reduces ink break-up and redeposition

SLIDE 30

30

Acknowledgements

Paprican Member Companies
