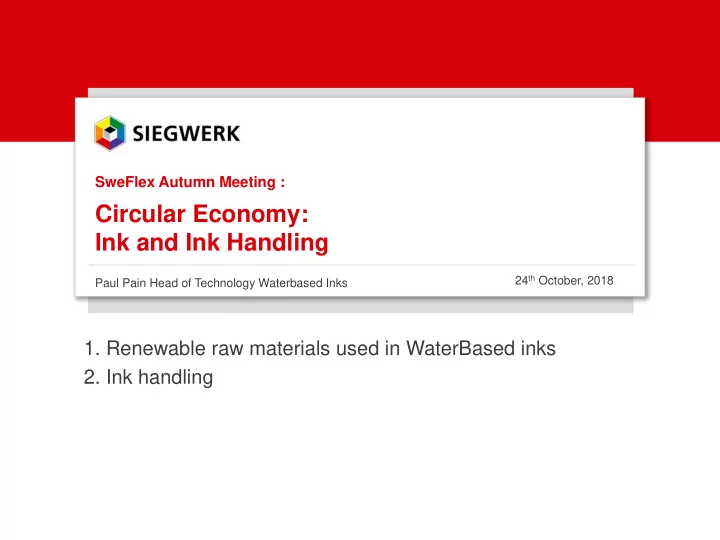

Circular Economy: Ink and Ink Handling 24 th October, 2018 Paul - - PowerPoint PPT Presentation

Paul Pain Head of Technology Waterbased Inks

Circular Economy: Ink and Ink Handling

SweFlex Autumn Meeting :

24th October, 2018

• 1. Renewable raw materials used in WaterBased inks
• 2. Ink handling

• 1. Renewable raw materials used in

Waterbased Inks

Some market sectors currently have lower interest a balanced sustainability approach to renewability – Focus is maximum renewability Sustainable development is a Long Term Trend

3

VOC

Renewability

Compostability / biodegradability Carbon footprint / energy Water footprint

2000 Ecological 2015 Viable 2015-2020 Sustainable

SOCIAL ECONOMIC ECOLOGICAL

SUSTAIN- A BLE equitable bearable viable

Siegwerk has developed complementary products with maximised renewable content for disposables market segment.

4

Maximizing Renewable content

* BC= Biorenewable carbon ** as a proportion of the TV SOCIAL ECONOMIC ECOLOGICAL

SUSTAIN- ABLE equitable bearable viable

UniRICS

Current

Generation

BC* Up to 30%**

BC* <5%**

Standard WB Inks

Next

Generation

BC* up to 80%**

UniBIO UniCUP

Siegwerk works to increase bio-renewable content in each ink component.

Building Block Renewable substitution of ink Component Target Bio- renewable Content Mastergrind Dispersing agents 10% Technical Varnishes Resins Waxes 80%* Extender Resins 80%* Additives Retarding agents Antifoams 100%

Biorenewable content of Ink

* Measurement of Bio renewable C Content currently ongoing according to ASTM6866

5

Discussion around definition of renewable content in the ink is maturing with adoption of ASTM 6866 becoming more widespread. This method measures renewable carbon content based on C14 measurement.

Printing and End Use Performance can be maintained whilst giving a step change in Renewable content Example : UniBIO extenders and TV for Cups segment

6

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 Water resistance 1 hour Water resistance 1 day Slip Scratch resistances Rub resistances RMC

Hot Drinks 1 PE

UNIRICS CUP EXTENDER UNI Bio HD 1 2 3 4 5 Water resistance 1 hour Water resistance 1 day Slip Scratch resistances Rub resistances Wet rub resistance RMC

Cold Drinks 2PE

UNICUP TV D2 UNIRICS CUP EXT. UNI Bio CD

Unicup UniRICS UniBIO Renewable content* <5% 30% 70-80%

* renewable content of Technical varnish

Ensuring the ink has a minimum impact at the end of life of the pacakge Siegwerk ensures that at the end of life of the product, the impact of the ink on the compost-ability of the package is minimised. Unibase and Uni T Concentrate series have been tested for their impact on compost-ability. Using selected colour indices with appropriate Technical Varnishes allows “OK compost” requirements to be fulfilled. Compost-ability

7

• 2. Ink Handling

Global InHouse Services

Friday, October 19, 2018

9

Process Management & Consulting Global Reach

• Pictur

e

• Pictur

e

• Pictur

e

• Ink/ Press Room Mgt

Ink/ Process Mgt. Waste Management

• Colorimetry

Theoretical / practical trainings & workflows

• Project Management

Lean Management Continuous Improvement

Ink Room Management contributes to Circular Economy

10

Reduce Reuse Recycle

Ink Blending/Dispensing Press Support Press Return Ink Color Matching Press to Proofer Synchronization Inventory Management Color Corrections Return Handling Return Usage

REDUCED Set-up time* due to Color Matchings

10 20 30 40 May June July August September October November December

Set-up time reduction (Color Matching)

Reduce: Press Color Matching Time

* Data from customer projects

11

• Lab Proofer & Press synchronization gives highly accurate color

matches - shade is right first time!

Previous year avg

REDUCED Training time* due to Documentation Reduce: Press Color Matching Time

* Data from customer projects

12

• Process for evaluating skill levels and providing documented remote e-learning.

Reduced training time with documentation*

3,5 months 2 weeks

1 2 3 4

Direct Reuse of Press return Inks

10% 20% 30% 40% 50% May June July August September October November December

Press Return Usage (Direct & Mathematical Returns)

Example of Reuse: Return Ink Management

13

• Ink is refreshed and reused directly as same color or converted to

similar color

• All corrections and return movements are recorded for traceability

* Data from customer projects

Press Return Ink* RECYCLED

10% 20% 30% 40% 50% 60% May June July August September October November December

Press Return Usage (Bulk Returns)

Example Recycle: Return Ink Management

* Data from customer projects

14

• Careful control of color matching principles allows press returns to be

easily converted into other colors via the dispenser

• Traceability is maintained

THANK YOU

Contact person: Paul PAIN Head of Waterbased Technology Paul.Pain@siegwerk.com Phone: +44 78 54 18 39 90

15

Contact person: Ashish YADAV Global Inhouse Project Manager Ashish.Yadav@siegwerk.com Phone: +46 70 31 68 094
