Information Services at the RIPE NCC Henk Uijterwaal RIPE NCC CAIDA, June 3, 2004 1 Henk Uijterwaal <henk@ripe.net> . . CAIDA, June 3, 2004 http://www.ripe.net/test-traffic Introduction Data sets Future plans 2 Henk

slide-1
SLIDE 1

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

1

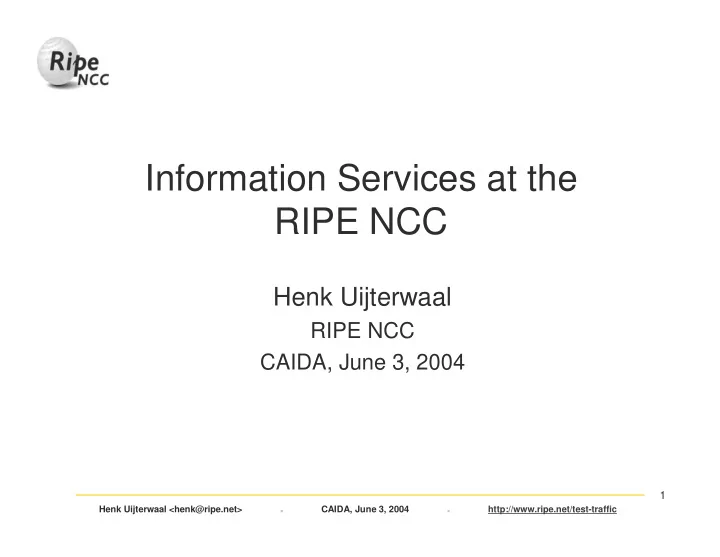

Information Services at the RIPE NCC

Henk Uijterwaal

RIPE NCC CAIDA, June 3, 2004

slide-2
SLIDE 2

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

2

Introduction

  • Data sets
  • Future plans
slide-3
SLIDE 3

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

3

Data sets

  • TTM: http://www.ripe.net/ttm
  • RIS: http://www.ripe.net/ris
  • DNSMON: http://dnsmon.ripe.net
  • Whois database (“RIPE DB”)
  • Registration data
slide-4
SLIDE 4

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

4

Test Traffic Measurements

  • Service to measure delay, losses and other

IPPM metrics

  • Dedicated machines
  • One way measurements
slide-5
SLIDE 5

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

5

TTM

  • Raw data:

– Traceroute: path information – Packets that were sent – Packets that arrived (sent minus lost)

  • Processed data:

– DB with traceroutes – ROOT files combining send, received and traceroute information

slide-6
SLIDE 6

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

6

TTM Traceroute data

  • mySQL DB, 2 tables (v4), 2 tables v6
  • Table 1:

– Src – Dst – Set of validity ranges and index

  • Table 2

– Index – Src, ip1, ip2, ip3, … , Dst – AS# of all IP addresses (based on RIS)

slide-7
SLIDE 7

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

7

TTM Delay/Loss data (v4/v6)

  • Table:

– Src – Dst – Send time – Delay (or -1 if lost) – Error estimates on clocks – Index to path

  • Root format

– Data analysis system for the LHC – Library and instructions available

slide-8
SLIDE 8

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

8

TTM Data availability

  • Restrictive AUP until 1/1/2004
  • Opened up considerably since then:

– Everybody can get a copy of the data – Publish anonymously – Present to RIPE community for comments first

  • RIPE meeting
  • Mail paper around
  • 120 Gb/year

– Currently copy by hand – Investigating other setup

slide-9
SLIDE 9

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

9

Routing Information Service

  • What:

– RIB dumps (3/day), MRT format – BGP updates, time-stamped

  • IPv4

– Up to 12 locations – From 9/1999 onwards – Volume: 250 Gbyte/year

  • IPv6

– From 10/2002 onwards – Few Gbyte

slide-10
SLIDE 10

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

10

RIS Data Set

  • Software available to read the files
  • Log files available
  • Online
  • AUP:

– Download and analyze as you like – Tell us if you publish something

slide-11
SLIDE 11

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

11

DNSMON

  • Monitoring of DNS servers
  • Beta service, full service later this year
  • Data can be made available for research

– DNS server responses for all root servers, 7 tld’s, from 50-75 locations – Same AUP as TTM

slide-12
SLIDE 12

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

12

Whois DB

  • Route, inet, …
  • Contact information

– Name, Address, Phone Numbers – Privacy

  • Can be mirrored

– Sign document – Restricted

slide-13
SLIDE 13

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

13

Registration data

  • Files with who is allocated what

– All 4 (5) registries

  • Daily updates on our ftp site since late 2003
  • Files with:

– ripencc|CC|ipv4|base|#|date|allocated – ripencc|CC|asn|as#|1|date|allocated – ripencc|CC|ipv6|base|/n|date|allocated

  • Administrative view
slide-14
SLIDE 14

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

14

Future plans

  • Information services
  • “Provide data for the community”

– Different sets for different target groups – Explanation of what is in the data

  • New activity in 2004

– Started – Not as far as we had planned – Discussion

slide-15
SLIDE 15

Henk Uijterwaal <henk@ripe.net> . CAIDA, June 3, 2004

.

http://www.ripe.net/test-traffic

15

Questions
