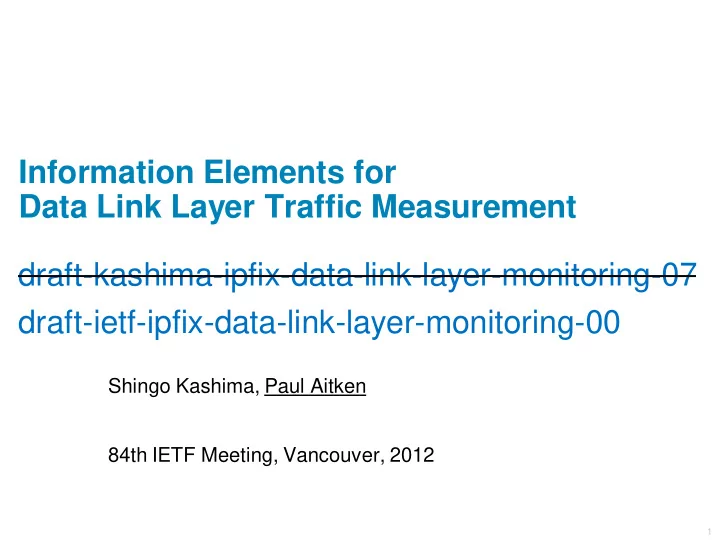

Information Elements for Data Link Layer Traffic Measurement

Shingo Kashima, Paul Aitken 84th IETF Meeting, Vancouver, 2012

draft-kashima-ipfix-data-link-layer-monitoring-07 draft-ietf-ipfix-data-link-layer-monitoring-00

2

Introduction

• This is the WG version of draft-kashima-ipfix-data-link-layer-

monitoring-07.

• This document lists a series of new Information Elements for

data link layer monitoring.

• The draft has been slowly evolving over the last 3 years.

3

Changes in -00

• Change of authors
• the NTT team are unable to take the work forward at this time.
• Changed export IDs 347 through 354 to “TBD”
• the authors had thought these IDs were reserved, but they’ve been allocated

for other purposes.

• Minor edits:
• removed unused references
• typos corrected

4

Plan

• Resolve open issue (see next slide)
• Produce -01 for WGLC.

5

Open Issue

• New Information Elements related to packet section (ie,

sectionOffset and sectionObservedOctets) can be applied not

• nly to dataLinkFrameSection but also all kinds of packet section:

ipHeaderPacketSection, ipPayloadPacketSection mplsLabelStackSection, mplsPayloadPacketSection.

• Three proposals:

1: modify the existing packet section Information Elements Descriptions 2: deprecate existing packet section Information Elements and create new ones 3: sectionOffset and sectionObservedOctets don’t apply to existing packet section Information Elements

• Looking for WG feedback.

6

Open Issue: proposal 1

• modify the existing packet section Information Elements
• Descriptions. eg for ipHeaderPacketSection:

This Information Element, which may have a variable length, carries a series of

• ctets starting sectionOffset octets from the start of the IP header of a sampled
• packet. With sufficient length, this element also reports octets from the IP

payload, subject to [RFC2804]. See the Security Considerations section. The size of the exported section may be constrained due to limitations in the IPFIX

• protocol. The data for this field MUST NOT be padded unless

sectionObservedOctets is also reported.
