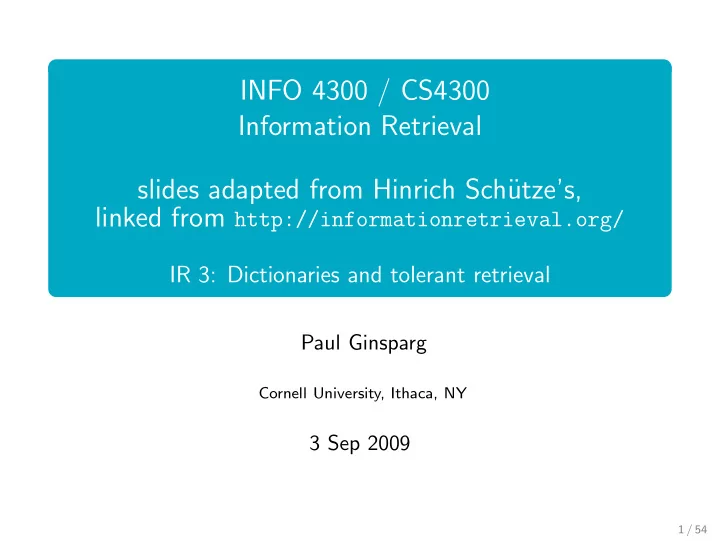

INFO 4300 / CS4300 Information Retrieval slides adapted from Hinrich Sch¨ utze’s, linked from http://informationretrieval.org/

IR 3: Dictionaries and tolerant retrieval

Paul Ginsparg

Cornell University, Ithaca, NY

3 Sep 2009

1 / 54

Administrativa

Course Webpage: http://www.infosci.cornell.edu/Courses/info4300/2009fa/ Lectures: Tuesday and Thursday 11:40-12:55, Hollister B14 Instructor: Paul Ginsparg, ginsparg@cornell.edu, 255-7371, Cornell Information Science, 301 College Avenue Instructor’s Assistant: Corinne Russell, crussell@cs.cornell.edu, 255-5925, Cornell Information Science, 301 College Avenue Instructor’s Office Hours: Wed 1–2pm 9,16 Sep, then Wed 1–3, or e-mail instructor to schedule an appointment Nam Nguyen, nhnguyen@cs.cornell.edu The Teaching Assistant does not have scheduled office hours but is available to help you by email.

2 / 54

Overview

1

Recap

2

Skip pointers

3

Phrase queries

4

Dictionaries

5

Wildcard queries

6

Discussion

3 / 54

Outline

1

Recap

2

Skip pointers

3

Phrase queries

4

Dictionaries

5

Wildcard queries

6

Discussion

4 / 54

Type/token distinction

Token – An instance of a word or term occurring in a document. Type – An equivalence class of tokens. In June, the dog likes to chase the cat in the barn. 12 word tokens, 9 word types

5 / 54

Problems in tokenization

What are the delimiters? Space? Apostrophe? Hyphen? For each of these: sometimes they delimit, sometimes they don’t. No whitespace in many languages! (e.g., Chinese) No whitespace in Dutch, German, Swedish compounds (Lebensversicherungsgesellschaftsangestellter)

6 / 54

Problems in “equivalence classing”

A term is an equivalence class of tokens. How do we define equivalence classes? Numbers (3/20/91 vs. 20/3/91) Case folding Stemming, Porter stemmer Morphological analysis: inflectional vs. derivational Equivalence classing problems in other languages

More complex morphology than in English Finnish: a single verb may have 12,000 different forms Accents, umlauts

7 / 54

Outline

1

Recap

2

Skip pointers

3

Phrase queries

4

Dictionaries

5

Wildcard queries

6

Discussion

8 / 54

Recall basic intersection algorithm

Brutus − → 1 → 2 → 4 → 11 → 31 → 45 → 173 → 174 Calpurnia − → 2 → 31 → 54 → 101 Intersection = ⇒ 2 → 31 Linear in the length of the postings lists. Can we do better?

9 / 54

Skip pointers

Skip pointers allow us to skip postings that will not figure in the search results. This makes intersecting postings lists more efficient. Some postings lists contain several million entries – so efficiency can be an issue even if basic intersection is linear. Where do we put skip pointers? How do we make sure insection results are correct?

10 / 54

Basic idea

Brutus Caesar 16 2 4 8 128 16 32 64 128 8 1 2 3 5 31 8 17 21 31 75 81 84 89 92

11 / 54

Skip lists: Larger example

12 / 54

Intersecting with skip pointers

IntersectWithSkips(p1, p2) 1 answer ← 2 while p1 = nil and p2 = nil 3 do if docID(p1) = docID(p2) 4 then Add(answer, docID(p1)) 5 p1 ← next(p1) 6 p2 ← next(p2) 7 else if docID(p1) < docID(p2) 8 then if hasSkip(p1) and (docID(skip(p1)) ≤ docID(p2)) 9 then while hasSkip(p1) and (docID(skip(p1)) ≤ docID(p2) 10 do p1 ← skip(p1) 11 else p1 ← next(p1) 12 else if hasSkip(p2) and (docID(skip(p2)) ≤ docID(p1)) 13 then while hasSkip(p2) and (docID(skip(p2)) ≤ docID(p1) 14 do p2 ← skip(p2) 15 else p2 ← next(p2) 16 return answer

13 / 54

Where do we place skips?

Tradeoff: number of items skipped vs. frequency skip can be taken More skips: Each skip pointer skips only a few items, but we can frequently use it. Fewer skips: Each skip pointer skips many items, but we can not use it very often.

14 / 54

Where do we place skips? (cont)

Simple heuristic: for postings list of length P, use √ P evenly-spaced skip pointers. This ignores the distribution of query terms. Easy if the index is static; harder in a dynamic environment because of updates. How much do skip pointers help? They used to help lot. With today’s fast CPUs, they don’t help that much anymore.

15 / 54

Outline

1

Recap

2

Skip pointers

3

Phrase queries

4

Dictionaries

5

Wildcard queries

6

Discussion

16 / 54

Phrase queries

We want to answer a query such as “stanford university” – as a phrase. Thus The inventor Stanford Ovshinsky never went to university shouldn’t be a match. The concept of phrase query has proven easily understood by users. About 10% of web queries are phrase queries. Consequence for inverted index: no longer suffices to store docIDs in postings lists. Any ideas?

17 / 54

Biword indexes

Index every consecutive pair of terms in the text as a phrase. For example, Friends, Romans, Countrymen would generate two biwords: “friends romans” and “romans countrymen” Each of these biwords is now a vocabulary term. Two-word phrases can now easily be answered.

18 / 54

Longer phrase queries

A long phrase like “stanford university palo alto” can be represented as the Boolean query “stanford university” AND “university palo” AND “palo alto” We need to do post-filtering of hits to identify subset that actually contains the 4-word phrase.

19 / 54

Extended biwords

Parse each document and perform part-of-speech tagging Bucket the terms into (say) nouns (N) and articles/prepositions (X) Now deem any string of terms of the form NX*N to be an extended biword Examples: catcher in the rye N X X N king

• f

Denmark N X N Include extended biwords in the term vocabulary Queries are processed accordingly

20 / 54

Issues with biword indexes

Why are biword indexes rarely used? False positives, as noted above Index blowup due to very large term vocabulary

21 / 54

Positional indexes

Positional indexes are a more efficient alternative to biword indexes. Postings lists in a nonpositional index: each posting is just a docID Postings lists in a positional index: each posting is a docID and a list of positions Example query: “to1 be2 or3 not4 to5 be6” to, 993427: 1: 7, 18, 33, 72, 86, 231; 2: 1, 17, 74, 222, 255; 4: 8, 16, 190, 429, 433; 5: 363, 367; 7: 13, 23, 191; . . . be, 178239: 1: 17, 25; 4: 17, 191, 291, 430, 434; 5: 14, 19, 101; . . . Document 4 is a match!

22 / 54

Proximity search

We just saw how to use a positional index for phrase searches. We can also use it for proximity search. For example: employment /4 place Find all documents that contain employment and place within 4 words of each other. Employment agencies that place healthcare workers are seeing growth is a hit. Employment agencies that have learned to adapt now place healthcare workers is not a hit.

23 / 54

Proximity search

Use the positional index Simplest algorithm: look at cross-product of positions of (i) employment in document and (ii) place in document Very inefficient for frequent words, especially stop words Note that we want to return the actual matching positions, not just a list of documents. This is important for dynamic summaries etc.

24 / 54

“Proximity” intersection

PositionalIntersect(p1, p2, k) 1 answer ← 2 while p1 = nil and p2 = nil 3 do if docID(p1) = docID(p2) 4 then l ← 5 pp1 ← positions(p1) 6 pp2 ← positions(p2) 7 while pp1 = nil 8 do while pp2 = nil 9 do if |pos(pp1) − pos(pp2)| ≤ k 10 then Add(l, pos(pp2)) 11 else if pos(pp2) > pos(pp1) 12 then break 13 pp2 ← next(pp2) 14 while l = and |l[0] − pos(pp1)| > k 15 do Delete(l[0]) 16 for each ps ∈ l 17 do Add(answer, docID(p1), pos(pp1), ps) 18 pp1 ← next(pp1) 19 p1 ← next(p1) 20 p2 ← next(p2) 21 else if docID(p1) < docID(p2) 22 then p1 ← next(p1) 23 else p2 ← next(p2) 24 return answer

25 / 54

Combination scheme

Biword indexes and positional indexes can be profitably combined. Many biwords are extremely frequent: Michael Jackson, Britney Spears etc For these biwords, increased speed compared to positional postings intersection is substantial. Combination scheme: Include frequent biwords as vocabulary terms in the index. Do all other phrases by positional intersection. Williams et al. (2004) evaluate a more sophisticated mixed indexing scheme. Faster than a positional index, at a cost of 26% more space for index.

26 / 54

“Positional” queries on Google

For web search engines, positional queries are much more expensive than regular Boolean queries. Let’s look at the example of phrase queries. Why are they more expensive than regular Boolean queries? Can you demonstrate on Google that phrase queries are more expensive than Boolean queries?

27 / 54

Outline

1

Recap

2

Skip pointers

3

Phrase queries

4

Dictionaries

5

Wildcard queries

6

Discussion

28 / 54

Inverted index

For each term t, we store a list of all documents that contain t. Brutus − → 1 2 4 11 31 45 173 174 Caesar − → 1 2 4 5 6 16 57 132 . . . Calpurnia − → 2 31 54 101 . . .

• dictionary

postings

29 / 54

Dictionaries

Term vocabulary: the data Dictionary: the data structure for storing the term vocabulary

30 / 54

Dictionary as array of fixed-width entries

For each term, we need to store a couple of items:

document frequency pointer to postings list . . .

Assume for the time being that we can store this information in a fixed-length entry. Assume that we store these entries in an array.

31 / 54

Dictionary as array of fixed-width entries

term document frequency pointer to postings list a 656,265 − → aachen 65 − → . . . . . . . . . zulu 221 − → space needed: 20 bytes 4 bytes 4 bytes How do we look up an element in this array at query time?

32 / 54

Data structures for looking up term

Two main classes of data structures: hashes and trees Some IR systems use hashes, some use trees. Criteria for when to use hashes vs. trees:

Is there a fixed number of terms or will it keep growing? What are the relative frequencies with which various keys will be accessed? How many terms are we likely to have?

33 / 54

Hashes

Each vocabulary term is hashed into an integer. Try to avoid collisions At query time, do the following: hash query term, resolve collisions, locate entry in fixed-width array Pros: Lookup in a hash is faster than lookup in a tree.

Lookup time is constant.

Cons

no way to find minor variants (resume vs. r´ esum´ e) no prefix search (all terms starting with automat) need to rehash everything periodically if vocabulary keeps growing

34 / 54

Trees

Trees solve the prefix problem (find all terms starting with automat). Simplest tree: binary tree Search is slightly slower than in hashes: O(log M), where M is the size of the vocabulary. O(log M) only holds for balanced trees. Rebalancing binary trees is expensive. B-trees mitigate the rebalancing problem. B-tree definition: every internal node has a number of children in the interval [a, b] where a, b are appropriate positive integers, e.g., [2, 4].

35 / 54

Binary tree

36 / 54

B-tree

37 / 54

Outline

1

Recap

2

Skip pointers

3

Phrase queries

4

Dictionaries

5

Wildcard queries

6

Discussion

38 / 54

Wildcard queries

mon*: find all docs containing any term beginning with mon Easy with B-tree dictionary: retrieve all terms t in the range: mon ≤ t < moo *mon: find all docs containing any term ending with mon

Maintain an additional tree for terms backwards Then retrieve all terms t in the range: nom ≤ t < non

39 / 54

Query processing

At this point, we have an enumeration of all terms in the dictionary that match the wildcard query. We still have to look up the postings for each enumerated term. E.g., consider the query: gen* and universit* This may result in the execution of many Boolean and queries. If there are 100 terms matching gen* and 50 terms matching universit*, then we have to run 5000 Boolean queries!

40 / 54

How to handle * in the middle of a term

Example: m*nchen We could look up m* and *nchen in the B-tree and intersect the two term sets. Expensive Alternative: permuterm index Basic idea: Rotate every wildcard query, so that the * occurs at the end.

41 / 54

Permuterm index

For term hello: add hello$, ello$h, llo$he, lo$hel, and o$hell to the B-tree where $ is a special symbol

42 / 54

Permuterm → term mapping

43 / 54

Permuterm index

For hello, we’ve stored: hello$, ello$h, llo$he, lo$hel, and

• $hell

Queries

For X, look up X$ For X*, look up X*$ For *X, look up X$* For *X*, look up X* For X*Y, look up Y$X* Example: For hel*o, look up o$hel*

It’s really a tree and should be called permuterm tree. But permuterm index is more common name.

44 / 54

Processing a lookup in the permuterm index

Rotate query wildcard to the right Use B-tree lookup as before Problem: Permuterm more than quadruples the size of the dictionary compared to a regular B-tree. (empirical number)

45 / 54

k-gram indexes

More space-efficient than permuterm index Enumerate all character k-grams (sequence of k characters)

• ccurring in a term

2-grams are called bigrams. Example: from April is the cruelest month we get the bigrams: $a ap pr ri il l$ $i is s$ $t th he e$ $c cr ru ue el le es st t$ $m mo on nt h$ $ is a special word boundary symbol, as before. Maintain an inverted index from bigrams to the terms that contain the bigram

46 / 54

Postings list in a 3-gram inverted index etr

beetroot metric petrify retrieval

✲ ✲ ✲ ✲

47 / 54

Bigram indexes

Note that we now have two different types of inverted indexes The term-document inverted index for finding documents based on a query consisting of terms The k-gram index for finding terms based on a query consisting of k-grams

48 / 54

Processing wildcarded terms in a bigram index

Query mon* can now be run as: $m and mo and on Gets us all terms with the prefix mon . . . . . . but also many “false positives” like moon. We must postfilter these terms against query. Surviving terms are then looked up in the term-document inverted index. k-gram indexes are more space efficient than permuterm indexes.

49 / 54

Processing wildcard queries in the term-document index

As before, we must potentially execute a large number of Boolean queries Most straightforward semantics: Conjunction of disjunctions Recall the query: gen* and universit*

(geneva and university) or (geneva and universit´ e) or (gen` eve and university) or (gen` eve and universit´ e) or (general and universities) or . . . . . .

Very expensive Does Google allow wildcard queries? Users hate to type. If abbreviated queries like [pyth* theo*] for pythagoras’ theorem are legal, users will use them . . .

. . . a lot

According to Google search basics, 2009.04.27: “Note that the *

• perator works only on whole words, not parts of words.”

But that does not seem to be true. Try [pythag*] and [m*nchen]

50 / 54

Outline

1

Recap

2

Skip pointers

3

Phrase queries

4

Dictionaries

5

Wildcard queries

6

Discussion

51 / 54

Discussion 1

Objective: explore three information retrieval systems (Bing, LOC, PubMed), and use each for the discovery task: “What is the medical evidence that a low calorie diet will extend your lifetime?” Some general questions and observations: How to authenticate the information? Is the information up to date? (how to find updated info?) In what order are items returned? (by “relevance”, but how is relevance determined: link analysis? tf.idf?) Use results of Bing search to refine vocabulary: e.g., “low calorie diet” → “calorie restriction”, “lifetime” → “longevity” Assignment: everyone upload as a test of CMS the best reference found, and outline of strategy used to find it

52 / 54

Discussion 1: epilogue

Challenge: What principled search strategy might turn up http://www.nytimes.com/2009/08/18/science/18aging.html (without knowing the answer in advance)? “Two experts on aging . . . argued recently in Nature that the whole phenomenon of caloric restriction may be a misleading result unwittingly produced in laboratory mice. The mice are selected for quick breeding and fed on rich diets. A low-calorie diet could be much closer to the diet that mice are adapted to in the wild, and therefore it could extend life simply because it is much healthier for

• them. ‘Life extension in model organisms may be an artifact to

some extent,’ they wrote. To the extent caloric restriction works at all, it may have a bigger impact in short-lived organisms that do not have to worry about cancer than in humans. Thus the hope of mimicking caloric restriction with drugs ‘may be an illusion,’ . . .” And what is the final word?

53 / 54

Discussion 2 (Thurs 10 Sep)

Read and be prepared to discuss:

• G. Salton, A. Wong and C. S. Yang, “A vector space model for

automatic indexing”. Communications of the ACM Volume 18 , Issue 11 (November 1975) pages: 613 - 620. http://doi.acm.org/10.1145/361219.361220 This paper describes many of the concepts behind the vector space model and the SMART system. (Note that to access this paper from the ACM Digital Library, you need to use a computer with a Cornell IP address [or use /readings/p613-salton.pdf ])
