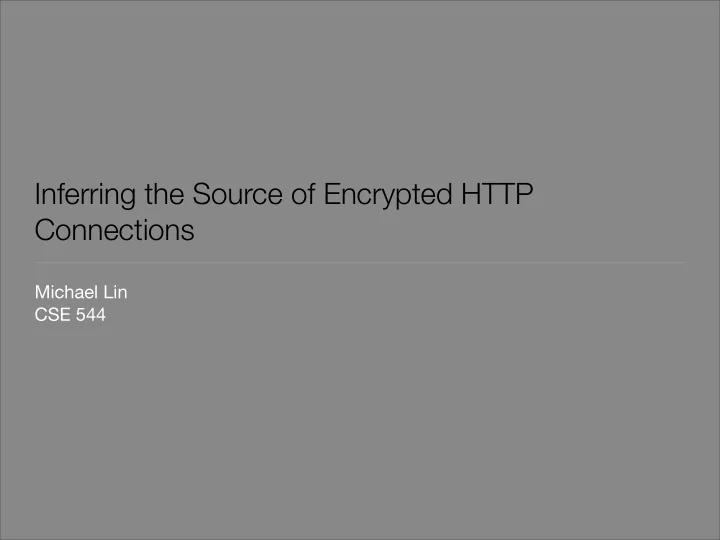

Inferring the Source of Encrypted HTTP Connections

Michael Lin CSE 544

Hiding your identity

• You can wear a mask, but some distinguishing characteristics are visible:
• Height
• Weight
• Hair
• Clothing
• Even if everyone looked the same, we can determine some things about

people based on their habits

• People who go to school everyday are probably students or teachers
• If you follow a strict schedule everyday (school, coffee shop, gym), you

can be identified to some degree of accuracy

• “There are 10 people who follow this exact schedule everyday.”

Profiling

• How would you identify someone in a world of clones?
• Determine their schedule
• Determine their habits
• Profiling allows us to identify something without knowing what it is

Hiding your online identity

• Encryption will save us from prying eyes. Or will it?
• We can hide the header and contents of a packet behind encryption
• But can we still say something about the packet itself?
• Packet size
• Packet direction
• What about traffic patterns?
• Packet arrival rate/distribution

HTTP traffic profiling

• Using only packet size and direction, create profiles of traces of HTTP traffic

for certain websites

• Instance - <Packet size, direction>
• Class - URL
• Create sets of instances for each class and use these sets to identify other

traces to unknown sites

• These sets are surprisingly unique

Comparing HTTP traces

• Two relatively simple methods to get a rating of the similarity of two sets
• Jaccard’s coefficient
• Intersection of two sets divided by union of two sets
• Think about this and it makes sense
• Naive Bayes classifier (Idiot’s Bayes)
• “Naive” because it assumes every event is independent
• A surprisingly good indicator of similarity
• Important: you need something to compare against!

Collecting HTTP traces

• Gathered 100,000 URLs from DNS server logs
• Used Firefox to access top 2000 pages over an SSH tunnel 4 times a day
• ver 2 months
• Used tcpdump to collect header information from these connections
• Analyzed the logs to get packet length and direction for connections to each

site

• Create a library of profiles for sites

This is where the magic happens

• Now we have two methods for comparing sets and a big library of site

profiles

• Say we intercepted some encrypted HTTP traffic and want to guess where it’s

going...

• Compare with all sites in the library to find the best match or two or ten

How well does it work?

• Surprisingly well
• Lots of variables to play with:
• Size of “training set” - the data used to create the library profile
• Size of test set
• Time between collection of training and test set
• Desired accuracy (top 1 most likely site or top k, k = 2, 3, 5, 10...)
• Number of sites in library
• Jaccard’s coefficient is generally better than naive Bayes
• Bottom line: for a training set of 4 samples and a test set of 4 samples, they

got ~75% accuracy

Effect of variables

• Increasing size of training set up to 4 greatly improves accuracy, after 4 they

get diminishing returns

• Increasing k increases accuracy (duh)
• Time between training set and test set matters, but the difference is less than

10%, even after 4 weeks

• It doesn’t matter if the training set comes from before or after the test set
• The fewer total sites there are in the library, the better the accuracy, but the

drop in accuracy is relatively slow from 200-2000 (will this hold true to 40 million?)

• This is a philosophical question
• Given the relatively small amount of data collected for each site, I think this is

good enough to be interesting

• This kind of accuracy requires a training and test set of size 4+
• How likely are you to get a test set of that size?
• Even with perfect data, a maximum of ~75% accuracy is limiting

Is this good enough?

How can we make it worse?

• This analysis is based entirely on packet size
• Change the packet size, change the results
• 4 simple packet size padding methods:
• Linear
• Exponential
• Mice & elephants
• MTU
• All increase packet sizes in a deterministic manner

The effectiveness of padding

• Linear padding cuts accuracy

in half

• Exponential makes it useless
• Total data transmitted remains

small for linear and exponential

• Results for 10-accuracy are

much better

Padding Accuracy Size none 0.721 1 linear 0.477 1.034 exp 0.056 1.089 m & e 0.003 1.478 MTU 0.001 2.453

The not so great...

• For this to be useful, you need a library of every website
• Collecting this much data isn’t easy
• How accurate will this be? With 38 million websites there’s going to be a

lot of sites that look the same

• They show that trivial packet padding makes this useless
• No results for test sets of size < 4

Future work

• Current analysis is weak to packet padding, they are looking to use packet

arrival times to overcome this

• Even for non-padded packets, packet timing can be important (but also hard

to use)

• Padding packets non-deterministically may be even stronger against profiling
• How reasonable is building a huge library of profiles for the entire Internet?
• In the end, is 75% accuracy good enough?

Take away

You can say a lot about a book by its cover.
