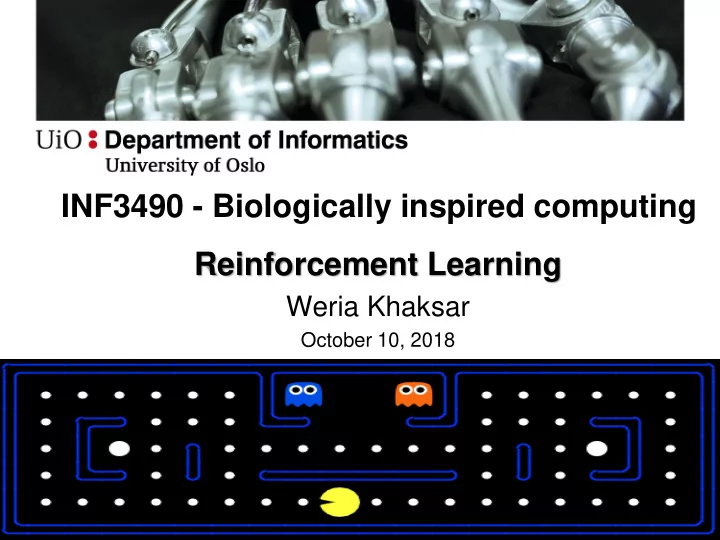

SLIDE 1
INF3490 - Biologically inspired computing Reinforcement Learning
Weria Khaksar
October 10, 2018
2
10.10.2018
Ghostbusters (1984) The Commuter (2018)
INF3490 - Biologically inspired computing Reinforcement Learning - - PowerPoint PPT Presentation
INF3490 - Biologically inspired computing Reinforcement Learning - - PowerPoint PPT Presentation
INF3490 - Biologically inspired computing Reinforcement Learning Weria Khaksar October 10, 2018 The Commuter (2018) Ghostbusters (1984) 10.10.2018 2 It would be in vain for one Intelligent Being , to set a Rule to the Actions of another,
SLIDE 2
SLIDE 3
3
10.10.2018
”It would be in vain for one Intelligent Being , to set a Rule to the Actions of another, if he had not in his Power, to reward the compliance with, and punish deviation from his Rule, by some Good and Evil, that is not the natural product and consequence of the action itself.” (Locke, ”Essay”, 2.28.6) ”The use of punishments and rewards can at best be a part of the teaching process. Roughly speaking, if the teacher has no other means of communicating to the pupil, the amount of information which can reach him does not exceed the total number
- f
rewards and punishments applied.” (Turing (1950) ”Computing Machinery and Intelligence”)
SLIDE 4
10.10.2018
4
Applications of RL:
From: ”Deconstructing Reinforcement Learning” ICML 2009
SLIDE 5
10.10.2018
5
Examples:
Barrett WAM robot learning to flip pancakes by reinforcement learning Socially Aware Motion Planning with Deep Reinforcement Learning Hierarchical Reinforcement Learning for Robot Navigation Google DeepMind's Deep Q-learning playing Atari Breakout
SLIDE 6
Last time: Supervised learning
Untrained Classifier
“CAT” No, it was a dog. Adjust classifier parameters
6
10.10.2018
SLIDE 7
7
Supervised learning: Weight updates
x1 x2 xn
. . .
w1 w2 wn
a=i=1
n wi xi
1 if a q
y = 0 if a < q
y
{
inputs weights activation
- utput
q
10.10.2018
SLIDE 8
Reinforcement Learning: Infrequent Feedback
50 chess moves later
You lost Update chess- playing strategy
8
10.10.2018
SLIDE 9
How do we update our system now? We don’t know the error!
9
10.10.2018
SLIDE 10
10.10.2018
10
SLIDE 11
11
10.10.2018
SLIDE 12
12
10.10.2018
SLIDE 13
The reinforcement learning problem: State, Action and Reward
13
10.10.2018
SLIDE 14
The reinforcement learning problem: State, Action and Reward
14
10.10.2018
SLIDE 15
The reinforcement learning problem: State, Action and Reward
15
10.10.2018
SLIDE 16
The reinforcement learning problem: State, Action and Reward
16
“Move piece from J1 to H1”
10.10.2018
SLIDE 17
The reinforcement learning problem: State, Action and Reward
17
You took an opponent’s piece. Reward=1
10.10.2018
SLIDE 18
The reinforcement learning problem: State, Action and Reward
18
10.10.2018
SLIDE 19
The reinforcement learning problem: State, Action and Reward
19
10.10.2018
SLIDE 20
The reinforcement learning problem: State, Action and Reward Learning is guided by the reward
- An infrequent numerical feedback indicating how
well we are doing.
- Problems:
– The reward does not tell us what we should have done! – The reward may be delayed – does not always indicate when we made a mistake.
10.10.2018
20
SLIDE 21
The reinforcement learning problem: The reward Function
- Corresponds
to the fitness function
- f
an evolutionary algorithm.
- 𝑠
𝑢+1is a function of 𝑡𝑢, 𝑏𝑢 .
- The reward is a numeric value. Can be negative
(“punishment”).
- Can be given throughout the learning episode,
- r only in the end.
- Goal: Maximize total reward.
10.10.2018
21
SLIDE 22
The reinforcement learning problem: Maximizing total reward
22
10.10.2018
▪ Total reward: 𝑆 =
𝑢=0 𝑂−1
𝑠
𝑢+1
Future rewards may be uncertain and we might care more about rewards that come soon. Therefore, we discount future rewards: 𝑆 =
𝑢=0 ∞
𝛿𝑢. 𝑠
𝑢+1 ,
0 ≤ 𝛿 ≤ 1
- r
𝑆 =
𝑙=0 ∞
𝛿𝑙. 𝑠
𝑢+𝑙+1 ,
0 ≤ 𝛿 ≤ 1
SLIDE 23
The reinforcement learning problem: Maximizing total reward
23
10.10.2018
▪ Future reward: 𝑆 = 𝑠
1 + 𝑠 2 + 𝑠 3 + ⋯ + 𝑠 𝑜
𝑆𝑢 = 𝑠
𝑢 + 𝑠 𝑢+1 + 𝑠 𝑢+2 + ⋯ + 𝑠 𝑜
▪ Discount future rewards (environment is stochastic) 𝑆𝑢 = 𝑠
𝑢 + 𝛿𝑠 𝑢+1 + 𝛿2𝑠 𝑢+2 + ⋯ + 𝛿𝑜−𝑢𝑠 𝑜
= 𝑠
𝑢 + 𝛿(𝑠 𝑢+1+𝛿(𝑠 𝑢+2 + ⋯ ))
= 𝑠
𝑢 + 𝛿𝑆𝑢+1
▪ A good strategy for an agent would be to always choose an action that maximizes the (discounted) future reward.
SLIDE 24
The reinforcement learning problem: Discounted rewards example
24
𝑢 0.99𝑢 0.95𝑢 0.50𝑢 0.05𝑢
1 0,990000 0,950000 0,500000 0,050000 2 0,980100 0,902500 0,250000 0,002500 4 0,960596 0,814506 0,062500 0,000006 8 0,922745 0,663420 0,003906 0,000000 16 0,851458 0,440127 0,000015 0,000000 32 0,724980 0,193711 0,000000 0,000000 64 0,525596 0,037524 0,000000 0,000000
10.10.2018
SLIDE 25
The reinforcement learning problem: Discounted rewards example
25
10.10.2018
0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00 10 20 30 40 50 60
γ^time time
0,99 0,95 0,50 0,05
SLIDE 26
The reinforcement learning problem: Action Selection
- At each learning stage, the RL algorithm looks at the
possible actions and calculates the expected average reward.
𝑅𝑡,𝑢 𝑏
- Based on 𝑅𝑡,𝑢 𝑏 , an action will be selected using:
➢ Greedy strategy: pure exploitation ➢ 𝜻-Greedy strategy: exploitation with a little exploration ➢ Soft-Max strategy: 𝑄 𝑅𝑡,𝑢 𝑏
=
𝑓(𝑅𝑡,𝑢 𝑏 /𝜐) σ𝑐 𝑓(𝑅𝑡,𝑢 𝑐 /𝜐)
26
10.10.2018
SLIDE 27
The reinforcement learning problem: Policy (𝜌) and Value (𝑊)
▪ The set of actions we took define our policy (𝜌). ▪ The expected rewards we get in return, defines our value (𝑊).
27
10.10.2018
SLIDE 28
The reinforcement learning problem: Markov Decision Process
- If we only need to know the current state, the
problem has the Markov property.
- No Markov Property:
𝑄
𝑠(𝑠 𝑢 = 𝑠′, 𝑡𝑢+1 = 𝑡′|𝑡𝑢, 𝑏𝑢, 𝑠 𝑢−1, … , 𝑠 1, 𝑡1, 𝑏1, 𝑡0, 𝑏0)
- Markov Property:
𝑄
𝑠(𝑠 𝑢 = 𝑠′, 𝑡𝑢+1 = 𝑡′|𝑡𝑢, 𝑏𝑢)
28
10.10.2018
SLIDE 29
The reinforcement learning problem: Markov Decision Process
29
10.10.2018 A simple example of a Markov Decision Process
SLIDE 30
The reinforcement learning problem: Value
10.10.2018
30
- The expected future reward is known as the value.
- Two ways to compute the value:
– The value of a state, 𝑊(𝑡), averaged over all possible actions in that state. (state-value function) 𝑊 𝑡 = 𝐹 𝑠𝑢 𝑡𝑢 = 𝑡 = 𝐹
𝑗=0 ∞
𝛿𝑗. 𝑠𝑢+𝑗+1| 𝑡𝑢 = 𝑡 – The value of a state/action pair 𝑅(𝑡, 𝑏). (action-value function) 𝑅 𝑡, 𝑏 = 𝐹 𝑠𝑢 𝑡𝑢 = 𝑡, 𝑏𝑢 = 𝑏 = 𝐹
𝑗=0 ∞
𝛿𝑗. 𝑠𝑢+𝑗+1| 𝑡𝑢 = 𝑡, 𝑏𝑢 = 𝑏
- 𝑹 and 𝑾 are initially unknown, and learned iteratively as we gain
experience.
SLIDE 31
The reinforcement learning problem: The Q-Learning Algorithm
10.10.2018
31
SLIDE 32
The reinforcement learning problem: The Q-Learning Algorithm
10.10.2018
32
SLIDE 33
The reinforcement learning problem: The SARSA Algorithm
10.10.2018
33
SLIDE 34
Q-learning example
- Credits: Arjun Chandra
10.10.2018
34
home
- 1
SLIDE 35
10.10.2018
35
SLIDE 36
10.10.2018
36
SLIDE 37
10.10.2018
37
SLIDE 38
10.10.2018
38
SLIDE 39
10.10.2018
39
SLIDE 40
10.10.2018
40
SLIDE 41
10.10.2018
41
SLIDE 42
10.10.2018
42
SLIDE 43
10.10.2018
43
SLIDE 44
10.10.2018
44
SLIDE 45
10.10.2018
45
SLIDE 46
10.10.2018
46
SLIDE 47
10.10.2018
47
SLIDE 48
10.10.2018
48
SLIDE 49
10.10.2018
49
SLIDE 50
10.10.2018
50
SLIDE 51
10.10.2018
51
SLIDE 52
10.10.2018
52
SLIDE 53
10.10.2018
53
SLIDE 54
10.10.2018
54
SLIDE 55
10.10.2018
55
SLIDE 56
10.10.2018
56
SLIDE 57
10.10.2018
57
SLIDE 58
10.10.2018
58
SLIDE 59
10.10.2018
59
SLIDE 60
Action selection
10.10.2018
60
SLIDE 61
On-policy vs off-policy learning
61
Start The Cliff Goal
- Reward structure: Each move: -1. Move to
cliff: -100.
- Policy: 90% chance of choosing best action
(exploit). 10% chance of choosing random action (explore).
10.10.2018
SLIDE 62
On-policy vs off-policy learning: Q-learning
62
Start The Cliff Goal
- Always assumes optimal action -> does not
visit cliff often while learning. Therefore, does not learn that cliff is dangerous.
- Resulting path is efficient, but risky.
10.10.2018
SLIDE 63
On-policy vs off-policy learning: SARSA
63
Start The Cliff Goal
- During learning, we more frequently end up
- utside the cliff (due to the 10% chance of
exploring in our policy).
- That info propagates to all states, generating
a safer plan.
10.10.2018
SLIDE 64
Which plan is better?
64
Start The Cliff Goal Start The Cliff Goal
- SARSA (on-policy):
- Q-learning (off-policy):
10.10.2018
SLIDE 65
Using evolution and neural networks in reinforcement learning
MarI/O - Machine Learning for Video Games
10.10.2018
65
SLIDE 66
10.10.2018
66
