SLIDE 1

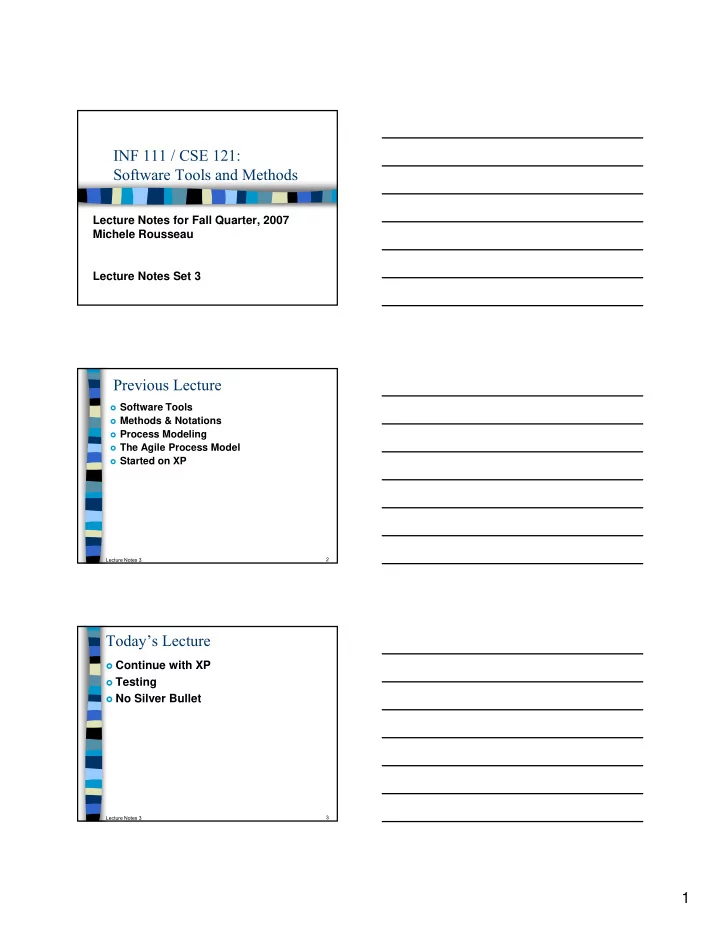

1 INF 111 / CSE 121: Software Tools and Methods

Lecture Notes for Fall Quarter, 2007 Michele Rousseau Lecture Notes Set 3

Previous Lecture

Software Tools Methods & Notations Process Modeling The Agile Process Model Started on XP

Lecture Notes 3 2

Today’s Lecture

Continue with XP Testing No Silver Bullet

Lecture Notes 3 3

SLIDE 2

2 Extreme Programming (XP)

Invented by Kent Beck in 1996

“Seat of the pants” fix to Chrysler project
To fix problems caused by long development cycles of

traditional process models

Beck Published in 1999

“E t P i E l i d E b Ch ”

Lecture Notes 3 4

“Extreme Programming Explained: Embrace Change”

Current hot topic in S/W Process
Loved and Hated
Tries to associate s/w process with eXtreme sports

Idea: Take a good programming practice and

push it to the extreme

Eg. Testing
Testing is good so… do it all the time

Premise of XP

The Four Values

Lecture Notes 3 5

Communication Simplicity Feedback

Courage

Hmmm.. But aren’t these standard “Best Practices”? What’s new here?

6 Phases Of Development

Exploration Planning Iterations to Release Productionizing

Lecture Notes 3 6

Maintenance Death

SLIDE 3

3 Exploration Phase

Customers

Story Cards – 1 feature per card

◘ Customer wish list for first release Developers

Get familiar with

Lecture Notes 3 7

◘ Tools ◘ Technology ◘ Practices … to be used

Architecture possibilities explored – Prototype
Tailor process to the project

A few weeks to months

How familiar is tech to programmers

Planning Phase

Prioritize Stories

First Small release agreement

Effort Estimate for each story

Schedule Agreement

Usually < 2 months

Lecture Notes 3 8

◘ Usually < 2 months Takes a few days

Iterations to Release Phase

Several Iterations before 1st Release # of Iterations determined in planning phase Each iteration takes 1-4 wks to implement

Lecture Notes 3 9

Select stories wisely

these enforce system architecture for the entire

system

Customer chooses stories for each iteration

Functional tests created by Customer

Run at the end of each iteration

At the end of last iteration Production

SLIDE 4

4 Productionizing Phase

End testing before release New changes may be found

Decide whether to include in current release
Documented for later implementation

Maintenance Phase

Lecture Notes 3 10

Maintenance Phase Iterations shortened

Maintenance and Death Phases

Maintenance

May need more people

◘ Maintain current production ◘ Produce new Iterations ◘ Change team structure

Development slows

Lecture Notes 3 11

Death Phase

Either…

All stories complete & quality is satisfactory
Not delivering expected outcomes
Too expensive to continue

XP Lifecycle Model

Lecture Notes 3 12

SLIDE 5

5 14 Key Practices of XP

Programmer Practices

Simple Design Test-driven development Refactoring Pair programming Continuous integration Collective code ownership Coding standards

13

Just Rules

Management Practices

Planning Game Small releases 40-hour week Open Workspace

Customer Practices

On-site customer Metaphor

Programmer Practices

Simple Design

Simple solutions no complex or extra code
Do the simplest thing that will get you thru milestone
Eliminate duplication in the design
Don't over engineer, solve problems only when they
ccur

Lecture Notes 3 14

Test-driven development

Unit test implemented before code and are run

continuously (White Box Testing)

◘ Write a simple, automated test before coding

Customers write functional tests (Black box testing)

Communication Simplicity Feedback

Courage

Programmer Practices (2)

Refactoring

Improving code without changing features

A change to the system that leaves its behavior unchanged, but enhances some nonfunctional quality-simplicity, flexibility, understandability, performance.

Automated tests catch any errors that are introduced

Lecture Notes 3 15

Pair Programming 2 people + 1 computer

One codes, one thinks about the design and catches

errors

Continuous Integration

Many times / day
All tests must pass for changes to be accepted

Communication Simplicity Feedback

Courage

SLIDE 6

6 Programmer Practices (3)

Collective Ownership

Any developer can change any code any time
But, “you break it, you fix it”

Coding Standards

Everyone codes to the same style standards

C ll “ ll i d hi ”

Lecture Notes 3 16

Corollary to “collective code ownership”
“No one can recognize who wrote what”

Just Rules

Team defined – can change

◘ all must agree & impact assessed

Communication Simplicity Feedback

Courage

Pair Programming

Programming is not just “typing”, this is why pair programming does not reduce productivity (Fowler) Benefits:

All design decisions involve at least two brains.
At least two people are familiar with every part

f th t

Lecture Notes 3 17

f the system.
There is less chance of both people neglecting

tests or other tasks.

Changing pairs spreads knowledge throughout

the team.

Code is always being reviewed by at least one

person.

Management Practices

Planning Game

Dev estimates effort
Cust decides what they want and when

Small Short Releases < 2-3 months

Then less

40 h k k

Lecture Notes 3 18

40-hour work week

No 2 overtime wks in a row

Open Workspace

1 Large Room Small Cubicles
Pair Programmers in the Center

Communication Simplicity Feedback

Courage

SLIDE 7

7 Customer Practices

On-site customer

Need customer/user around to answer

questions

Builds a bond, working relationship

Lecture Notes 3 19

Metaphors

“Shared Story” guides development
Describes how system should work

Communication Simplicity Feedback

Courage

User Story / User Card

Lecture Notes 3 20

http://www.scissor.com/resources/teamroom/

The XP Team Room

Lecture Notes 3 21

SLIDE 8

8 XP Concepts

XP is a set of key practices that suggest a

software development process.

Key concept: Embrace change.

Rather than avoid changes, try to reduce the cost of

making changes.

Lecture Notes 3 22

Key concept: Defer costs.

Rather than face every problem up front, try to start

with a small subset and incrementally plan and carry

ut improvements.

XP Proponents Responses to Criticisms

Just a fancy form of build-and-fix.

False.
XP is actually a disciplined software process.
Has the some of the same challenges and adoption

problems as traditional phased processes.

Doesn’t work for large systems.

False

Lecture Notes 3 23

False.
Chrysler Comprehensive Compensation system was a

large system

Other XP users include Google and John Deere

Doesn’t work for large teams.

False.
Large teams are normally broken up into sub-projects
Same can be applied to large teams using XP

Doesn’t work for geographically distributed teams.

False.
Technology is both the cause and the solution
Planning tools, Skype, IM, revision control

User stories are no substitute for requirements.

True.

U t i k b th d d th th ti

XP Proponents Resp. to Criticisms (2)

Lecture Notes 3 24

User stories work, because they depend on the other practices

such as On-site Customer

Doesn’t work with safety-critical software.

False.
Same challenges apply here as with phased processes
Can add checks and balances, documentation, and formal

design as needed

SLIDE 9

9

Doesn’t produce documentation.

Maybe. XP only produces as much documentation as is

needed, when it is needed (simplicity).

It is wasteful, because you’re doing constantly

doing re-design.

XP Proponents Resp. to Criticisms (3)

Lecture Notes 3 25

doing re design.

False.
Planning everything up front is wasteful, because things are

going to change anyways.

Not suitable for all projects

True.
User functionality is simple, algorithms hard
Example: scientific applications

Productivity Gains

For a Web Dev Project

66% increase in new lines of code

produced

Lecture Notes 3 26

p

302% inc in new methods developed
283% inc in # of new classes implemented

Maruer & Martel 2002b

Cons

Corp Culture must support XP

Any resistance can lead to failure

Best for teams < 20

Lecture Notes 3 27

Best if teams are collocated

On the same floor

Technology that does not support

“graceful change” may not be suitable

SLIDE 10

10 Take a break!

Stretch, Relax Get some water, Use the restroom Get to know your classmates… Etc…..

When we return…

No Silver Bullet Testing

Lecture Notes 3 29

Moving on..

No Silver Bullet Testing

Lecture Notes 3 30

SLIDE 11

11 The Mythical Man-Month

Originally Published in 1975

Fred Brooks
Based on Experiences From OS/360 in

mid-60’s

So why should we care?

Lecture Notes 3 31

So why should we care? Some interesting Stats

Amazon.com Sales Rank:

#3,201 in Books #1 in Microprocessor Design #3 in Systems Analysis & Design #12 in Software Engineering

Who is Fred Brooks?

Lecture Notes 3 32

“Father of IBM OS/360” 1992 Computer Pioneer Award (IEEE) 1999 Turing award winner 2007 Harvard Centennial Medal Founded UNC-Chapel Hill CS dept

No-Silver Bullet

“There is no single development, in either technology or management technique, which by itself promises even one order-of-magnitude improvement within a decade in productivity, in reliability, in simplicity”

Lecture Notes 3 33

SLIDE 12

12 Essence & Accident

Essential Tasks

Specifications, design & testing of conceptual

constructs

Accidental (or incidental) Tasks

Programming & Compiling

Lecture Notes 3 34

Programming & Compiling

The essential tasks are the hard part.

Why is building s/w difficult?

“I believe that hard part of building software to be the specification, design, and testing of this conceptual construct, not the labor of representing it and testing the fidelity of the representation”

Lecture Notes 3 35

It is the nature of s/w – inherent in the

process

Conceptual errors are the problem

Complexity Conformity Changeability

I i ibilit

Four Inherent Difficulties

Lecture Notes 3 36

Invisibility

SLIDE 13

13 Complexity

Very large # of states Scaling up is not a repetition of the same

elements in large sizes

Elements interact in a non-linear fashion

Complexity Communication

Lecture Notes 3 37

It is difficult to extend large programs

without creating side effects Complexity makes management difficult Personnel turnover can be a disaster

Some of Brooks Suggestions

IF an OTS fits – buy it (aka reuse)

Why re-invent the wheel

Requirements refinement and rapid

prototyping

Lecture Notes 3 38

Many iterations between client and

designer

Grow – don’t build – software

Develop incrementally

Train great designers

Is XP the Silver Bullet?

Requires:

Good Developers

…working well together

Sufficient Domain Knowledge

Onsite Customer is knowledgeable

Sufficient Technical Expertise

Lecture Notes 3 39

Sufficient Technical Expertise

Knowledge of tools and methods

Good Communication Skills Collocation

How do you collocate 4000 programmers?

What if a method or tool is not a SB?

SLIDE 14

14 Testing

A basic Review

Lecture Notes 3 40

Verification and Validation

Informal Requirements Formal

Validation

Lecture Notes 3 41

Specification Software Implementation

Verification

Verification: is implementation consistent with requirements specification? Validation: does the system meet the customer’s/user’s needs?

V & V

Validation

Have we built the right system?

◘ With respect to the user needs.

Lecture Notes 3 42

Verification

Have we built the system right?

◘ With respect to the specification

SLIDE 15

15 Software Quality: assessment by V&V

Software process must include

verification & validation to measure product qualities

correctness, reliability, robustness

Lecture Notes 3 43

efficiency, usability, understandability
verifiability, maintainability
reusability, portability, interoperability,
real-time, safety, security, survivability, accuracy

Products can be improved by improving

the process by which they are developed and assessed

Testing Terminology

Failure: Incorrect or unexpected output,

based on specifications

System does not behave according to

specifications

Symptom of a one or more fault

Lecture Notes 3 44

Fault: Invalid execution state

Symptom or consequence of an error
May or may not produce a failure
May produce Many Failures

Error: Defect or anomaly or “bug” in

source code – Human Error

May or may not produce a fault

Examples: Failures, Faults, and Errors

ERROR => Node 6 should be X:= C*(A+2*B)

Error – but no Fault of Failure

Input: A=2, B=1 Executed Path => (1,2,4,5,7,8) Fault is not Revealed

Node 6 is not executed

Error – Fault – No Failure

Input: A=-2, B=-1 1: Input A,B 2:

A>0? 3: C :=0 4: C := A*B

True False

Lecture Notes 3 45

p , Executed Path => (1,2,3,5,6,8) Fault Not Revealed

because C = 0

Need select proper test cases Definitions of C at Nodes 3 and 4 both affect the use of C at node 6 Path (1,2,4,5,6,8) will reveal the failure

but only if B <> 0 (e.g. Inputs (A=1,B=-2) )

3: C : 0 C 5: B>0?

6: X := C*(A+2*A) 7: X := A+B 8: Output X True False

SLIDE 16

16 Examples: Failures, Faults, and Errors

ERROR => Node 6 should be X:= C*(A+2*B)
Error – but no Fault or Failure
Inputs: A = 2, B = 1
Executed Path => (1,2,4,5,7,8)
Fault is not Revealed

◘ Node 6 is not executed

Error – Fault – No Failure

Input: A=-2, B=-1 1: Input A,B 2:

A>0? 3: C :=0 4: C := A*B

True False

Lecture Notes 3 46

p , Executed Path => (1,2,3,5,6,8) Fault Not Revealed

because C = 0

Need select proper test cases Definitions of C at Nodes 3 and 4 both affect the use of C at node 6 Path (1,2,4,5,6,8) will reveal the failure

but only if B <> 0 (e.g. Inputs (A=1,B=-2) )

3: C : 0 4: C : A B 5: B>0?

6: X := C*(A+2*A) 7: X := A+B 8: Output X True False

Examples: Failures, Faults, and Errors

ERROR => Node 6 should be X:= C*(A+2*B)
Error – but no Fault or Failure
Inputs: A = 2, B = 1
Executed Path => (1,2,4,5,7,8)
Fault is not Revealed

◘ Node 6 is not executed

Error – Fault – No Failure
Inputs: A = -2, B = -1

1: Input A,B 2:

A>0? 3: C :=0 4: C := A*B

True False

Lecture Notes 3 47

p ,

Executed Path => (1,2,3,5,6,8)
Fault Not Revealed

◘ because C = 0

Need select proper test cases Definitions of C at Nodes 3 and 4 both affect the use of C at node 6 Path (1,2,4,5,6,8) will reveal the failure

but only if B <> 0 (e.g. Inputs (A=1,B=-2) )

3: C : 0 C 5: B>0?

6: X := C*(A+2*A) 7: X := A+B 8: Output X True False

Examples: Failures, Faults, and Errors

ERROR => Node 6 should be X:= C*(A+2*B)
Error – but no Fault or Failure
Inputs: A = 2, B = 1
Executed Path => (1,2,4,5,7,8)
Fault is not Revealed

◘ Node 6 is not executed

Error – Fault – No Failure
Inputs: A = -2, B = -1

1: Input A,B 2:

A>0? 3: C :=0 4: C := A*B

True False

Lecture Notes 3 48

p ,

Executed Path => (1,2,3,5,6,8)
Fault Not Revealed

◘ because C = 0

Need select proper test cases
Definitions of C at Nodes 3 and 4

both affect the use of C at node 6

Path (1,2,4,5,6,8) will reveal the failure

◘ but only if B <> 0 ◘ e.g. Inputs: A = 1, B = -2

3: C : 0 C 5: B>0?

6: X := C*(A+2*A) 7: X := A+B 8: Output X True False

SLIDE 17

17 Why do we care about Errors / Faults that never show up?

Latent faults

Can be subsumed by previous statements
Maybe that state is never entered

Lecture Notes 3 49

Software is often reused later Conditions not hit in prev. version may

be accessed later

Code Changes

For Example: Ariane 5

Capable of hurling 2 – 3 ton

satellites into orbit

10 years $7 Billion

Lecture Notes 3 50

$

Would have given Europe

supremacy in the commercial satellite business

Some Slides Adapted from Sommerville

Arian 5 (2)

Successor to the

successful Ariane 4 launchers

Ariane 5 can carry a

Lecture Notes 3 51

heavier payload

SLIDE 18

18 Whoops!

40 seconds into

maiden flight

veers off course & self-

destructed

39 d ft lift

Lecture Notes 3 52

39 seconds after lift

ff
Altitude reaches 2.5 miles
Ariane 5 goes into self

destruct

Carrying 5 expensive -

uninsured satellites

Why?

Why did it go into

self destruct mode?

Incorrect control

signals were sent to the engines and these swivelled - A i 5 d

Lecture Notes 3 53

Ariane 5 swerved

Pressure in boosters

and main engine

Why did it swerve?

It was making a

course correction that was not needed.

Launcher Failure

Why the course correction?

Steering controlled by onboard computer
Thought course change was necessary because of numbers

being displayed by the inertial guidance system

The numbers looked like data – impossible data- but was

actually an error message

Lecture Notes 3 54

The guidance system had shutdown

Why did the guidance system shutdown?

Tried to convert a 64-bit format velocity to a 16-bit format
Overflow error

What about the backup?

Backup system failed too..

◘ It was running the same software

SLIDE 19

19 In a nutshell…

Software Failure Software was reused form Ariane 4.

Fault was never found when testing for Ariane 4
Ariane 4 Physically smaller

Lecture Notes 3 55

◘ lower initial acceleration and build up of horizontal velocity than Ariane 5

The value of the variable on Ariane 4 could never

reach a level that caused overflow during the launch period.

Avoidable?

The computation that resulted in

verflow was not used by Ariane 5

Decisions were made

Not to remove the facility as this could

introduce new faults

56

introduce new faults

No exception handling for overflows

◘ Processor was heavily loaded ◘ Wanted spare processor capacity for dependability Since there was no requirement

no test (not a validation error)

Happy Ending…

They fixed the

error and…

Lecture Notes 3 57

SLIDE 20

20 Why not exhaustively test everything?

for (i = 0; i<100; i++) { if (a[i] == true ){ System.out.println(“1”); } else { System.out.println(“0”); }

Lecture Notes 3 58

} }

How long would it take to test exhaustively?

Possible outputs?
How long for each output?

2^100 outcomes @ 10 000 000 print statements/

second = 3 x 104 years

Why not exhaustively test everything?

Not feasible to run all those test cases Not feasible to validate them once they are

run

Lecture Notes 3 59

run

Need to know the output
Need to compare expected to actual

(oracle)

Typical Testing Process

Oracle Test Subset of Input Expected Output

Lecture Notes 3 60
