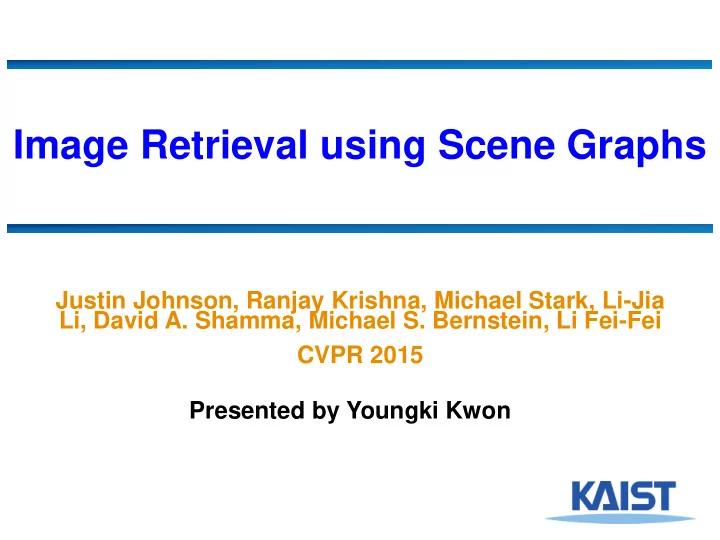

Image Retrieval using Scene Graphs

Justin Johnson, Ranjay Krishna, Michael Stark, Li-Jia Li, David A. Shamma, Michael S. Bernstein, Li Fei-Fei CVPR 2015 Presented by Youngki Kwon

2

Contents

• Introduction
• Background
• Main approach
• Experiment
• Conclusion

3

Introduction

• There are needs to retrieve semantically

similar images by describing detailed semantic of scene

• Scene graph can represent scene
• How about using scene graph as query?

Ideal Result

4

Introduction

• Develop novel framework for semantic

image retrieval based on the notion of a scene graph

• Use scene graphs as query
• Introduce a novel dataset of 5K human-

generated scene graphs grounded to images

Object & Attribute Relationship

Query

Output

Measure Score

5

Background

• Scene graph is data structure that

describes the contents of scene

• Encode object instances, attributes of objects,

and relationships between objects

<Ranjay Krishna et al. IJCV16>

6

Background

• Attribute can be
• Relationship can be

<Ali Farhadi et al. CVPR09> <Cewu Lu et al. ECCV16>

7

Main approach

• Under the assumption that scene graph

query is given and image is represented by a set of candidate bounding boxes

• Measure the agreement between query

scene graph and an unannotated test image

• Examining the best possible grounding of the

scene graph to the image

• Perform maximum a posteriori (MAP)

inference to find the most likely grounding

• Likelihood of this MAP solution is taken as the

score measuring the agreement between the scene graphs and the image

8

Main approach

• Scene Graph Grounding
• G = (O, E) is a scene graph
• B is a set of bounding boxes in image
• 𝜹 is a grounding of the scene graph to the image
• Model the distribution over possible groundings as

Unary Potential Binary Potential

9

Main approach

• Unary Potential
• Model how well the bounding box 𝜹𝒑 agree with

the known object class and attributes of the

• bjects o
• If o = (c, A) then we decompose this term as

R-CNN

0.113 0.4213 . . . 0.712

Output Class 1 Class 2 Class N Attribute 1 Attribute M Input

10

Main approach

• Binary Potential
• Model how well the pair of bounding boxes 𝜹𝒑,

𝜹𝒑′ express the tuple (𝒑, 𝒔, 𝒑′)

• Extract features 𝒈(𝜹𝒑, 𝜹𝒑′) encoding their

relative position and scale

• Train Gaussian mixture model (GMM) to model

𝑸 𝒈 𝜹𝒑, 𝜹𝒑′ 𝒅, 𝒔, 𝒅′) using training data and use GMM density function as probability

Input Output (o,r,o’) 1 (o,r,o’) 2 (o,r,o’) N GMM

0.482 0.134 . 0.772

11

Experiment

• Perform image retrieval experiments using

two types of scene graph as queries

• Full ground-truth scene graph
• Simple scene graph
• Evaluate the groundings found by proposed

models

• Check object localization performance

[1] Full scene graph [2] Simple scene graph

12

Experiment

• Full scene graph queries

13

Experiment

• Simple scene graph queries

14

Experiment

Success Case

[1] [2] [3]

15

Experiment

Failure case

16

Conclusion

• Use scene graph as novel representation

for detailed semantics in visual scene

• Introduce a dataset of scene graphs

grounded to real world images

• Construct CRF model for semantic image

retrieval using scene graphs as queries

17

Reference

• Visual Genome: Connecting Language and

Vision Using Crowdsourced Dense Image Annotations - Ranjay Krishna et al. (IJCV16)

• Describing objects by their attributes - Ali

Farhadi et al. (CVPR09)

• Visual Relationship Detection with

Language Priors - Cewu Lu et al. (ECCV16)

19

Quiz

• 1. Scene graph consists of object, attribute

and ( ).

• A. relationship
• B. tag
• C. visual feature
• D. relative position
• 2. For measuring score, examining the best

possible ( ) of the scene graph to the image

• A. reconstruction
• B. grounding
• C. resizing
• D. transformation
