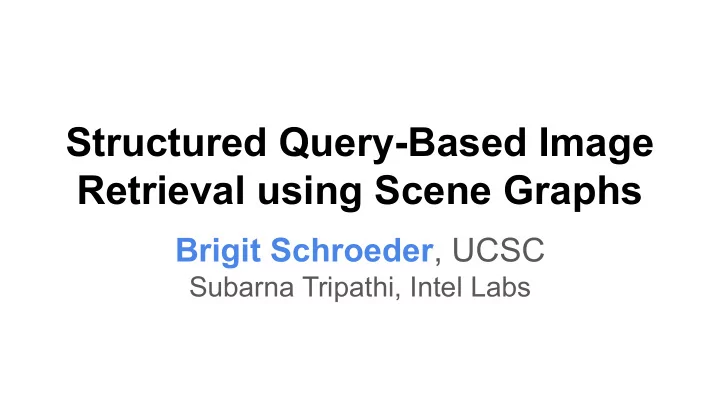

Structured Query-Based Image Retrieval using Scene Graphs

Brigit Schroeder, UCSC

Subarna Tripathi, Intel Labs

Complexity of Object Interactions for Retrieval

• Structured queries capture complexity of object interactions unlike single objects.
• Visual relationships are directed subgraph with subject and object as nodes connected

by a predicate.

• We propose to retrieve images from such queries (NOT from RGB image features)

utilizing a learned scene embedding space. woman motorcycle rides vs woman motorcycle

Related Work

• Image Retrieval Using Scene Graphs (Johnson et al., CVPR 2015)

⇒ Use a CRF model to match best possible bounding box groundings from SG to image for retrieval.

• Cross-Modal Scene Graph Matching for Relationship-Aware Image-Text

Retrieval (Wang et al., WACV 2020) ⇒ Use cross-modal scene graphs for image-text retrieval relying upon both word embeddings and image features.

Subgraph Query for Retrieval

• Directed subgraphs are extracted from scene

graphs (objects as nodes, predicated as edges).

• Each subgraph contains a subject and object

as nodes connected by an edge representing a predicate relationship.

• Visual relationship, represented as the above

subgraph, posed as structured queries.

• Similarity metric for retrieval in scene

embedding space.

• Scene embedding learned via a pretext task

(described in the next slide) Scene Graph

Scene Graph Embeddings from Layout Prediction

• Scene graph embedding is learned via a

pretext task, layout prediction.

• Layout prediction utilizes object localization

for individual objects AND Triplet-superbox regression network and Triplet-mask prediction network (described in the next slide).

• Visual relation as directed subgraph as

structured query, such as:

• Euclidean distance in this scene embedding

space used for retrieval.

giraffe giraffe Left of

Learning Scene Graph Embedding

Triplet Mask Network

Triplet mask prediction: Triplets containing a <subject,predicate,object> found in a scene graph are used to predict corresponding triplet masks, labelling pixels either as subject and object. The mask prediction is used as supervisory signal during training

Qualitative Retrieval Results

Image Retrieval Results. Retrieval for structured queries with object types with varying levels of frequency in COCO-Stuff dataset: (a) head (person, tree), (b) (long-tail) medium frequency (zebra, truck), and (c) (long-tail) low frequency (skateboard, skis). Query is in left-most column corresponding to red boxes.

Quantitative Results

Image Retrieval Performance. Recall@k for all classes (left) and long-tail vs. head classes (right) found in COCO-Stuff

Retrieval (NO input RGB image features) Performance

Adding a visual relationship-inspired (triplet) loss boosts our recall by 10% in the best case.

Conclusions

• We have trained scene graph embeddings for layout prediction with

triplet-based loss functions.

• For the downstream application of image retrieval, we use structured

queries formed using the learned embeddings instead of input image content.

• Our approach achieves high recall even on long-tailed object classes in

the COCO-Stuff dataset.
