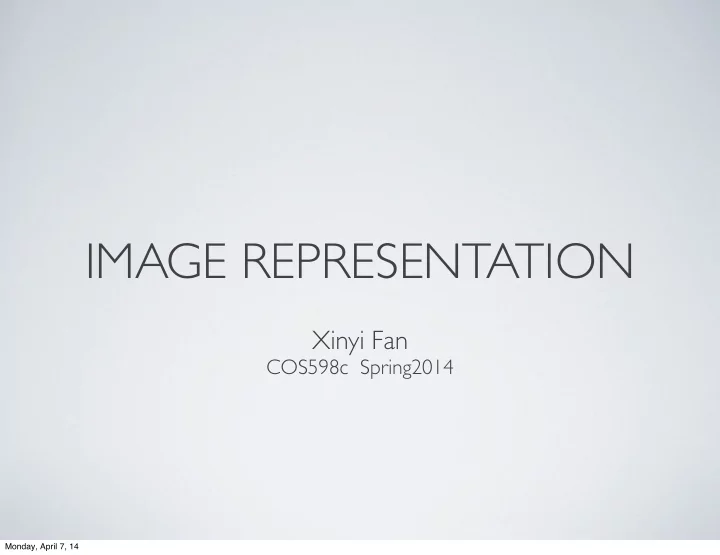

IMAGE REPRESENTATION

Xinyi Fan

COS598c Spring2014

Monday, April 7, 14

slide-2
SLIDE 2

IMAGE REPRESENTATION

Xinyi Fan

COS598c Spring2014

Monday, April 7, 14

slide-3
SLIDE 3

APPROACHES

  • Bag of Words
  • Spatial Pyramid Matching
  • Descriptor Encoding

Monday, April 7, 14

slide-4
SLIDE 4

APPROACHES

  • Bag of Words
  • Spatial Pyramid Matching
  • Descriptor Encoding

Monday, April 7, 14

slide-5
SLIDE 5

Object

Monday, April 7, 14

slide-6
SLIDE 6

Object Feature Words

Monday, April 7, 14

slide-7
SLIDE 7

Object Bag of Feature Words

Adapted from slides by Fei-Fei Li

Monday, April 7, 14

slide-8
SLIDE 8

BAG OF WORDS

  • Definition
  • Independent, orderless features

Monday, April 7, 14

slide-9
SLIDE 9

BAG OF WORDS

  • Definition
  • Independent, orderless features

Monday, April 7, 14

slide-10
SLIDE 10

BAG OF WORDS

  • Definition
  • Independent, orderless features
  • Histogram representation

Adapted from slides by Fei-Fei Li

Monday, April 7, 14

slide-11
SLIDE 11

BAG OF WORDS

  • Definition
  • Independent, orderless features
  • Histogram representation

1 3 2

Adapted from slides by Fei-Fei Li

Monday, April 7, 14

slide-12
SLIDE 12

Adapted from slides by Fei-Fei Li

Category models/ classifiers Category decision

Feature detection & representation Codewords dictionary formation Image representation

Monday, April 7, 14

slide-13
SLIDE 13

Adapted from slides by Fei-Fei Li

Category models/ classifiers Category decision

Representation

Feature detection & representation Codewords dictionary formation Image representation

Monday, April 7, 14

slide-14
SLIDE 14

Adapted from slides by Fei-Fei Li

Category models/ classifiers Category decision

Learning

Feature detection & representation Codewords dictionary formation Image representation

Monday, April 7, 14

slide-15
SLIDE 15

Adapted from slides by Fei-Fei Li

Feature detection & representation Codewords dictionary formation Image representation

Category models/ classifiers Category decision

Learning Recognition

Monday, April 7, 14

slide-16
SLIDE 16

Feature Detection & Representation

dense regular grids points of interest random

Monday, April 7, 14

slide-17
SLIDE 17

Feature Detection & Representation

…

Monday, April 7, 14

slide-18
SLIDE 18

Codewords Dictionary Formation

…

Monday, April 7, 14

slide-19
SLIDE 19

Codewords Dictionary Formation

…

Vector quantization

Monday, April 7, 14

slide-20
SLIDE 20

Codewords Dictionary Formation

…

Vector quantization

Monday, April 7, 14

slide-21
SLIDE 21

Codewords Dictionary Formation

Monday, April 7, 14

slide-22
SLIDE 22

Image Representation

feature frequency

…..

codewords

Monday, April 7, 14

slide-23
SLIDE 23

Using BoW Representation

Use BoW as feature vector for standard classifier

  • Naive Bayesian
  • SVM

Cluster BoW vectors over image collection

  • Category classification (supervised)
  • Object discovery (unsupervised)

Use BoW to build hierarchical models

  • Decompose scene/object

Monday, April 7, 14

slide-24
SLIDE 24

BoW Summary

Issues

  • Sampling strategy

dense uniform, interest points, random...

  • Codebook learning

supervised/unsupervised, size...

  • Similarity measurement

SVM, Pyramid Matching

  • Spatial information
  • Scalability

Monday, April 7, 14

slide-25
SLIDE 25

BoW Summary

Issues

  • Sampling strategy

dense uniform, interest points, random...

  • Codebook learning

supervised/unsupervised, size...

  • Similarity measurement

SVM, Pyramid Matching

  • Spatial information
  • Scalability

Monday, April 7, 14

slide-26
SLIDE 26

BoW Summary

Issues

  • Sampling strategy

dense uniform, interest points, random...

  • Codebook learning

supervised/unsupervised, size...

  • Similarity measurement

SVM, Pyramid Matching

  • Spatial information
  • Scalability

Monday, April 7, 14

slide-27
SLIDE 27

Pyramid Matching

Monday, April 7, 14

slide-28
SLIDE 28

Pyramid Matching

Monday, April 7, 14

slide-29
SLIDE 29

Pyramid Matching

∩

≈

  • ptimal partial

matching between sets of features

Monday, April 7, 14

slide-30
SLIDE 30

Pyramid Matching

∩

≈

  • ptimal partial

matching between sets of features

Y = {~ y1, . . . , ~ yn} ~ yi ∈ Rd X = {~ x1, . . . , ~ xm} ~ xi ∈ Rd

Adapted from slides by Grauman and Darrell

Monday, April 7, 14

slide-31
SLIDE 31

Feature Extraction

X = {~ x1, . . . , ~ xm} ~ xi ∈ Rd

Histogram pyramid: level has bins of size `

2`

H0(X) H1(X) H2(X) H3(X)

d = 1, L = 3

Ψ(X) = [H0(X), . . . , HL(X)]

Monday, April 7, 14

slide-32
SLIDE 32

Counting Matches

Adapted from slides by Grauman and Darrell

Histogram intersection:

I(H(X), H(Y )) =

r

X

j=1

min(H(X)j, H(Y )j)

H(X) H(Y ) I(H(X), H(Y )) = 4 X Y

Monday, April 7, 14

slide-33
SLIDE 33

Counting New Matches

Adapted from slides by Grauman and Darrell

Histogram intersection:

I(H(X), H(Y )) =

r

X

j=1

min(H(X)j, H(Y )j)

N` = I(H`(X), H`(Y )) − I(H`−1(X), H`−1(Y ))

matches at current level matches at previous level Difference in histogram intersections across levels counts number of new pairs matched

Monday, April 7, 14

slide-34
SLIDE 34

Pyramid Match Kernel

Adapted from slides by Grauman and Darrell

K∆(Ψ(X), Ψ(Y )) =

L

X

`=0

1 2` (I(H`(X), H`(Y )) − I(H`−1(X), H`−1(Y )))

histogram pyramids number of newly matched pairs at level ` measure of difficulty of a match at level `

Monday, April 7, 14

slide-35
SLIDE 35

Approximation of Optimal Partial Matching

Adapted from slides by Grauman and Darrell

100 sets with 2D points, cardinalities vary between 5 and 100 Trial number (sorted by optimal distance)

[Indyk & Thaper]

Matching output

Approximation of the optimal partial matching

Monday, April 7, 14

slide-36
SLIDE 36

Building a Classifier

Adapted from slides by Grauman and Darrell

  • Train SVM by computing kernel values between all

labeled training examples

  • Classify novel examples by computing kernel

values against support vectors

  • One-versus-all for multi-class classification

Monday, April 7, 14

slide-37
SLIDE 37

BoW Summary

Issues

  • Sampling strategy

dense uniform, interest points, random...

  • Codebook learning

supervised/unsupervised, size...

  • Similarity measurement

SVM, Pyramid Matching

  • Spatial information
  • Scalability

Monday, April 7, 14

slide-38
SLIDE 38

BoW Summary

Spatial information BoW removes spatial layout

+

  • Increases the invariance to scale/

translation/deformation Sacrifices discriminative power

Monday, April 7, 14

slide-39
SLIDE 39

APPROACHES

  • Bag of Words
  • Spatial Pyramid Matching
  • Descriptor Encoding

Monday, April 7, 14

slide-40
SLIDE 40

Spatial Pyramid Matching

Image credit: Lazebnik et al

Monday, April 7, 14

slide-41
SLIDE 41

Spatial Pyramid Matching

Monday, April 7, 14

slide-42
SLIDE 42

Spatial Pyramid Matching

Monday, April 7, 14

slide-43
SLIDE 43

Spatial Pyramid Matching

Monday, April 7, 14

slide-44
SLIDE 44

Category models/ classifiers Category decision

Feature detection & representation Codewords dictionary formation Image representation

Monday, April 7, 14

slide-45
SLIDE 45

Category models/ classifiers Category decision

Feature detection & representation Codewords dictionary formation Image representation

Spatial Pyramid Matching

Monday, April 7, 14

slide-46
SLIDE 46

Spatial Pyramid Matching

  • Quantize feature vectors into M discrete types
  • Perform pyramid matching in 2D image space for

each channel m = 1, ..., M

  • Assume features of the same type m can be

matched to each other

Monday, April 7, 14

slide-47
SLIDE 47

Spatial Pyramid Matching

M

X

m=1

κL(Xm, Ym)

Image credit: Lazebnik et al 2006

Monday, April 7, 14

slide-48
SLIDE 48

Pyramid Match Kernel

Adapted from slides by Grauman and Darrell

K∆(Ψ(X), Ψ(Y )) =

L

X

`=0

1 2` (I(H`(X), H`(Y )) − I(H`−1(X), H`−1(Y )))

histogram pyramids number of newly matched pairs at level ` measure of difficulty of a match at level `

Monday, April 7, 14

slide-49
SLIDE 49

Pyramid Match Kernel

Adapted from slides by Grauman and Darrell

κL(X, Y ) = K∆(Ψ(X), Ψ(Y )) =

L

X

`=0

1 2` (I(H`(X), H`(Y )) − I(H`−1(X), H`−1(Y )))

M

X

m=1

κL(Xm, Ym)

The final kernel is sum of the separate channel kernels:

Monday, April 7, 14

slide-50
SLIDE 50

APPROACHES

  • Bag of Words
  • Spatial Pyramid Matching
  • Descriptor Encoding
  • Linear SPM using Sparse Coding
  • Locality-constrained Linear Coding
  • Fisher Vector

Monday, April 7, 14

slide-51
SLIDE 51

Category models/ classifiers Category decision

Feature detection & representation Codewords dictionary formation Image representation

(Spatial Pyramid Matching)

Monday, April 7, 14

slide-52
SLIDE 52

Category models/ classifiers Category decision

Feature detection & representation Codewords dictionary formation Image representation

(Spatial Pyramid Matching) Other ways of encoding local feature descriptors For better performance

Monday, April 7, 14

slide-53
SLIDE 53

APPROACHES

  • Bag of Words
  • Spatial Pyramid Matching
  • Descriptor Encoding
  • Linear SPM using Sparse Coding
  • Locality-constrained Linear Coding
  • Fisher Vector

Monday, April 7, 14

slide-54
SLIDE 54

Linear SPM using Sparse Coding

Image credit: Yang et al 2009

Monday, April 7, 14

slide-55
SLIDE 55

Linear SPM using Sparse Coding

Image credit: Yang et al 2009

Monday, April 7, 14

slide-56
SLIDE 56

Encoding SIFT: From VQ to SC

min

V M

X

m=1

min

k=1,. . . ,K kxm vkk2

codebook: V = [v1, . . . , vK]>

Monday, April 7, 14

slide-57
SLIDE 57

min

V M

X

m=1

min

k=1,. . . ,K kxm vkk2

Encoding SIFT: From VQ to SC

min

V,U M

X

m=1

kxm umVk2 s.t. Card(um) = 1, |um| = 1, um ⌫ 0, 8m U = [u1, . . . , uM]>

Monday, April 7, 14

slide-58
SLIDE 58

min

V,U M

X

m=1

kxm umVk2 s.t. Card(um) = 1, |um| = 1, um ⌫ 0, 8m

min

V M

X

m=1

min

k=1,. . . ,K kxm vkk2

Encoding SIFT: From VQ to SC

min

V,U M

X

m=1

kxm umVk2 + λ|um| s.t. kvkk  1, 8k

Monday, April 7, 14

slide-59
SLIDE 59

Why L1 encourages sparsity

min kx uVk2

2 + λkuk1

min kx uVk2

2 + λkuk2

Monday, April 7, 14

slide-60
SLIDE 60

min

V,U M

X

m=1

kxm umVk2 s.t. Card(um) = 1, |um| = 1, um ⌫ 0, 8m

min

V M

X

m=1

min

k=1,. . . ,K kxm vkk2

Encoding SIFT: From VQ to SC

min

V,U M

X

m=1

kxm umVk2 + λ|um| s.t. kvkk  1, 8k

Monday, April 7, 14

slide-61
SLIDE 61

min

V,U M

X

m=1

kxm umVk2 s.t. Card(um) = 1, |um| = 1, um ⌫ 0, 8m

min

V M

X

m=1

min

k=1,. . . ,K kxm vkk2

Encoding SIFT: From VQ to SC

min

V,U M

X

m=1

kxm umVk2 + λ|um| s.t. kvkk  1, 8k

Implementation: feature-sign search algorithm [Lee et al 2006] http://ai.stanford.edu/~hllee/softwares/nips06-sparsecoding.htm

Monday, April 7, 14

slide-62
SLIDE 62

Algorithm Architecture

Image credit: Yang et al 2009

Monday, April 7, 14

slide-63
SLIDE 63

Linear SPM

U = [u1, . . . , uM]> z = F(U) define F as: zj = max{|u1j|, |u2j, . . . , |uMj||} κ(zi, zj) = z>

i zj = 2

X

l=0 2l

X

s=1 2l

X

t=1

hzl

i(s, t), zl j(s, t)i

Image credit: Yang et al 2009

Monday, April 7, 14

slide-64
SLIDE 64

APPROACHES

  • Bag of Words
  • Spatial Pyramid Matching
  • Descriptor Encoding
  • Linear SPM using Sparse Coding
  • Locality-constrained Linear Coding
  • Fisher Vector

Monday, April 7, 14

slide-65
SLIDE 65

Locality-constrained Linear Coding

Image credit: Wang et al 2010

Monday, April 7, 14

slide-66
SLIDE 66

Locality-constrained Linear Coding

min

V,U M

X

m=1

kxm umVk2 + λ|um| s.t. kvkk  1, 8k

SC

Monday, April 7, 14

slide-67
SLIDE 67

min

V,U M

X

m=1

kxm umVk2 + λ|um| s.t. kvkk  1, 8k

Locality-constrained Linear Coding

min

V,U M

X

m=1

kxm umVk2 + λkdm umk2 s.t. 1>um = 1, 8m

SC LLC

Monday, April 7, 14

slide-68
SLIDE 68

min

V,U M

X

m=1

kxm umVk2 + λ|um| s.t. kvkk  1, 8k

Locality-constrained Linear Coding

min

V,U M

X

m=1

kxm umVk2 + λkdm umk2 s.t. 1>um = 1, 8m

SC LLC

locality adaptor: dm = exp ✓dist(xm, V) σ ◆ where dist(xm, V) = [dist(xm, v1), . . . , dist(xm, vK)]> dist(xm, vk) is the Euclidean distance between xm and vk σ is for adjusting the decay speed

Monday, April 7, 14

slide-69
SLIDE 69

Properties of LLC

  • Better reconstruction
  • Local smooth sparsity
  • Analytical solution

V = {vk} V = {vk} V = {vk}

Image credit: Wang et al 2010

Monday, April 7, 14

slide-70
SLIDE 70

Properties of LLC

  • Better reconstruction
  • Local smooth sparsity
  • Analytical solution

V = {vk} V = {vk} V = {vk}

˜ um =

  • (V − 1x>

m)(V − 1x> m)> + λdiag(d)

  • \1

um = ˜ um/1>˜ um

Image credit: Wang et al 2010

Monday, April 7, 14

slide-71
SLIDE 71

Approximated LLC for Fast Encoding

min

V,U M

X

m=1

kxm umVk2 + λkdm umk2 s.t. 1>um = 1, 8m

Monday, April 7, 14

slide-72
SLIDE 72

Approximated LLC for Fast Encoding

min

V,U M

X

m=1

kxm umVk2 + λkdm umk2 s.t. 1>um = 1, 8m

Select local bases of each descriptor to form a local coordinate system

min

˜ U M

X

m=1

kxm ˜ umVmk2 s.t. 1>˜ um = 1, 8m

Monday, April 7, 14

slide-73
SLIDE 73

Approximated LLC for Fast Encoding

min

V,U M

X

m=1

kxm umVk2 + λkdm umk2 s.t. 1>um = 1, 8m

Select local bases of each descriptor to form a local coordinate system the K nearest neighbors of xm forms the local basis Vm

min

˜ U M

X

m=1

kxm ˜ umVmk2 s.t. 1>˜ um = 1, 8m

Monday, April 7, 14

slide-74
SLIDE 74

APPROACHES

  • Bag of Words
  • Spatial Pyramid Matching
  • Descriptor Encoding
  • Linear SPM using Sparse Coding
  • Locality-constrained Linear Coding
  • Fisher Vector

Monday, April 7, 14

slide-75
SLIDE 75

Fisher Kernel

X = {x1, . . . , xT }: a sample of T observations xt ∈ X uλ: the pd f λ = [λ1, . . . , λM]> ∈ RM

GX

λ = rλ log uλ(X)

score function: similarity measurement: [Jaakkola and Haussler, 1998]

KF K(X, Y ) = GX>

λ

F 1

λ GY λ

Monday, April 7, 14

slide-76
SLIDE 76

Fisher Kernel

similarity measurement:

KF K(X, Y ) = GX>

λ

F 1

λ GY λ

Fisher Information Matrix: Fλ = Ex⇠uλ(GX

λ GX> λ

) F 1

λ

= L>

λ Lλ

Monday, April 7, 14

slide-77
SLIDE 77

Fisher Kernel

similarity measurement:

KF K(X, Y ) = GX>

λ

F 1

λ GY λ

Fisher Information Matrix: Fλ = Ex⇠uλ(GX

λ GX> λ

) F 1

λ

= L>

λ Lλ

Fisher Kernel re-written as: KF K(X, Y ) = GX>

λ

GY

λ

where GX

λ = Lλrλ log uλ(X)

Fisher Vector

Monday, April 7, 14

slide-78
SLIDE 78

Fisher Vector on Images

GX

λ = T

X

t=1

Lλrλ log uλ(xt)

uλ(x) =

K

X

k=1

wkuk(x) where uk(x) = 1 (2π)D/2|Σk|1/2 exp ⇢ −1 2(x − µk)>Σ1

k (x − µk)

  • Fisher Vector:

GMM:

Monday, April 7, 14

slide-79
SLIDE 79

Fisher Vector on Images

GX

λ = T

X

t=1

Lλrλ log uλ(xt)

uλ(x) =

K

X

k=1

wkuk(x) where uk(x) = 1 (2π)D/2|Σk|1/2 exp ⇢ −1 2(x − µk)>Σ1

k (x − µk)

  • Fisher Vector:

GMM:

λ = {wk, µk, Σk, k = 1, . . . , K}

EM algorithm to estimate the parameters:

Monday, April 7, 14

slide-80
SLIDE 80

Soft Assignment

GX

λ = T

X

t=1

Lλrλ log uλ(xt) Fisher Vector: Gradients:

rαk log uλ(xt) = γt(k) wk rµk log uλ(xt) = γt(k) ✓xt µt σ2

k

◆ rσk log uλ(xt) = γt(k) (xt µk)2 σ4

k

1 σk

  • Monday, April 7, 14
slide-81
SLIDE 81

Soft Assignment

GX

λ = T

X

t=1

Lλrλ log uλ(xt) Fisher Vector: Gradients: Posterior Probability:

rαk log uλ(xt) = γt(k) wk rµk log uλ(xt) = γt(k) ✓xt µt σ2

k

◆ rσk log uλ(xt) = γt(k) (xt µk)2 σ4

k

1 σk

  • γt(k) =

wkuk(xk) PK

j=1 wjuj(xt)

Monday, April 7, 14

slide-82
SLIDE 82

Soft Assignment

GX

λ = T

X

t=1

Lλrλ log uλ(xt) Fisher Vector: Gradients:

rαk log uλ(xt) = γt(k) wk rµk log uλ(xt) = γt(k) ✓xt µt σ2

k

◆ rσk log uλ(xt) = γt(k) (xt µk)2 σ4

k

1 σk

  • wk =

exp (αk) PK

j=1 exp(αj)

Monday, April 7, 14

slide-83
SLIDE 83

Soft Assignment

GX

λ = T

X

t=1

Lλrλ log uλ(xt) Fisher Vector: Gradients:

rαk log uλ(xt) = γt(k) wk rµk log uλ(xt) = γt(k) ✓xt µt σ2

k

◆ rσk log uλ(xt) = γt(k) (xt µk)2 σ4

k

1 σk

  • BoW

Monday, April 7, 14

slide-84
SLIDE 84

Soft Assignment

GX

λ = T

X

t=1

Lλrλ log uλ(xt) Fisher Vector: Fisher Information Matrix: Fλ = Ex⇠uλ(GX

λ GX> λ

) F 1

λ

= L>

λ Lλ

Monday, April 7, 14

slide-85
SLIDE 85

Soft Assignment

GX

λ = T

X

t=1

Lλrλ log uλ(xt) Fisher Vector: Fisher Information Matrix: Fλ = Ex⇠uλ(GX

λ GX> λ

) F 1

λ

= L>

λ Lλ

Assume almost hard assignment FIM diagonal coordinate-wise normalization on gradient vectors

Monday, April 7, 14

slide-86
SLIDE 86

Fisher Vector

Assume almost hard assignment FIM diagonal coordinate-wise normalization on gradient vectors Normalized Gradients:

GX

αk =

1 √wk

T

X

t=1

(γt(k) − wk) GX

µk =

1 √wk

T

X

t=1

γt(k) ✓xt − µk σk ◆ GX

σk =

1 √wk

T

X

t=1

γt(k) 1 √ 2 (xt − µk)2 σ2

k

− 1

  • Concatenate the gradient

vectors: Dimension = (2D+1)K

Monday, April 7, 14

slide-87
SLIDE 87

Fisher Vector

Assume almost hard assignment FIM diagonal coordinate-wise normalization on gradient vectors Normalized Gradients:

GX

αk =

1 √wk

T

X

t=1

(γt(k) − wk) GX

µk =

1 √wk

T

X

t=1

γt(k) ✓xt − µk σk ◆ GX

σk =

1 √wk

T

X

t=1

γt(k) 1 √ 2 (xt − µk)2 σ2

k

− 1

  • Concatenate the gradient

vectors: Dimension = (2D+1)K

GX

λ ← 1

T GX

λ

T : patch size

Monday, April 7, 14

slide-88
SLIDE 88

γt(k) = wkuk(xk) PK

j=1 wjuj(xt)

To make it work with linear classifier

Image credit: Sanchez et al 2013

Monday, April 7, 14

slide-89
SLIDE 89

Extension on FV

  • Spatial Pyramid

[Sanchez et al 2013]

  • Deep Fisher Networks

[Simonyan et al 2013]

  • Other methods account scene geometry in FV framework

[Krapac et al, 2011, Sanchez et al, 2012]

Monday, April 7, 14

slide-90
SLIDE 90

Extension on FV

  • Spatial Pyramid

[Sanchez et al 2013]

  • Deep Fisher Networks

[Simonyan et al 2013]

  • Other methods account scene geometry in FV framework

[Krapac et al, 2011, Sanchez et al, 2012]

Monday, April 7, 14

slide-91
SLIDE 91

Extension on FV

  • Spatial Pyramid

[Sanchez et al 2013]

  • Deep Fisher Networks

[Simonyan et al 2013]

  • Other methods account scene geometry in FV framework

[Krapac et al, 2011, Sanchez et al, 2012]

Monday, April 7, 14

slide-92
SLIDE 92

Deep Fisher Networks

Image credit: Simonyan et al 2013

Monday, April 7, 14

slide-93
SLIDE 93

Single Fisher Layer

Image credit: Simonyan et al 2013

Monday, April 7, 14

slide-94
SLIDE 94

Single Fisher Layer

Image credit: Simonyan et al 2013

more details: Deep Fisher Networks for Large-Scale Image Classification http://www.robots.ox.ac.uk/~vgg/publications/2013/Simonyan13b/simonyan13b.pdf

Monday, April 7, 14

slide-95
SLIDE 95

Evaluations - on Pascal VOC 2007

Results from: Chatfield et al 2011

Monday, April 7, 14

slide-96
SLIDE 96

Evaluations - on Pascal VOC 2007

Results from: Chatfield et al 2011

Monday, April 7, 14

slide-97
SLIDE 97

Evaluations - on SUN 397

Image credit: Sanchez et al 2013

Monday, April 7, 14

slide-98
SLIDE 98

BoW Summary

Issues

  • Sampling strategy

dense uniform, interest points, random...

  • Codebook learning

supervised/unsupervised, size...

  • Similarity measurement

SVM, Pyramid Matching

  • Spatial information
  • Scalability

Monday, April 7, 14

slide-99
SLIDE 99

From Vectors to Codes Given global image representation, want to learn compact binary codes for image retrieval task on large dataset

Monday, April 7, 14

slide-100
SLIDE 100

From Vectors to Codes

Motivation

  • Tractable memory usage
  • Constant lookup time
  • Similarity preserved by hamming distance

Monday, April 7, 14

slide-101
SLIDE 101

From Vectors to Codes

Problem definition: Given a database of images and a distance function , seek a binary feature vector that preserves the nearest neighbor relationships using a Hamming distance. {xi} D(i, j) yi = f(xi)

Monday, April 7, 14

slide-102
SLIDE 102

What makes a good code

  • Easily computed for a novel input
  • Requires a small number of bits to code the full dataset
  • Maps similar items to similar binary codewords

From Vectors to Codes

Monday, April 7, 14

slide-103
SLIDE 103

From Vectors to Codes

Approaches

  • Locality Sensitive Hashing (LSH) [Andoni and Indyk]
  • Boosting [Torralba et al 2008]
  • Restricted Boltzmann Machines (RBM) [Torralba et al 2008]
  • Spectral Hashing [Weiss et al 2008]
  • Multidimensional Spectral Hashing [Weiss et al 2012]

Monday, April 7, 14

slide-104
SLIDE 104

Locality Sensitive Hashing

0" 1" 0" 1" 0" 1"

101"

No"learning"involved" Gist"descriptor"

  • Take random projections of data
  • Quantize each projection with few bits

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-105
SLIDE 105

Boosting

  • Positive examples are pairs of similar images
  • Negative examples are pairs of unrelated images

Adapted from slides by Weiss et al

0" 1" 0" 1" 0" 1"

" Learn"threshold"&" dimension"for"each" bit"(weak"classifier)"

Monday, April 7, 14

slide-106
SLIDE 106

Restricted Boltzmann machines

Hidden units Visible units Symmetric weights

Single' RBM' layer'

W"

Units'are' binary'&' stochas6c'

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-107
SLIDE 107

512$ 512$

w1$

Input$Gist$vector$(512$dimensions)$

Layer$1$

512$ 256$

w2$ Layer$2$

256$ N$

w3$ Layer$3$

Output$binary$code$(N$dimensional)$

Linear$units$$ at$first$layer$

Restricted Boltzmann machines

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-108
SLIDE 108

Address&Space&

Seman-cally&& similar&& images&

Query&address&

Seman-c&& Hash& Func-on&

Query&& Image&

Binary&& code&

Images&in&database&

Quite&different& to&a&(conven-onal)& randomizing&hash&

Retrieval Algorithm: Semantic Hashing

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-109
SLIDE 109

Spectral Hashing

Address&Space&

Seman-cally&& similar&& images&

Query&address& Non6linear& dimensionality& reduc-on&

Query&& Image&

Binary&& code&

Images&in&database&

Quite&different& to&a&(conven-onal)& randomizing&hash&

Spectral& Hash&

Real6valued& vectors&

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-110
SLIDE 110

The Algorithm

Input:'Data'{xi}'of'dimensionality'd;'desired'#'bits,'k

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-111
SLIDE 111

The Algorithm

  • Fit multi-dimensional rectangle
  • !Run!PCA!to!align!axes!

!

  • !Bound!uniform!distribu7on

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-112
SLIDE 112

The Algorithm

  • Fit multi-dimensional rectangle
  • !Run!PCA!to!align!axes!

!

  • !Bound!uniform!distribu7on

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-113
SLIDE 113

The Algorithm

  • Fit multi-dimensional rectangle
  • !Run!PCA!to!align!axes!

!

  • !Bound!uniform!distribu7on

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-114
SLIDE 114

The Algorithm

  • Calculate Eigenfunctions

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-115
SLIDE 115

The Algorithm

  • Calculate Eigenfunctions

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-116
SLIDE 116

The Algorithm

  • Calculate Eigenfunctions

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-117
SLIDE 117

The Algorithm

  • Calculate Eigenfunctions

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-118
SLIDE 118

The Algorithm

  • Calculate Eigenfunctions

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-119
SLIDE 119

The Algorithm

  • Pick the k smallest Eigenfunctions

e.g.$k=3$

Eigenvalues$

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-120
SLIDE 120

The Algorithm

  • Threshold the chosen Eigenfunctions

Adapted from slides by Weiss et al

Monday, April 7, 14

slide-121
SLIDE 121

The Algorithm

  • Threshold the chosen Eigenfunctions

more details: Spectral Hashing, Yair Weiss, Antonio Torralba, Rob Fergus http://people.csail.mit.edu/torralba/publications/spectralhashing.pdf

Monday, April 7, 14

slide-122
SLIDE 122

Summary

Image representation

  • Bag of Words
  • Spatial Pyramid Matching
  • Descriptor Encoding
  • Sparse Coding
  • Locality-constrained Linear Coding
  • Fisher Vector
  • Binary Code

Monday, April 7, 14

slide-123
SLIDE 123

Thank you

Monday, April 7, 14
