LBNF Long-Baseline Neutrino Facility Ignition for Cryogenic Process Controls Trevor Nichols, Electrical / Controls Engineer LBNF Cryogenic Infrastructure 25 July 2019 LBNF Cryogenics SCADA Requirements Gateway for All Cryo Data -

slide-1

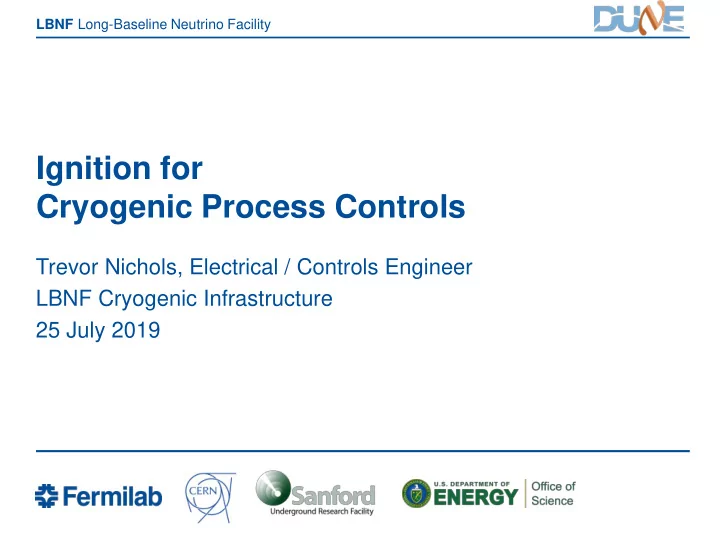

SLIDE 1

Long-Baseline Neutrino Facility LBNF

Ignition for Cryogenic Process Controls

Trevor Nichols, Electrical / Controls Engineer LBNF Cryogenic Infrastructure 25 July 2019

slide-2
SLIDE 2

LBNF

LBNF Cryogenics SCADA Requirements

07.25.19 Trevor Nichols | Ignition for Cryogenic Process Controls 2

  • Gateway for All Cryo Data
  • Point of data collection / distribution for entire system
  • Centrally located server pair in CUC
  • Transmit / receive data with all PLCs
  • Human Machine Interface (HMI)
  • Easy to use – capable of High Performance HMI
  • Remote access
  • Numerous users
  • Alarm Management
  • Notification by phone / text / email (24-hour operators not required)
  • Integration with Slow Controls
  • Accessible database for sharing data with DUNE
  • Common platform shared with DUNE desirable
  • Multi-level Access Control (i.e. superuser, operator, casual user)
  • Redundancy
  • Historical Data Collection

Cryo SCADA Cryo SCADA Local User Remote User Historian Slow Controls PLC PLC PLC Internet

slide-3
SLIDE 3

LBNF

Common Platform for Detector and Cryogenic Systems

07.25.19 Trevor Nichols | Ignition for Cryogenic Process Controls 3

  • Lux Zeplin (LZ) Dark Matter Experiment
  • Located at SURF – same mine as LBNF/DUNE
  • Large scale, ~1200 I/O for cryogenics
  • LBNF Cryogenics estimated at ~3800 I/O for CUC and Detector 1
  • Uses Ignition for detector and cryogenic systems

LZ Ignition Architecture Diagram

João Pedro Rodriges, LIP Coimbra, Electronics Final Review, Rochester, October 17, 2016 Cryogenics Devices Detector Devices

  • Conversations with DUNE CISC started
slide-4
SLIDE 4

LBNF

What is Ignition?

07.25.19 Trevor Nichols | Ignition for Cryogenic Process Controls 4

  • Supervisory Control and Data

Acquisition (SCADA) System

  • Core Modules:
  • Human Machine Interface (HMI)
  • Alarm Management
  • Historical Data Collection
  • PLC Drivers
  • OPC UA
  • Modbus, Serial Comms
  • Enterprise Administration

Modular Architecture Only pay for features you need

slide-5
SLIDE 5

LBNF

Ignition Relevant Features

07.25.19 Trevor Nichols | Ignition for Cryogenic Process Controls 5

  • Web-based Platform
  • Access from anywhere
  • Runs on everything
  • Cross Platform (Java)
  • Server Centric
  • Licensing
  • License per server
  • Unlimited devices and tags
  • Unlimited clients (users)
  • Fully functional free trial
  • Connectivity
  • OPC UA, OPC DA, Modbus
  • Siemens PLC driver
  • Databases (MySQL, MariaDB,

PostgreSQL, Oracle, etc.)

  • Redundancy
  • Modular Architecture
  • Easy to add or remove features
  • Core modules for common features

(i.e. HMI, alarms, historian)

  • 3rd party and user-developed modules

supported

  • Industry Best Practices
  • Follow international standards (ISA) for

HMI and Alarm Management

  • Mobile-Responsive HMI
  • Web-based (no application to install)
  • Adapts to fit desktop and mobile devices
  • Symbols for High Performance HMI

Analog Indicator Sparkline ISA Symbols

slide-6
SLIDE 6

LBNF

Ignition Cost

07.25.19 Trevor Nichols | Ignition for Cryogenic Process Controls 6

Module Name Price Alarm Notification Module $1,900 SQL Bridge Module $1,900 Tag Historian Module $2,000 OPC UA Server Module $150 OPC UA Server Module Discount

  • $150

Siemens Driver $350 Enterprise Administration Module Single Controller or Agent $1,350 Ignition Perspective Module $8,000 Vision Module Unlimited $6,500 Visualization Package Discount

  • $3,500

Add Redundancy to Core Modules $9,250 Support Total Care @ rate 24% $6,600

Total $34,410

Total Care Package Unlimited updates and technical support $6,600 per year

slide-7
SLIDE 7

LBNF 07.25.19 Trevor Nichols | Ignition for Cryogenic Process Controls 7

Backup

slide-8
SLIDE 8

LBNF

Human Machine Interface (HMI)

07.25.19 Trevor Nichols | Ignition for Cryogenic Process Controls 8

  • High Performance HMI
  • Gauges to tell if the process is in control at a glance
  • Bright colors reserved for abnormal conditions
  • Trend charts where applicable (i.e. condenser liquid level)
  • Hierarchal organization

MicroBooNE Overview (animated P&ID) High Performance Overview vs

slide-9
SLIDE 9

LBNF

Ignition vs. Other HMI/SCADA Platforms

07.25.19 Trevor Nichols | Ignition for Cryogenic Process Controls 9

GE Digital Proficy iFIX

  • Standalone product
  • Current Fermilab

HMI/SCADA for cryo controls

  • At end of life?
  • Requires 3rd party

OPC server (i.e. Kepware) and auto-dialer (i.e. WIN-911) Siemens Operator System

  • Part of PCS7
  • Easy integration

with Siemens PLCs

  • Compatibility with

non-Siemens?

  • Mature / proven
  • No auto-dialer

(requires 3rd party software) Inductive Automation Ignition

  • Standalone product
  • High compatibility

with many PLCs

  • Modern design
  • Built-in OPC server
  • Auto-dialer add-on
  • Used on LZ

experiment (also at SURF)

slide-10
SLIDE 10

LBNF

Ignition vs. iFIX Specific Examples

07.25.19 Trevor Nichols | Ignition for Cryogenic Process Controls 10

  • User Defined Type (UDT) Support
  • High Performance HMI and ISA symbols

Example UDT Definition in Siemens PLC Program

Maps to UDT in Ignition tag database – easy! Each UDT sub-element needs its own tag in the iFIX database – time consuming HP HMI symbols and standard ISA symbols part of Ignition symbol library In iFIX, equivalent symbols must be made from basic shapes and animated individually
