Identifying Frequent Items in Sliding Windows over On-Line Packet Streams Alejandro Lpez-Ortiz School of Computer Science University of Waterloo Joint work with Lukasz Golab (Waterloo), David DeHaan (Waterloo), Erik Demaine (MIT), and J.

SLIDE 1

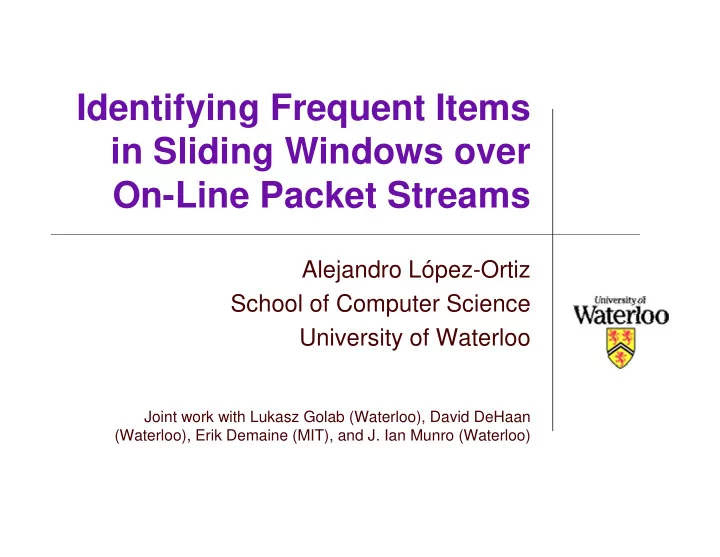

Identifying Frequent Items in Sliding Windows over On-Line Packet Streams

Alejandro López-Ortiz School of Computer Science University of Waterloo

Joint work with Lukasz Golab (Waterloo), David DeHaan (Waterloo), Erik Demaine (MIT), and J. Ian Munro (Waterloo)

SLIDE 2

Alejandro Lopez-Ortiz 2 IMC ’03 Miami, Florida

Application

Real-time analysis of network traffic

find frequently appearing packet types

Packet type: port #, protocol type, source IP.

But, interested in recent usage trends

E.g. for routing system analysis or anomaly

detection

So, want to find frequently appearing packets

in a sliding window of N most recent packets

SLIDE 3

Alejandro Lopez-Ortiz 3 IMC ’03 Miami, Florida

If we could store the entire window:

Maintain frequency counts of each category

in the window

Update counters as new packets arrive and

ld packets are expired out of the window

Periodically scan counters and return the

packet types corresponding to the k largest counters (and possibly the actual counts too)

SLIDE 4

Alejandro Lopez-Ortiz 4 IMC ’03 Miami, Florida

What if we can’t store the entire window?

Idea from [Zhu, Shasha, VLDB ’02] :

Divide the sliding window into sub-windows, i.e.

use a coarser time grain of T packets

Store summary for each sub-window Every T packets:

Expire oldest sub

indow

Add most recent sub

window

Update answer

Space req:

summary T window ×

SLIDE 5

Alejandro Lopez-Ortiz 5 IMC ’03 Miami, Florida

Example: windowed SUM

5 8 4 9 11 6 8 5 3 20 8 7 3 SUM = 5 + … + 3 = 97 8 4 9 11 6 8 5 3 20 8 7 3 7 SUM = SUM_OLD – 5 + 7 = 99

SLIDE 6

Alejandro Lopez-Ortiz 6 IMC ’03 Miami, Florida

Updating Top-k counters

Tb = current count for packet of type b Update:

Tb= Tb- Tb(old sub-window) + Tb(new sub-window)

Problem is: Tb(old sub-window) might not

be part of summary in old sub-window

SLIDE 7

Alejandro Lopez-Ortiz 7 IMC ’03 Miami, Florida

…but, let’s use the technique anyway

Sub-window summary: IDs and counts of the

k most frequent categories

= sum of the occurrence count of least

frequent item in summary of each sub- window

Compute overall occurrence count for each

packet type from sub-window summaries

Packets exceeding count

are reported as top-k

SLIDE 8

Alejandro Lopez-Ortiz 8 IMC ’03 Miami, Florida

The algorithm

Let a, b, c, … be distinct packet types, let k = 3

a:17 a:14 d:16 c:22 e:15 b:24 b:21 e:13 c:18 c:12 d:20 f:15 f:17 g: 9 c:6 g:12 f:10 k:12 h:8 f:6 a:8 n:11 a:6 e:13 d:7 d:6 e:4 h:4 a:3 j:3 b:4 c:4 m:6 k:4 b:4 b:4 p:8 h:3 r:5

= 4+4+3+…+8+3+5 = 56
Total frequency counts from the top-k lists: a=48, b=57,c=62,d=49,e=45,

f=48,g=21,h=12,j=3,k=16,m=6,n=11,p=4,r=5

Return b and c as frequent items in this window

SLIDE 9

Alejandro Lopez-Ortiz 9 IMC ’03 Miami, Florida

Hypothesis

If categories are +/- equally distributed, previous

method may not work

But, in a Power Law distribution, we expect a few

heavy flows which should register on many top-k lists

Experimented with a TCP trace

1 month of traffic from Lawrence Berkeley Lab to the rest

f the world; almost 800 000 packets in total

1647 distinct source IP addresses, which we treated as

distinct categories

SLIDE 10

Alejandro Lopez-Ortiz 10 IMC ’03 Miami, Florida

Results: accuracy

Percentage of identified over-threshold items 20 40 60 80 100 1 2 3 4 5 6 7 8 9 10

k Percent

b=20 b=100 b=500

size of each sub-window Window size = 100 000 packets

SLIDE 11

Alejandro Lopez-Ortiz 11 IMC ’03 Miami, Florida

Results: precision of the reported frequencies

Relative error in the reported frequencies 2 4 6 8 10 12 14 1 2 3 4 5 6 7 8 9 10

k Relative error (percent)
