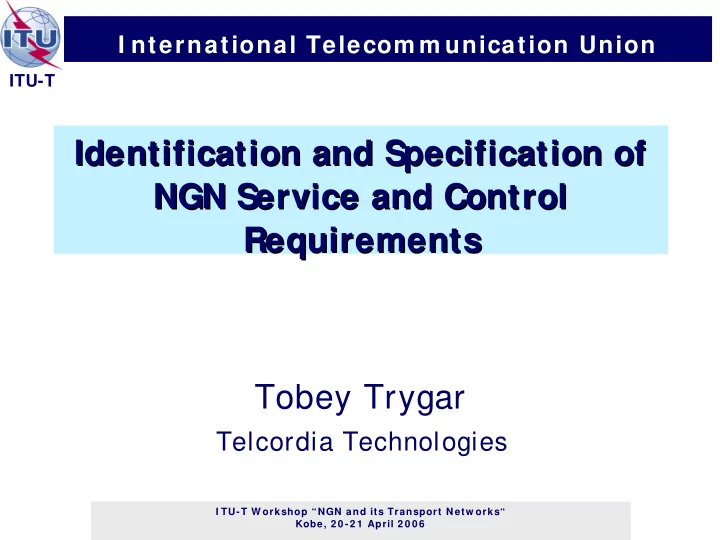

Identification and Specification of Identification and Specification of NGN Service and Control NGN Service and Control Requirements Requirements Tobey Trygar

Telcordia Technologies

slide-2
SLIDE 2

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 2

ITU-T

Overview

  • Performance of S

ervices and Networks

  • Physical Views of Networks
  • S

ervice Information Flows

  • OSI and G.805 Layers
  • Interesting Time Scales
  • Issues and Questions
