IBM Cloud Private on Linux on IBM Z & LinuxONE Presentation for Vicom Infinity Kershaw Mehta - Chief Architect for Cloud Computing for IBM Z (kershaw@us.ibm.com) December 14, 2017 Evolution of how workloads are built & delivered

slide-1
SLIDE 1

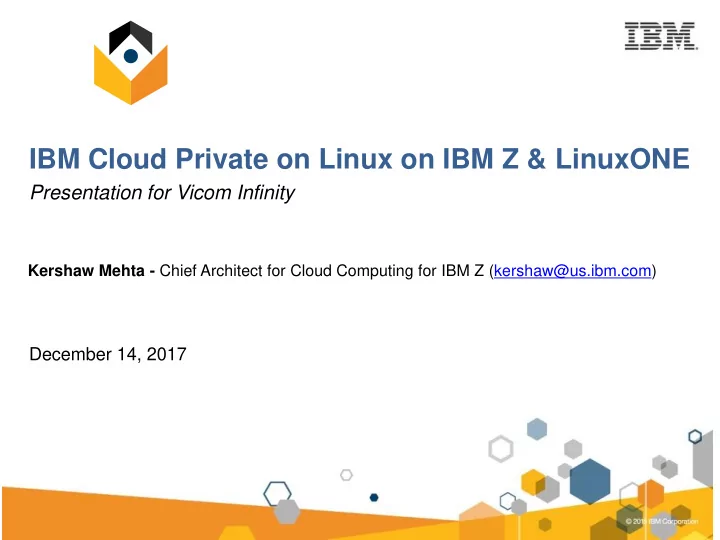

IBM Cloud Private on Linux on IBM Z & LinuxONE

Presentation for Vicom Infinity

Kershaw Mehta - Chief Architect for Cloud Computing for IBM Z (kershaw@us.ibm.com)

December 14, 2017

slide-2
SLIDE 2

2

Existing, Monolithic Apps Extended / Enabled Solutions

Container Cloud Build once, deploy anywhere

Auto Scaling, CI / CD, DevOps, Docker, Linux, PaaS, Open Source, ISV Containers …

New Cloud Native Apps

Web, Mobile, Cognitive, BD&A, AI

Lines of Business

Proprietary

Enterprise Resource Planning

Lines of Business

Proprietary

Customer Relationship Management

Lines of Business

Proprietary

Relational Database

Lines of Business

Proprietary

Customer App

Web, Mobile, Cognitive, BD&A, AI

Cloud Services

Linux, DevOps, PaaS, Open Source, Containers, Cognitive Services Data Function

By 2018, Over 60% of New Apps Will Use Cloud-Enabled Continuous Delivery and

Cloud-Native Application

Architectures to Enable Faster Innovation and Business Agility.

(IDC Prediction)

Continuous Integration & Delivery DevOps Micro Services Containers Cloud Native Developer Experience

Evolution of how workloads are built & delivered

slide-3
SLIDE 3

3

Traditional

New Workload Paradigm Shift

Cloud-Enabled Application Cloud-Native Application

Application composed of multiple services (microservices) Each service is elastic Each service is resilient Each service is composable Virtualization Platform Physical Infrastructure Operating System Database Web Server Web Server Application code Requires specialized skill Technology Silos Infrastructure Concerns IaaS PaaS

Service Service Service

Infrastructure Abstraction It’s All About the Applications Business Focus Applications Composed of microservices IBM Cloud Private on LinuxONE

Cloud Platform Evolution

slide-4
SLIDE 4

4

Advantages of Containers

  • Lightweight footprint & minimal
  • verhead
  • Portability across machines
  • Simplify DevOps practices
  • Speed up Continuous Integration
  • Enable microservice architectures
  • Isolation

Virtual Machines Containers

Containers are an abstraction at the app layer that packages code and dependencies together

Virtualization Platform Physical Infrastructure Operating System Database Web Server Messaging Application code IaaS PaaS Service Service Service Applications

The What and Why of Docker Containers?

slide-5
SLIDE 5

5

  • IBM Cloud Private (ICp)
  • ICp for LoZ/LinuxONE
  • ICp use cases for LoZ/LinuxONE

Agenda

slide-6
SLIDE 6

6

IBM Cloud Private v2.1 – GA Oct. 24th 2017

  • Kubernetes-based, open platform with PaaS

and developer services

  • Integrated operations management services

– and flexibility to integrate with existing tools / processes

  • Catalog of modernized and containerized

IBM middleware and data services

  • Untethered environment, providing complete

control

  • Runs on existing infrastructure
  • Evolution of IBM Bluemix Local and IBM

Spectrum Conductor for Containers

  • Provides heterogeneous support &

integrated solution for x86, Power and Linux

  • n z/LinuxONE

Manage Your Applications Manage Your Container Cluster

slide-7
SLIDE 7

7

IBM Cloud Private Offering Structure

slide-8
SLIDE 8

8

  • IBM Cloud Private (ICp)
  • ICp for LoZ/LinuxONE
  • ICp use cases for LoZ/LinuxONE

Agenda

slide-9
SLIDE 9

9

  • Deliver manage-to-z ICP Platform for IBM z
  • Deployment of workloads onto worker-nodes running on IBM z
  • Deliver subset of IBM Middleware (MW) workloads and popular Open

Source packages and bring your own workloads for IBM z

  • Create a Build, Test, Development & Production Environment for z
  • Works the same as the current Intel toolchains used by MW teams today
  • Support for IBM z becomes as simple as pressing a button to include IBM

z in the CI/CD process

  • Enables deployment of z/OS subsystem from ICp (roadmap)

IBM Cloud Private (ICp) for LoZ / LinuxONE

slide-10
SLIDE 10

10

IBM Cloud Private on LoZ/LinuxONE

  • Docker Containers and Kubernetes
  • Service Catalog with a library of services (Db2, WAS, DSX, Node, etc)
  • Manage-to z (from Intel or Power)

* Secure Service Container in ICp on roadmap - All statements regarding IBM’s future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.

Kubernetes based container platform Middleware, Data & Analytics Services Common Services

with Linux on z Intel/z

slide-11
SLIDE 11

11

IBM Cloud Private on LoZ / LinuxONE with Cloud Foundry

* Secure Service Container in ICp on roadmap - All statements regarding IBM’s future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.

  • Cloud Foundry (CF) is a PaaS solution and is optional add-on to ICP and will only

run on x86

  • The ICp Master runs on Intel, ICp worker nodes on z and CF on Intel
  • CF is entirely optional and is not required for operations of ICp on Linux on z /

LinuxONE

Kubernetes based container platform Middleware, Data & Analytics Services Cloud Foundry Common Services

with Linux on z

Intel Intel/z

slide-12
SLIDE 12

12

IBM Cloud Private Architecture on LoZ / LinuxONE

Consistent IBM Cloud User experience

Core Platform

Middleware & Process Services

Domain Software & Services Hybrid Cloud Mgmt Services

Brokerage Deployment Planning & Optimization DevOps & Orchestration Application Integration Data Repositories Analytics & Reporting Data Integration & Governance

Infrastructure Containers

Storage

(Object & Block)

Network Compute

Core Services

Logging IAM Encryption & Key Management API & Data Connect Usage Metering Monitoring Event Audit

Data & Analytics Services

Databases Analytics & Cognitive

Runs on platform & uses core services

Management Services to manage hybrid clouds

Consistent runtimes & core management services with public cloud

New Apps

Kubernetes

Connected User experience – UI, API, Data

Managed Services Options

Provider Managed Client Managed

With LinuxONE *

Core Services Agents Cloud Managed (future) * Secure Service Container in ICp on roadmap - All statements regarding IBM’s future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.

slide-13
SLIDE 13

13

Secure Service Containers* with ICp

  • Pervasive Encryption for all your ICp container workloads and ICp core-

services running on LoZ

  • Security is transparent to the application
  • No code changes or special configuration needed
  • Kubernetes master node secured in SSC
  • Pod Security Policies locked down
  • Federation between ICp master and k8s master secured
  • ICp Worker nodes secured in SSC
  • Protection from privileged user access
  • Only secure subset of k8s apis are allowed
  • Calico security policies are locked down
  • SSC+ IBM Vulnerability Advisor + (optional) SysDig Secure provides a

comprehensive security solution unique to IBM LinuxONE/Linux on z

* Secure Service Container + ICp on roadmap - All statements regarding IBM’s future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.

slide-14
SLIDE 14

14

Infrastructure prerequisites for ICp

  • ICp doesn’t need OpenStack or VMWare as a pre-req
  • ICp only needs a RHEL/Ubuntu(/SLES support soon!) OS
  • ICp is also hypervisor agnostic
  • Works on zVM/KVM/bare-metal etc
  • ICp even installs docker as part of its bootstrapping process
  • Can use pre-existing docker install
slide-15
SLIDE 15

15

The most secure data serving platform in the world… …To do more work with fewer servers at lower cost

  • Integrated cloud platform for enterprise

workloads which need to be run in a customer controlled and secure environment

  • Designed for refactoring heritage enterprise

applications to the cloud era—componentized, leveraged for multiple enterprise needs, highly

  • ptimized, secured and highly available 

connect to existing apps and migrate at your pace

  • Complete environment for developers and
  • perations admins to unleash innovation and

meet enterprise business needs

  • Developers can quickly started developing

cloud-native services either on x86 distributed systems or LinuxONE with no change in tooling

  • Deploy private cloud in minutes leveraging

LinuxONE vertical scaling capability, Containers with DevOps or add from dozens of IBM and Open Source supported services

  • One platform for entire business processes with

highest Security rating & highest Cloud SLA availability of any commercially available server

  • Support massive workloads with thousands of users

in parallel and up to thousands of Linux servers – all in one box

  • Enables deployment of z/OS subsystem from ICp
  • Leverage upcoming secure service container

technology on Linux on Z/LinuxONE to protect from privileged users, ransomware, malware

  • Key Protect Technology enables hardware support

for tamper-proof encryption key storage

IBM Cloud private on LoZ/LinuxONE – Benefits

slide-16
SLIDE 16

16

1. ELK only runs on master nodes (x or p). Data from z worker node is collected via Filebeat 2. Prometheus and Grafana only runs on master nodes (x or p). Data from z worker node is collected via node exporter 3. Partial support via K8S periodic dumps now, working on getting full metering support on z 4. Secure Service Container + ICp on roadmap - All statements regarding IBM’s future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.

Oct ‘17 Dec ‘17 Q1 ‘18 Q2 ‘18

  • Analytics Services
  • DSM
  • Data Serving Services
  • DB2 OLTP
  • MongoDB
  • Postgress
  • Target for SLES

➢ SSC support Beta 1

  • ICp 2.1 manage-to-z
  • Core Services
  • Logging
  • ELK1
  • Prometheus &

Grafana2

  • N/W – Calico
  • Metering3
  • App services
  • Liberty
  • Node.js
  • Blockchain
  • Nginx
  • Tomcat
  • Web Terminal
  • RHEL & Ubuntu

➢ SSC4 PoC

  • Analytics Services
  • DSX
  • Data Serving Services
  • DB2 Warehouse
  • Integration Services
  • Microservice Builder
  • Tooling
  • Transformation

Advisor

  • Integration Services
  • MQ

➢ SSC support Beta 2

IBM Cloud Private on LinuxONE Services Roadmap

slide-17
SLIDE 17

17

  • IBM Cloud Private (ICp)
  • ICp for LoZ/LinuxONE
  • ICp use cases for LoZ/LinuxONE

Agenda

slide-18
SLIDE 18

18

Use Case 1 (in development roadmap*): ICp managing a self service heterogeneous environment

Security

DB2

z/OS CPs/mem/IO/hipersockets z/VM

service service service

Linux Linux

CICS

z/OSMF ICp

KVM

Linux

service

ICp

z Systems/LinuxONE Intel

(On-prem)

VMWare ESXi

Public Cloud

zOS Connect

Build integrated applications from services that span Linux, z/OS and public cloud

  • High-speed, scalable, available and secure applications
  • z/OS Cloud Bundle:
  • Service broker technology for self-serve (DBz-aaS, WASz-aaS, MQ-aaS,

CICS-aaS etc)

  • Incl. devops, micro-services, app life-cycle, zTrial, etc.
  • Cloud automation to help overcome skill gaps

*Disclaimer: development plans and roadmaps are subject to change without notice

ICp master on Intel

ICp ICp

slide-19
SLIDE 19

19

ICp worker nodes inside LinuxONE Secure Service Containers

  • Privacy and security in the cloud e.g. IBM Blockchain, hyperSecure DBaaS etc

Fully automated metal-to-service deployment

Security CPs/mem/IO

…

Cloud tenant Cloud

  • perator

Personas

Service

Secure Service Container Secure Service Container Secure Service Container

Privileged user cannot see/touch secured workload

Linux on Z/LinuxONE

Use Case 2 (in development roadmap*): Confidential Cloud Computing

Service Service

*Disclaimer: development plans and roadmaps are subject to change without notice

ICp master on Intel

slide-20
SLIDE 20

20

  • Compose high-performance scalable applications
  • Dynamically and seamlessly re-allocate resources between guests
  • Provide right-time analytics and powerful engagement

Extreme Virtualization and Scale

Hypervisor partitioning built into firmware

Complete isolation – EAL5+

Supports as many as 85 hypervisor instances – z/VM or KVM

1k Linux guests/hypervisor +2 million docker containers 17TB Mongo instance

Hypervisor communication is via fast, in-memory TCP/IP

Hipersockets or Shared-OSA – 5x less latency than discrete servers

  • Massive dedicated I/O – 640 power co-processors
  • 960Meg L4 cache, 5Ghz core, dual-TLBs, crypto

acceleration

Super Elastic System

Combine horizontal and vertical scaling Non-disruptively add/remove resources from Linux guests Non-disruptively add/remove Linux guests

Use Case 3: Micro-Service Appliance

Linux on Z/LinuxONE

Security CPs/mem/IO

…

DB2

LPAR 1 LPAR 2

Linux guest

…

1

1: In development, working with Oracle Linux guest

ICp master on Intel

slide-21
SLIDE 21

21

Clients can try the IBM Cloud Private Community Edition

Download ICp community at the following links, both z for the worker nodes and x86 for the master, management and proxy. https://hub.docker.com/r/ibmcom/icp-inception-s390x https://hub.docker.com/r/ibmcom/icp-inception Installation instructions https://www.ibm.com/support/knowledgecenter/SSBS6K_2.1.0/installing/install_containers_CE.html

Try IBM Cloud Private Today

slide-22
SLIDE 22

22

IBM has extensive experience with high transaction volume data and infrastructure security. You can take advantage of this IBM expertise to:

  • Arrange an IBM LinuxONE workshop, including presentations and

demonstrations of deploying solutions on the new technology

  • Arrange a Discovery Session to determine how running open source software
  • n LinuxONE can benefit your workloads
  • Perform IT assessments, develop implementation plans, or provide IBM

LinuxONE solution deployment services. IBM IT services professionals can help you prioritize your IT projects, plan installations with little or no disruption to your business operations, and perform as much or as little of the implementation as you need.

  • Register for the LinuxONE Community Cloud to experience a trial version of

deploying applications in a LinuxONE environment https://developer.ibm.com/linuxone/

  • IBM Cloud Private guided demo: https://ibm.biz/BdjSYK
  • IBM Cloud Private proof of technology demos: https://ibm.biz/BdjSYn
  • Free Community Edition: https://ibm.biz/BdjKEa

ICP – How to get started

slide-23
SLIDE 23

For More Information please contact… Len Santalucia, CTO & Business Development Manager Vicom Infinity, Inc. One Penn Plaza – Suite 2010 New York, NY 10119 917-856-4493 mobile lsantalucia@vicominfinity.com About Vicom Infinity Account Presence Since 1990’s IBM Premier Business Partner Reseller of IBM Hardware, Software, and Maintenance Vendor Source for the Last 11 Generations of Mainframes/IBM Storage Professional and IT Architectural Services Vicom Family of Companies Also Offer Leasing & Financing, Computer Services, and IT Staffing & IT Project Management
