International Atomic Energy Agency IAEA Nuclear Data Activities A Mengoni Nuclear Data Section Meeting of the WPEC, JAEA, Tokai-mura, 4-5 June 2008 Co-ordinated Research Projects (CRP) 1. RIPL-3 (started in 2004) 2. Updated decay data

slide-1

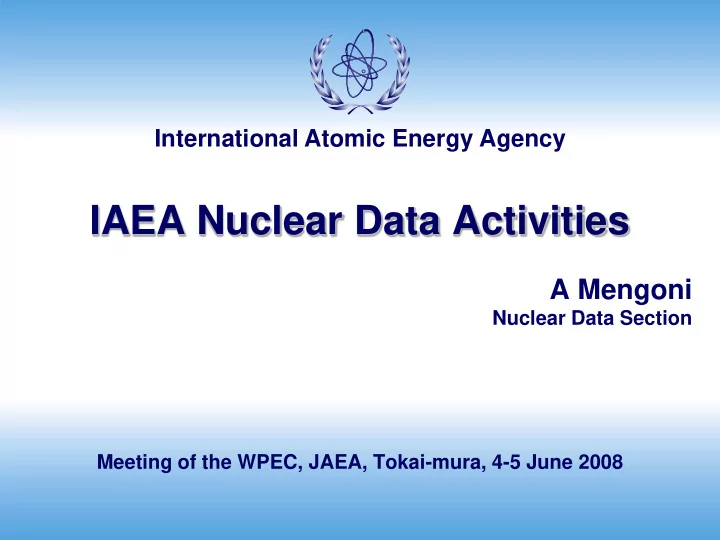

SLIDE 1

International Atomic Energy Agency

IAEA Nuclear Data Activities

A Mengoni

Nuclear Data Section Meeting of the WPEC, JAEA, Tokai-mura, 4-5 June 2008

slide-2
SLIDE 2

International Atomic Energy Agency

1. RIPL-3 (started in 2004) 2. Updated decay data library for Actinides (2005) 3. Reference database for prompt gamma-ray neutron activation analysis, PGAA (2005) 4. Nuclear data for ion beam analysis (2005) 5. Heavy charged-particle interactions data for radiotherapy (2007) 6.

Minor actinide neutron reaction data, “MANREAD” (2007)

7. Nuclear data libraries for advanced systems: Fusion devices, FENDL-3 (2008)

Co-ordinated Research Projects (CRP)

slide-3
SLIDE 3

International Atomic Energy Agency

Workshop in 2007

  • Nuclear Data for Science and Technology: Medical

Applications, ICTP, Trieste, 12 to 23 November 2007 Workshops in 2008

  • Nuclear Structure and Decay Data: Theory and Evaluation,

ICTP, Trieste, 28 April to 9 May 2008

  • Nuclear Reaction Data for Advanced Reactor Technologies,

ICTP, Trieste, 18-30 May 2008

  • Modelling and evaluating nuclear reaction data for transport

calculations, IAEA, Vienna, 15 to 19 December 2008

Workshops at ICTP/Trieste and at IAEA/Vienna

slide-4
SLIDE 4

International Atomic Energy Agency

Data Development Projects (DDP) and Additional Tasks

1.

IRDF-2002 dosimetry library – all data assembled, checked and uploaded on to NDS Web server – Tech.Rep.Series No 452 (2006), CM January 2007 to discuss needs for reactor dosimetry and possible extension to higher neutron energy and the inclusion of covariance data.

2.

Updates to WIMS-D library package following release of JEFF-3.1 library, including new decay and fission product yield data, in addition to the significantly improved neutron cross-section data. STI/PUB/1264, IAEA (2007)

3.

Nuclear model parameter sets for RIPL-2 database, several new nuclear model parameter sets and database maintenance tools were included, IAEA-TECDOC- 1506 (2006)

4.

IBANDL, database was extended, work on software connection between the EXFOR and IBANDL databases and theoretical evaluations implemented

5.

Phase-space database for external beam radiotherapy. New format and read/write subroutines were implemented. International committee appointed to assess submitted data

slide-5
SLIDE 5

International Atomic Energy Agency

6.

Beta decay and decay heat. CM (IAEA+NEA) May 2006: List of radionuclides prepared for recommended TAGS measurements, report by the Working Party

  • n International Evaluation Co-operation of the NEA Nuclear Science

Committee, Vol. 25, NEA/WPEC-25, OECD/NEA, Paris, 2007

7.

Neutron data file for Cd isotopes in the resolved resonance region, experimental data from IRMM, Geel, and resonance parameters in ENDF-6 format

8.

Handbook of Nuclear Data for Safeguards. A set of recommended nuclear data has been assembled for application to nuclear materials accounting techniques, INDC(NDS)-0502, January 2007.

Data Development Projects (DDP) and Additional Tasks

slide-6
SLIDE 6

International Atomic Energy Agency

New IAEA/NDS website

slide-7
SLIDE 7

International Atomic Energy Agency

The End

slide-8
SLIDE 8

International Atomic Energy Agency

links

slide-9
SLIDE 9

International Atomic Energy Agency

Reference Input Parameter Library (RIPL-2)

  • library of parameters for theoretical calculations of nuclear

reactions

  • based on starter file RIPL-1 (released 1997) which was tested,

validated and extended

  • for incident and outgoing particles:

n, p, d, t, 3He, ,  up to ~100 MeV

  • data on web at http://www-nds.iaea.org/RIPL-2/
  • handbook (IAEA-TECDOC-1506, August 2006) and CD-ROM

versions

<< 1/4

slide-10
SLIDE 10

International Atomic Energy Agency

  • Extend RIPL-2 database - for nuclear model calculations up to 200

MeV as required for emerging applications such as ADS & others

  • Develop routines for calculation of certain input parameters to

facilitate access of users to RIPL library and prevent misuse of parameters

  • Improve quality of data by using new experimental results and

microscopic approaches to derive parameters

Reference Input Parameter Library (RIPL-3)

<< 2/4

slide-11
SLIDE 11

International Atomic Energy Agency

Participants:

Marilena Avrigeanu IFINHH, Bucharest, Romania Tokio Fukahori JAEA, Japan Stephane Goriely Université Libre de Bruxelles, Belgium Yinlu Han CNNC, CIAE, Beijing, China Michal W. Herman BNL, USA Stephane Hilaire CEA, Bruyères-le-Châtel, France Anatoly Ignatyuk IPPE, Obninsk, Russian Federation Arjan Koning NRG, Petten, Netherlands Vladimir Plujko Taras Shevchenko National University, Ukraine Efrem Soukhovitski JIENR, Minsk, Belarus Patrick Talou LANL, USA Roberto Capote IAEA-NDS (co-ordinator/project officer)

Reference Input Parameter Library (RIPL-3)

<< 3/4

slide-12
SLIDE 12

International Atomic Energy Agency

Expected output:

atomic masses and deformations discrete level and decay schemes average neutron resonance parameters

  • ptical model parameters

level densities (total, partial) gamma-ray strength functions & GR parameters fission barriers and level densities updated and expanded electronic database minor format changes for non-energy applications

Reference Input Parameter Library (RIPL-3)

<< 4/4

slide-13
SLIDE 13

International Atomic Energy Agency

<< 1/2

Radionuclides selected for extensive re-evaluation

Responsible evaluator Actinides Natural decay products M.-M. Bé

234,238U, 243Am, 252Cf 210Tl, 210,214Pb, 210,214Bi, 210,214,218Po, 218At, 218,222Rn, 226Ra

V.P. Chechev

233Th, 233Pa, 237,239U, 236,236m,237,238,239Np, 238,239,240,241,242Pu, 241Am, 242,244Cm 227Ac

Huang Xiaolong

231Th, 235U 213Bi, 213Po, 217At, 217Rn, 221,223Fr, 225Ra, 225Ac

F.G. Kondev

243,245,246Cm 206Hg, 206,207,209Tl, 209,211Pb

  • A. Luca

234Th, 236U 228Ra

  • G. Mukherjee

229Th, 233U

  • A.L. Nichols

228Th, 242,242m,244,244mAm 208Tl, 212Pb, 212,215Bi, 212,216Po, 211,219At, 219,220Rn, 224Ra

A.K. Pearce

232Th, 231Pa, 232U 223Ra, 228Ac

Unallocated (April 2007)

  • 211Bi, 211,215Po, 215At

Updated Decay Data Library for Actinides

slide-14
SLIDE 14

International Atomic Energy Agency

Updated Decay Data Library for Actinides

<< 2/2 PARTICIPANTS

Marie-Martine Bé DRT/DETECS/LNHB, CEA/Saclay, France Valery P. Chechev Radium Institute, St. Petersburg, Russian Federation V.G. Khlopin Radium Institute, St. Petersburg, Russian Federation Huang Xiaolong China Nuclear Data Center, CIAEA, China Filip G. Kondev Nuclear Engineering Division, ANL, USA Aurelian Luca Radionuclide Metrology Laboratory, Romania Gopal Mukherjee Physics Division, Variable Energy Cyclotron Centre, India Alan L. Nichols Nuclear Data Section, IAEA, Austria Andrew K. Pearce National Physical Laboratory, UK Mark Kellett IAEA Nuclear Data Section (coordinator/project officer)

slide-15
SLIDE 15

International Atomic Energy Agency

Reference database for prompt gamma-ray neutron activation analysis (PGAA)

  • non-destructive multi-element analyses from H to U, used in

materials science, chemistry, geology, archaeology, environmental monitoring, food analysis, medicine, etc.

  • inaccurate and incomplete data  creation of complete,

consistent library of cold- and thermal-neutron capture -ray and cross-section data: CRP started in 1999

  • data for all stable isotopes
  • prompt  rays
  •  rays emitted by radioactive decay
  •  energies, partial production cross sections, k0 factors (relative

to H standard), all with uncertainties

<< 1/2

slide-16
SLIDE 16

International Atomic Energy Agency

Outputs:

  • Evaluated Gamma-ray Activation File (EGAF)

 32,000 adopted prompt  rays  3000 radioactive decay  rays covers all stable isotopes from hydrogen to uranium - tabulated and in Evaluated Nuclear Structure Data File (ENSDF) format

  • energy-ordered  rays for each element with isotopic identification,

energy and uncertainty in keV, and partial elemental cross section, k0 and their uncertainties

  • website & CD-ROM

<< 2/2

Reference database for prompt gamma-ray neutron activation analysis (PGAA)

slide-17
SLIDE 17

International Atomic Energy Agency

IBA techniques exploit the interactions of rapid (from ~0.1 to a few MeV) charged particles with matter to determine the composition and structure of the surface regions of solids (from ~0 to 100 mm). Compositions and structures are inferred from measured quantities such as charged-particle, gamma-ray and x-ray spectra,

  • r excitation curves, via physical models incorporating the sample

structure and the basic physical processes and quantities giving rise to the observed spectra or excitation curves. The basic physical processes underlying IBA are well understood, but the reliability of data interpretation is limited by knowledge of the physical data.

Nuclear Data for Ion Beam Analysis (IBANDL)

<< 1/2

slide-18
SLIDE 18

International Atomic Energy Agency

PARTICIPANTS Massimo Chiari INFN, Italy Alexander Gurbich IPPE, Obninsk, Russian Federation Michael Kokkoris NTUA, Athens, Greece Ana Rita Lopes Ramos ITN, Portugal Matej Mayer MPI, Garching, Germany Eero Rauhala Helsinki Uni., Finland Liqun Shi Fudan Uni., Shangai, China Ian Vickridge

  • Uni. Paris 6 & 7, France

Otto Schwerer/Daniel Abriola IAEA/NDS

Nuclear Data for Ion Beam Analysis (IBANDL)

<< 1/2

slide-19
SLIDE 19

International Atomic Energy Agency

  • compile experimental information on charged-particle data interaction

relevant to radiotherapy, and recommend nuclear data parameterizations and evaluated data to be applied by Monte Carlo code developers and users worldwide

  • define and make available recommended hadronic physics settings for

Monte Carlo transport codes and applications

  • activate human resources and facilitate interaction and sharing of work

within the community in a timely and professional manner

Objective:

Improve quality of heavy charged-particle interaction data for patient dose delivery calculations

<< 1/2

Heavy Charged-particle Interaction Data for Radiotherapy (2007-2010)

slide-20
SLIDE 20

International Atomic Energy Agency

Participants:

B.V. Carlson Instituto Tecnológico de Aeronáutica, Brazil

  • A. Ferrari

CERN; representative of FLUKA team

  • O. Jäkel

Deutsches Krebsforschungszentrum Abt. Medizinische

  • A. Lomax

Paul Scherrer Institute, Switzerland

  • K. Niita

RIST, Japan; representative of the PHITS team

  • H. Palmans

National Physical Laboratory, UK

  • H. Paganetti

Massachusetts General Hospital, USA, USA

  • I. Pshenichnov Frankfurt Institute for Advanced Studies, Germany

J.M. Quesada Universidad de Sevilla, Spain

  • A. Heikkinen

University of Helsinki, Finland (for the GEANT-4 team)

  • N. Sobolevsky Institute for Nuclear Research, RF (for SHIELD-HIT)
  • R. Capote

IAEA-NDS (Scientific officer)

<< 2/2

Heavy Charged-particle Interaction Data for Radiotherapy (2007-2010)

slide-21
SLIDE 21

International Atomic Energy Agency

A worldwide assessment will be made of the experimental capabilities to undertake measurements & accessible accuracy of neutron reaction cross sections for the important isotopes of the MA elements Report measurements of neutron-induced reaction cross section on MA just completed or planned in the period of activity of the CRP, at research laboratories worldwide (e.g. GELINA, LANCSE, n_TOF, TIT; etc.) Assessment of the quality and uncertainties of MA data present in the evaluated nuclear data libraries (ENDF/B-VII, JEFF3.1, BROND-2.2, JENDL-3.3, etc.)

Minor Actinides Neutron Reaction Data (MANREAD)

<< 1/2

slide-22
SLIDE 22

International Atomic Energy Agency

Minor Actinides Neutron Reaction Data (MANREAD)

<< 2/2

Participants:

Anton Wallner, University of Vienna, AUSTRIA Vladimir Maslov, National Academy of Science of Belarus, BELARUS Arjan Plompen, JRC-IRMM, BEGLIUM Frank Gunsing, CEA Saclay, FRANCE Franz Käppeler, Forschungszentrum Karlsruhe, GERMANY Rosa Vlastou, National Technical University of Athens (NTUA), GREECE Laszlo Szentmiklosi, Hungarian Academy of Sciences, HUNGARY Nicola Colonna, INFN Sezione di Bari, ITALY Yasuki Nagai, JAEA, Tokai-mura, JAPAN Boris Fursov, IPPE, Obninsk, RUSSIAN FEDERATION John Ullmann(*), Los Alamos National Laboratory (LANL), USA Mihaela Sin, University of Bucharest, ROMANIA Yinlu Han, China Nuclear Data Center, CIAE Beijing, CHINA Alberto Mengoni, IAEA, Vienna, AUSTRIA (Project Scientific Officer)

slide-23
SLIDE 23

International Atomic Energy Agency

Activity Description A Update the FENDL-2.1 library with presently available evaluations B Extend the neutron induced library to energies up to 150 MeV C Include p- and d-induced general purpose and activation libraries for incident energies up to 150 MeV D Creation of a library based on model calculations which contains covariances files

Nuclear Data Libraries for Advanced Systems: Fusion Devices (FENDL-3)

<< 1/2

slide-24
SLIDE 24

International Atomic Energy Agency

The overall objective of the initiative is to improve the status of the nuclear databases for assessments of radiation damage to structural components of fusion devices, such as IFMIF (in an advanced stage of design and planning) and future fusion reactors (beyond ITER).

  • The present FENDL-2.1 library (which contains nuclear data only for neutron induced

reactions and for neutron energies up to 20 MeV) will be updated with existing evaluations from major libraries, providing that full consistency with the validations and benchmarks experiments performed on the present version of the library can be assured;

  • p- and d-induced reaction data will be included in the general purpose and activation sub-

libraries;

  • The energy range of incident particles will be extended up to 150 MeV, to comply fully with

the requirements of the IFMIF design;

  • Inclusion of covariances in the evaluated libraries for uncertainty assessment in design

studies will be accomplished by creating a library based on model calculations and covariance estimates

Nuclear Data Libraries for Advanced Systems: Fusion Devices (FENDL-3)

<< 2/2

slide-25
SLIDE 25

International Atomic Energy Agency
