NanoGen 1 Smart HV Pulses Generator Technical Presentation Author : Fabrice BOUTERIGE Date : 03/11/2015 Version 3.0 RLC- Richard Lepan Consulting SARL- capital 72300 -SIRET 539 087 098 00023- TVA FR94539087098- APE 7112B 7 Rue du Pr La

slide-1
SLIDE 1

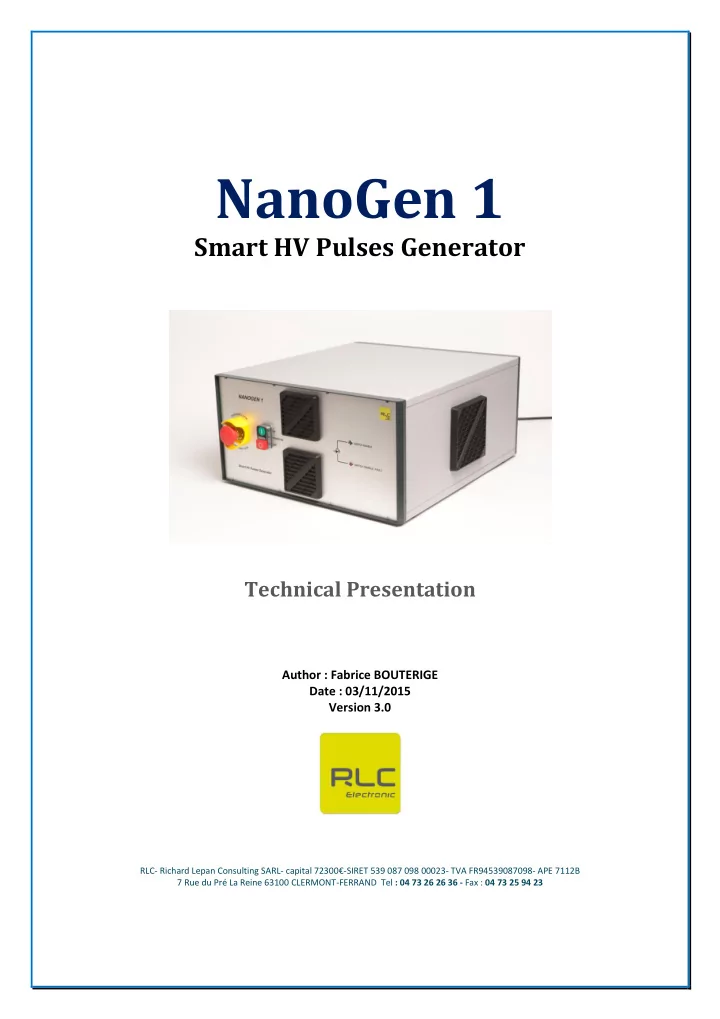

NanoGen 1

Smart HV Pulses Generator

Technical Presentation

Author : Fabrice BOUTERIGE Date : 03/11/2015 Version 3.0

RLC- Richard Lepan Consulting SARL- capital 72300€-SIRET 539 087 098 00023- TVA FR94539087098- APE 7112B 7 Rue du Pré La Reine 63100 CLERMONT-FERRAND Tel : 04 73 26 26 36 - Fax : 04 73 25 94 23

slide-2
SLIDE 2

Technical Presentation | RLC, CLERMONT-FERRAND NanoGen 1 : Smart HV Pulses Generator (V2.1)

2

  • I. Table of Contents
  • I. Table of Contents .............................................................................................................................

2

  • II. NanoGen 1 Presentation

.................................................................................................................. 3 II.1. Main Features .............................................................................................................................................. 3 II.2. Internal Wiring ............................................................................................................................................. 3 II.3. Description of Front Panel ........................................................................................................................... 4 II.4. Description of Rear Panel ............................................................................................................................ 4 II.5. Global Wiring ............................................................................................................................................... 5

  • III. CPU Board ......................................................................................................................................

6

  • IV. HV Power Switch Board ..................................................................................................................

7

  • V. Oscillograms ...................................................................................................................................

8 V.1. Differential Principle .................................................................................................................................... 8

  • VI. NanoGen 1 HMI

.............................................................................................................................. 9

  • VII. Maximum Power Limitation (Update V2.1) ..................................................................................

10

slide-3
SLIDE 3

Technical Presentation | RLC, CLERMONT-FERRAND NanoGen 1 : Smart HV Pulses Generator (V2.1)

3

  • II. NanoGen 1 Presentation

II.1. Main Features

Electrical Power Supply 230V-50/60Hz – 60 VA Voltage Adjust 0 -10 kV Pulse Frequency 1Hz – 100 kHz Pulse Width 150 ns –50µs 20nS in Differential Mode Output Current max 50A at Fmax = 1 kHz, pulse width max = 10µs

  • r duty cycle max = 1 %

3 Output Modes

  • Normal Mode
  • Differential Mode (double pulse)
  • Burst Mode

II.2. Internal Wiring

CPU Box Heatsink HV Switch Board Relay Power ON/OFF 280V Behlke Supply 15V Behlke Supply 24V Supply

slide-4
SLIDE 4

Technical Presentation | RLC, CLERMONT-FERRAND NanoGen 1 : Smart HV Pulses Generator (V2.1)

4

II.3. Description of Front Panel

  • Switch « EMERGENCY STOP »
  • Switch « POWER ON / OFF » and LED « POWER ON »
  • Switch « SWITCH ENABLE » : this switch enables or disables the HV Pulses Output
  • Green LED « SWITCH ENABLE » : LED is on if the HV Pulses Output is enabled
  • Red LED « SWITCH DISABLE / FAULT » : LED is on if the HV switch is disabled or in fault state

II.4. Description of Rear Panel

  • Input Connector « +HV IN » : HV Supply Input (10kV max)
  • Output Connector « HV NORM PULSES OUT » : HV Normal Pulses Outputs
  • Output Connector « HV DIFF PULSES OUT » : HV Differential Pulses Outputs
  • GND Connector « GND STAR -HV » : HV Ground
  • SUBD9 Connector « COM PC RS232 » : RS232 Communication with PC
  • SUBD15 Connector « COM HVPS ANALOG » : HV Power Supply Analog Control Interface
  • BNC Connector « GENER INPUT » : Input from External Generator
  • BNC Connector « SYNCHRO OUTPUT » : Synchronization Output
+ HV IN 10kV MAX GND STAR
  • HV
GENER INPUT SYNCHRO OUTPUT COM PC RS 232 230V – 50/60Hz HV NORM PULSES OUT HV DIFF PULSES OUT COM HVPS RS 232 COM HVPS ANALOG SWITCH DISABLE / FAULT EMERGENCY STOP EMERGENCY STOP

NANOGEN 1

ON OFF POWER ON SWITCH ENABLE

Smart HV Pulses Generator

slide-5
SLIDE 5

Technical Presentation | RLC, CLERMONT-FERRAND NanoGen 1 : Smart HV Pulses Generator (V2.1)

5

II.5. Global Wiring

HV Supply NanoGen 1 Computer Faraday Cage HV IN GND GND PULSES OUT POWER RETURN RS232 ANALOG COM WARNING ! POWER RETURN must be connected to GND STAR

slide-6
SLIDE 6

Technical Presentation | RLC, CLERMONT-FERRAND NanoGen 1 : Smart HV Pulses Generator (V2.1)

6

  • III. CPU Board

The CPU Board:

  • manages the RS232 communication with the PC
  • controls the external HV Power supply
  • generates the PWM or BURST signal to control the HV Power Switch

220V PC RS232 HVPS Management

RS232 Driver

HVPS INTERFACE

Front Panel Control Rear Panel EXT Control

EXT GENERATOR Power Supply Management

Control Unit Processor

Microcontroller 5V Pulses Output Signal

FRONT PANEL Control Voltage Adaptation Interface

Programming Voltage Output Enable Control Voltage Monitoring

SYNCHRO

Rear Panel Synchro Generation

Adaptation Interface Analog Isolation Analog Isolation HV Power Supply INTERFACE Enable HV Supply Monitor Voltage Numeric Isolation

slide-7
SLIDE 7

Technical Presentation | RLC, CLERMONT-FERRAND NanoGen 1 : Smart HV Pulses Generator (V2.1)

7

  • IV. HV Power Switch Board

The HV Power Swicth Board is based on the BELHKE fast high voltage transistor switch HTS 11-06-GSM.

HV Swicth Supply 15 VDC and 280VDC Current Limiter

5V Pulses Input Signal

HV PULSES OUT Current Limiter Switch Driver + HV Suplly Input Power Management

High-Speed HV Switch

Front Panel Interface

SWITCH DISABLE / FAULT SWITCH ENABLE
slide-8
SLIDE 8

Technical Presentation | RLC, CLERMONT-FERRAND NanoGen 1 : Smart HV Pulses Generator (V2.1)

8

  • V. Oscillograms

V.1. Differential Principle

slide-9
SLIDE 9

Technical Presentation | RLC, CLERMONT-FERRAND NanoGen 1 : Smart HV Pulses Generator (V2.1)

9

  • VI. NanoGen 1 HMI

The NanoGen 1 is controlled by a « Human-Machine Interface », developed by RLC, that can be installed on any PC or on a laptop. The NanoGen 1 HMI controls :

  • The external HV Power Supply

Output Voltage / ON / OFF

  • The PWM or BURST Output Pulses parameters

Pulse Frequency / Pulse duration… RS232 Interface Control the NanoGen 1 with the HMI NanoGen 1

slide-10
SLIDE 10

Technical Presentation | RLC, CLERMONT-FERRAND NanoGen 1 : Smart HV Pulses Generator (V2.1)

10

  • VII. Maximum Power Limitation (Update V2.1)

For each curve below, the blue line represents the maximum power limitation. The safety area is under this

  • line. Thanks to the new software V2.1, the user can not go beyond the maximum power limits.

20000 40000 60000 80000 100000 120000 5000 6000 7000 8000 9000 10000 Maximum Frequency (Hz) Voltage (V)

No load Caracteristics

RS (no load) BEHLKE (no load)

slide-11
SLIDE 11

Technical Presentation | RLC, CLERMONT-FERRAND NanoGen 1 : Smart HV Pulses Generator (V2.1)

11 20000 40000 60000 80000 100000 120000 6000 7000 8000 9000 10000 Maximum Frequency (Hz) Current (A)

NORM PULSE OUT - Resistive Load - Duty Cycle = 1%

RS BEHLKE 20000 40000 60000 80000 100000 120000 5000 6000 7000 8000 9000 10000 Maximum Frequency (Hz) Voltage (V)

DIFF PULSE OUT - 100pF Load

BEHLKE RS
